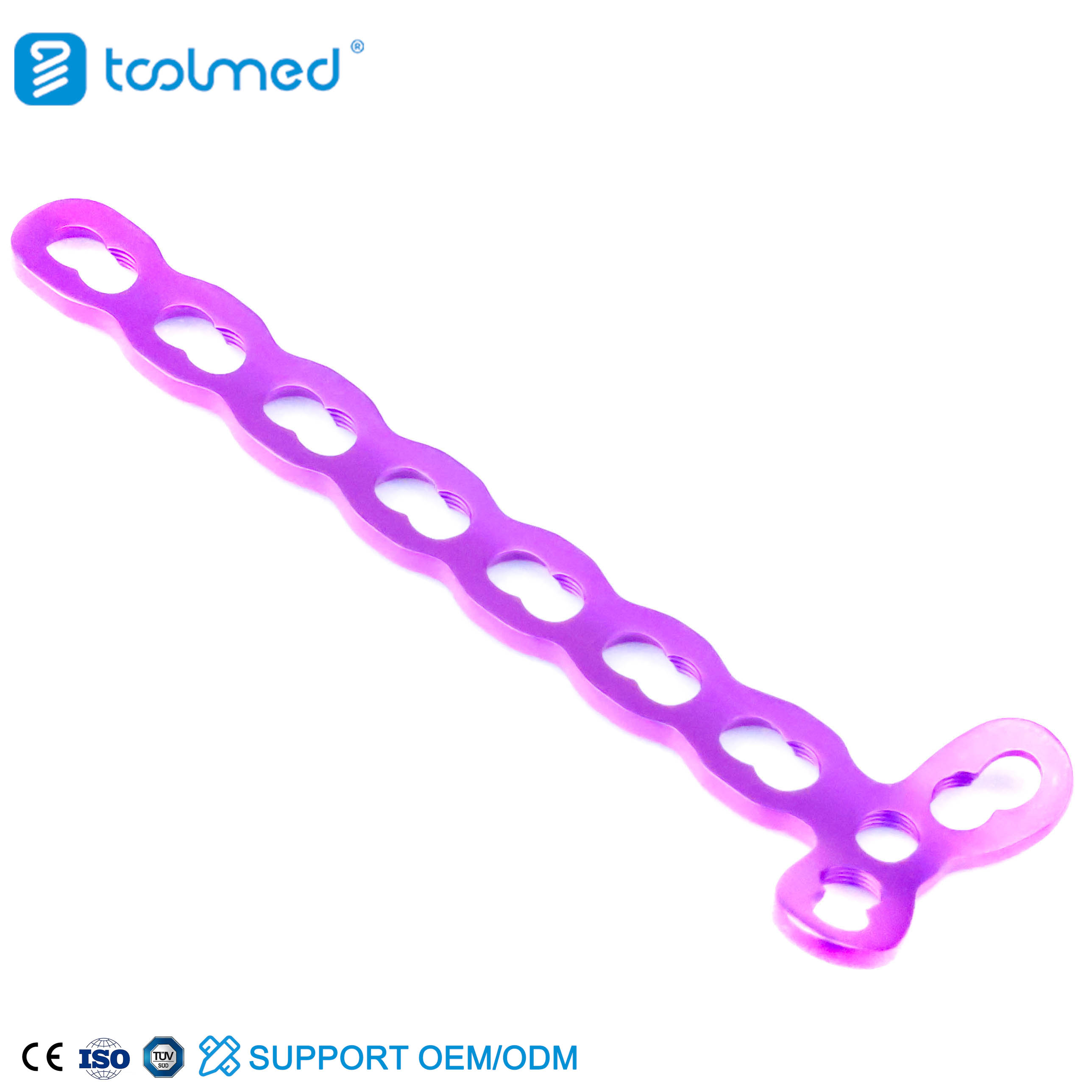

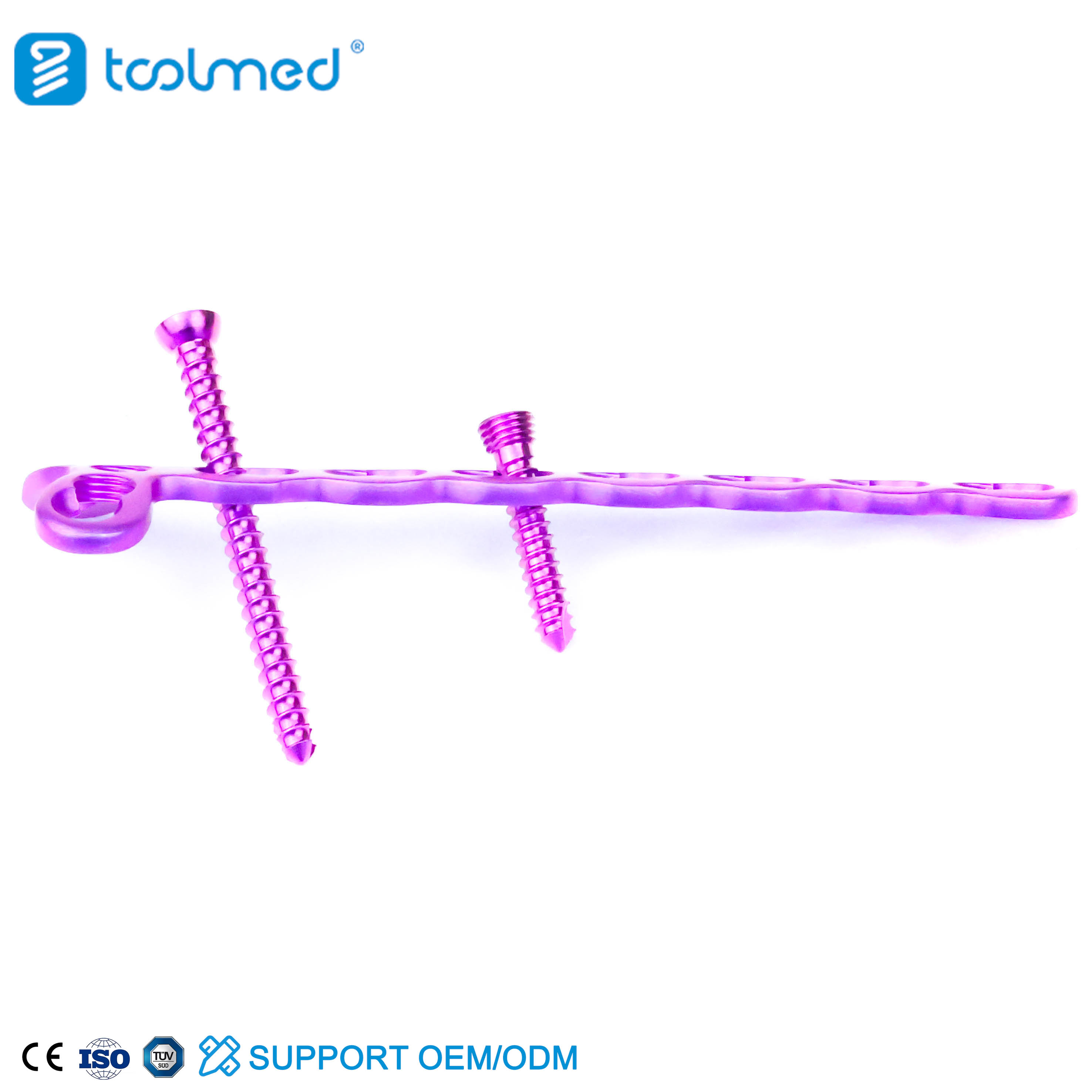

2.4S Mini Y-Type Locking Plate
TOOLMED
TA3
1 Pcs
5-15 Days
3/5/7 Holes
Product Description

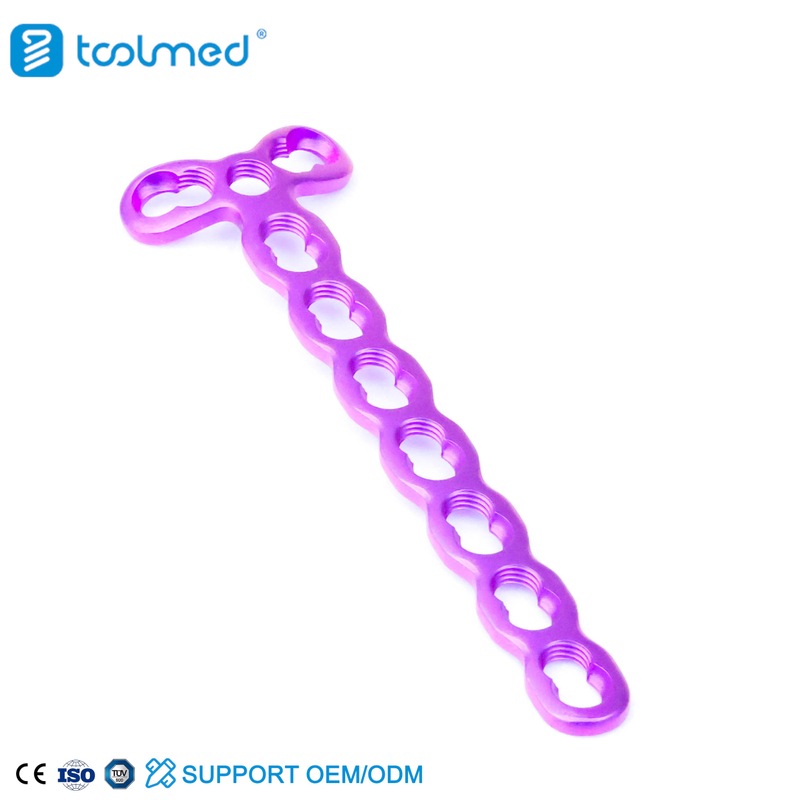

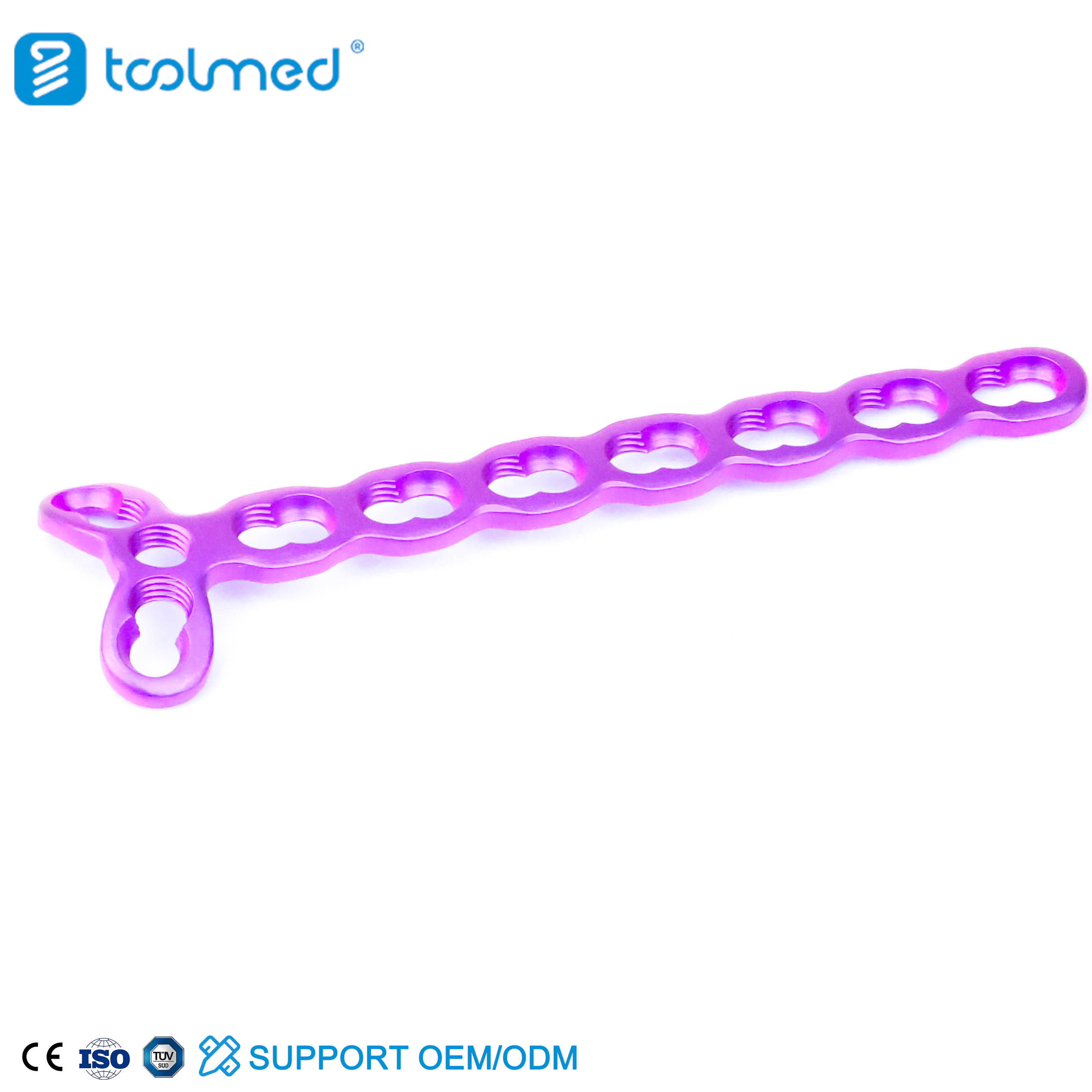

The 2.4S Mini Y-type Locking Plate features a Y-shaped head structure that allows multi-directional screw placement in small periarticular fragments. This design is ideal for fractures near joints where fragment capture and rotational control are critical.
Compared with standard straight plates, the Y-type head offers a broader fixation area, helping stabilize split or multi-fragment distal bone segments.
Its slim and smooth low-profile design helps minimize soft tissue irritation, tendon impingement, and postoperative discomfort while maintaining strong mechanical support.

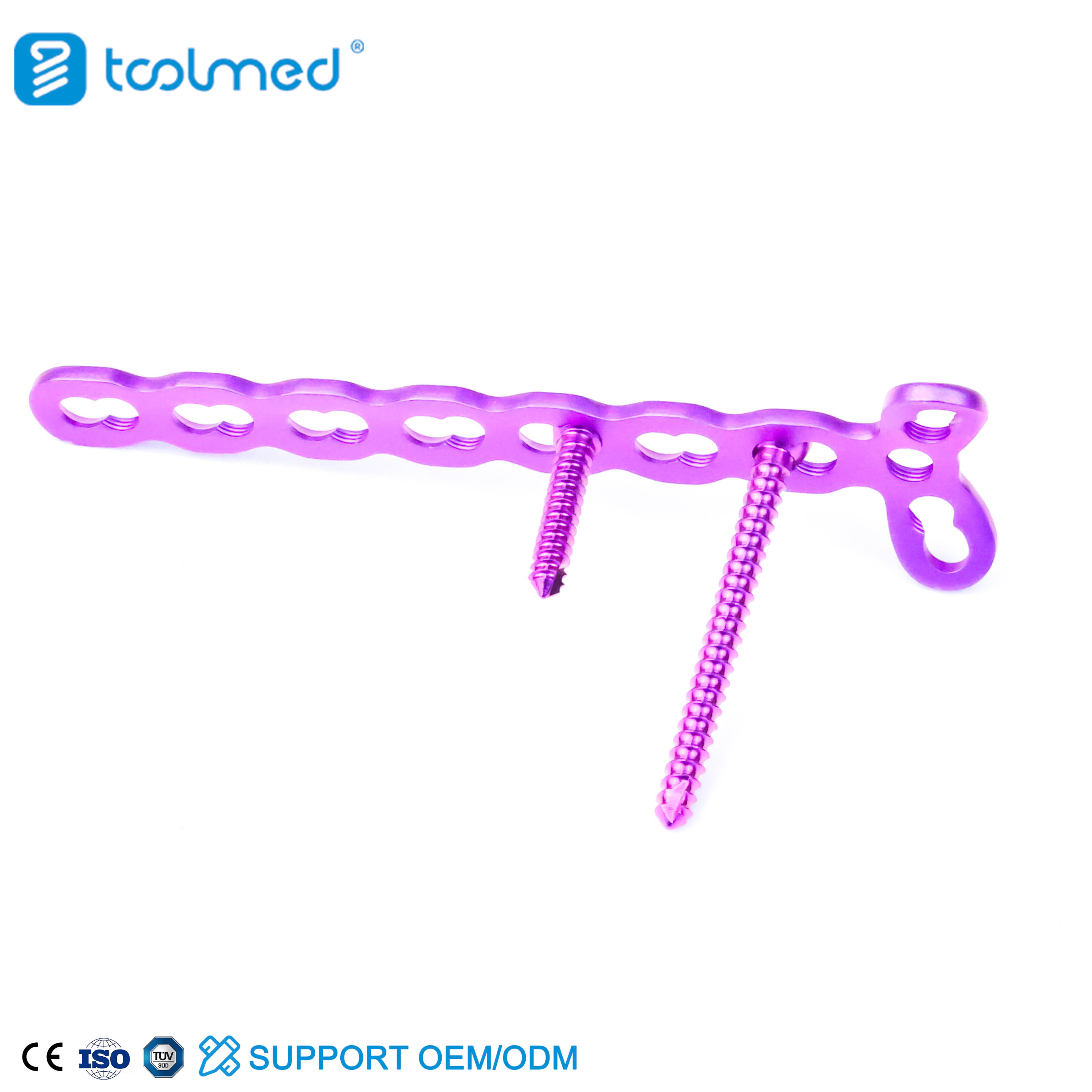

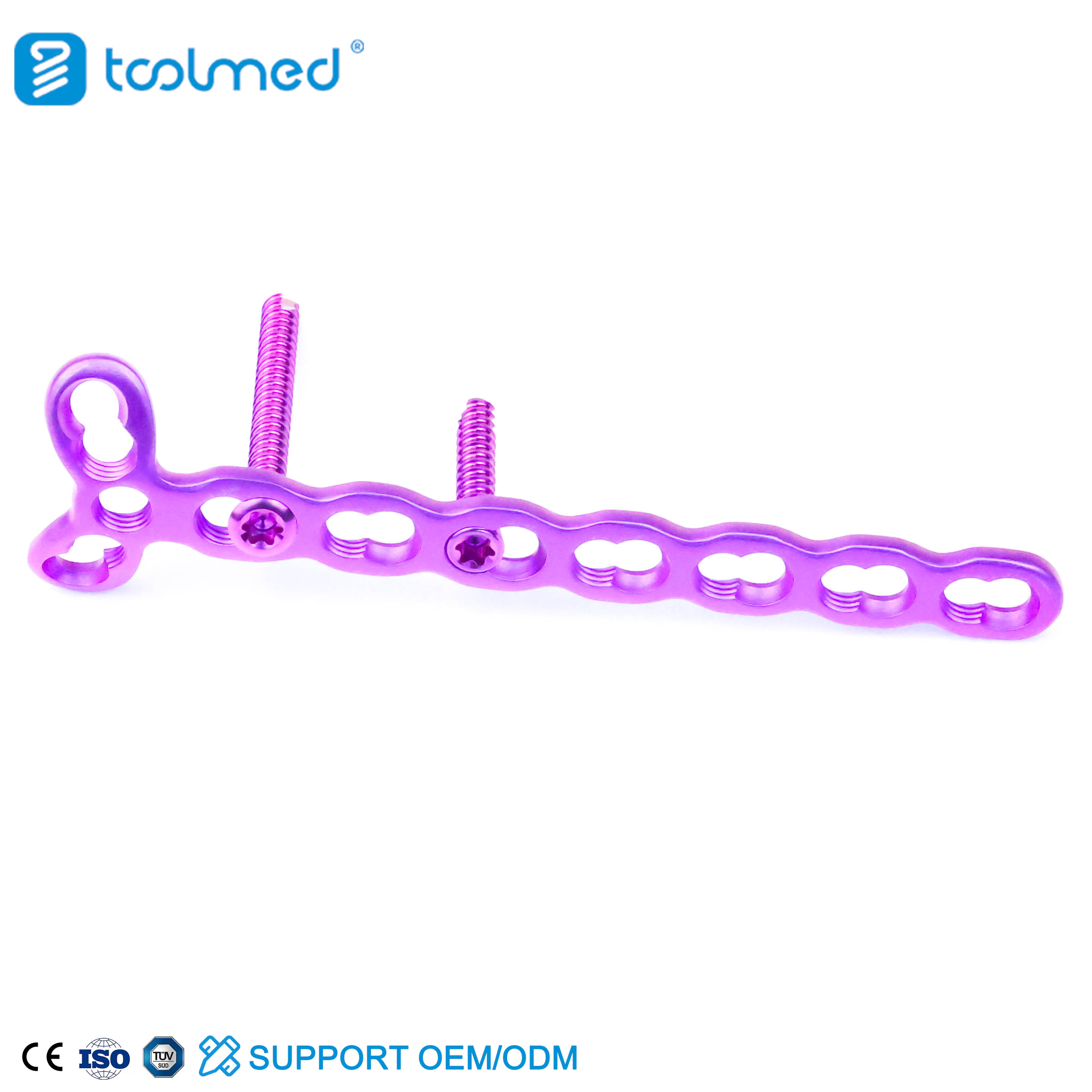

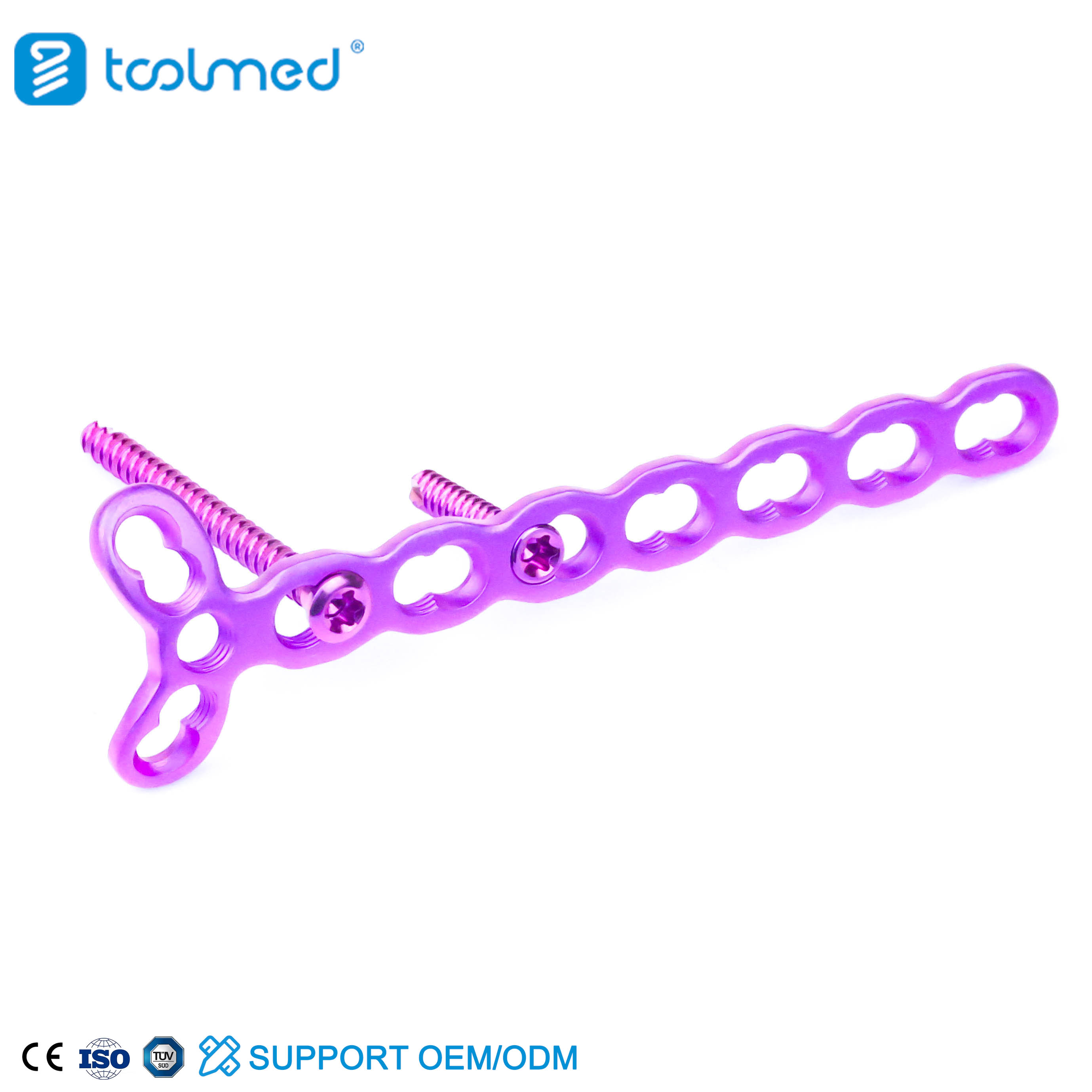

Threaded locking holes allow screws to lock securely into the plate, forming a fixed-angle construct that improves stability in osteoporotic bone and comminuted fractures.

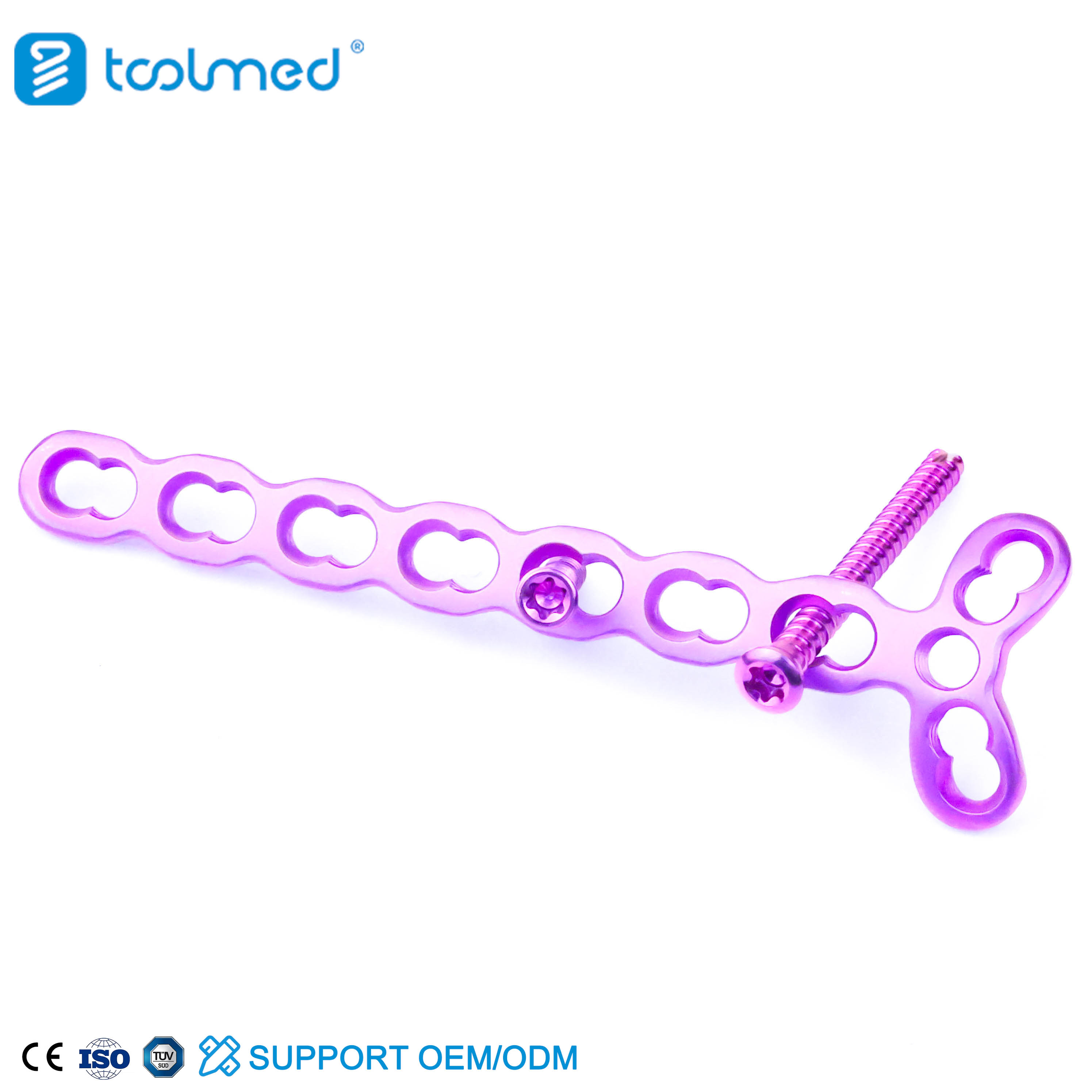

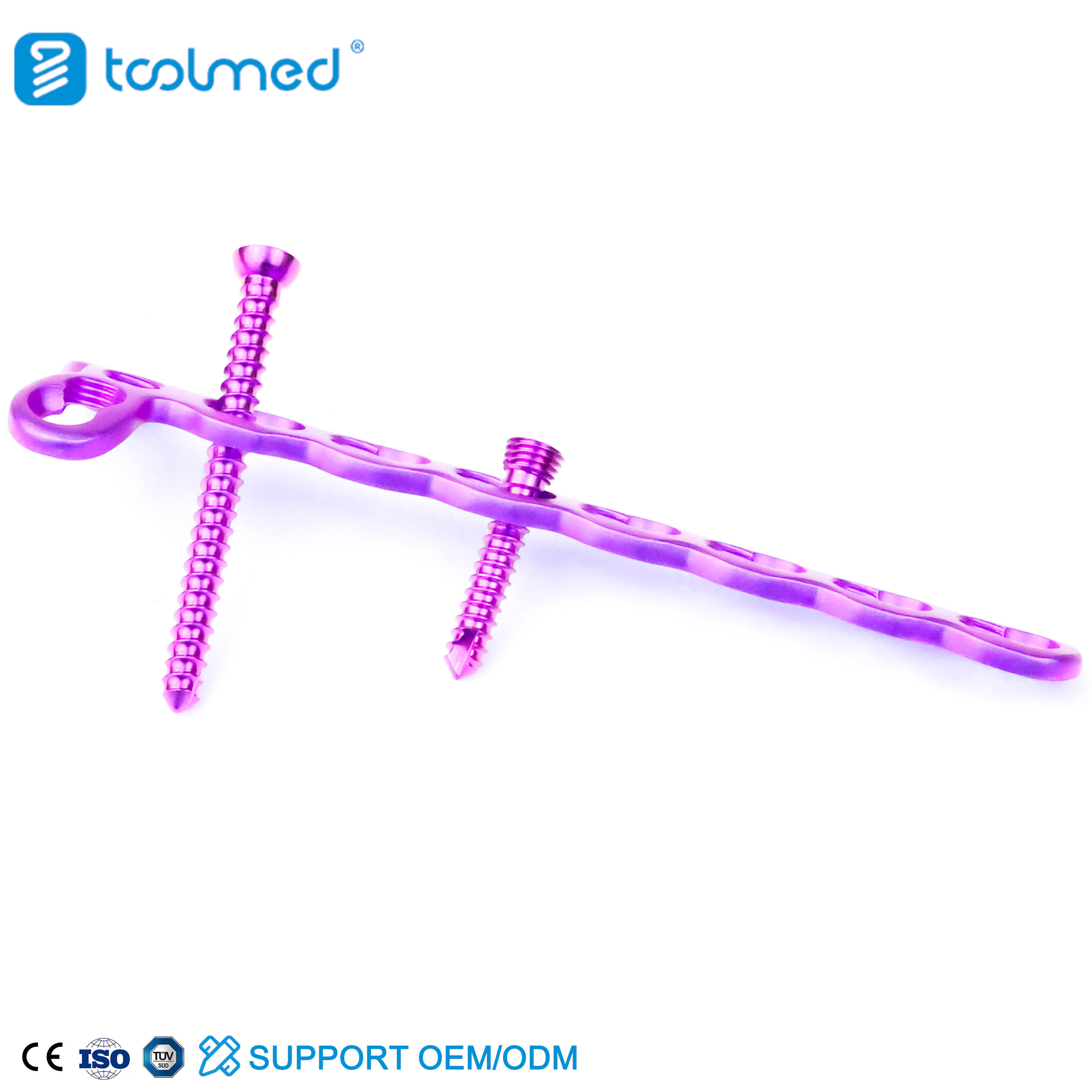

The plate supports both locking screws and conventional cortical screws, enabling surgeons to combine compression and angular stability according to fracture needs.
Manufactured from medical-grade titanium alloy or stainless steel, the plate provides excellent corrosion resistance, durability, and long-term clinical reliability.
Suitable for selected distal radius, styloid, and complex periarticular wrist fractures.
Used in metacarpal and phalangeal trauma requiring distal fragment fixation.
Applicable for metatarsal, toe, and selected forefoot reconstructive procedures.
Ideal for fractures near small joints where wider distal fixation is required.
Used in planned realignment procedures and small bone reconstruction surgeries.
| P/N | Product Series | Size | Material | Sterile | Unit |
| 3304-2001 | 2.4S Mini Y Locking Plate(Thickness:1.5mm,Width:6.5mm） | 3 Holes | TA3 | N | EA |
| 3304-2002 | 5 Holes | TA3 | N | EA | |
| 3304-2003 | 7 Holes | TA3 | N | EA |
The 2.4S Mini Y-type Locking Plate is a small fragment fixation implant designed for fractures involving periarticular or metaphyseal regions. Its Y-shaped head allows multiple screw trajectories to secure small distal fragments while maintaining stable shaft fixation.
This plate is commonly used in hand, wrist, foot, and other small bone trauma cases where distal fragment fixation is limited. It is especially useful in fractures requiring wider screw spread and enhanced rotational control.
The main advantages include broader distal fixation, fixed-angle stability, and a low-profile design. The Y-head configuration helps distribute forces across multiple screws and supports fragment stability in complex fracture patterns.
Locking screws thread into the plate to create a fixed-angle construct, reducing toggle and screw loosening. The Y-type head increases screw spread, which can improve resistance to rotational and bending forces in distal fragments.
After fracture reduction, the surgeon positions the Y-head over the distal fragment and secures provisional fixation. Distal locking screws are inserted first to capture the fragment, followed by shaft screws for final construct stability.
Stable fixation may permit earlier controlled motion depending on fracture type and surgeon protocol. Regular radiographic follow-up is recommended to monitor healing and implant position.
The 2.4S Mini Y-type Locking Plate is a reliable solution for surgeons managing small bone and periarticular fractures. With its expanded Y-head fixation design, locking technology, and low-profile construction, it delivers precise and dependable support for modern fracture treatment.
It is mainly used for fractures near joints or in small distal bone segments where wider screw distribution is beneficial.
Common applications include distal radius, metacarpals, phalanges, metatarsals, and other small bones.
The Y-head allows broader distal fixation coverage and multiple screw angles for better fragment control.
Yes. It is designed for 2.4 mm locking screws and may also accept cortical screws depending on system design.
Yes. The implant is designed to reduce soft tissue irritation while maintaining mechanical strength.
Many manufacturers offer titanium alloy and stainless steel versions depending on product configuration.
