Product Description

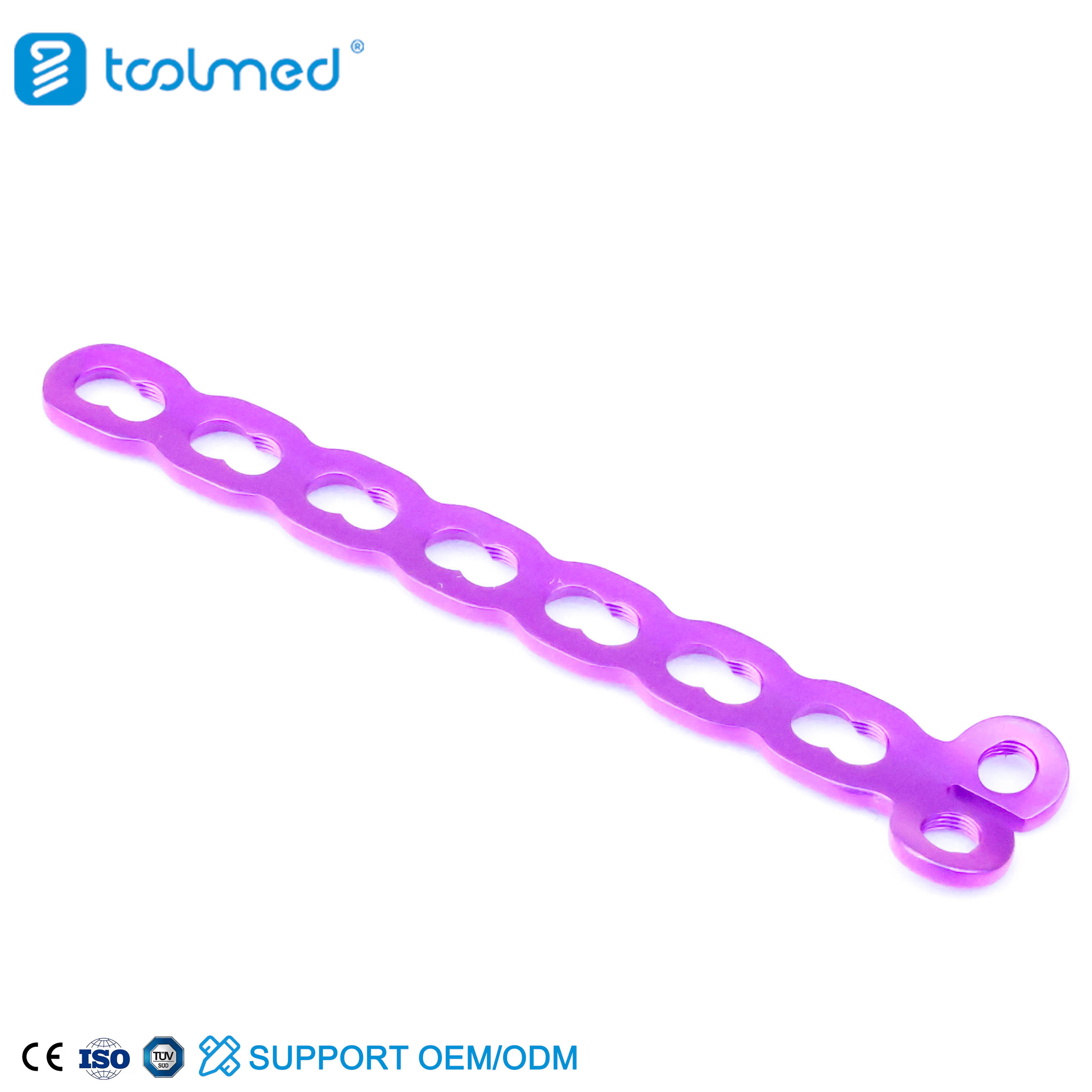

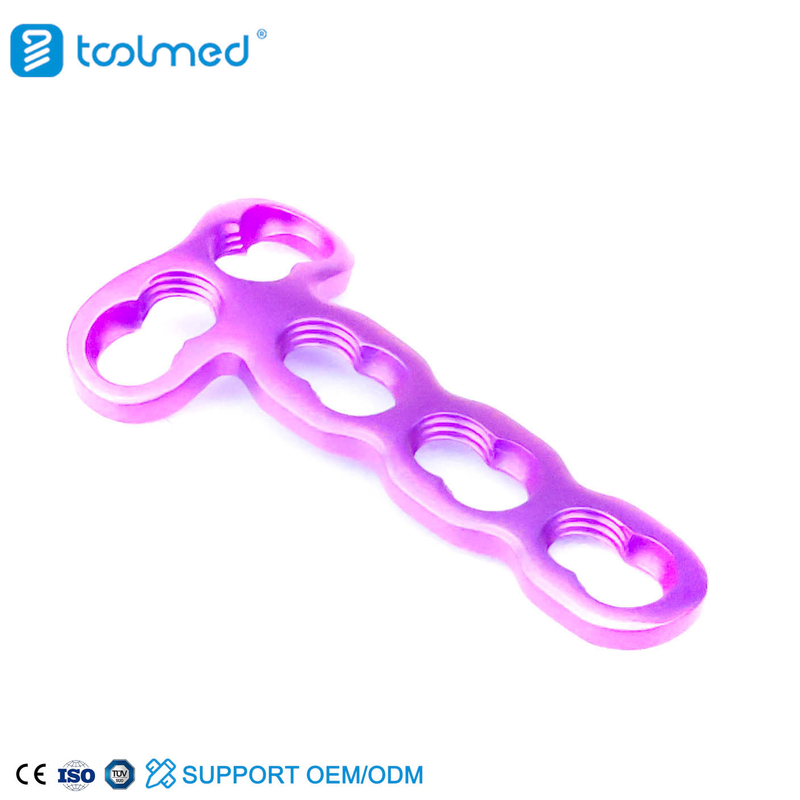

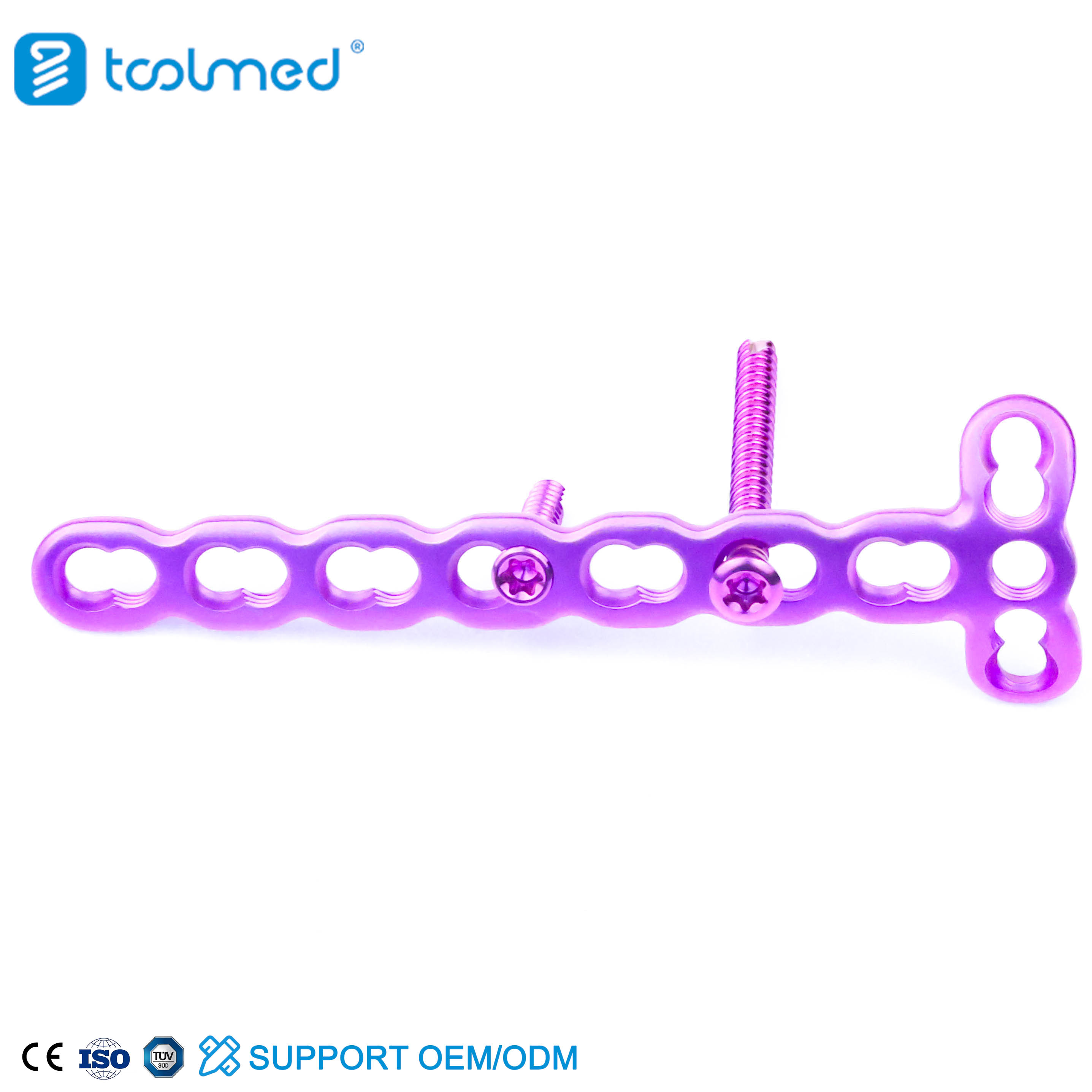

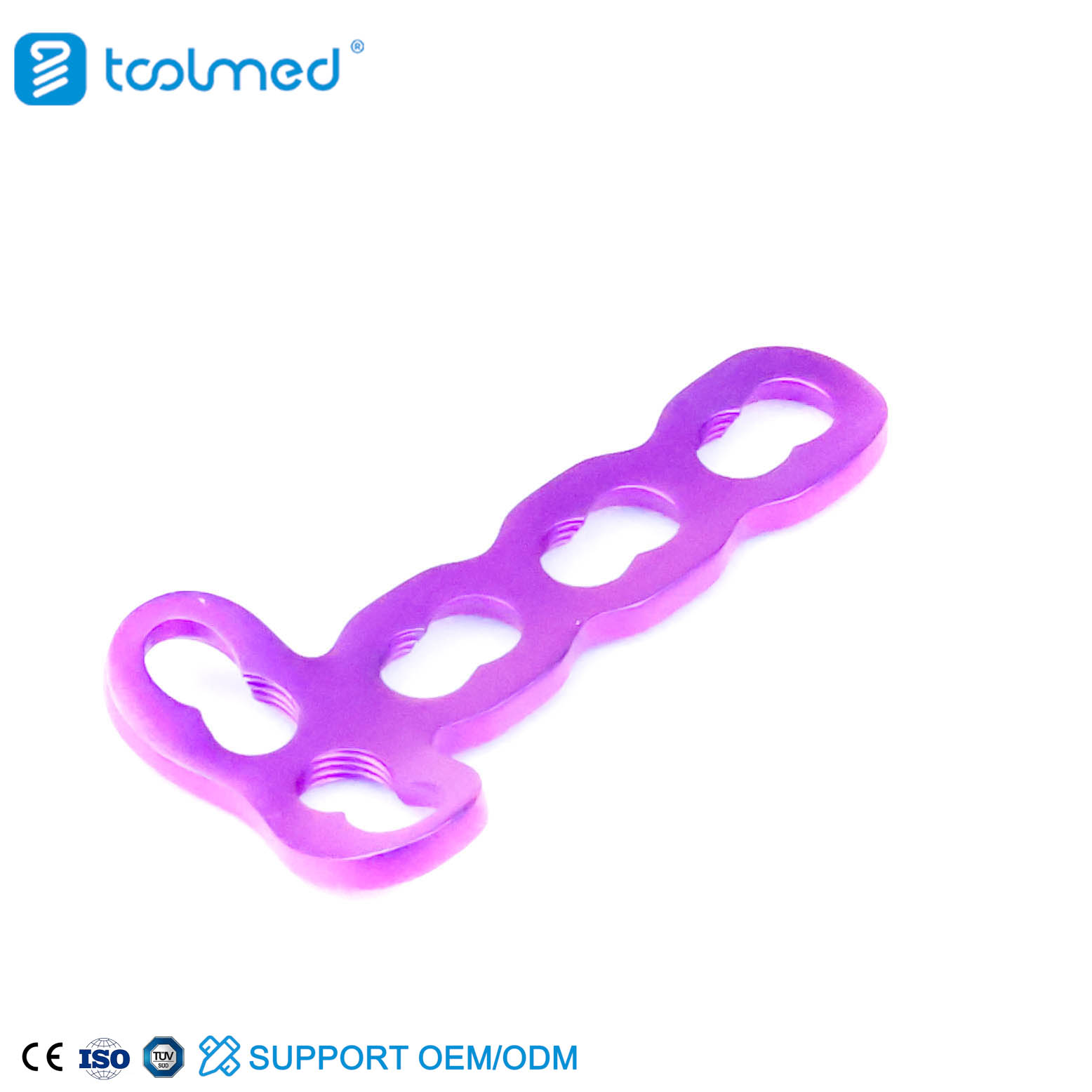

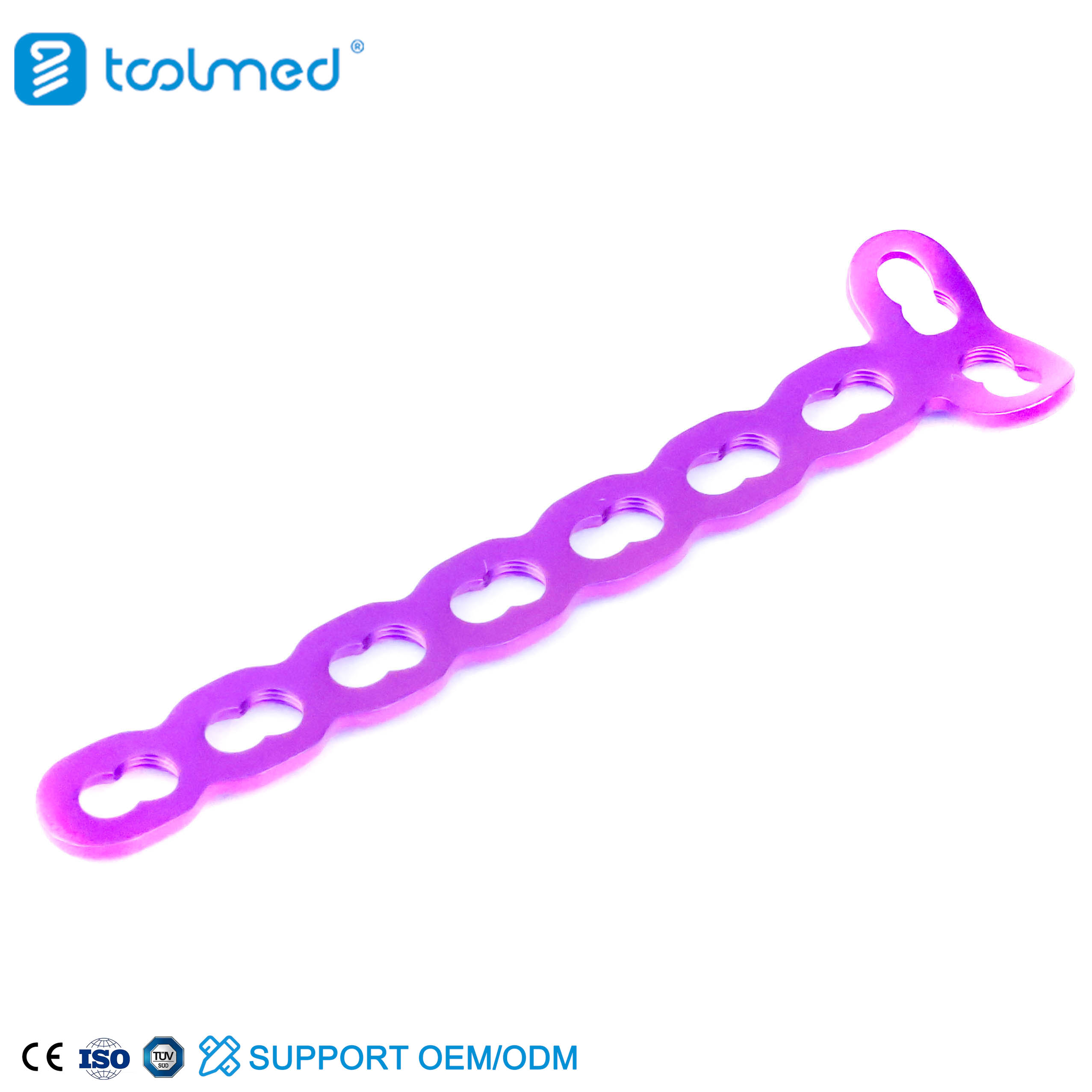

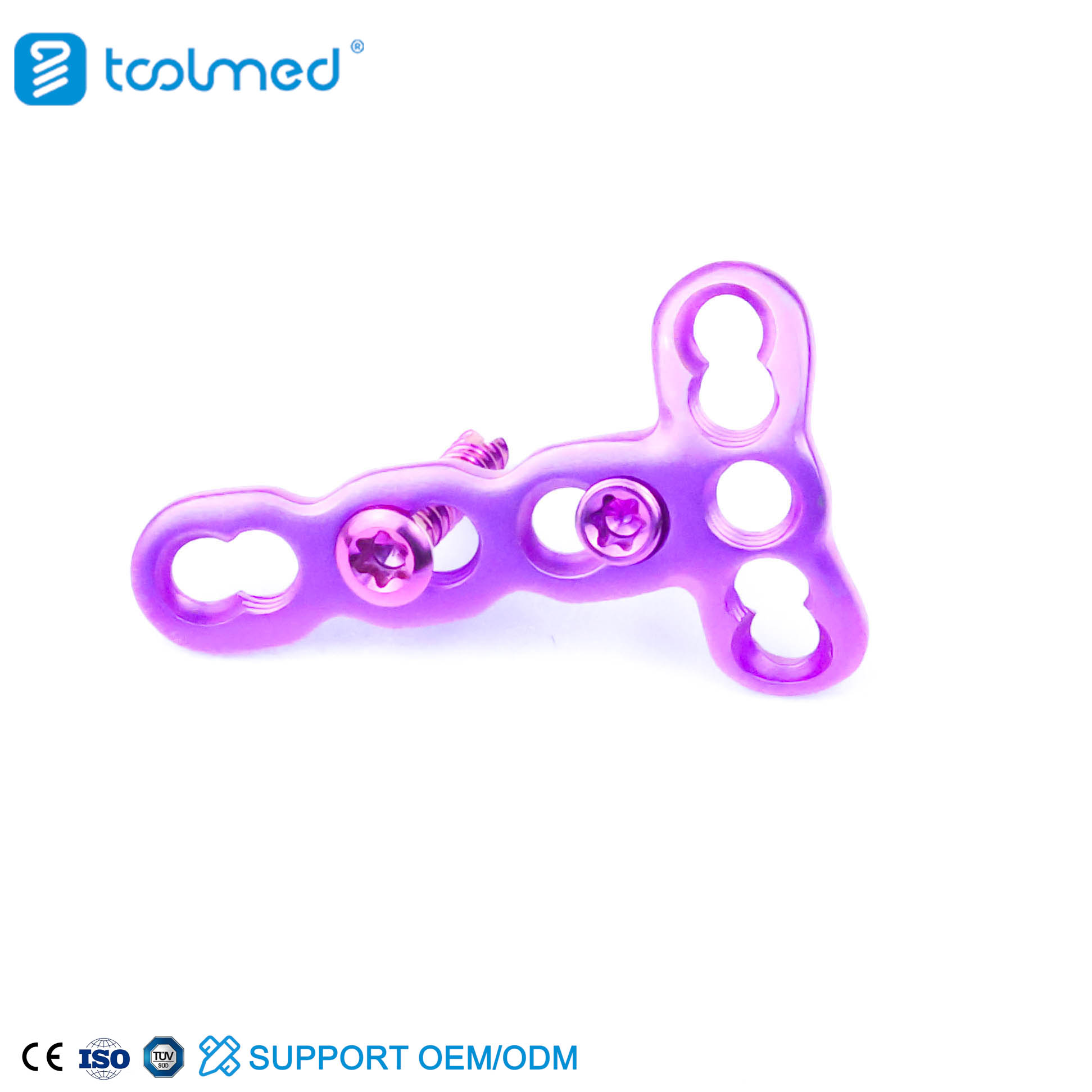

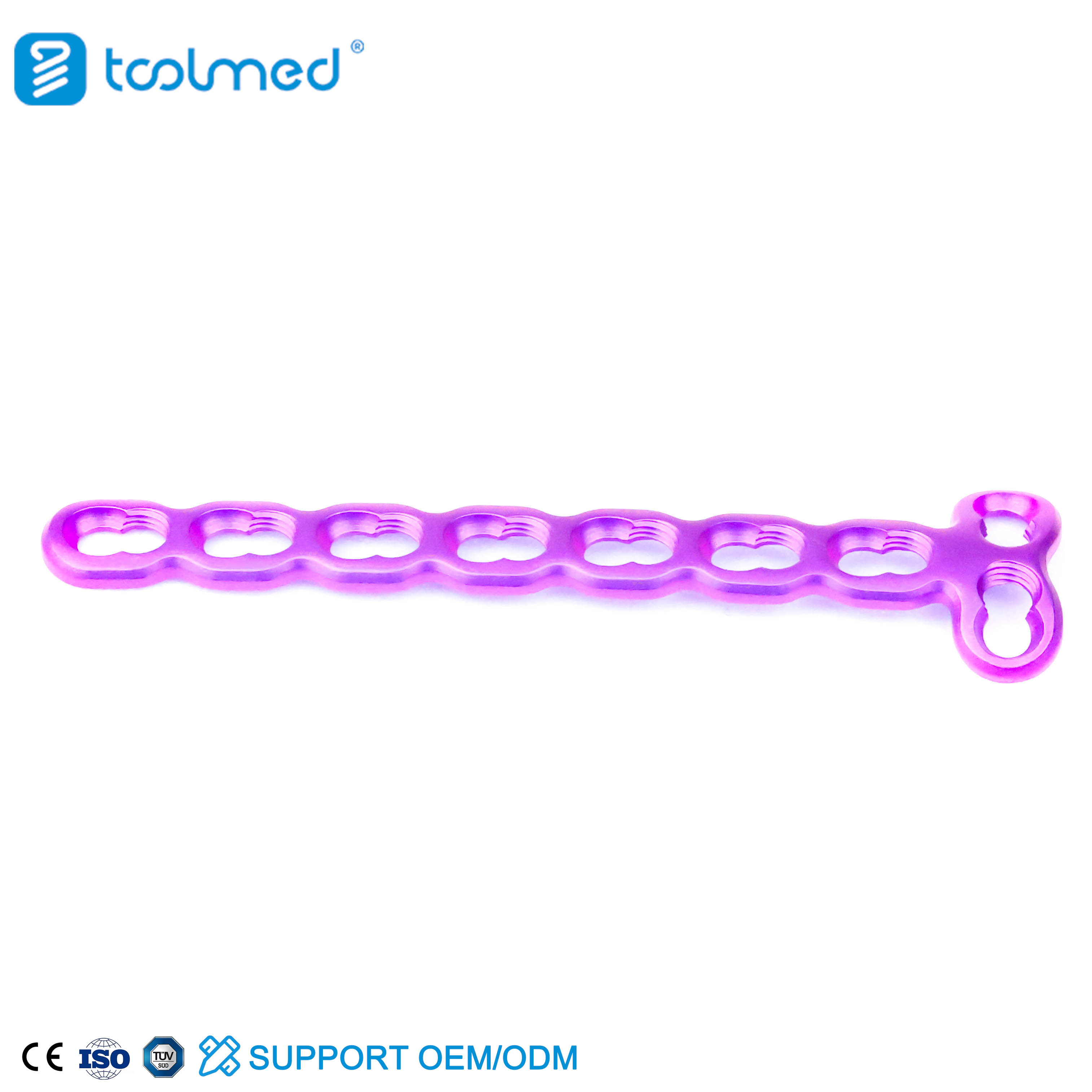

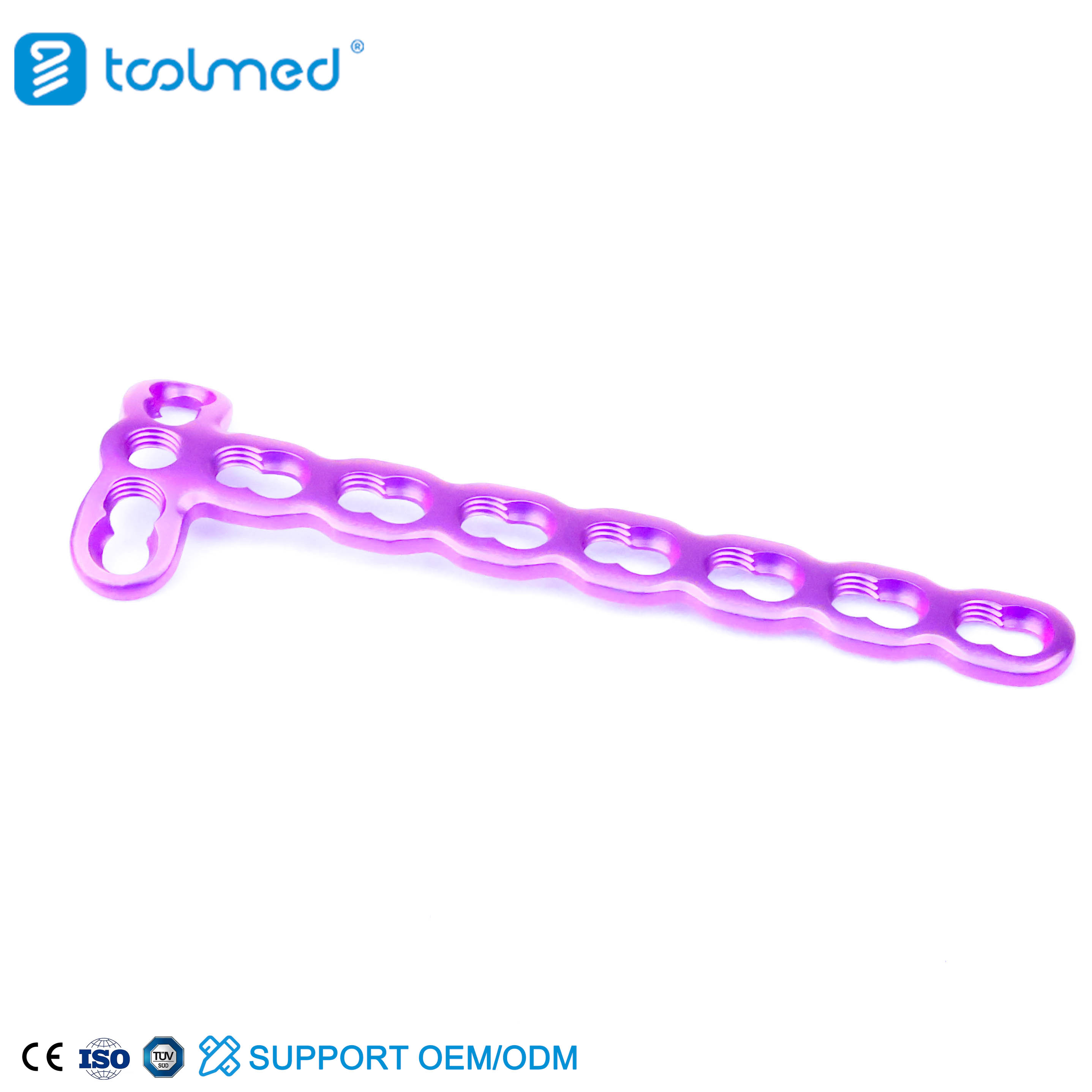

The 2.4S Mini T-type Locking Plate features a T-shaped head design that provides expanded fixation coverage in periarticular and metaphyseal regions, making it ideal for small bone fractures near joints.
Its slim and smooth low-profile profile helps reduce soft tissue irritation, tendon friction, and postoperative discomfort while maintaining reliable mechanical strength.

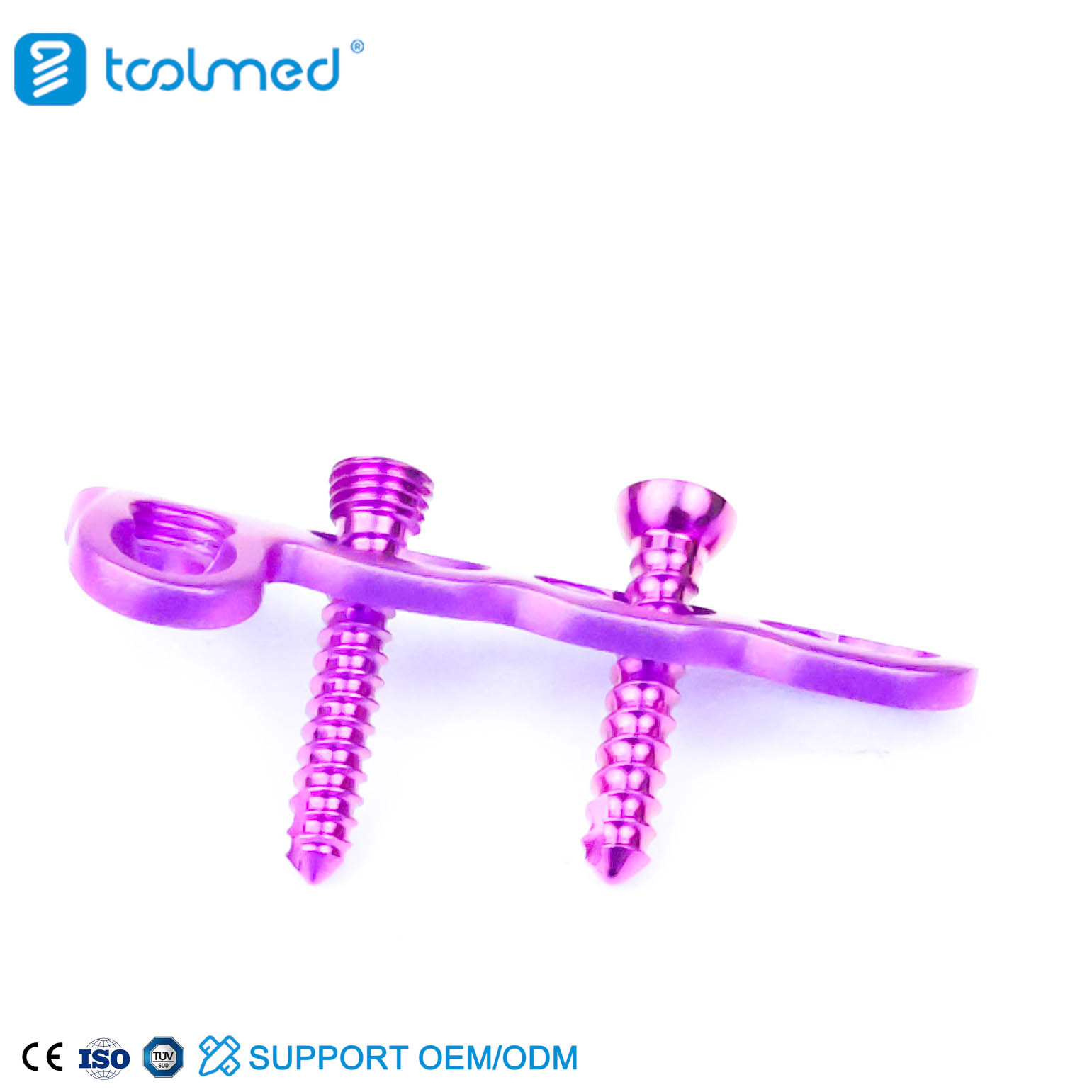

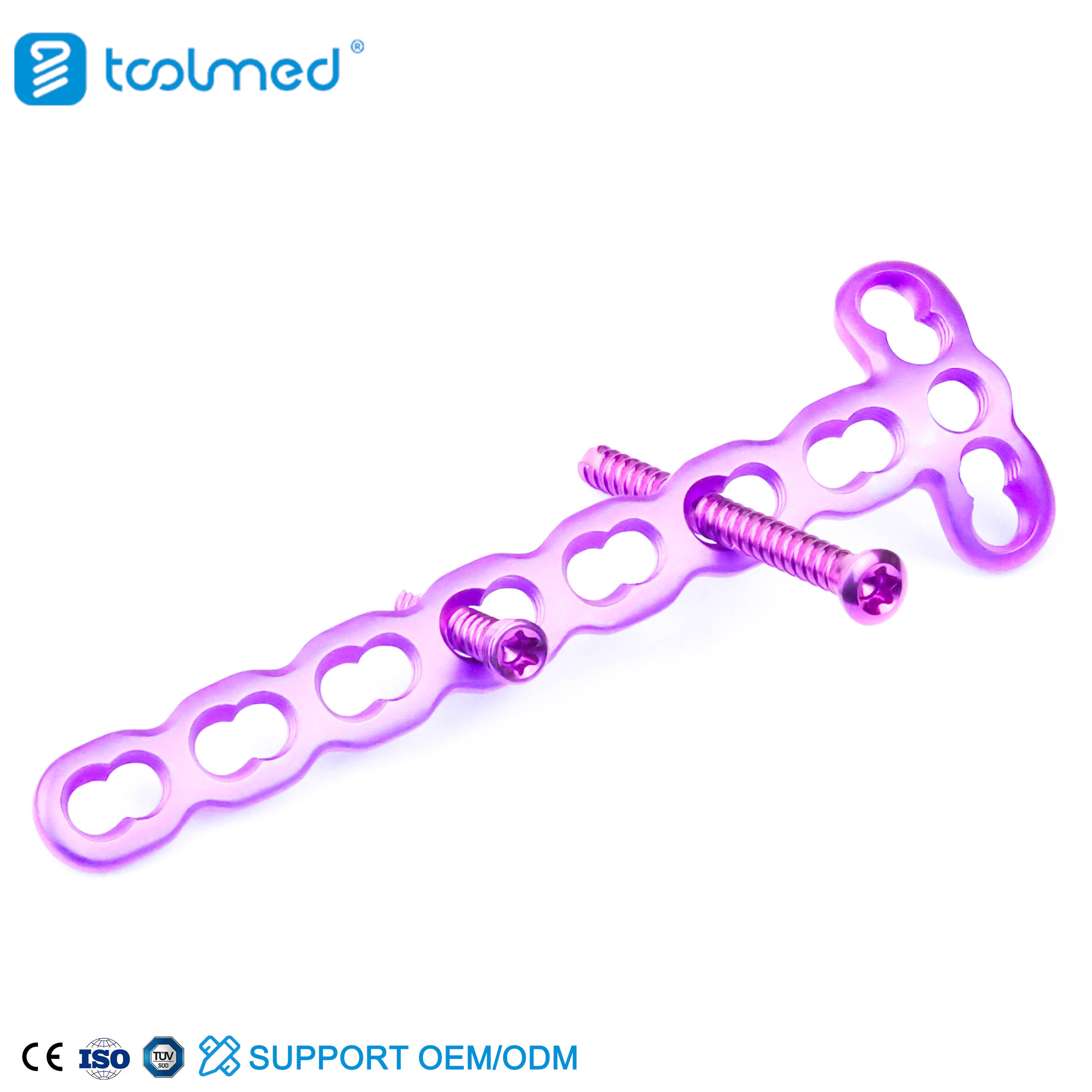

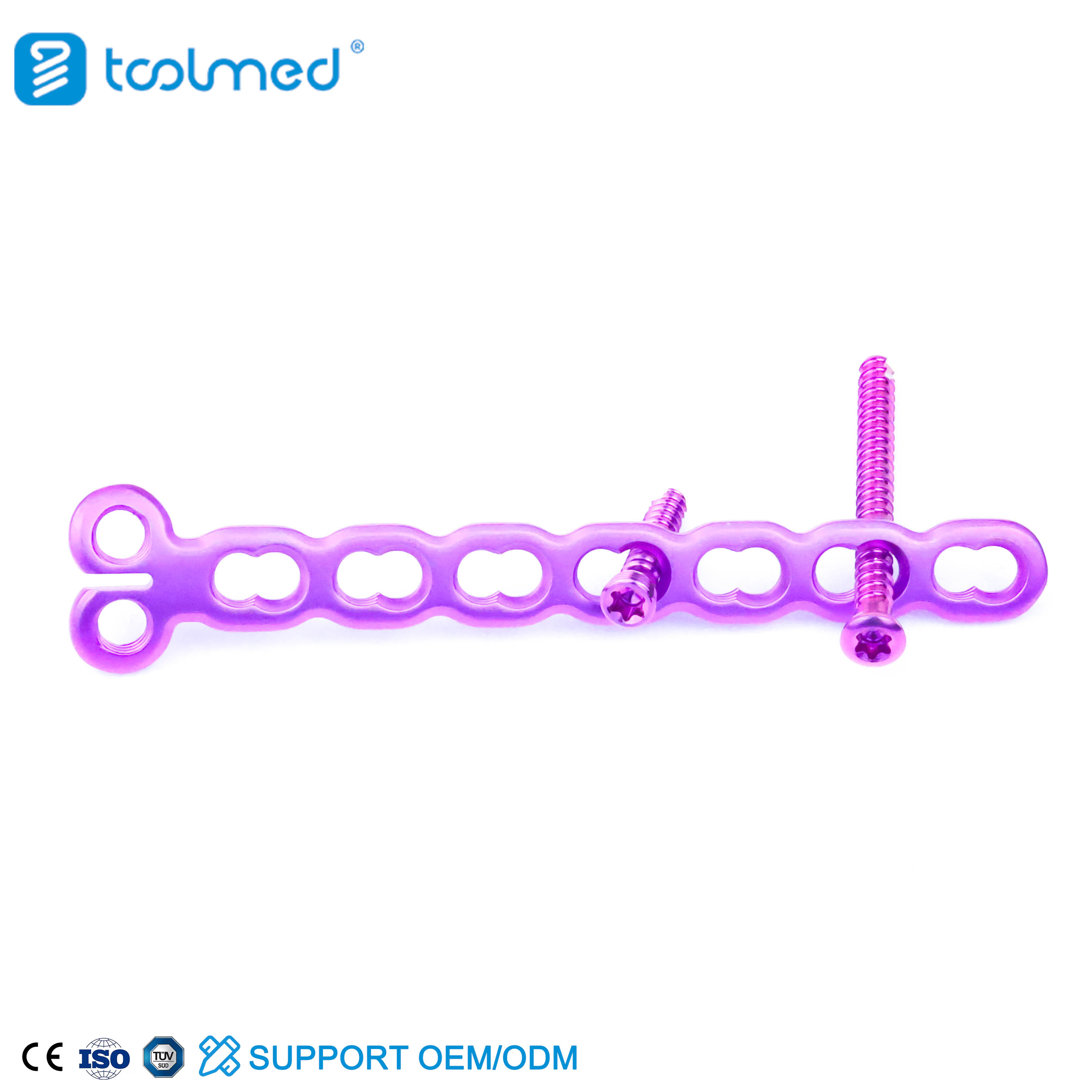

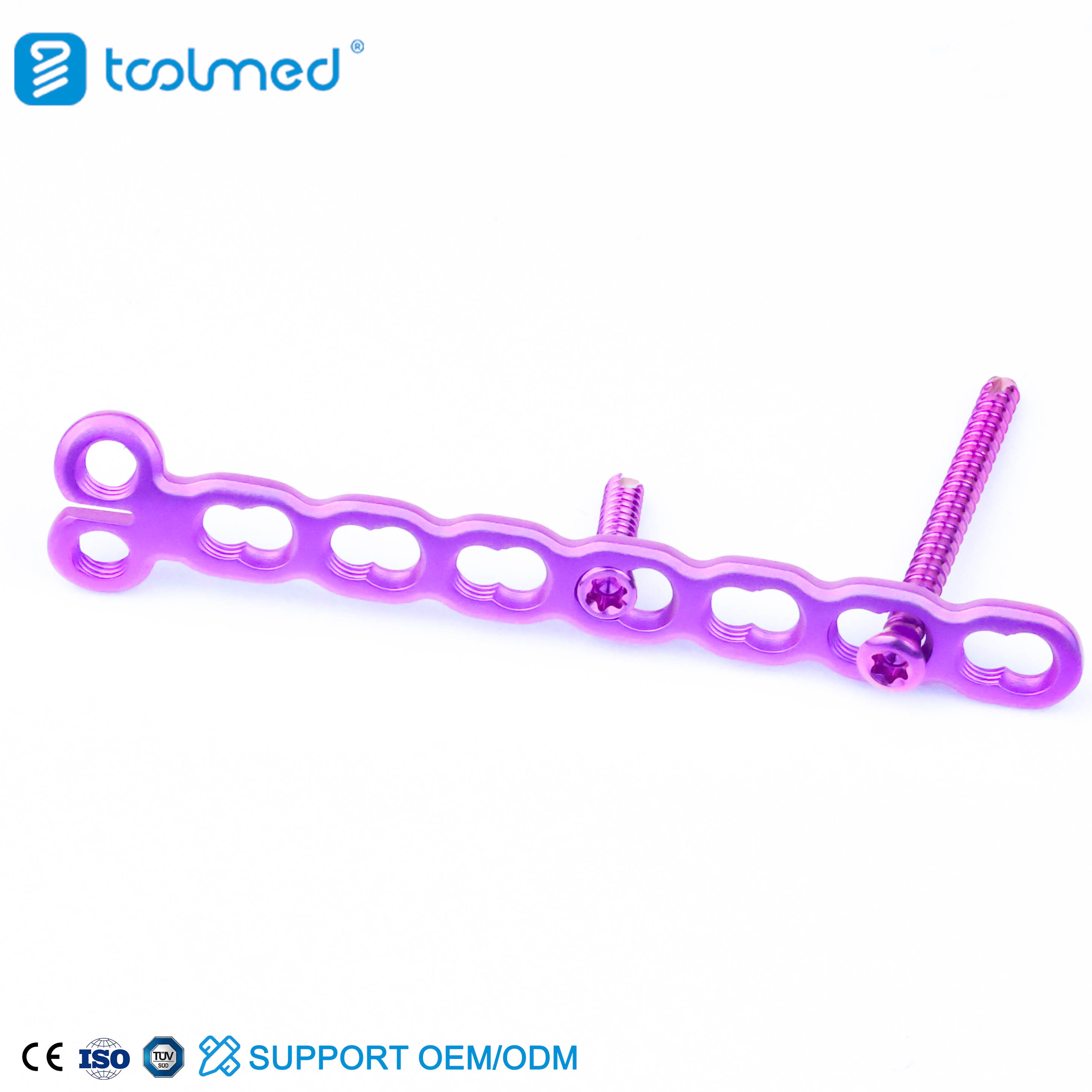

Threaded locking holes allow screws to lock firmly into the plate, creating a fixed-angle construct that enhances stability in osteoporotic, comminuted, or small fragment fractures.
The plate supports both locking screws and conventional cortical screws, allowing surgeons to combine compression and angular stability based on fracture pattern.
As part of the 2.4 mm mini fragment system, this plate is optimized for precise fixation in delicate anatomical regions requiring accurate reduction.
Manufactured from medical-grade titanium alloy or stainless steel, the implant offers corrosion resistance, biocompatibility, and long-term durability.
Suitable for selected distal radius, radial styloid, and periarticular wrist fracture fixation.
Used for hand trauma requiring stable fixation in small bones.
Applicable for metatarsal, phalangeal, and forefoot reconstruction procedures.
Ideal for fractures near joints where multiple distal screws are required.
Used in small bone realignment and reconstructive surgeries.
| P/N | Product Series | Size | Material | Sterile | Unit |
| 3304-1901 | 2.4S Mini T Locking Plate(Thickness:1.5mm,Width:6.5mm） | 3 Holes | TA3 | N | EA |
| 3304-1902 | 5 Holes | TA3 | N | EA | |
| 3304-1903 | 7 Holes | TA3 | N | EA | |
| 3304-2101 | 2.4S Mini T Locking Plate(Thickness:1.5mm,Width:6.5mm） | 3 Holes | TA3 | N | EA |
| 3304-2102 | 5 Holes | TA3 | N | EA | |
| 3304-2103 | 7 Holes | TA3 | N | EA | |
| 3304-2201 | 2.4S Mini T Locking Plate(Thickness:1.5mm,Width:6.5mm） | 3 Holes | TA3 | N | EA |
| 3304-2202 | 5 Holes | TA3 | N | EA | |
| 3304-2203 | 7 Holes | TA3 | N | EA |
The 2.4S Mini T-type Locking Plate is a small fragment internal fixation implant designed for fractures near joint surfaces and metaphyseal regions. Its T-shaped head allows multiple screw options in the distal fragment while maintaining stable shaft fixation.
This plate is commonly used in hand, wrist, foot, and other small bone trauma cases where distal fixation is limited. It is especially effective when surgeons need secure fixation in short bone segments near joints.
The key advantages include enhanced distal fixation, low-profile comfort, and locking stability. The T-head design provides wider screw distribution, helping control rotation and fragment displacement.
Locking screws create a fixed-angle construct by threading into the plate. This converts the plate-screw system into a stable framework that can better resist pullout and angular collapse. The T-head improves load sharing across small periarticular fragments.
After anatomical reduction, the surgeon positions the T-head over the distal fragment and secures provisional fixation. Distal screws are inserted first to capture the small fragment, followed by shaft screws for final stabilization.
Stable fixation may support earlier controlled mobilization depending on fracture type and surgeon protocol. Follow-up imaging is recommended to confirm healing and implant alignment.
The 2.4S Mini T-type Locking Plate is an excellent choice for surgeons managing small bone and periarticular fractures. With its T-head fixation design, locking stability, and low-profile construction, it provides reliable support for precise modern fracture management.
It is mainly used for fractures near joints or in short distal bone segments where multiple distal screws are needed.
Common applications include distal radius, metacarpals, phalanges, metatarsals, and other small bones.
The T-head provides a wider fixation zone and allows more screw placement in small fragments.
Yes. It is designed for 2.4 mm locking screws and may also accept cortical screws depending on the system.
Yes. It is designed to reduce soft tissue irritation while maintaining strength.
Many manufacturers offer titanium alloy and stainless steel options depending on product configuration.
Our factory is equipped with over 60 advanced CNC machines operated by 100+ skilled technicians, a 300 m² GMP-compliant clean room, and a 10,000 m² production facility. We maintain a CNAS and ISO 17025 certified testing center, invest heavily in CNC turning technology, and utilize high-precision inspection systems including CMM, PP, and QV to ensure product quality and consistency.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
