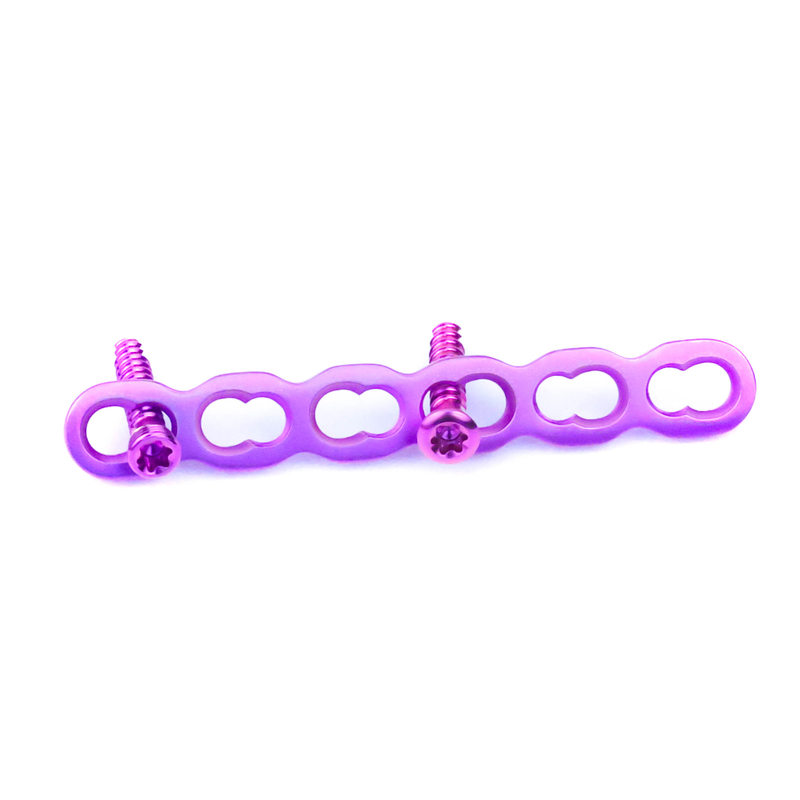

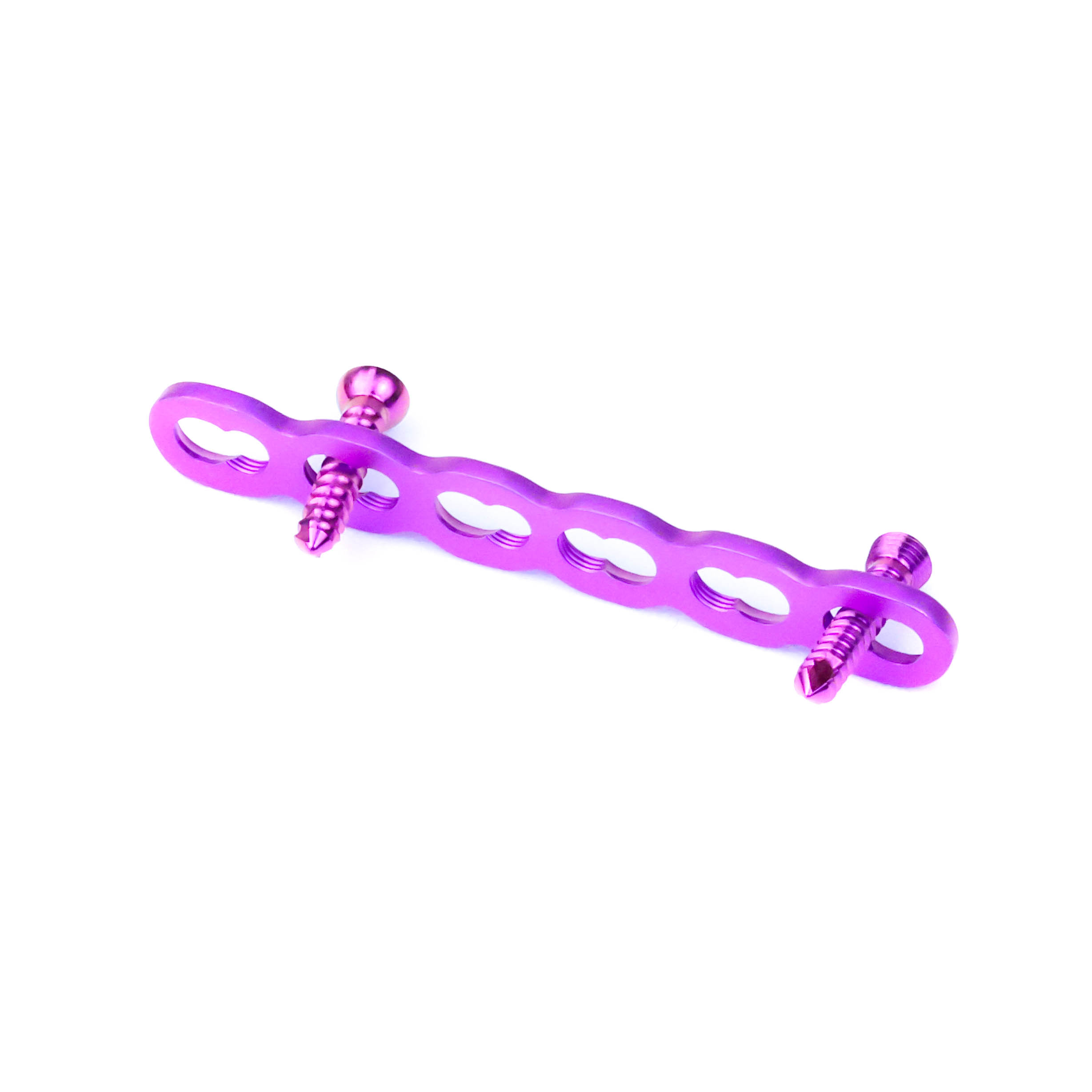

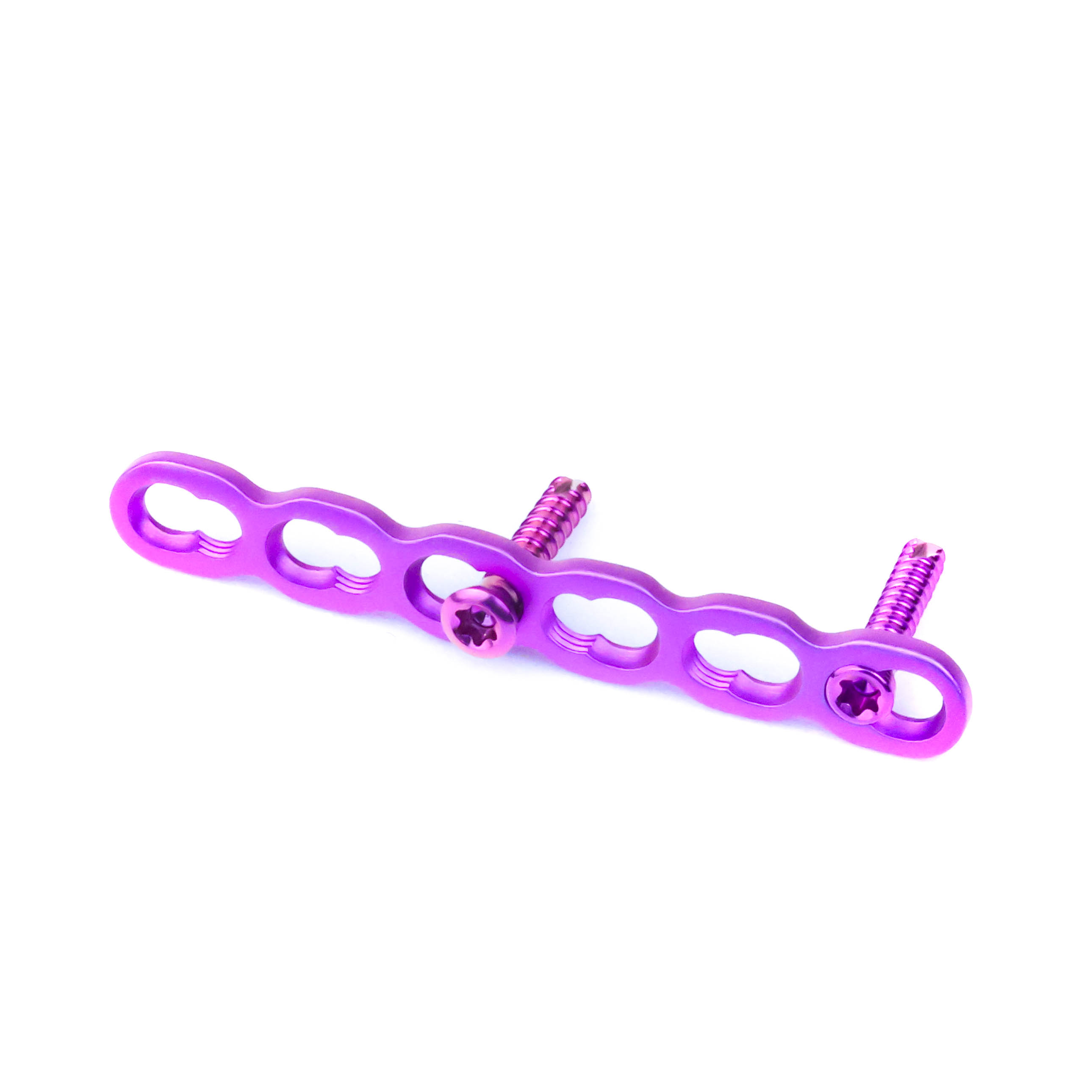

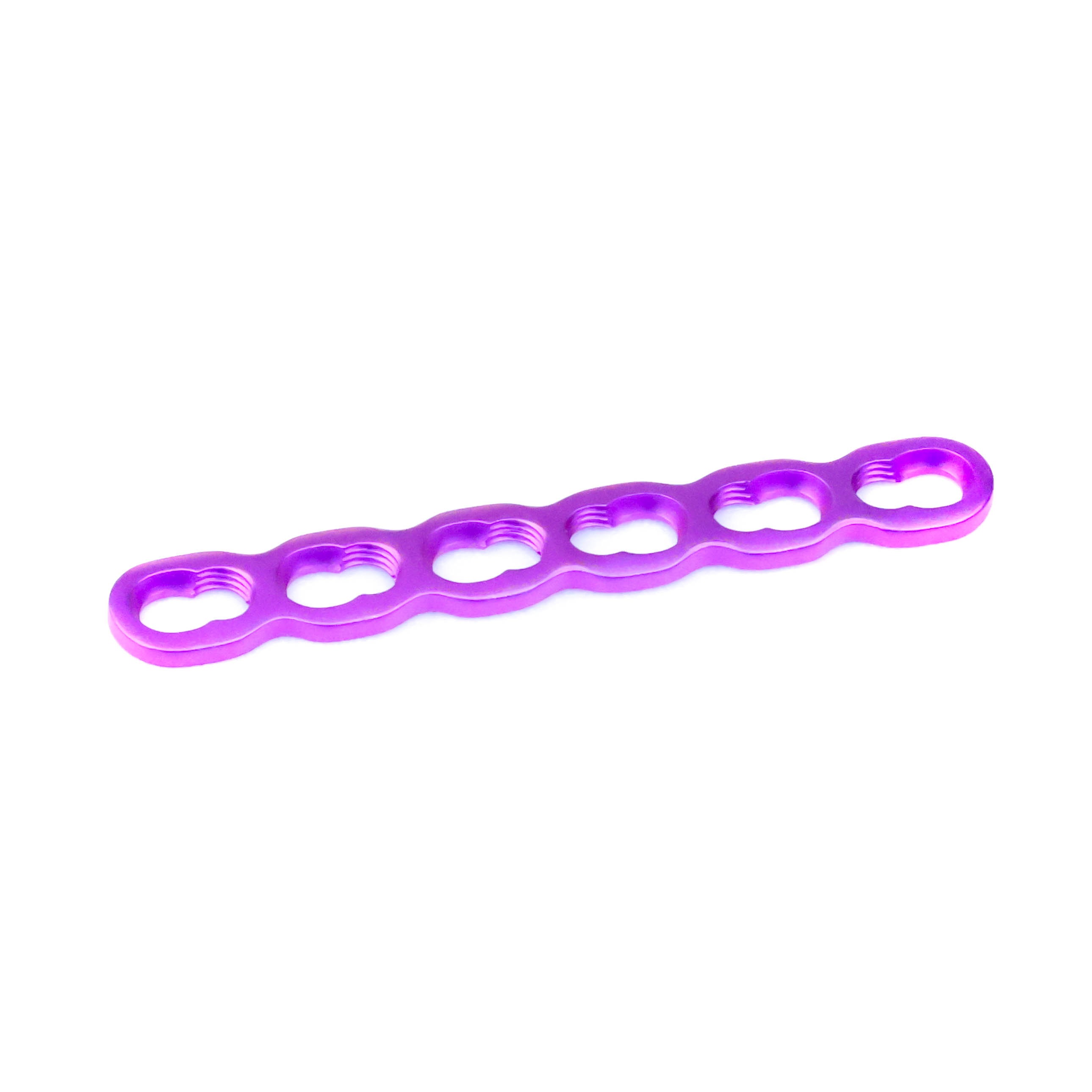

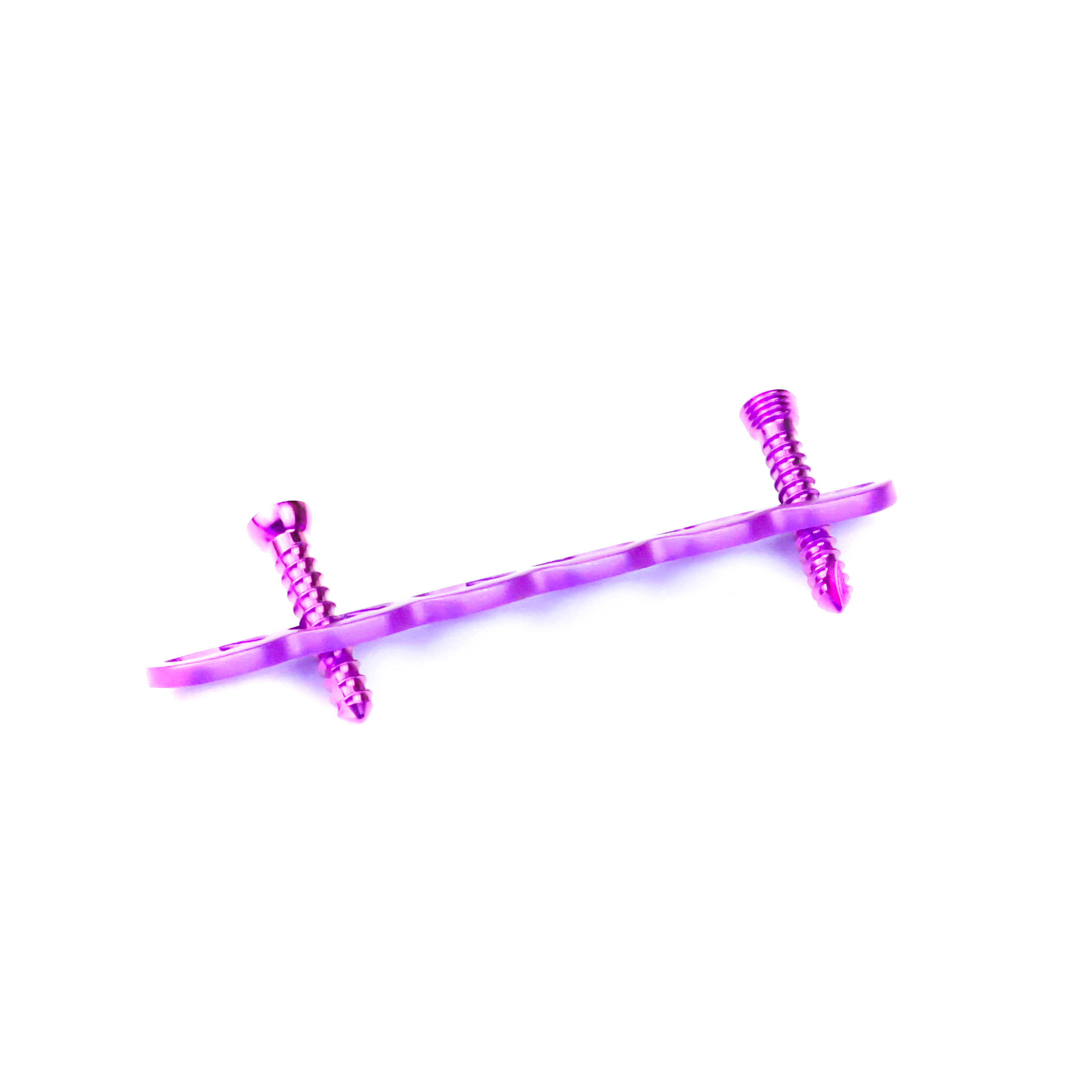

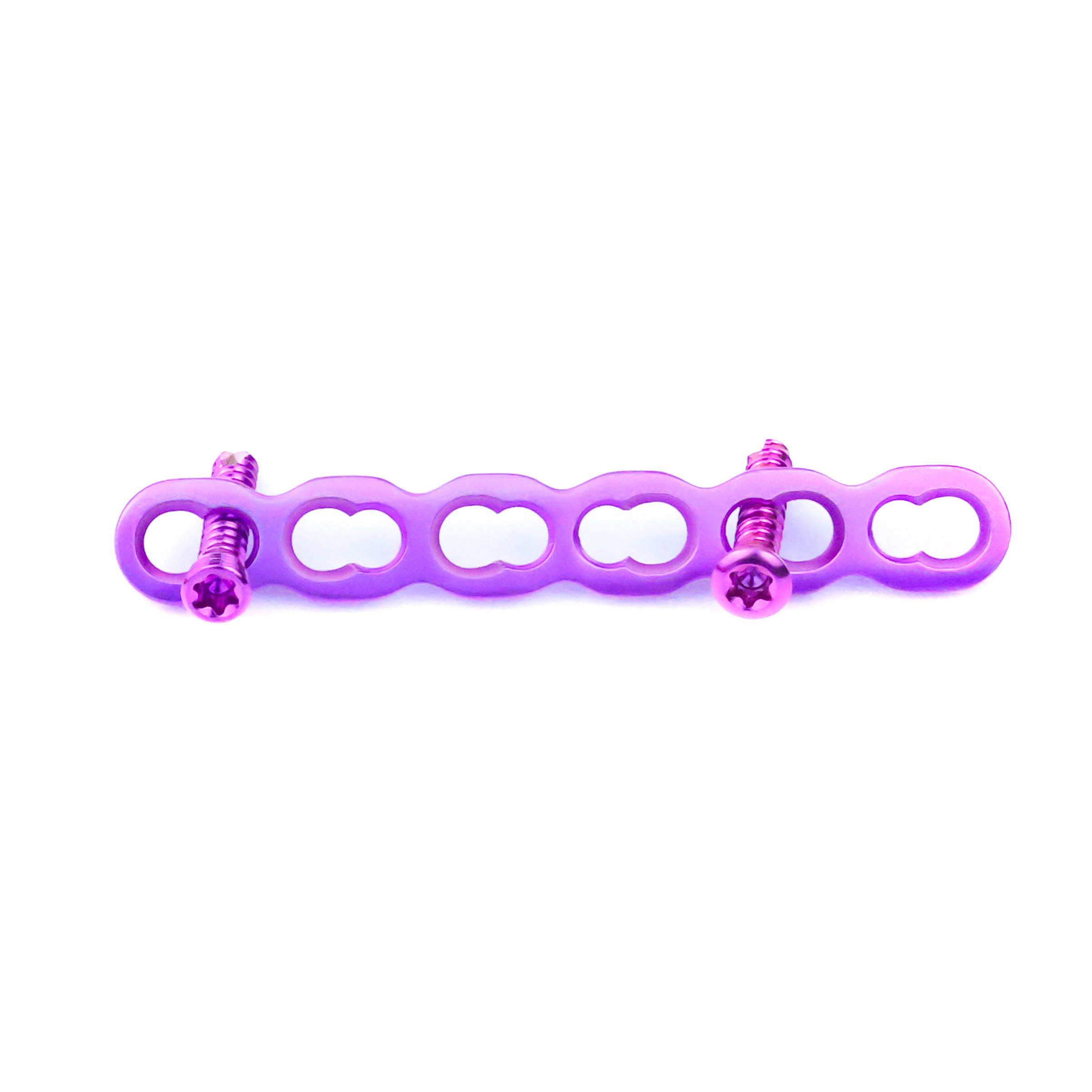

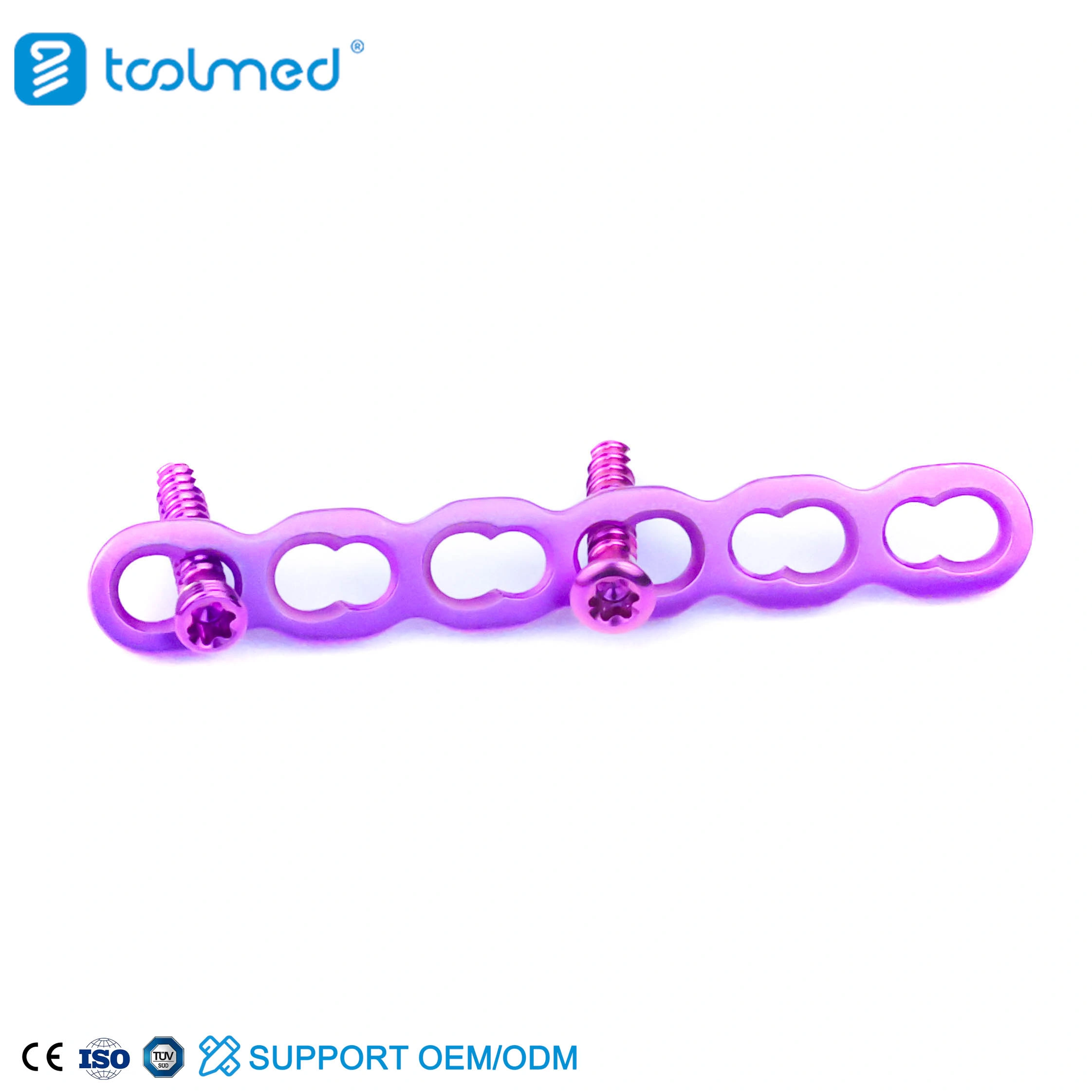

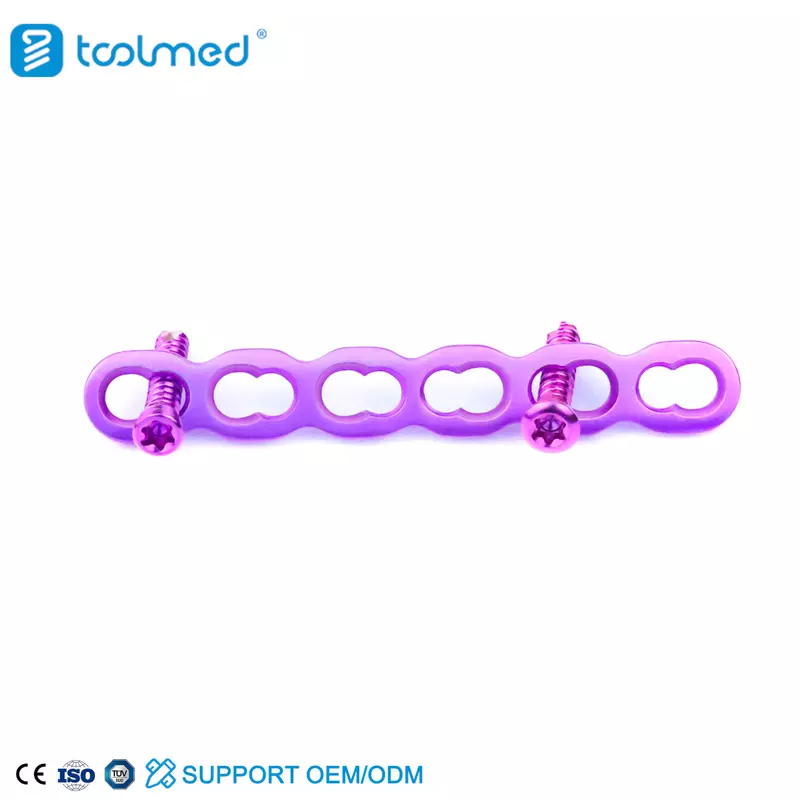

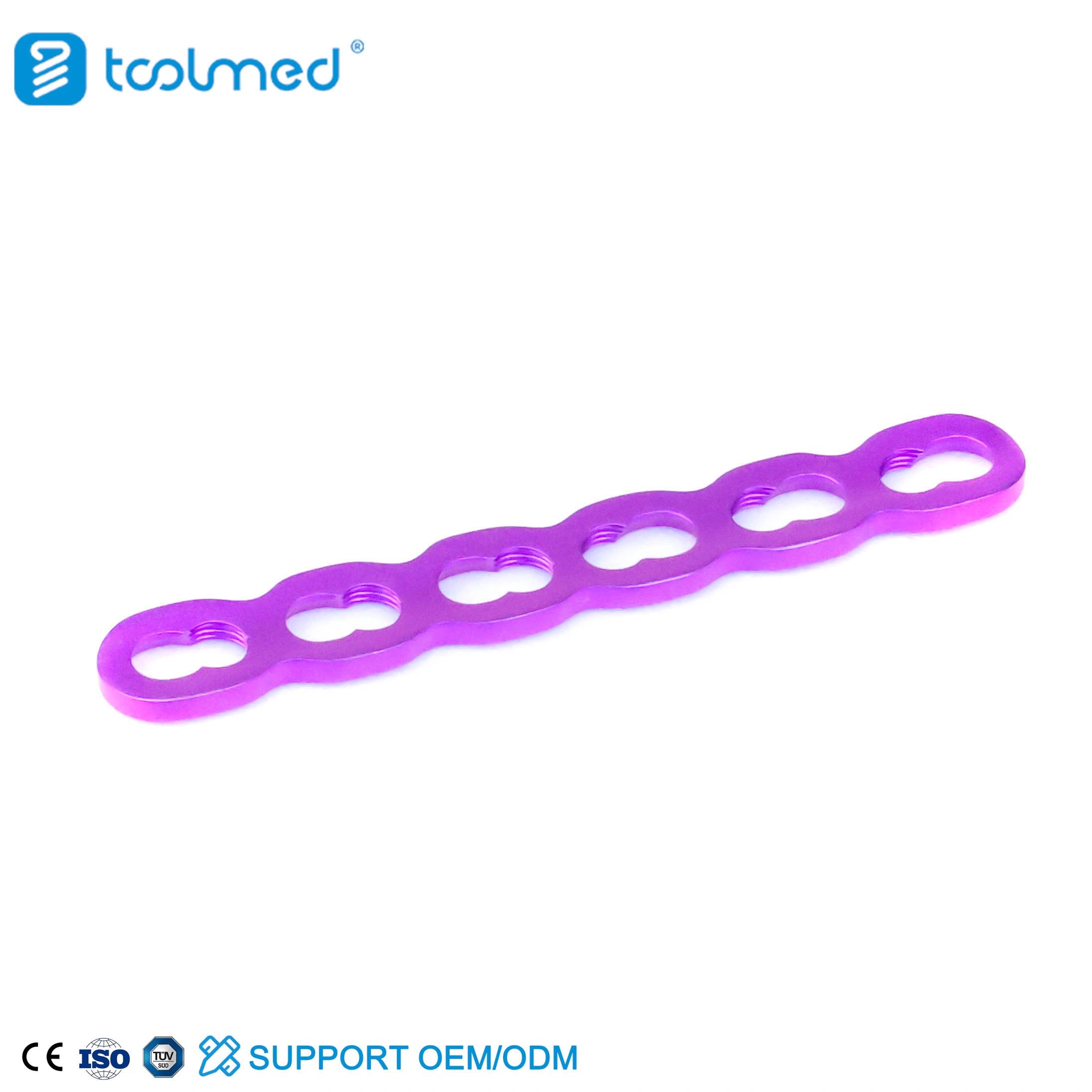

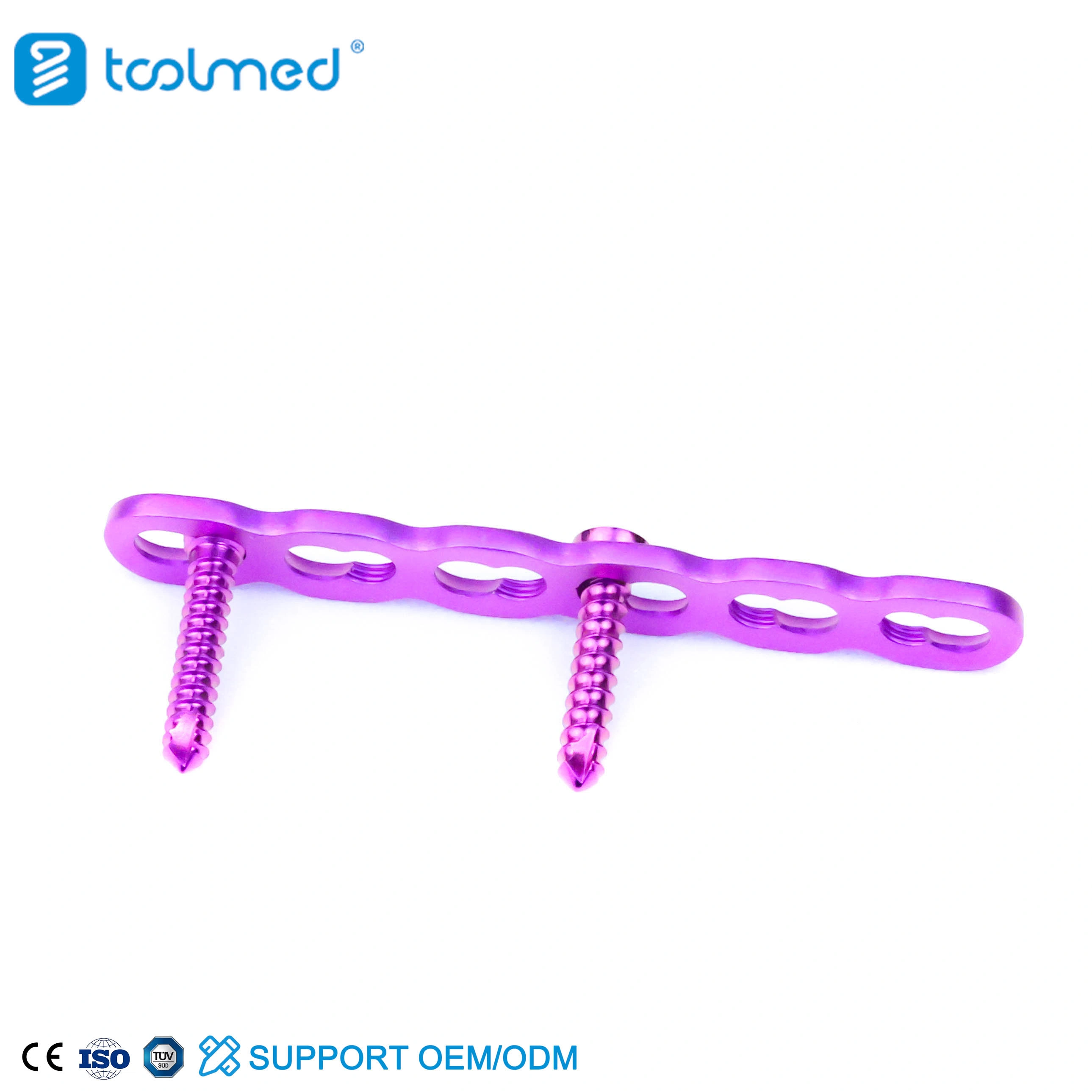

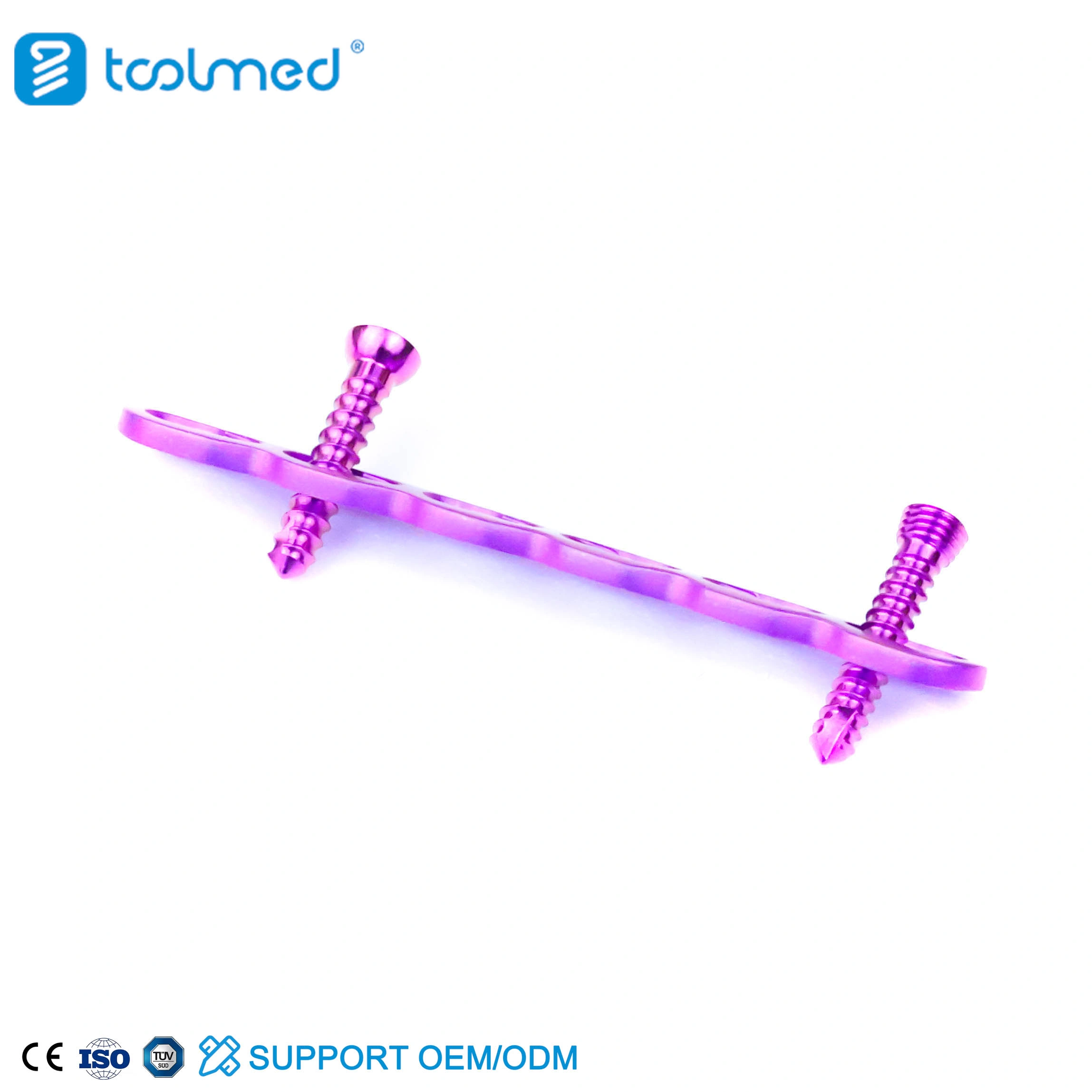

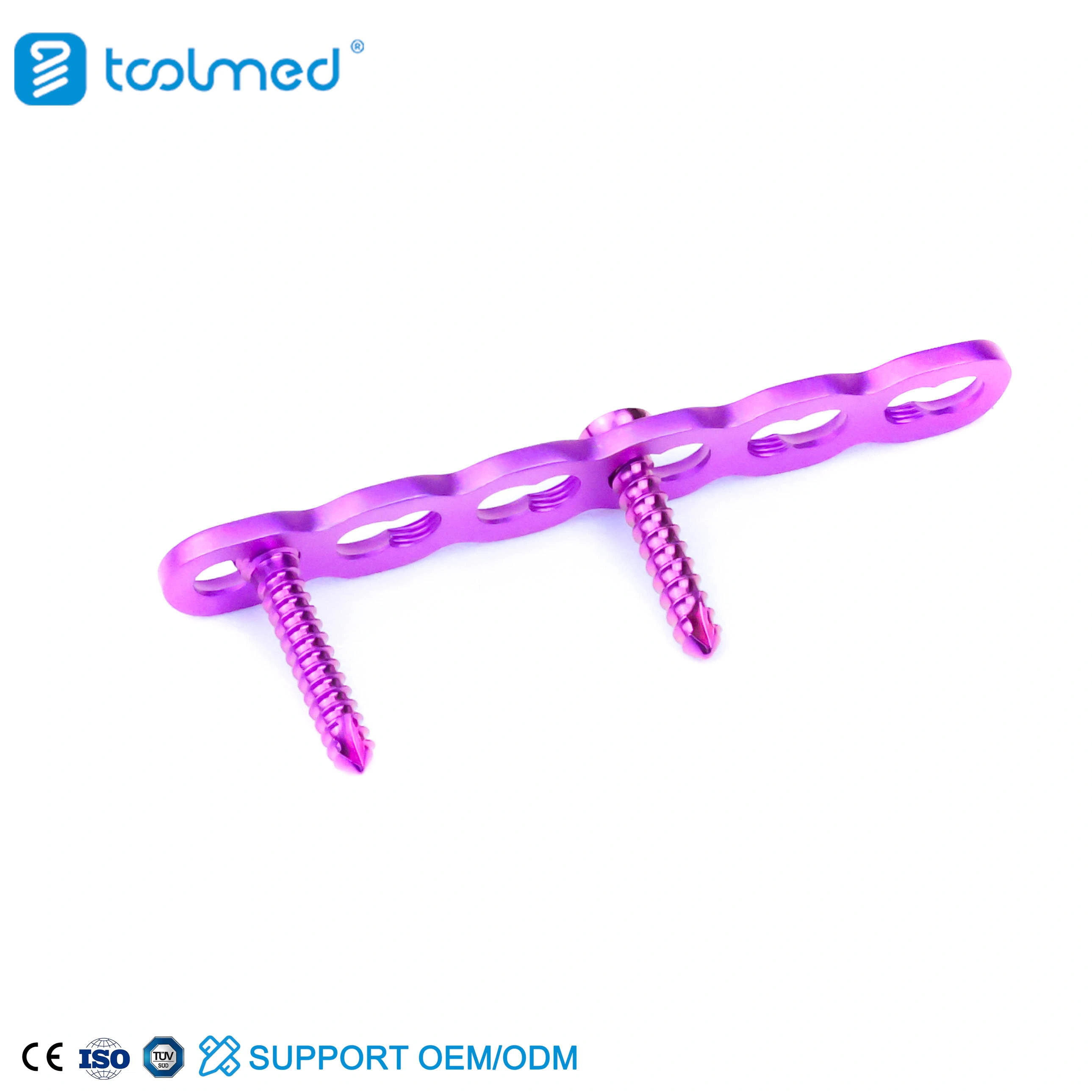

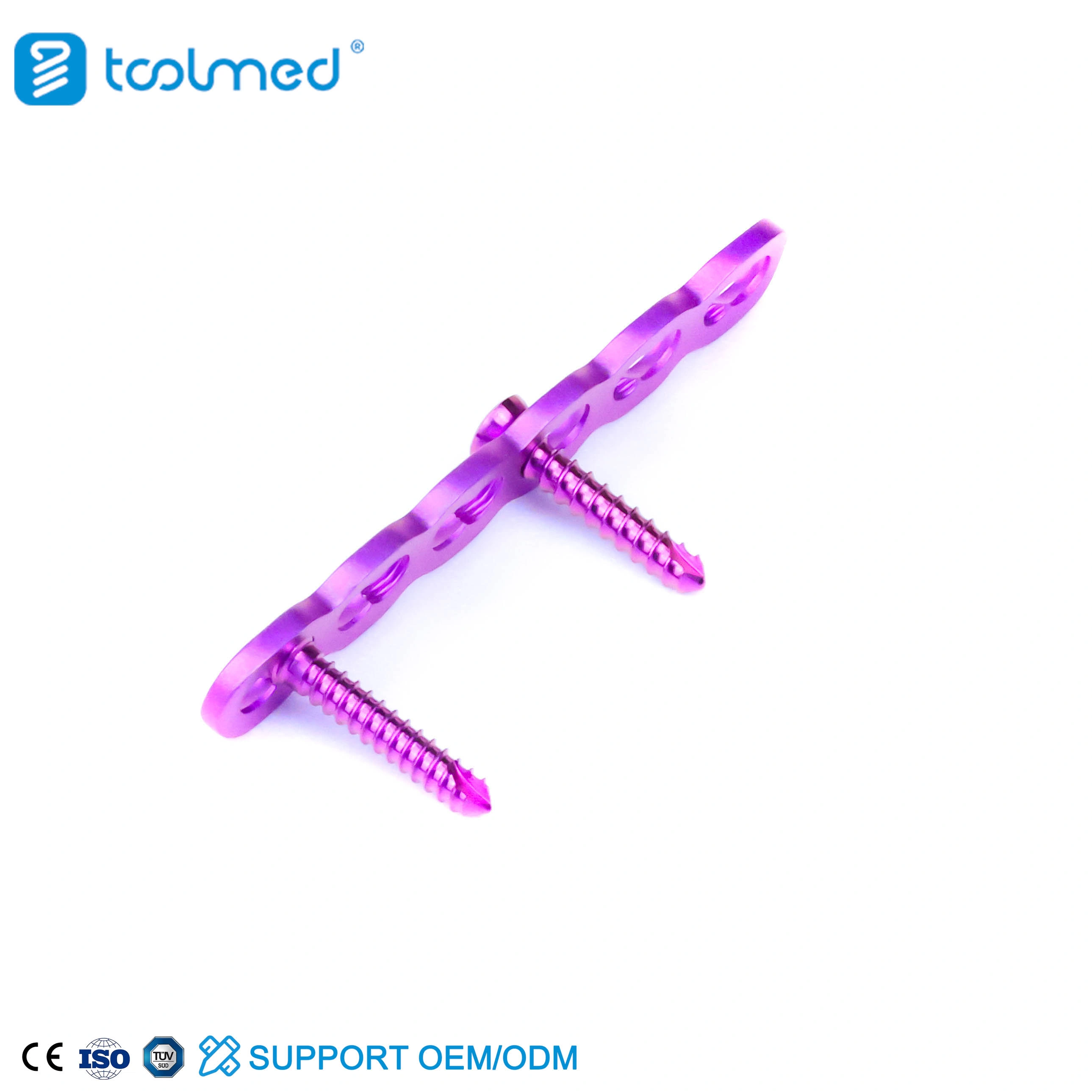

2.4S Mini Reconstruction Locking Plate
TOOLMED
TA3
1 Pcs
5-15 Days
4/6/8/10 Holes
Product Description
The 2.4S Mini Reconstruction Locking Plate features a slim, low-profile structure that helps minimize soft tissue irritation while providing stable fixation in delicate anatomical regions.
Designed with locking screw technology, the plate allows angular stability while also supporting conventional compression techniques when required. This gives surgeons greater intraoperative flexibility.
The reconstruction-style geometry enables controlled bending and shaping, allowing surgeons to adapt the plate to complex bone surfaces and irregular fracture patterns.
Manufactured from premium medical-grade titanium or stainless steel (depending on configuration), the plate offers excellent strength, corrosion resistance, and biocompatibility.
The 2.4 mm system is ideal for small fragment fixation where precision and stable fixation are essential.
Threaded locking holes help create a fixed-angle construct, reducing the risk of screw loosening and improving fixation in osteoporotic or comminuted bone.
Suitable for metacarpal, phalangeal, and selected carpal fracture fixation.
Used in metatarsal, toe, and selected small bone osteotomy procedures.
Applicable for selected craniofacial and reconstructive procedures requiring mini fragment fixation.
Used in planned bone realignment surgeries requiring stable low-profile fixation.
Useful in comminuted fractures or revision cases where locking stability is preferred.
| P/N | Product Series | Size | Material | Sterile | Unit |
| 3304-1801 | 2.4S Mini Reconstruction Locking Plate(Thickness:1.3mm,Width:6.5mm） | 4 Holes | TA3 | N | EA |
| 3304-1802 | 6 Holes | TA3 | N | EA | |
| 3304-1803 | 8 Holes | TA3 | N | EA | |
| 3304-1804 | 10 Holes | TA3 | N | EA |
The 2.4S Mini Reconstruction Locking Plate is a small fragment internal fixation implant designed for precise stabilization of fractures and osteotomies in small bones. It combines the contouring advantages of a reconstruction plate with the mechanical benefits of locking technology.
This plate is commonly used in hand surgery, foot surgery, trauma reconstruction, and selected maxillofacial procedures. It is especially valuable when surgeons need to adapt the plate to curved or irregular anatomy while maintaining strong fixation.
The major advantages include low-profile comfort, versatile contouring, and fixed-angle stability. Compared with conventional mini plates, locking constructs may provide stronger fixation in weak bone and reduce dependence on plate-to-bone compression.
In a locking construct, screws thread into the plate to create a stable angle between screw and plate. This helps distribute load across the construct and can reduce micro-motion at the fracture site. The reconstruction design also allows controlled bending to match anatomy.
After fracture reduction, the surgeon selects the appropriate plate length and contours it as needed. Temporary fixation may be used before inserting locking or cortical screws. Final fixation depends on fracture pattern, bone quality, and compression requirements.
Stable fixation can support earlier mobilization depending on fracture type and surgeon protocol. Routine follow-up imaging is recommended to monitor healing and implant position.
The 2.4S Mini Reconstruction Locking Plate is an excellent solution for surgeons requiring precise, stable fixation in small bone trauma and reconstructive procedures. Its combination of contourability, locking stability, and low-profile design makes it a valuable option in modern orthopedic fixation.
It generally refers to a 2.4 mm small fragment fixation system compatible with 2.4 mm screws and instruments.
It is commonly used for hand, wrist, foot, ankle, and other small bone applications.
Yes. Reconstruction plates are designed to allow controlled contouring to match patient anatomy.
Locking screws create a fixed-angle construct that can improve stability, especially in osteoporotic or comminuted bone.
Yes. The plate is designed to reduce soft tissue irritation while maintaining strength.
Many systems are available in titanium alloy or stainless steel depending on manufacturer configuration.
