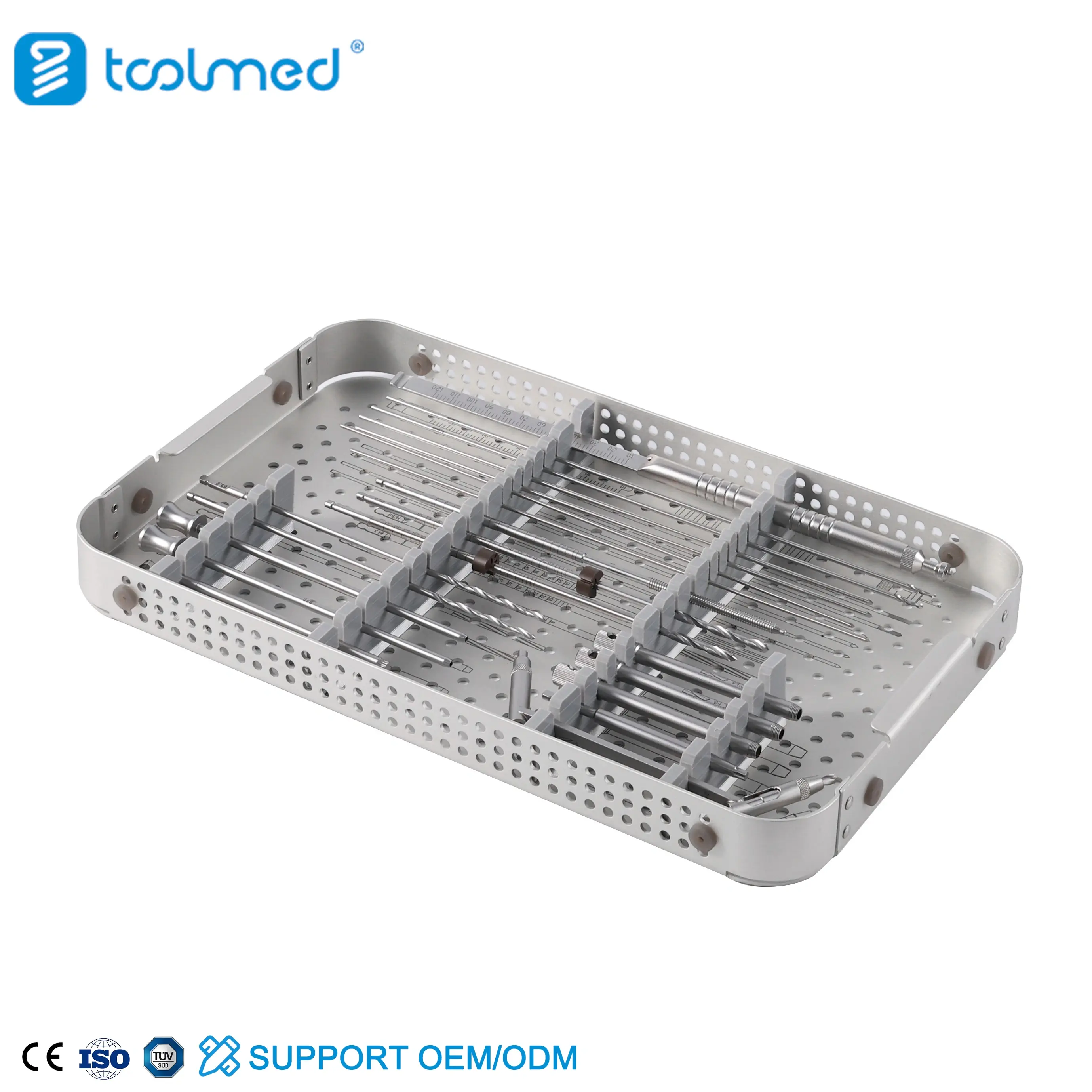

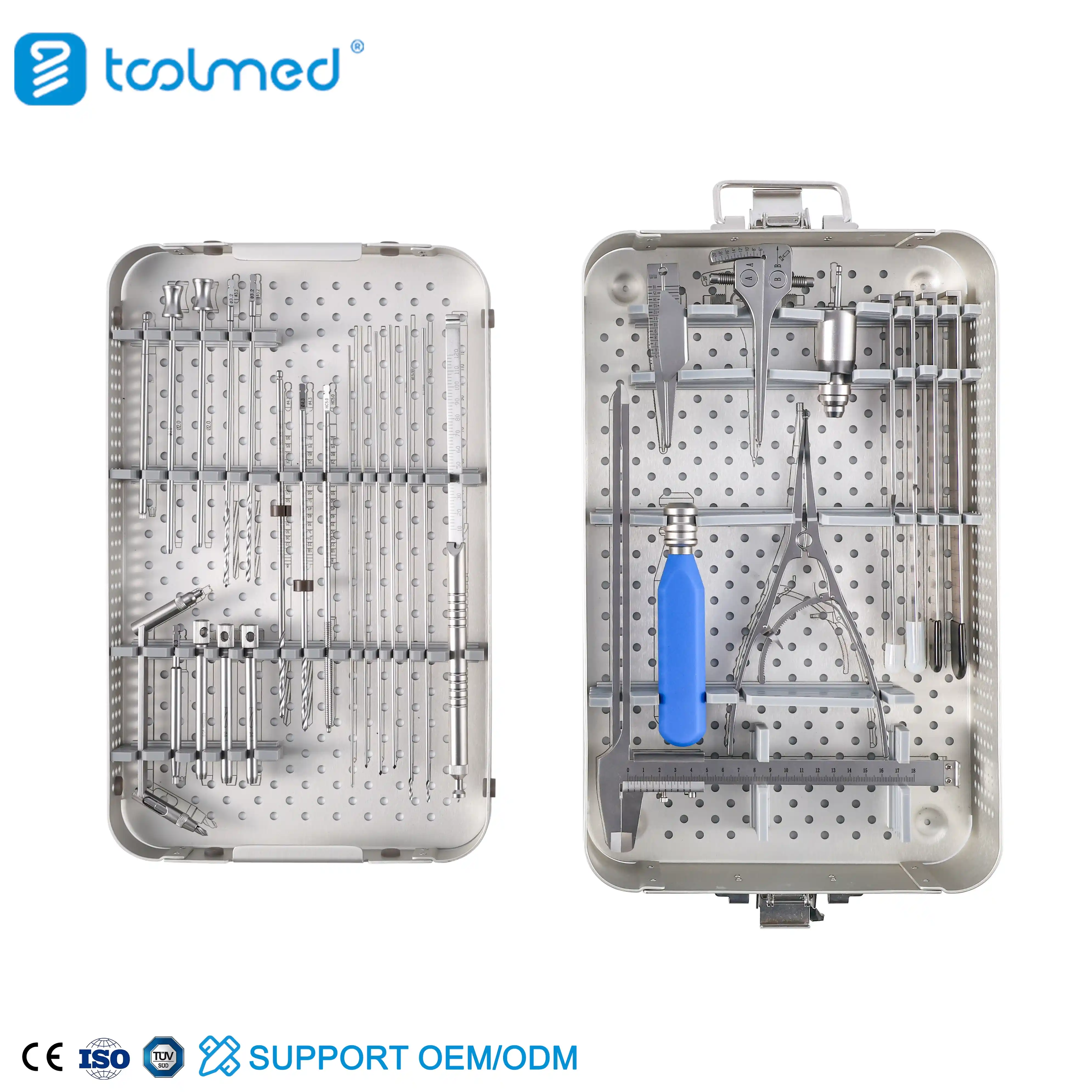

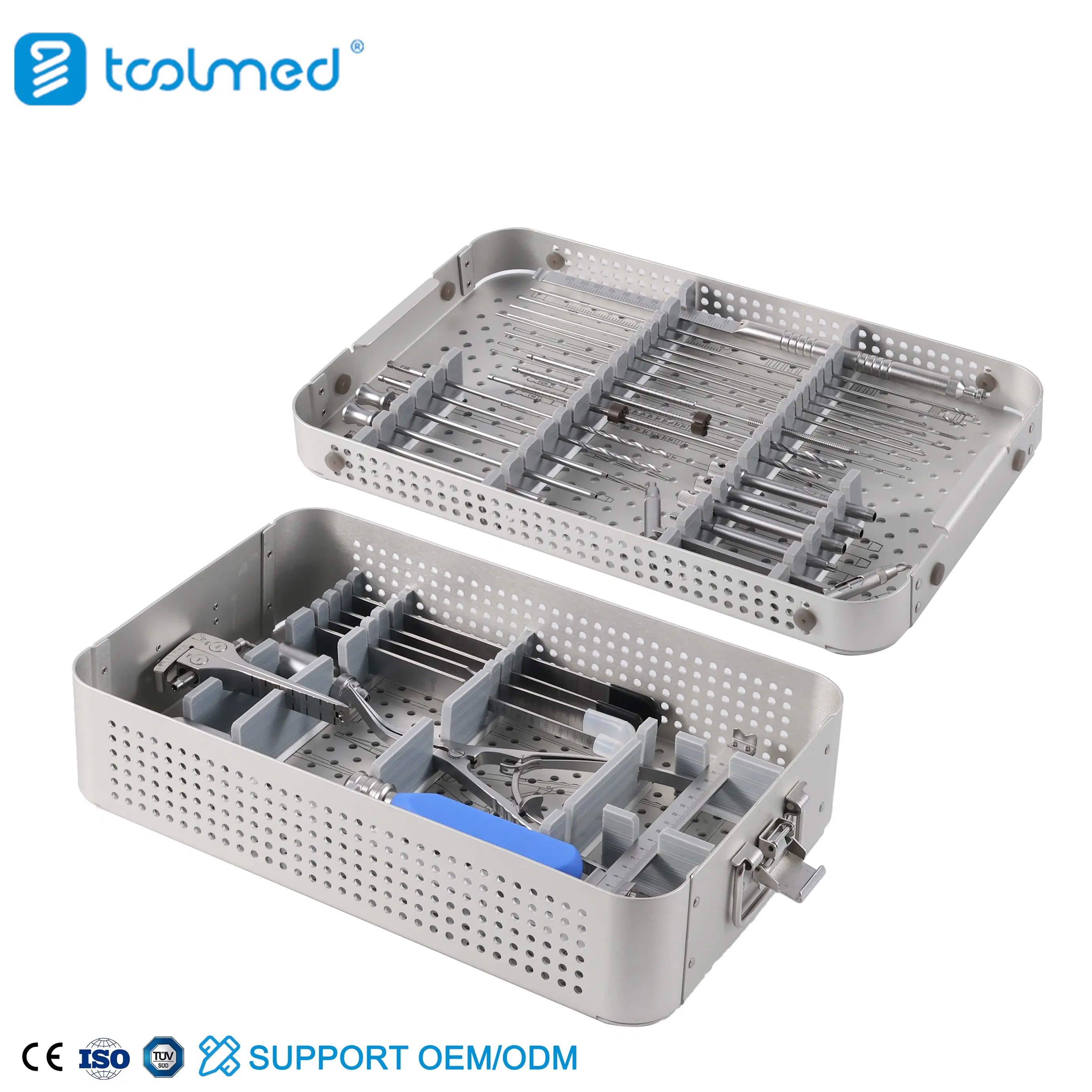

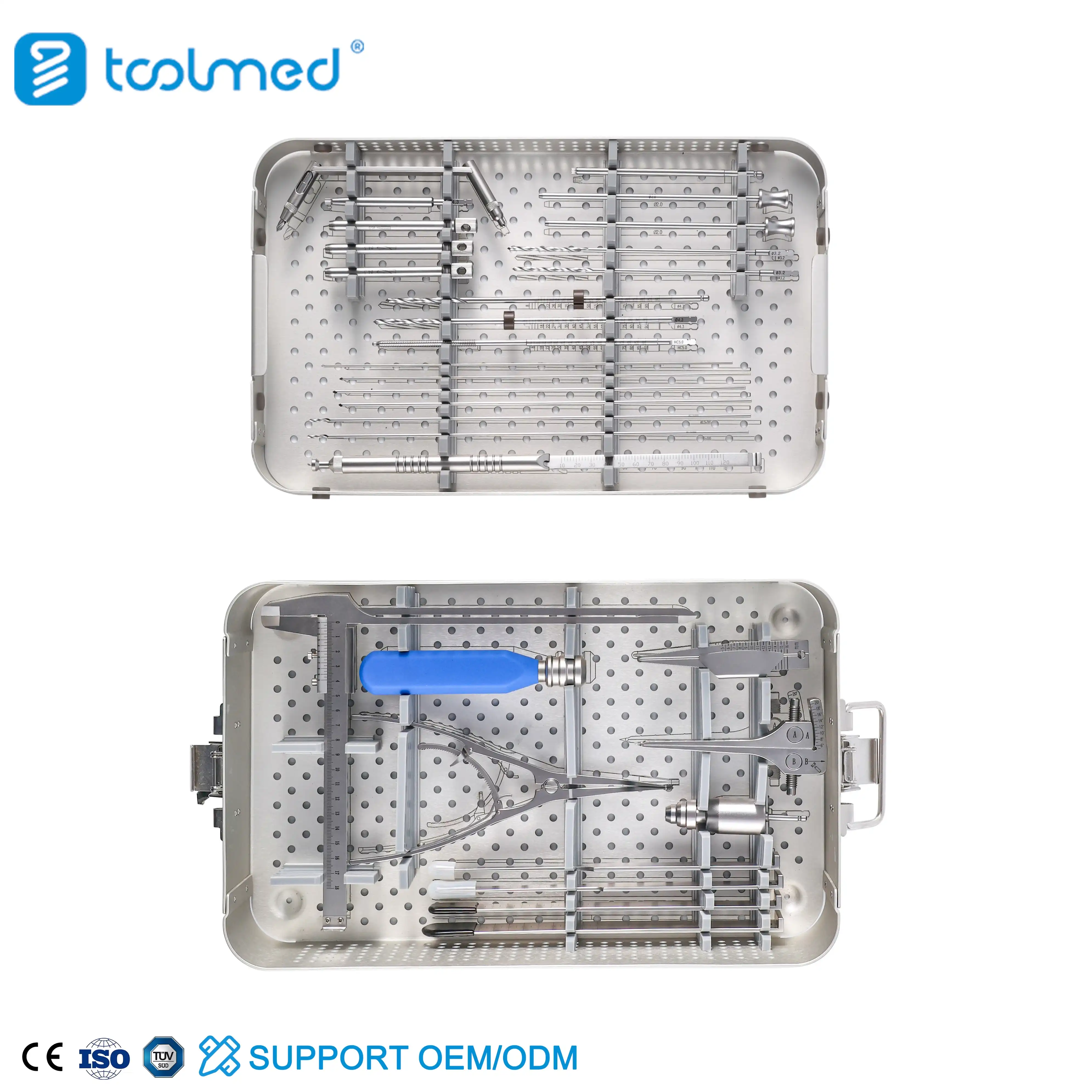

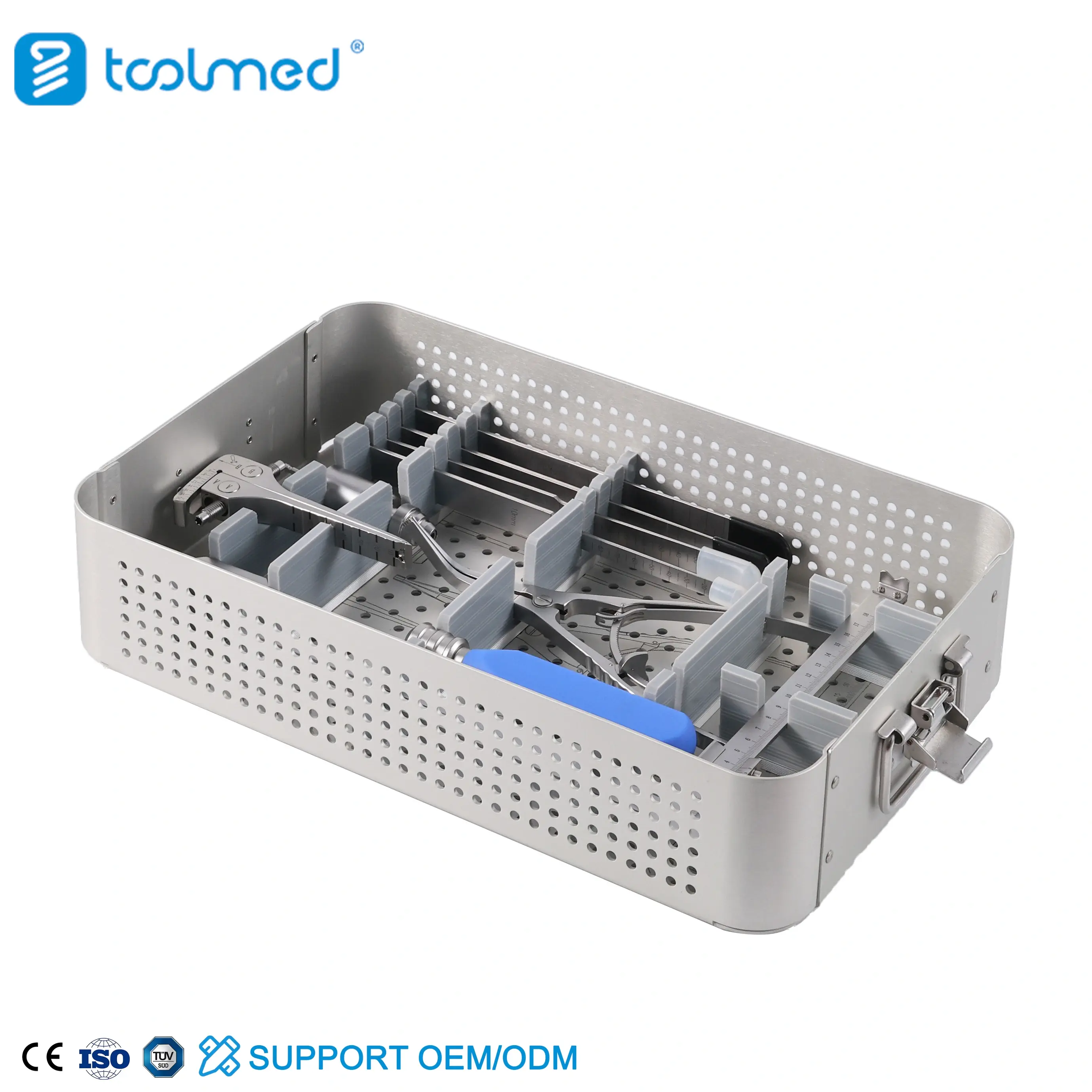

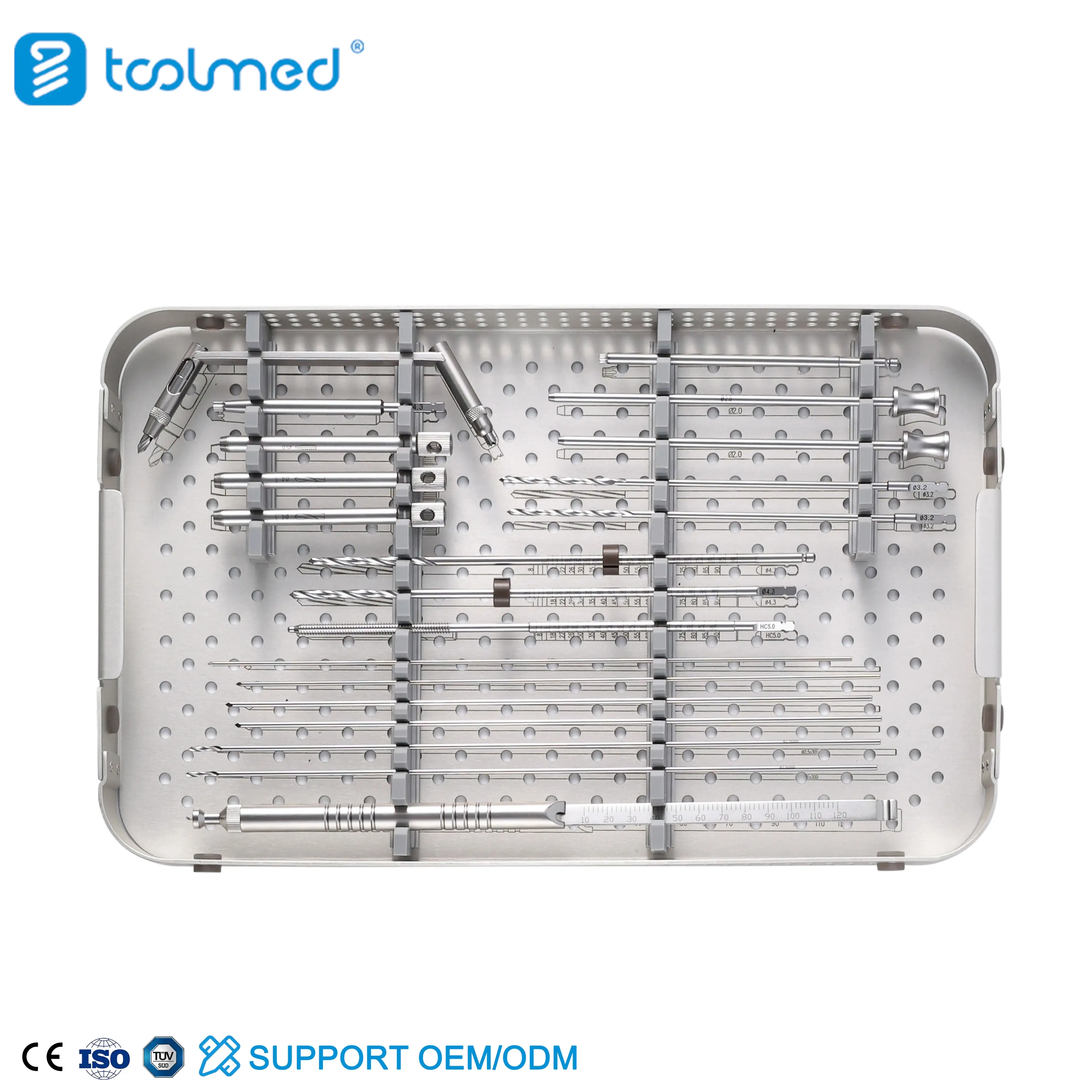

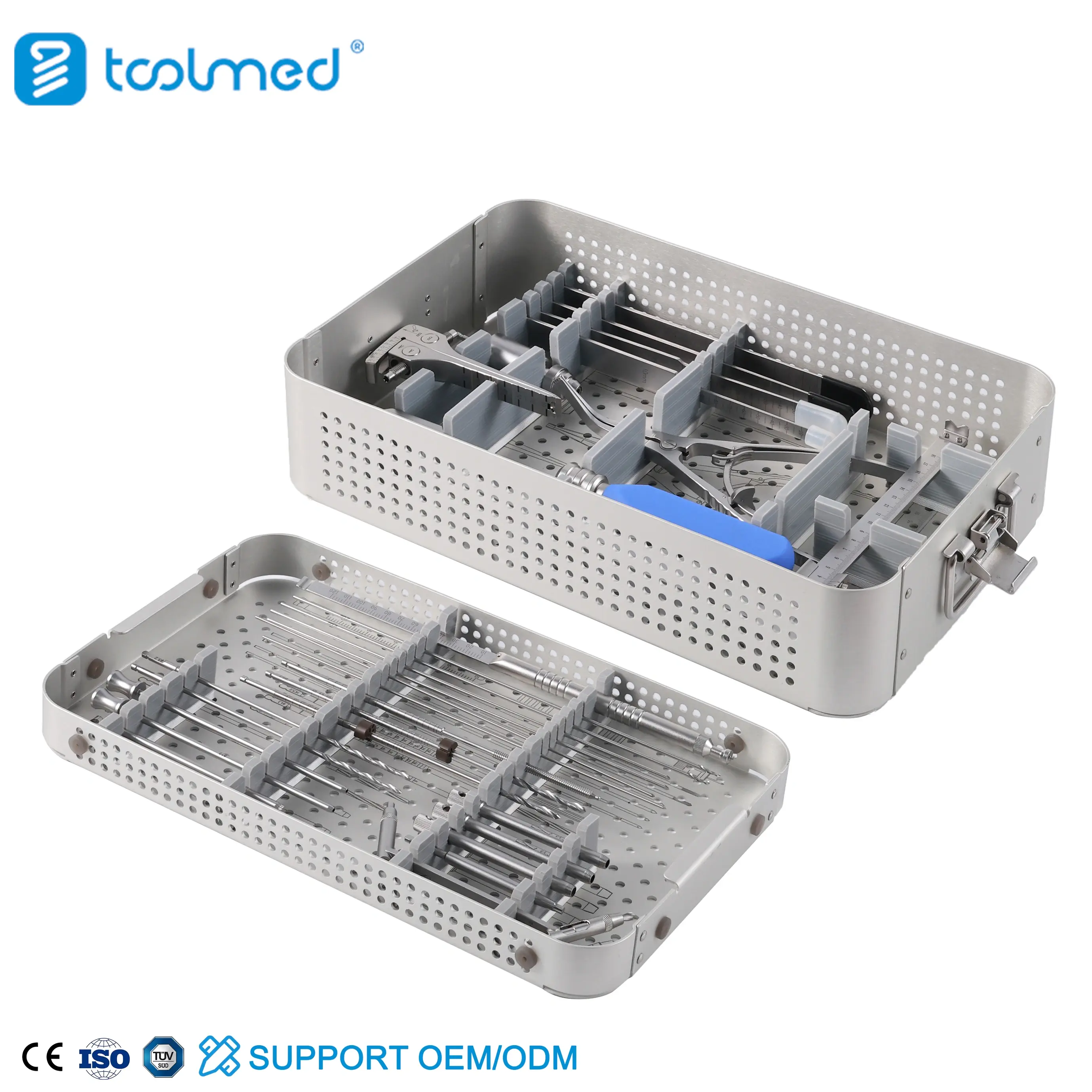

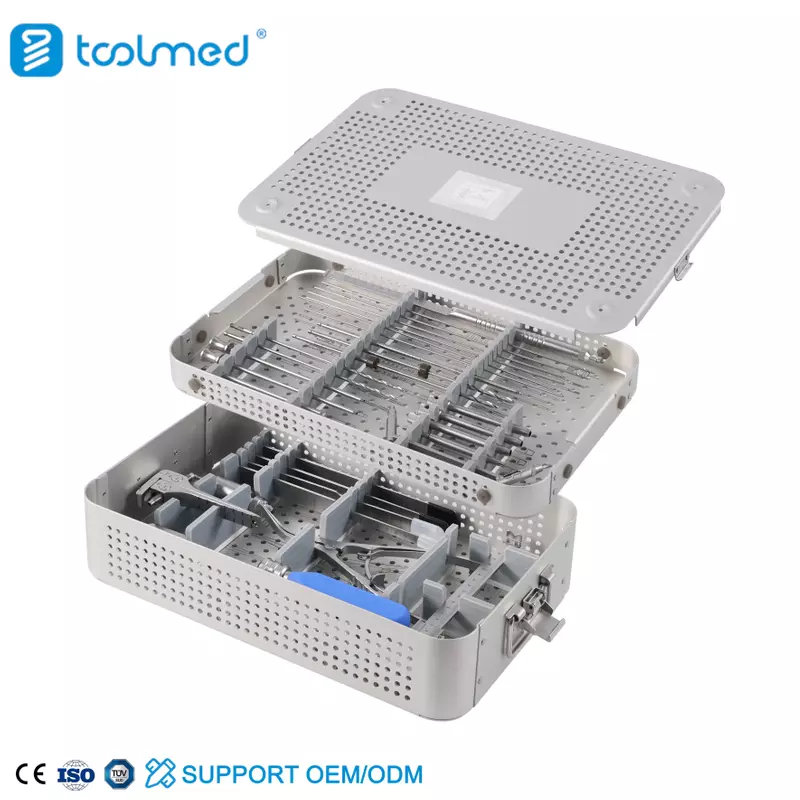

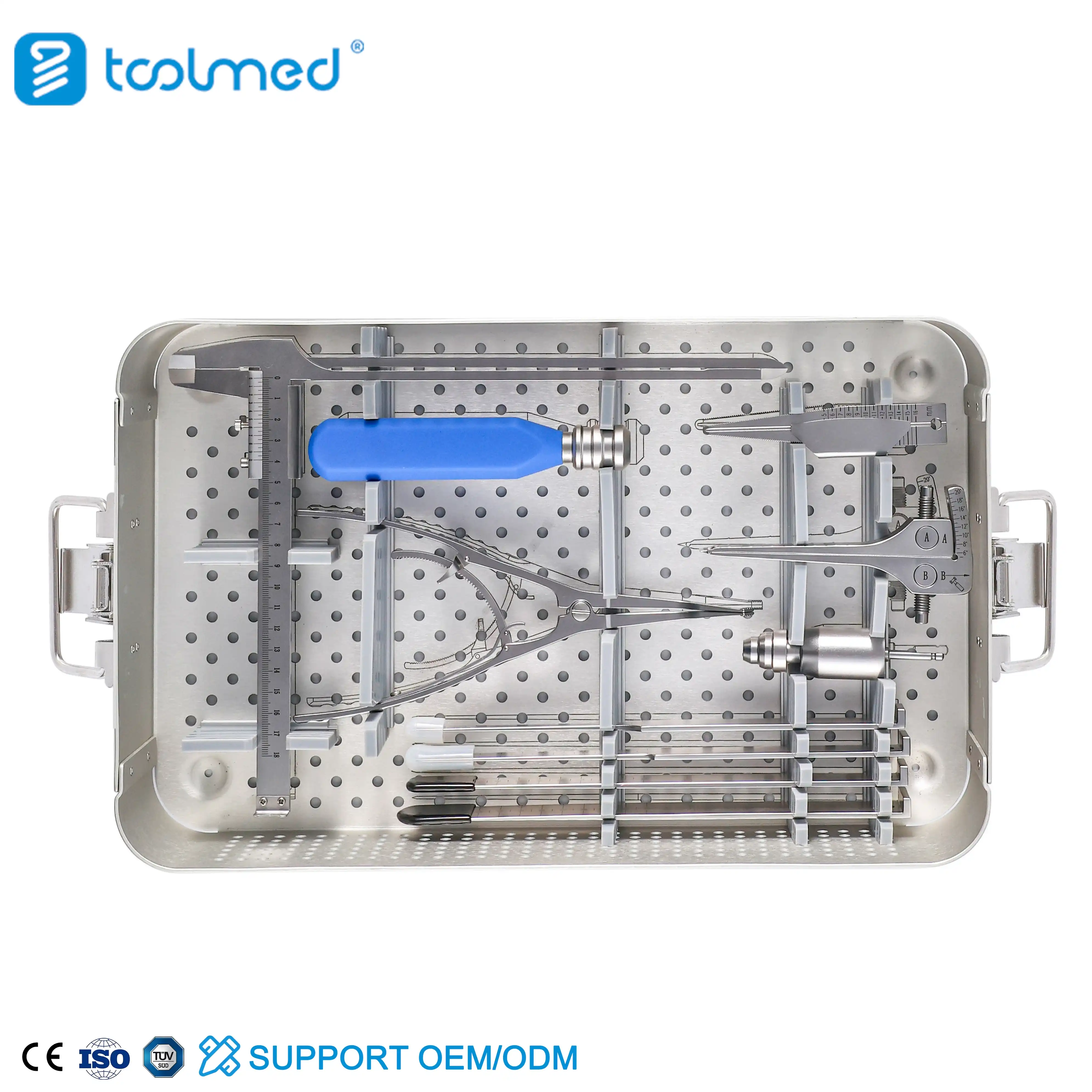

The Osteotomy Locking Plate Instrument Set is a high-precision surgical toolkit specifically designed for corrective bone-cutting procedures, most notably High Tibial Osteotomy (HTO) and Distal Femoral Osteotomy (DFO). Unlike standard trauma kits, this set includes specialized instruments required to accurately measure and hold the "wedge" opening during the realignment of the knee joint. Constructed from premium Medical-Grade Stainless Steel, the set features osteotomes, bone spreaders with graduated scales, and alignment rods to ensure the patient's mechanical axis is perfectly restored. The system is optimized for use with heavy-duty locking plates that must stabilize the bone while it heals in its new position. The TOOLMED Osteotomy Set includes specialized compression and distraction devices that allow the surgeon to fine-tune the correction angle with millimeter precision. All instruments are housed in a multi-tier Anodized Aluminum Sterilization Case, designed for easy identification and rapid processing in the operating room. This set is essential for specialized orthopedic centers focused on joint preservation and limb deformity correction.
3200-12
TOOLMED
Aluminium Alloy
1 Pcs
5-15 Days
/
Product Description
Includes graduated bone spreaders and wedges that allow the surgeon to open the osteotomy site to the exact degree required to fix the patient's "bow-legged" or "knock-kneed" alignment.
Features specialized rods that help the surgeon visualize the mechanical axis of the entire leg (from hip to ankle) under X-ray, ensuring the knee is perfectly centered for long-term joint health.
Since osteotomy plates are often placed in the densest part of the bone, the kit includes high-torque T-handles and reinforced screwdrivers designed for the 4.5mm and 5.0mm locking systems.
Includes specialized guides that protect the surrounding soft tissue and neurovascular structures while ensuring the bone cut is perfectly flat and accurate.
Tools used to gently open the cut bone and hold the space while the plate is applied. Features millimeter scales for accuracy.
Telescoping rods used to check the patient's overall leg alignment before and after the bone is cut.
Specialized 3.2mm and 4.3mm bits with reinforced shanks to handle the thick cortical bone of the upper tibia and lower femur.
Instruments designed to apply compression across the osteotomy site once the desired angle is achieved, ensuring primary bone healing.
| Product Name | Osteotomy Locking Plate Instrument Set |
| Material | Aluminium Alloy |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-15 Days |
| Shipping | DHL EMS UPS TNT FEDEX |
This is a specialized "alignment kit." Sometimes, due to injury or genetics, a person’s leg is not straight (like being bow-legged). This causes one side of the knee to wear out faster. In an Osteotomy, the surgeon cuts the bone and "re-angles" it to make the leg straight. This kit contains the rods, spreaders, and tools needed to measure and hold that new angle perfectly.
Surgeons often compare this procedure to high-precision carpentry. The Bone Spreaders act like a car jack, opening the bone slowly and safely. The Alignment Rods act like a level, ensuring that the hip, knee, and ankle all line up in a perfectly straight line before the plate is locked down.
In an osteotomy, even a 2-millimeter mistake can lead to failure. That is why our tools are laser-calibrated. The surgeon can see exactly how many millimeters they have opened the bone, giving them total confidence that the patient’s knee will be protected for years to come.
The bone at the top of the shin (tibia) and bottom of the thigh (femur) is the strongest bone in the body. Our drill bits and screwdrivers are "trauma-grade," meaning they are built to handle high forces without bending or breaking. They are made of the highest quality surgical steel that stays sharp use after use.
The goal of these tools is to help a patient avoid a total knee replacement. By straightening the leg using this instrument set, the pressure is moved to the "healthy" side of the knee. This can delay the need for a prosthetic knee by 10 to 15 years, allowing patients to remain active and keep their natural joint.
The Osteotomy Locking Plate Instrument Set is a masterpiece of orthopedic engineering. By providing the accuracy and strength needed for complex bone realignment, it allows surgeons to perform joint-preserving surgeries with unmatched precision and reliability.
Yes. The set is designed to work with both High Tibial Osteotomy (HTO) and Distal Femoral Osteotomy (DFO) locking plate systems, providing the necessary tools for both procedures.
Our alignment rods are telescoping and can extend to match the full length of the patient's leg, ensuring a complete mechanical axis check from the hip joint to the center of the ankle.
Yes. All instruments and the aluminum case are designed for standard hospital steam sterilization (134°C). The materials will not rust or degrade under high heat and pressure.
This kit includes the Saw Guides to ensure accuracy. The power tool saw blades are typically ordered separately to match the specific power tool brand used in your operating room.
Our drill bits are made from hardened surgical steel. Depending on the bone density, they typically remain perfectly sharp for 15 to 20 procedures before they should be replaced for optimal performance.
