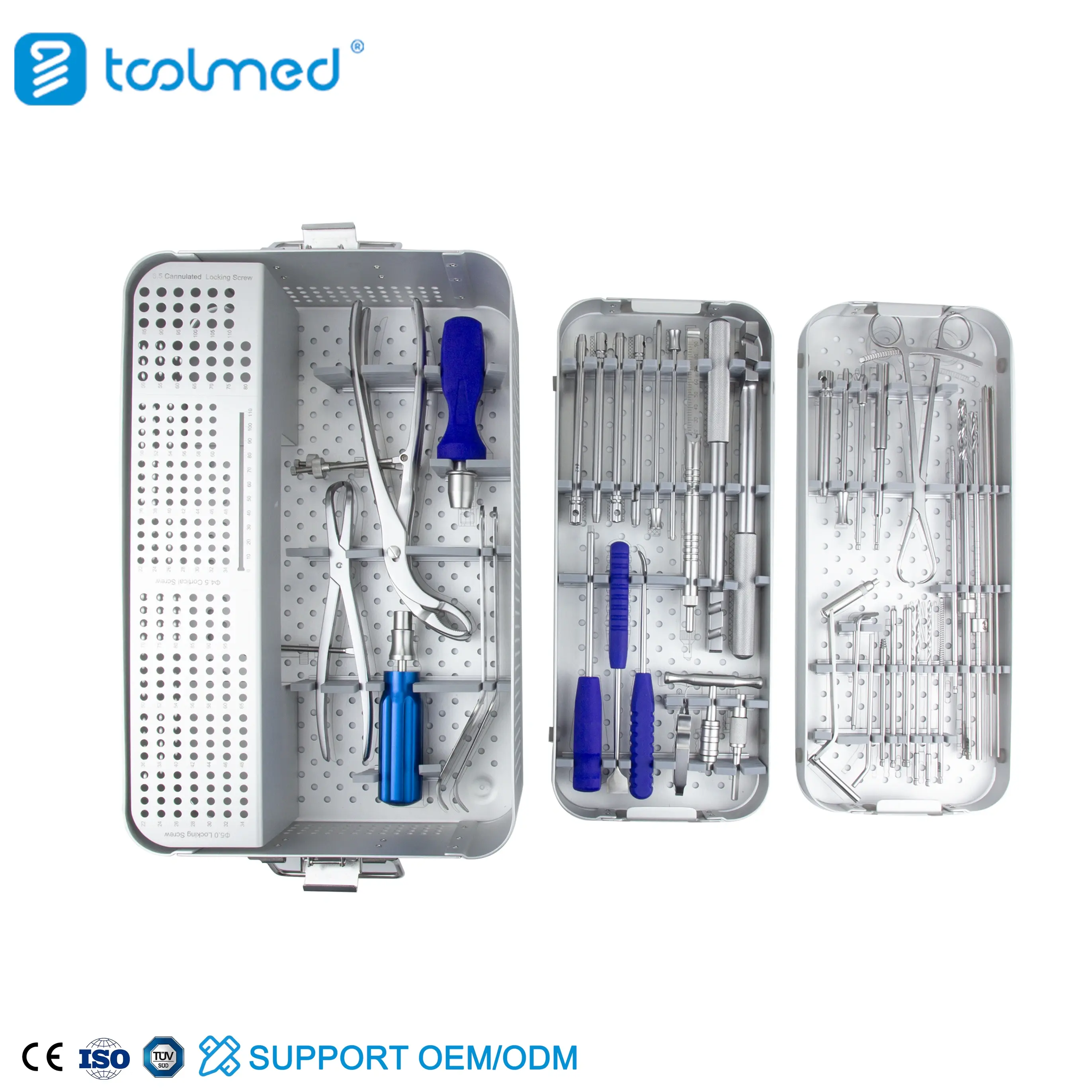

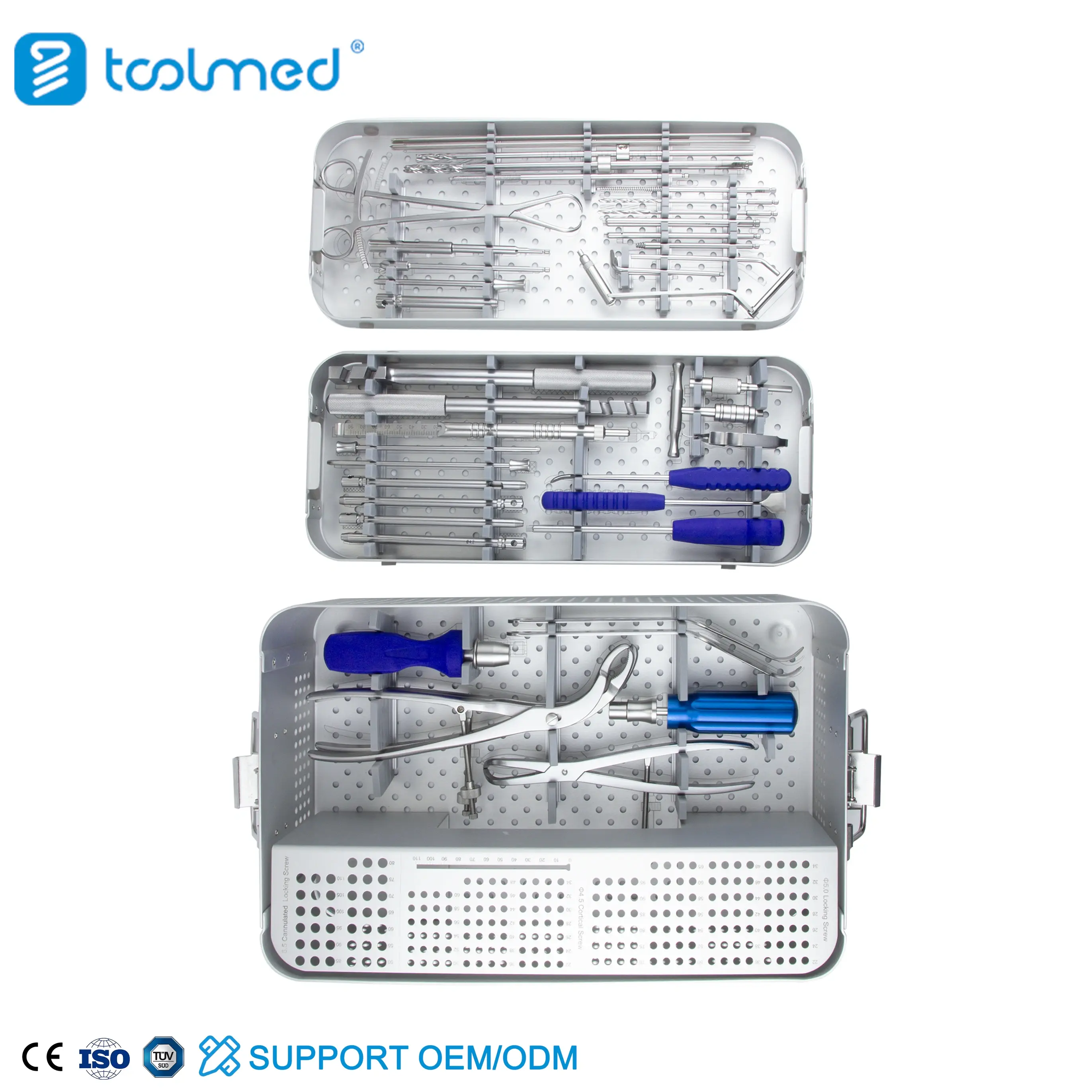

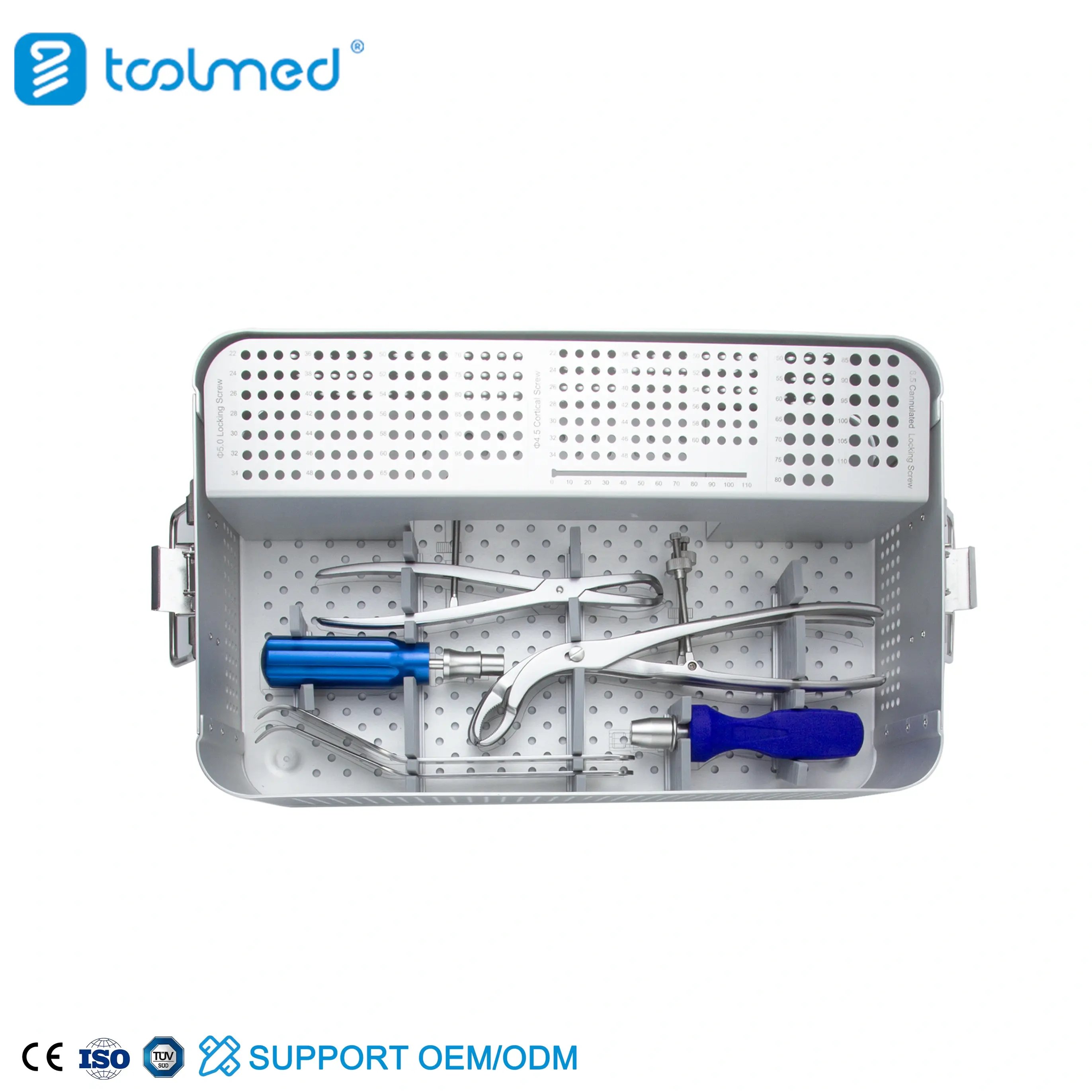

The Large Fragment Locking Plate Instrument Set (AO) is a comprehensive surgical system designed for the internal fixation of large long bones, specifically the Femur (Thigh bone) and the Tibia (Shin bone). Engineered to meet the rigorous AO (Arbeitsgemeinschaft für Osteosynthesefragen) international standards, this set provides all the specialized tools required for the implantation of 4.5mm and 5.0mm locking and cortical systems. Each instrument is forged from high-tensile Medical-Grade Stainless Steel, ensuring it can withstand the high torque and mechanical forces required to manipulate large bone fragments and heavy-duty implants. The set includes a range of precision tools, including high-speed drill bits, taps for hard cortical bone, universal depth gauges, and ergonomic "T-handle" or "Pear-grip" screwdrivers for maximum leverage. The kit is housed in a robust, multi-tier Anodized Aluminum Sterilization Case featuring a logical, workflow-oriented layout that simplifies instrument counting and ensures efficient sterilization. This set is a foundational requirement for any surgical facility handling high-energy trauma and complex orthopedic reconstructions of the lower extremities.
3200-02
TOOLMED
Aluminium Alloy
1 Pcs
5-15 Days
/
Product Description
Large bone surgery requires significant force. Our screwdrivers and handles are designed with oversized ergonomic grips to provide surgeons with the necessary leverage while maintaining precise tactile control.
Fully compatible with standard 4.5mm and 5.0mm implants globally. This allows the set to be used in various surgical settings without the risk of tool-implant mismatch.
Each tool is treated to resist corrosion and wear. The drill bits and taps are specifically hardened to maintain their cutting edge even after multiple uses in dense, cortical bone.

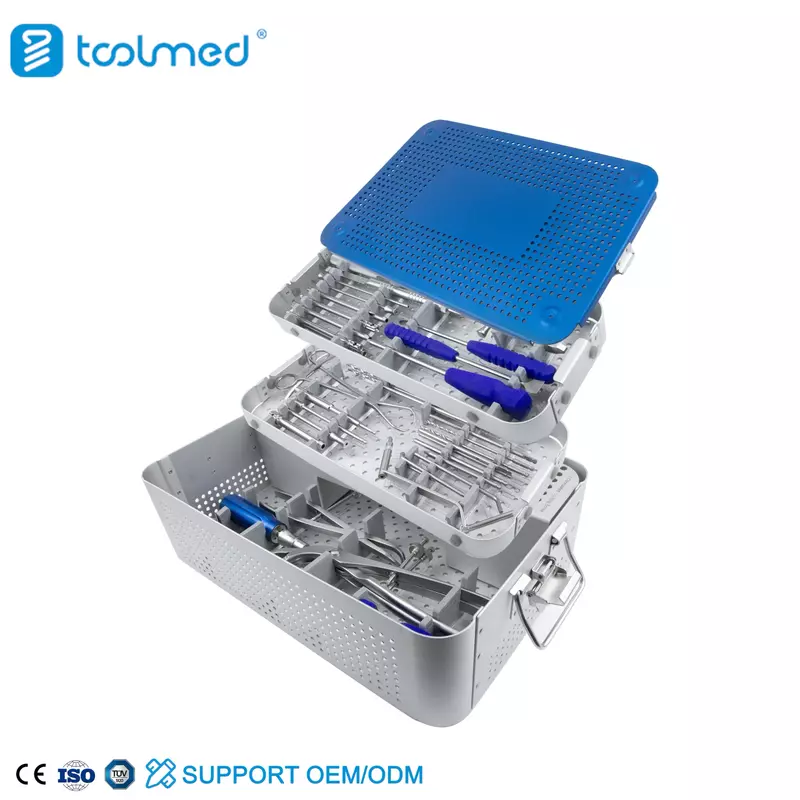

The sterilization tray uses a "place-for-everything" design. This minimizes the risk of lost instruments and speeds up the "turnover" time in the operating room between surgeries.

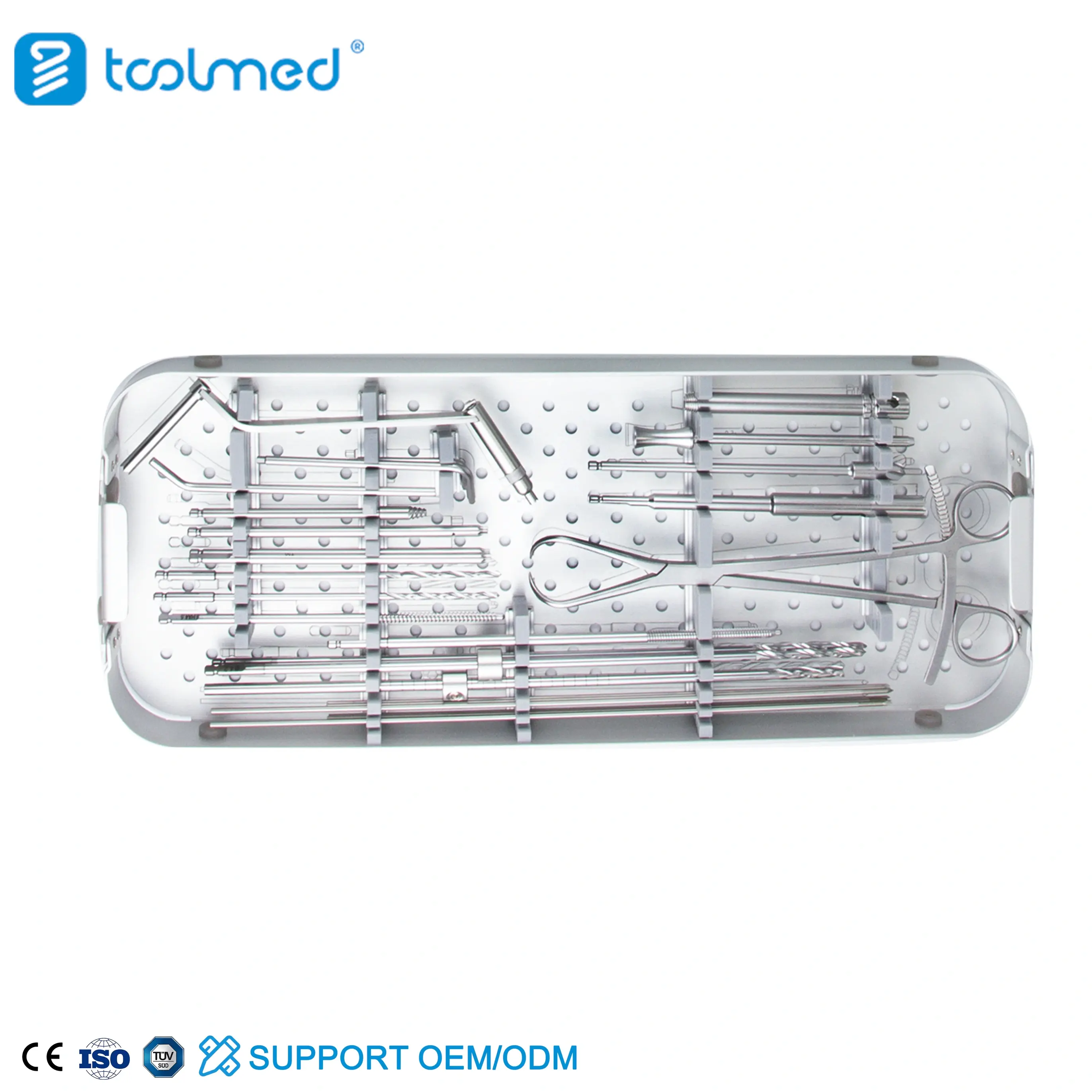

Includes 3.2mm and 4.3mm drill bits and universal drill sleeves for both neutral and compression screw placement.
Specialized 4.5mm and 6.5mm taps designed to cut clean threads in the hardest bone of the body (the femur shaft).

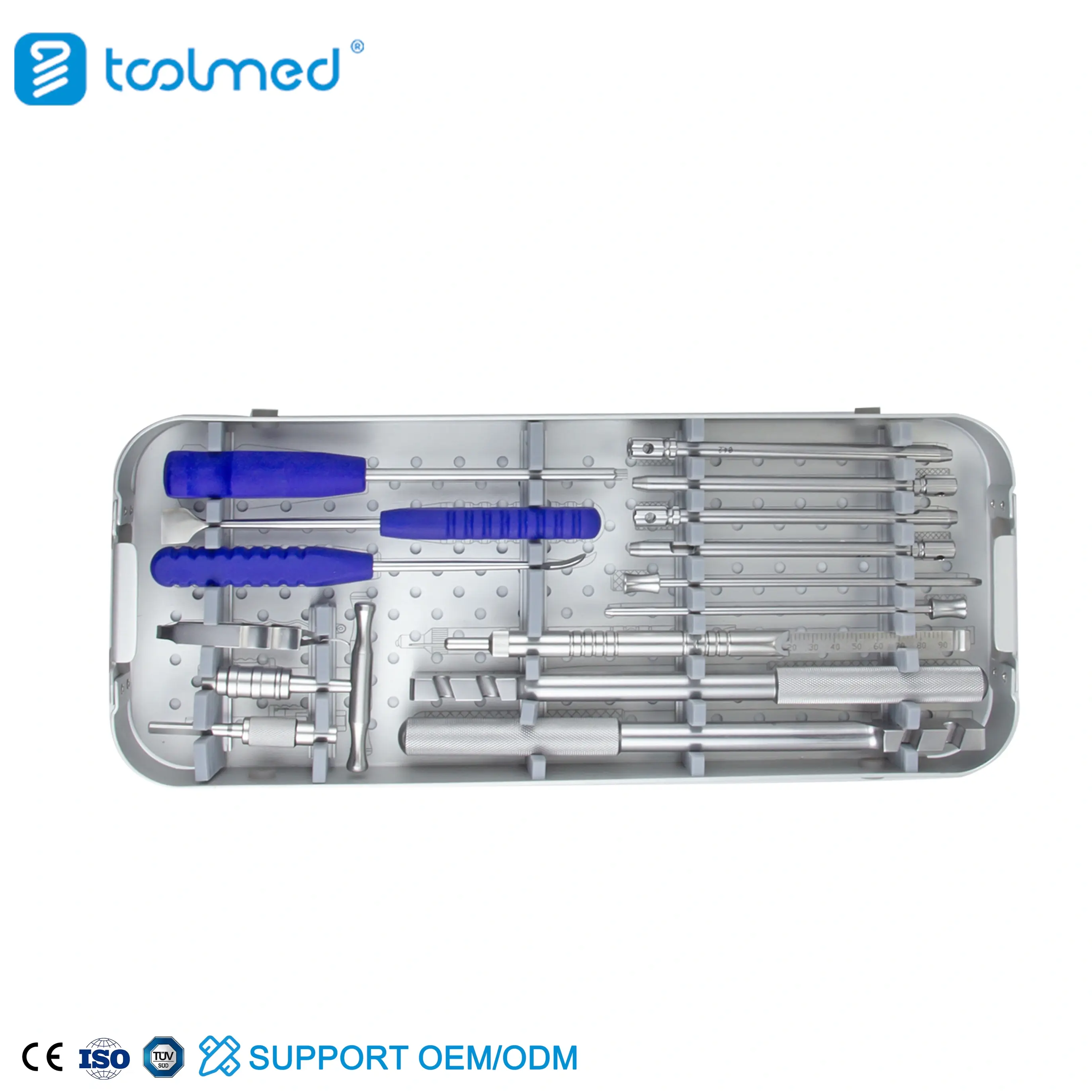

Modular T-handles for high-torque screw insertion, essential for securing large 5.0mm locking screws.
Heavy-duty bending irons designed to contour thick large-fragment plates to the patient's unique bone curvature.
| Product Name | Large Fragment Locking Plate Instrument Set(AO) |
| Material | Aluminium Alloy |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-15 Days |
| Shipping | DHL EMS UPS TNT FEDEX |
This is the "heavy-duty" version of our surgical toolkits. It is used for the biggest bones in your body, like the femur (thigh bone) and the tibia (shin bone). These bones support your entire body weight, so the tools needed to fix them must be incredibly strong and precise.
Fixing a thigh bone is very different from fixing a finger. The screws are thicker (4.5mm to 5.0mm), and the bone itself is much harder. The tools in this set are designed to provide the "muscle" needed to drill through thick bone and tighten large screws without breaking or slipping.
The AO Standard is the worldwide benchmark for bone surgery. By using a TOOLMED AO-standard kit, surgeons know exactly how each tool will perform. This consistency is vital for patient safety, especially during high-stress emergency trauma surgeries.
Every tool in this kit is built to survive the hospital's cleaning process. After every surgery, the tools are scrubbed and put in a high-pressure steam oven (autoclave). Our surgical-grade stainless steel is chosen because it won't rust or lose its strength, no matter how many times it goes through the oven.
When a surgeon "taps" a thread into the bone, it must be perfect so the screw stays tight for the next 12 months of healing. We use advanced CNC technology to make sure every drill and tap in our set is perfectly sharp and accurate to the millimeter.
The Large Fragment Locking Plate Instrument Set (AO) is the definitive choice for hospitals performing major trauma surgery. Combining extreme durability with ergonomic precision, it provides the reliability that surgeons need to rebuild the body's largest bones effectively.
Yes. This set is specifically designed for the TOOLMED Locking System but is fully compatible with any AO-standard 4.5mm/5.0mm locking or cortical plates.

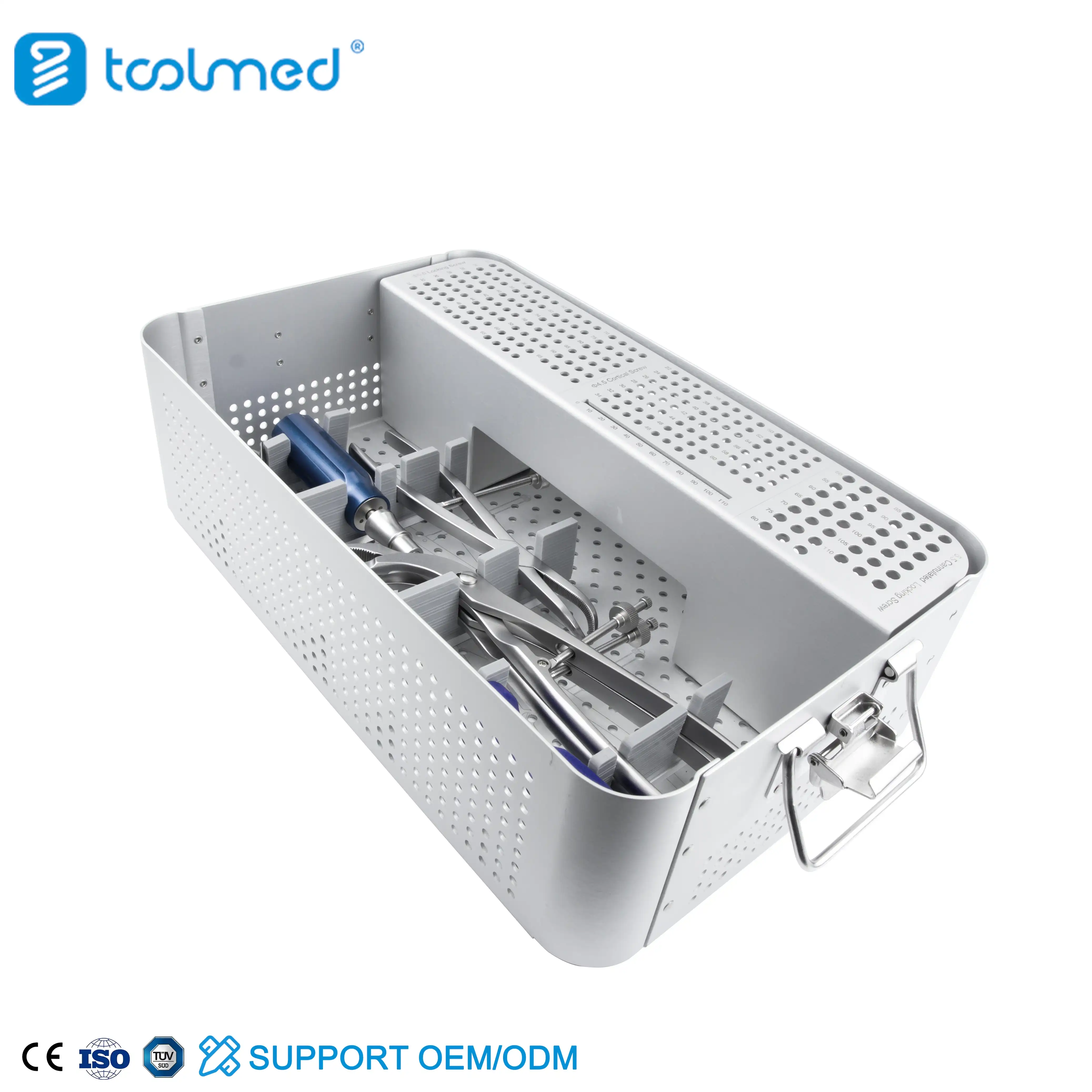

The aluminum case and tools together weigh approximately 6-8 kg. The tray is designed with sturdy handles to make it easy for hospital staff to transport to the sterile storage area.
Yes. Drill bits are the most common "consumable" in the kit. We provide high-quality replacement 3.2mm and 4.3mm bits that can be ordered individually or in bulk.
We offer the kit with either Hexagonal or Star-drive screwdrivers. You can specify your facility's preference when ordering to ensure it matches your current screw inventory.
Yes, we use color-coded anodizing for different sections (e.g., green for 3.5mm, gold/blue for 4.5mm/5.0mm) to help surgical technicians identify the right tools instantly.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
