Product Description
The C-Type features a modified neck angle designed to sit flush against the medial tibial cortex, reducing the need for intraoperative contouring and maintaining plate strength.
The threaded screw-to-plate interface creates a monolithic construct that prevents screw loosening and ensures the leveled tibial plateau remains stable during early weight-bearing.
Point-contact design preserves up to 60% more periosteal blood flow than traditional plates, promoting faster bony union and reducing the risk of implant-associated bone atrophy.
The medical-grade Titanium Alloy (Ti-6Al-4V) provides the necessary resilience to withstand the repetitive high-stress loading cycles seen in active working dogs.
The primary indication for this system is the treatment of Cranial Cruciate Ligament (CCL) rupture. The C-Type is ideal for breeds with a more pronounced medial tibial flare where a standard plate might stand off the bone.
Can be adapted for use in stabilization of pelvic osteotomies in giant breeds where a high-strength, fixed-angle Titanium head is needed to resist rotational forces.
Specifically indicated for active dogs where the mechanical forces on the stifle are extreme. The C-Type provides a secure platform for dogs requiring rapid return to sporting activities.
Indicated for revision surgeries where the unique hole spacing of the C-Type allows for screw placement in healthy bone away from previous implant tracks.
| Product name | Veterinary TPLO Locking Plate System (Titanium) - C Type Head Lock |
| Material | TA3 |
| Diameter | / |
| Length | / |
| Application | / |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-7 days |
| Shipping | DHL EMS UPS TNT FEDEX |

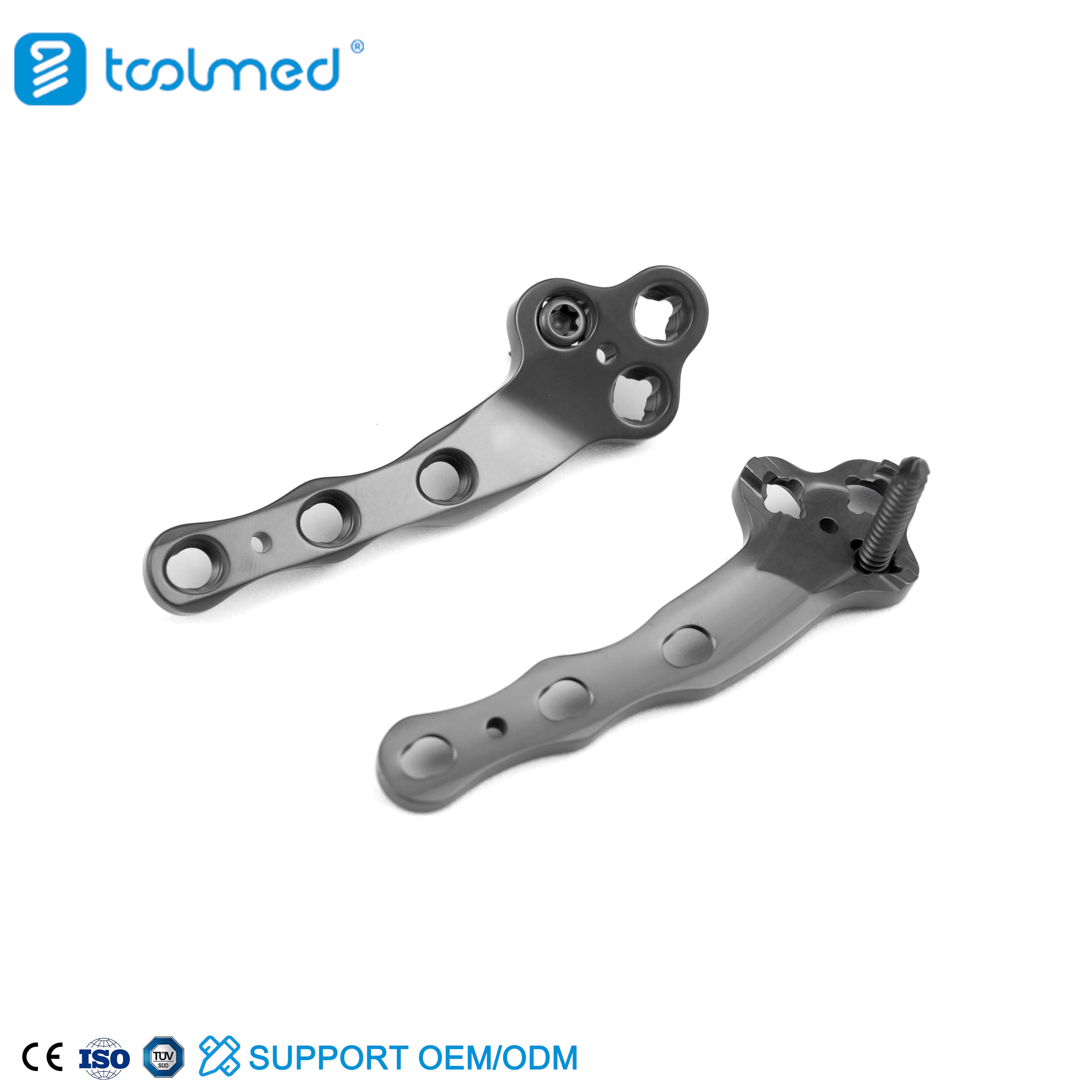

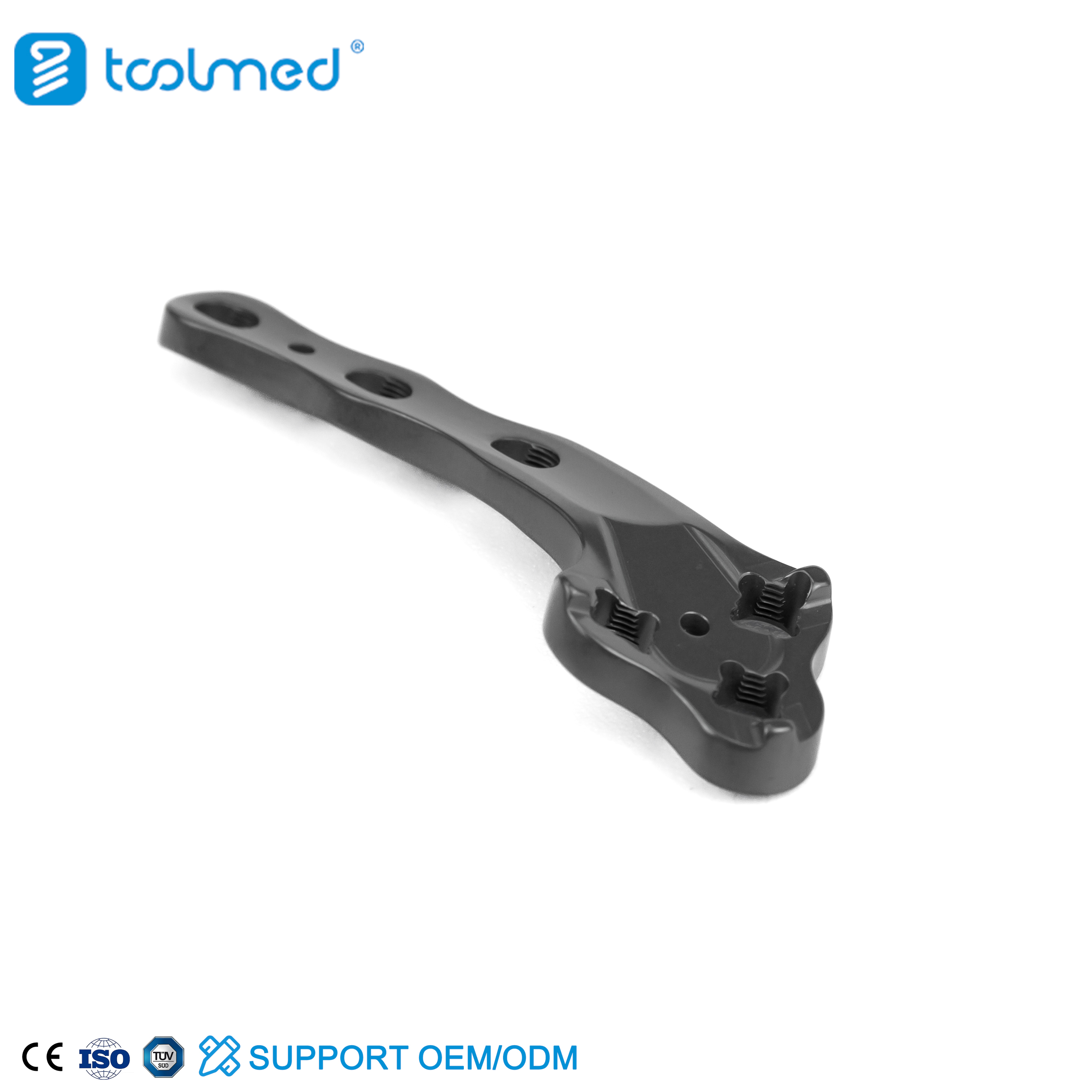

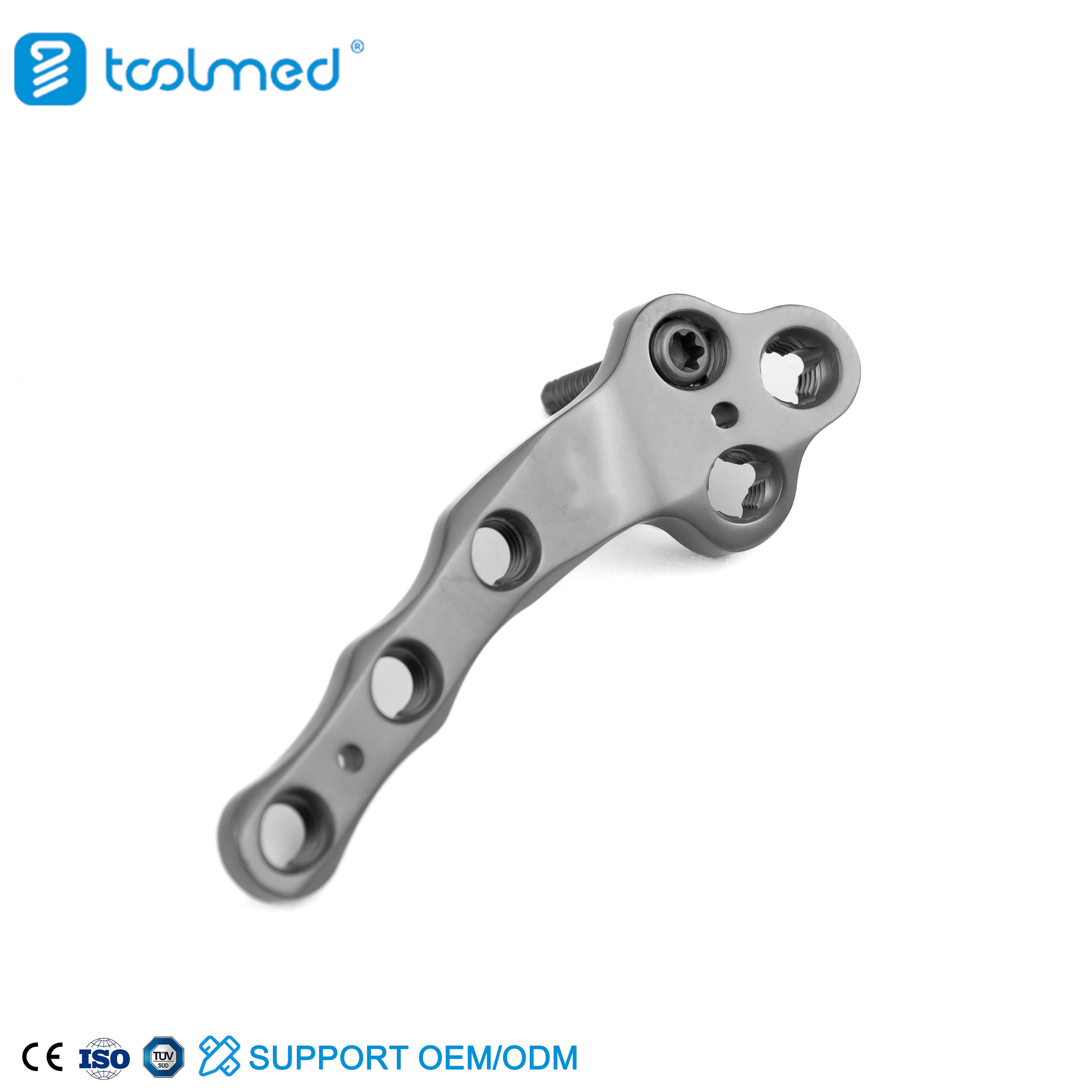

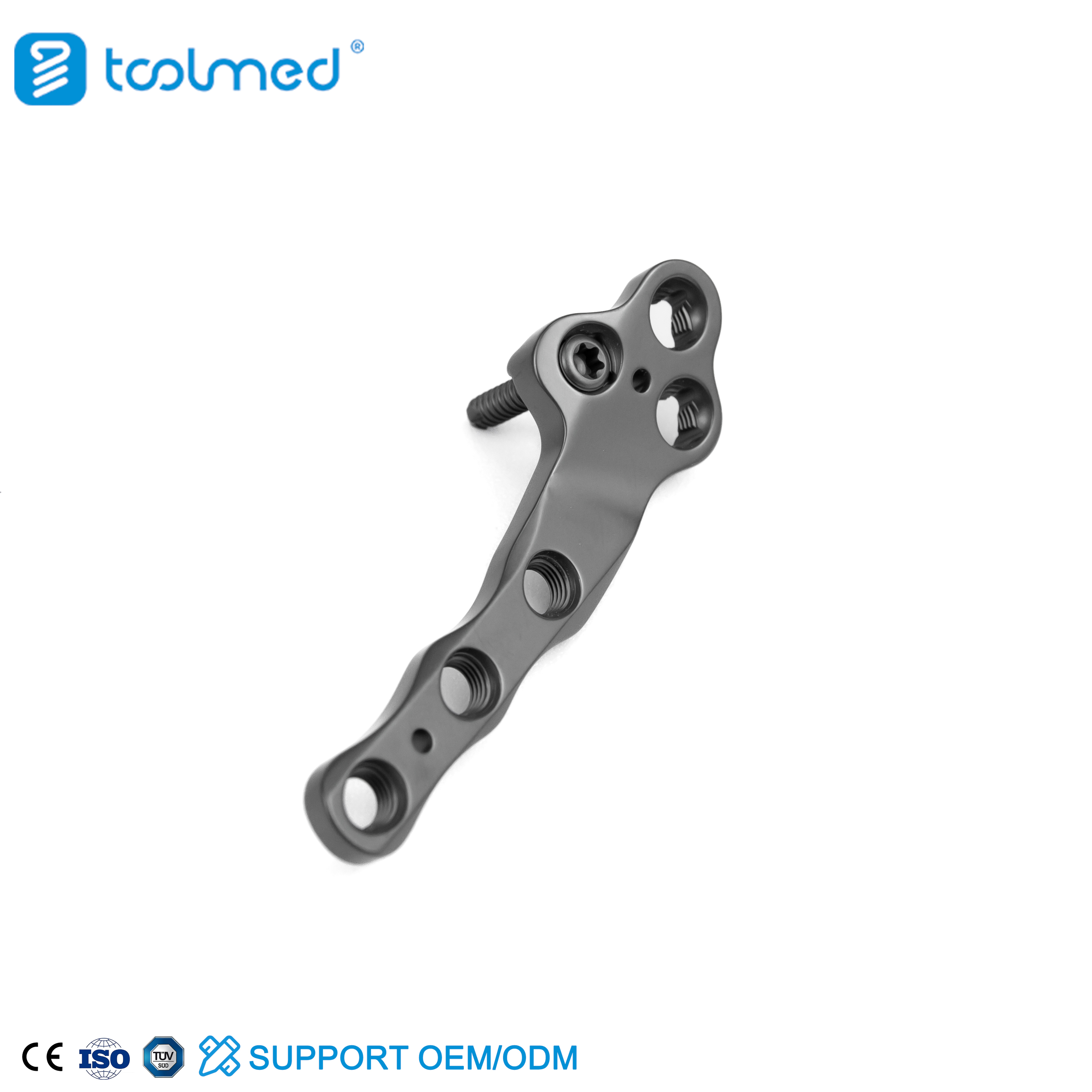

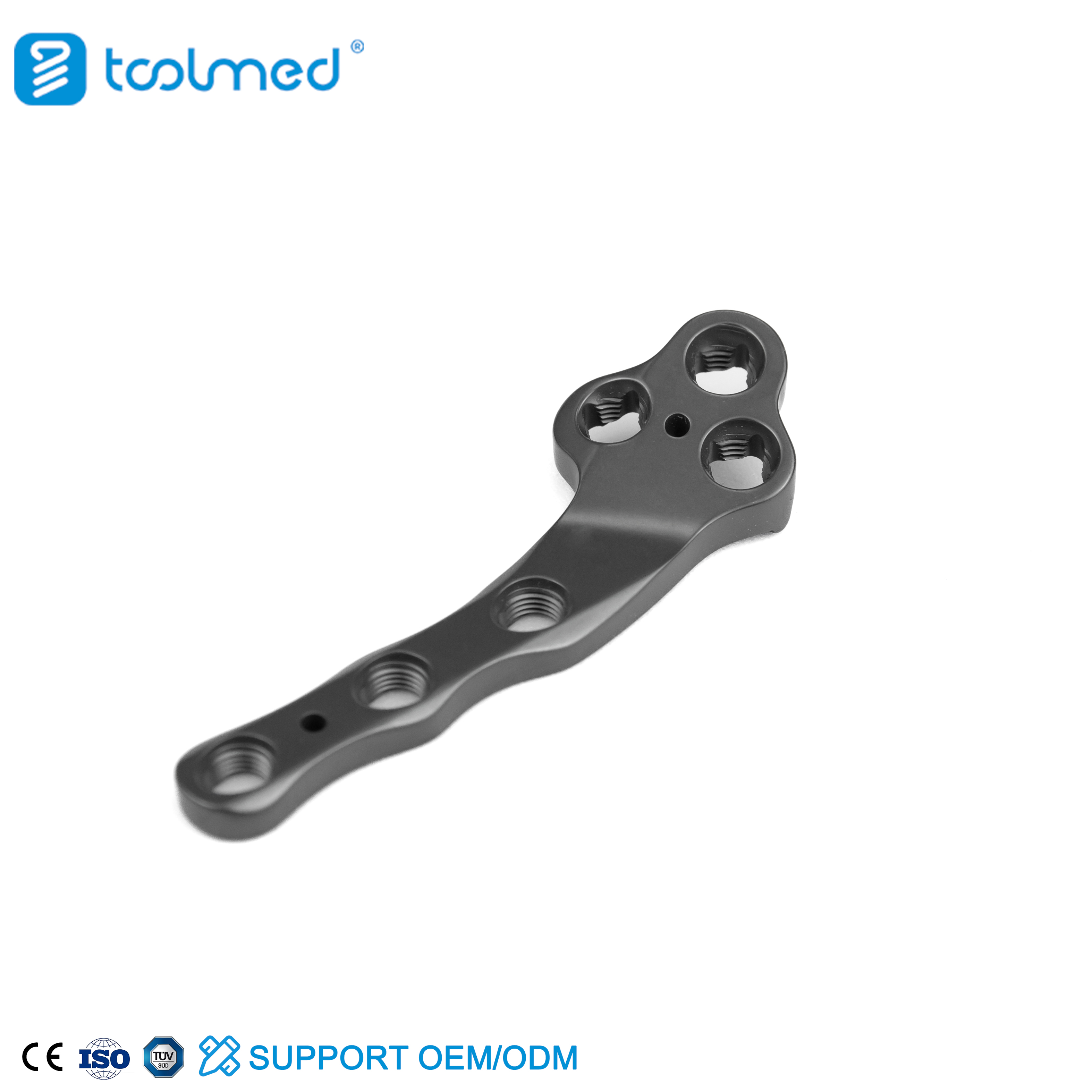

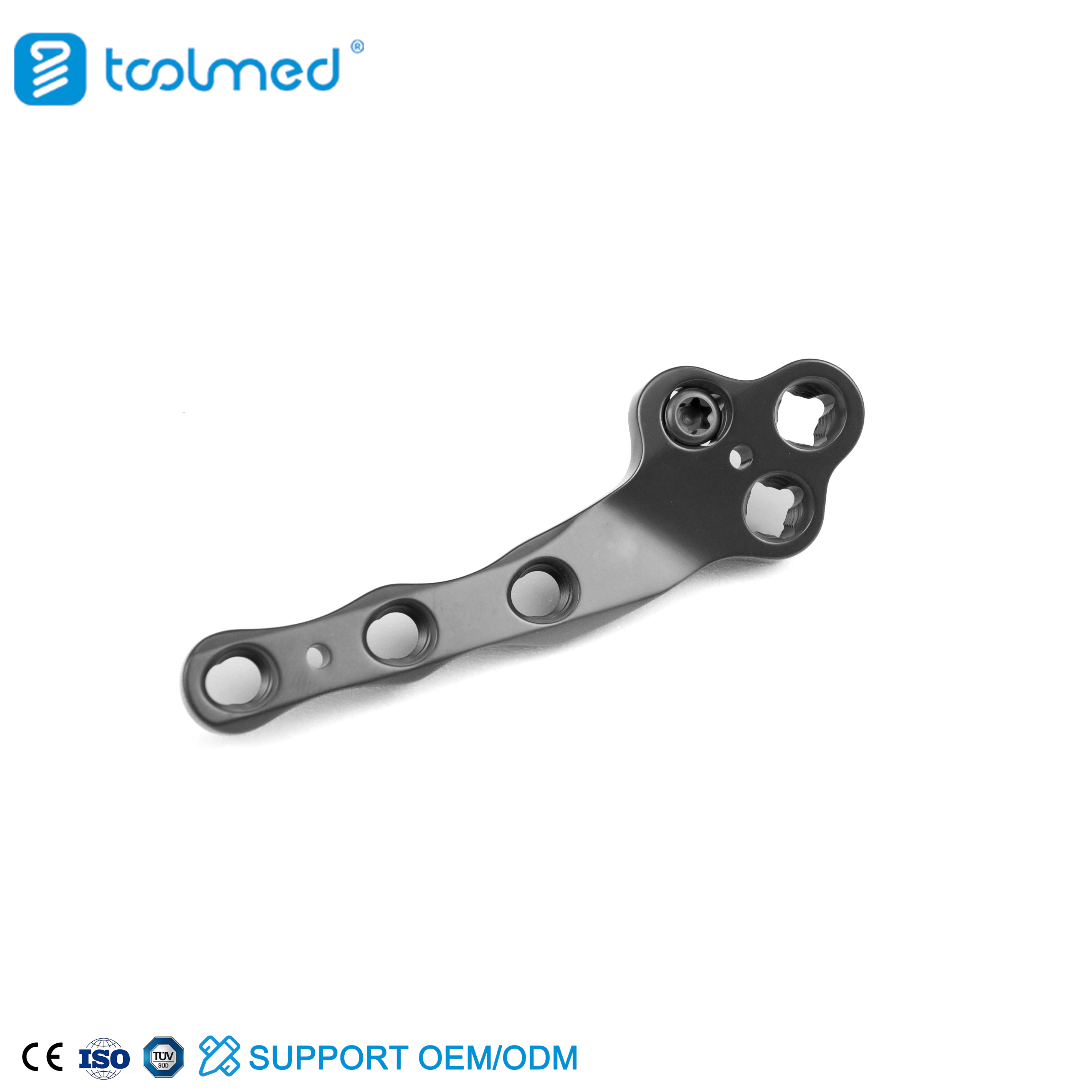

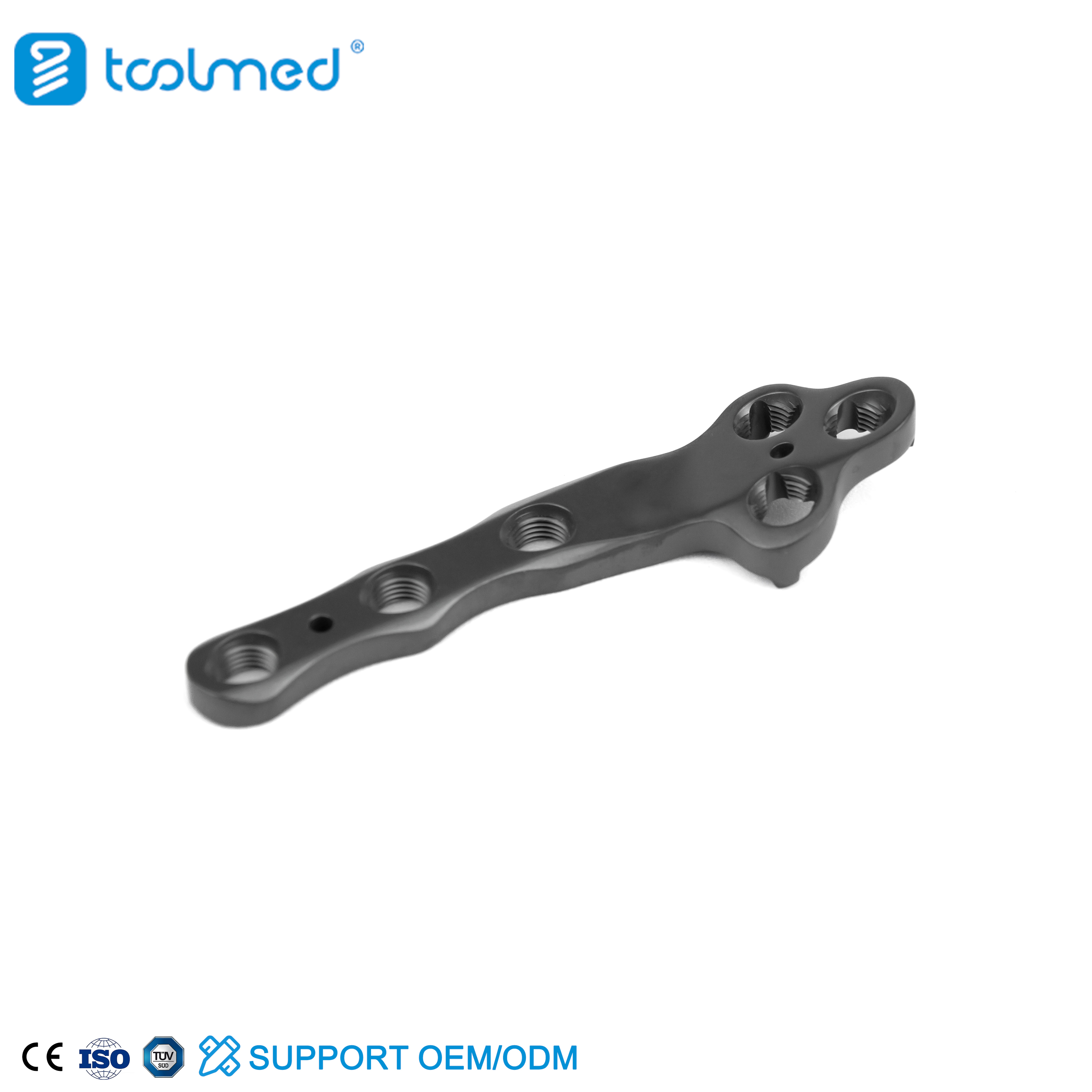

The Veterinary TPLO Locking Plate System - C Type is a high-performance Titanium internal fixator used for Tibial Plateau Leveling Osteotomy. The "C Type" refers to a specific anatomical configuration characterized by a tailored head shape and neck angle designed to optimize the fit on the medial proximal tibia of dogs. The "Head Lock" technology ensures that the locking screws and the plate form a rigid, fixed-angle unit. This is critical for stabilizing the osteotomy while the dog moves. Unlike stainless steel systems, this Titanium system is lightweight, highly biocompatible, and specifically engineered to handle the biomechanical stresses of the canine stifle joint.
This system is exclusively used in veterinary orthopedics to treat Cranial Cruciate Ligament (CCL) disease, primarily in dogs. By rotating the tibial plateau and securing it with the C-Type plate, the surgeon eliminates the "cranial tibial thrust," providing immediate functional stability to the knee. The C-Type is particularly useful for certain breeds whose tibial anatomy requires a more distal or proximal orientation of the proximal screws compared to standard A or B type plates. It is a vital tool for medium to giant breed dogs who require permanent, high-strength internal fixation to return to full mobility.
The primary advantage of the TOOLMED C-Type plate is its specialized anatomical fit, which minimizes the need for intraoperative plate bending—preserving the structural integrity of the Titanium alloy. The "Head Lock" mechanism prevents the common complication of screw loosening, which is frequent in highly active pets. Furthermore, the Titanium construction (Ti-6Al-4V) offers better fatigue resistance and lower infection rates than stainless steel. The "Biological" underside also ensures that the bone's blood supply remains intact, which is the most significant factor in achieving rapid bony union at the osteotomy site.
Biomechanically, the C-Type TPLO plate acts as a tension-band internal fixator. It is designed to withstand the repetitive compressive and bending forces applied to the tibia during a dog's gait. The Head Lock mechanism converts the shear forces at the osteotomy into stable, fixed-angle support. Titanium's lower modulus of elasticity (compared to steel) means it is less stiff, which helps reduce "stress shielding" and encourages the bone to remain strong and dense. The point-contact design of the plate ensures the biomechanical stability is achieved without sacrificing the biological life of the periosteum.
The surgical technique begins with the standard medial approach and the creation of a radial osteotomy in the proximal tibia. After the plateau is rotated to the pre-planned angle, the C-Type plate is positioned. The surgeon typically uses a neutral cortical screw in the distal shaft to pull the plate to the bone, followed by the insertion of proximal locking screws using a threaded drill guide. The C-Type’s unique head allows the surgeon to position the proximal screws safely within the rotated fragment while avoiding the joint space. Once all screws are locked, the construct provides immediate fixed-angle stability.
Postoperative care for the animal involves restricted exercise and leash walking for 8–12 weeks. For the surgical team, maintenance of the TPLO instrument set is critical. All threaded drill guides and screwdriver tips must be thoroughly cleaned of biological debris using an ultrasonic cleaner to prevent cross-contamination and ensure the locking threads remain functional. The set should be steam-sterilized at 134°C. Titanium plates are single-use only; once they have been implanted or shaped, they must never be used in another patient. Inspection of drill bits for sharpness is also essential to prevent thermal damage to the bone.
The TOOLMED Veterinary TPLO Locking Plate (C Type Head Lock) provides an advanced solution for canine stifle stabilization. Its combination of anatomical optimization, Titanium biocompatibility, and rigid fixed-angle stability makes it an essential tool for achieving superior clinical outcomes in modern veterinary orthopedics.
The C-Type is specifically designed for dogs with unique medial tibial flares or those whose anatomy requires the specialized neck angle provided by this configuration for a flush fit.
Yes, we use color-anodization (e.g., Green for 2.4mm, Blue for 3.5mm) to help your surgical team identify the correct plate size and screw compatibility instantly.
While TPLO is less common in cats, we offer the 2.0mm and 2.4mm sizes which are suitable for feline patients requiring this procedure.
Yes, because the plate is pre-contoured to the medial tibia, you must specify whether you need a Left or Right orientation for the surgical limb.
By threading the screw head into the plate, it prevents the screw from backing out or tilting ("toggling"), which is the most common cause of construct failure in non-locking systems.
