Bolt Locking vs Cap Locking in Orthopedic Locking Plates: Key Differences Explained

Introduction: Why Locking Mechanisms Matter in Orthopedic Plates

When it comes to orthopedic fixation, not all locking plate systems are created equal.
One small design difference—how the screw locks into the plate—can significantly impact stability, flexibility, and surgical outcomes.

Two of the most commonly used mechanisms are:

• Bolt locking (threaded head locking)

• Cap locking (locking cap system)

So what’s the real difference? And more importantly—which one should you choose?

Let’s break it down in a simple, practical way.

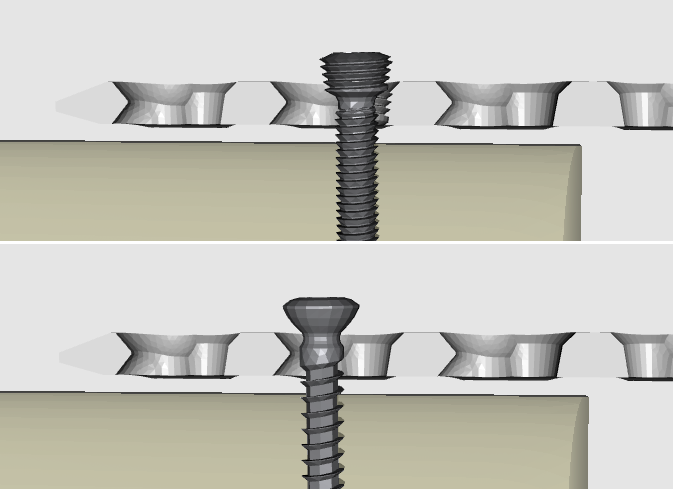

What Is Bolt Locking (Threaded Head Locking)?

Definition and Mechanism

Bolt locking—also known as threaded head locking—is the most widely used locking mechanism in modern orthopedic plates.

In this system:

• The screw head has external threads

• The plate hole has matching internal threads

• The screw is inserted and directly “locks” into the plate

Think of it like screwing a bolt into a nut—the connection is rigid and secure.

Key Characteristics of Bolt Locking

1. Fixed-Angle Stability

Once inserted, the screw is locked at a fixed angle (monoaxial).
This creates a rigid construct where the plate and screw act as a single unit.

2. High Mechanical Strength

Bolt locking provides:

• Strong resistance to pullout

• Excellent shear stability

Ideal for load-bearing situations.

3. Single-Step Procedure

Locking happens automatically during insertion—no extra components needed.

Typical Applications

Bolt locking is commonly used in:

• Standard Locking Compression Plates (LCP)

• Long bone fractures

• Cases requiring maximum structural stability

What Is Cap Locking (Locking Cap System)?

Definition and Mechanism

Cap locking is typically found in polyaxial locking plate systems.

In this system:

• The screw head is smooth or spherical (no threads)

• A separate locking cap is placed over the screw

• The cap is tightened to secure the screw to the plate

Think of it like placing a clamp over a ball joint—it allows movement first, then locks in place.

Key Characteristics of Cap Locking

1. Variable-Angle Flexibility (Polyaxial)

Unlike bolt locking, cap locking allows:

• 15°–30° angle adjustment (depending on system)

Surgeons can:

• Avoid nerves or vessels

• Target stronger bone areas

2. Two-Component Design

This system includes:

• Screw

• Locking cap

While flexible, it introduces:

• Slightly more complexity

• Potential micro-movement under extreme load

3. Controlled Load Distribution

Cap locking can distribute stress more evenly across the plate.

Typical Applications

Cap locking is ideal for:

• Periarticular fractures

• Complex anatomy (e.g., distal humerus)

• Comminuted fractures

Bolt Locking vs Cap Locking: Side-by-Side Comparison

Which Locking System Is Right for You?

Let’s make this practical.

Choose Bolt Locking If You Need:

• Maximum rigidity

• Simple surgical workflow

• Strong fixation

Choose Cap Locking If You Need:

• Angle flexibility

• Complex fracture adaptability

• Better anatomical fit

Need Help Choosing the Right System?

If you're unsure which system fits your product line or market:

Request a product recommendation based on your application
Get a customized solution (OEM/ODM available)
Talk to an engineering specialist

(We typically respond within 24 hours.)

Key Clinical Insight

Modern orthopedic systems are evolving toward hybrid designs—combining both locking principles.

Why?

Because surgeons want:

• Stability and flexibility

• Strength and adaptability

⚠️ Common Mistakes to Avoid

• Choosing fixed-angle systems for complex fractures

• Ignoring screw trajectory limitations

• Selecting based on price instead of function

These mistakes can cost far more in the long run.

Future Trends in Locking Plate Technology

• More polyaxial systems

• Better biomechanics

• Faster surgical workflows

The goal: better outcomes with less complexity.

Download & Technical Resources

To make a better decision, you can request:

Locking plate technical catalog (PDF)
Detailed specifications & dimensions
Case-based product recommendations

Conclusion: It’s a Strategic Decision

Bolt locking and cap locking aren’t just technical differences.
They directly impact:

• Surgical outcomes

• Product performance

• Long-term reliability

Choosing the right system means choosing the right clinical result.

Next Step: Start Your Evaluation

If you’re currently sourcing or evaluating locking plate systems:

Compare bolt vs cap systems
Request samples
Validate with real applications

❓ FAQ: Bolt Locking vs Cap Locking

What is the main difference between bolt locking and cap locking?

Bolt locking uses threaded engagement; cap locking uses an external locking cap.

Which system is more flexible?

Cap locking offers more flexibility due to polyaxial design.

Which system is stronger?

Bolt locking generally provides higher rigidity.

Can I customize locking plate systems?

Yes—many manufacturers offer OEM/ODM solutions based on your needs.
