Lumbar pedicle screw fixation is a cornerstone of modern spine surgery, providing unmatched biomechanical stability for the treatment of spinal trauma, instability, degenerative diseases, and deformities. However, this technique is highly demanding, with critical neurovascular structures in close proximity.

Successful pedicle screw placement relies on a deep understanding of spinal anatomy and meticulous preoperative planning. In fact, surgical philosophy has undergone a fundamental shift—from an experience-based, intraoperative “reactive” approach to a proactive, complication-avoidance strategy driven by preoperative planning.

1. Fundamental Principles: Lumbar Pedicle Anatomy and Preoperative Strategy

The first step toward safe screw placement is shifting the most critical decisions—trajectory and screw size—from the high-pressure operating room to a controlled preoperative digital environment.

1.1 Biomechanical Anchorage of the Pedicle: Anatomical and Morphological Considerations

The lumbar pedicle is a strong osseous bridge connecting the vertebral body to the posterior elements (lamina and facets). Its unique anatomical position makes it the strongest part of the vertebra, capable of significant biomechanical loads.

Biomechanical Significance:

Pedicle screw fixation enables three-column control, which is essential for restoring and maintaining sagittal and coronal alignment. Approximately 75% of screw fixation strength comes from the cortical bone of the pedicle. Therefore, selecting the maximum safe screw diameter and length during preoperative planning is crucial for optimizing pullout strength and structural stability.

Morphological Variability:

A major clinical challenge is the significant variability in pedicle morphology. Upper lumbar pedicles (L1–L4) are typically “tall and narrow,” whereas the L5 pedicle is often “wide and flat.” Additionally, cross-sectional shapes vary (kidney-shaped, teardrop-shaped, etc.), making a “one-size-fits-all” approach ineffective. Each level must be individually assessed.

1.2 Preoperative Imaging and Trajectory Planning: The Blueprint for Success

Detailed preoperative planning based on high-quality imaging is the most effective strategy to minimize risks.

Gold Standard: CT

• Computed Tomography (CT) is the undisputed gold standard due to its superior visualization of bony anatomy. Multiplanar reconstruction (MPR) allows precise measurement of pedicle width, height, axis length, and optimal trajectory angles, defining a clear “safe zone.”

CT vs. MRI Comparison

• While MRI excels in soft tissue evaluation, it is less accurate for screw planning. Studies show MRI tends to:

• Overestimate screw length (by ~1.9–2.1 mm)

• Underestimate pedicle diameter (by ~0.4–0.5 mm)

• This may lead to selecting screws that are too long (risking anterior breach) or too short (reducing fixation strength).

  Emerging deep learning–based 3D MRI reconstruction shows promising results comparable to CT, potentially offering a radiation-free alternative in the future.

Planning Screw Size and Trajectory

• Modern workflows involve software such as Mimics or Surgimap to generate patient-specific 3D vertebral models.

• Ideal sagittal trajectory: parallel to the superior endplate

• Axial trajectory: converging toward the midline

General guidelines:

• Screw diameter ≈ 80% of pedicle outer cortical diameter

• Screw length ≈ 75–80% of vertebral body depth

Advanced Planning Techniques

• Patient-Specific 3D-Printed Guides:
  Custom-designed guides based on CT data significantly improve accuracy, especially for early-career surgeons and complex deformities.

• Artificial Intelligence (AI):
  AI-driven planning can automatically segment vertebrae and generate optimal trajectories, improving efficiency, consistency, and safety.

2. Surgical Techniques: A Comparative Overview

The choice of technique significantly affects accuracy, operative time, radiation exposure, and complication rates. There is no universally “best” method—only the most appropriate one for a given case.

The evolution of techniques reflects a continuous problem-solving process:

1. Freehand: efficient but “blind”

2. 2D Fluoroscopy: visual guidance with high radiation

3. 3D Navigation (O-arm): improved accuracy and reduced radiation

4. Robotics: enhanced precision and reproducibility

2.1 Freehand Technique: The Foundation of Anatomical Placement

The freehand technique relies entirely on anatomical knowledge and tactile feedback.

Entry Point Landmarks:

The most accepted entry point is at the intersection of:

• Pars interarticularis

• Mamillary process

• Lateral border of the superior articular process

• Midline of the transverse process

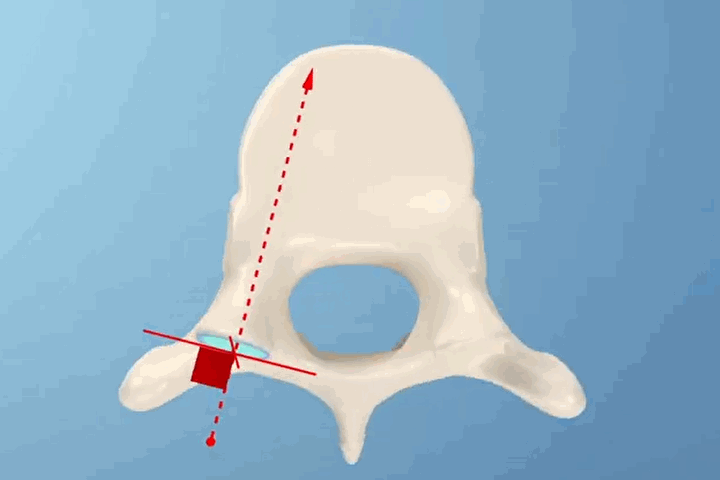

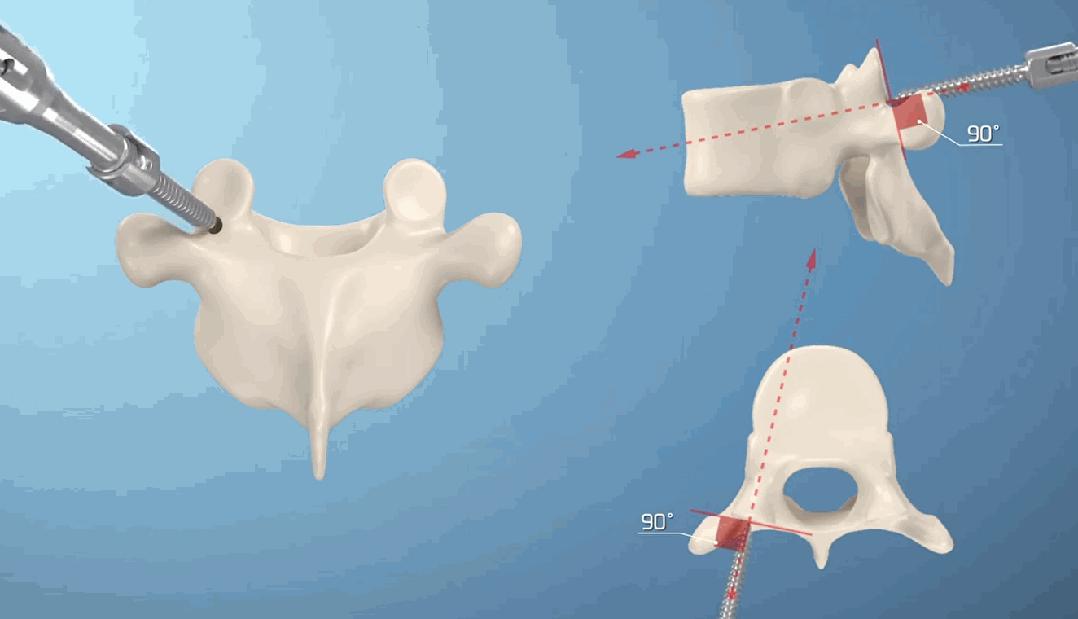

Segmental Trajectory (L1–L5):

• Sagittal Plane: Parallel to the superior endplate

• Axial Plane: Increasing medial angulation caudally

  • L1: ~5°

  • L2: ~10°

  • L5: 15–25°

Critical Role of Tactile Feedback:

• Continuous resistance indicates cancellous bone

• Sudden loss suggests cortical breach

• “Five-Point Palpation” Safety Check:
  Confirm integrity of:

  • Floor (anterior wall)

  • Medial, lateral, superior, inferior walls

2.2 Image-Guided Navigation: Enhancing Precision

Technology Evolution:

• 2D fluoroscopy (C-arm): limited 3D accuracy, high radiation

• 3D navigation (O-arm): real-time, GPS-like guidance

Evidence-Based Comparison:

• Accuracy:
  99% (navigation) vs. 94.1% (freehand)

• Radiation:
  Reduced exposure for surgical staff

• Operative Time:
  Initially longer, but may decrease with experience

2.3 Robotic-Assisted Placement: Precision and Reproducibility

Robotic systems (e.g., Mazor, ExcelsiusGPS) integrate navigation with mechanical guidance.

Workflow:

• Preoperative planning

• Intraoperative registration

• Robotic arm guides trajectory

Clinical Benefits:

• Higher perfect placement rates (Grade A)

• Lower complication rates (4.83% vs. 14.97%)

• Ability to use larger and longer screws

• Reduced radiation and blood loss

• Limitations:

  • Higher cost

  • Longer operative time (early learning curve)

2.4 Minimally Invasive and Alternative Trajectories

Minimally Invasive Surgery (MIS):

• Reduces muscle damage, bleeding, and recovery time, but depends heavily on imaging.

Cortical Bone Trajectory (CBT):

• Medial and caudal entry point

• Caudo-cephalad and medial-to-lateral path

Advantages:

• Improved fixation in osteoporotic bone

• Less muscle dissection

• Reduced facet joint violation

Challenges:

• Narrower corridor

• Higher technical demand

3. Intraoperative Safety Measures and Expert Strategies

Safe screw placement requires a multi-layered verification system.

Modern safety relies on redundancy and multimodal validation, including:

• Anatomical knowledge

• Tactile feedback

• Neurophysiological monitoring

• Imaging confirmation

3.1 Intraoperative Neuromonitoring (IONM): A Neural Safety Net

Triggered EMG (t-EMG):

• Detects pedicle breaches via electrical stimulation.

Threshold Guidelines:

• < 7–8 mA → suspicious

• < 5–6 mA → high risk of breach

• 12 mA → safe placement

Limitations:

• Less reliable in MIS

• Requires minimal neuromuscular blockade

3.2 Final Verification and Salvage Strategies

Imaging Confirmation:

• X-ray: basic assessment

• O-arm CT: gold standard

• Revision rate reduced from 0.37% → 0.02%

Managing Suspected Breach:

• Redirect trajectory

• Perform laminotomy for direct palpation if necessary

3.3 Expert Tips for Optimizing Fixation

Undertapping (−1 mm):

• Increases pullout strength by up to 93%

Maximize Screw Size and Convergence:

• ~30° convergence improves stability

Avoid Reinsertion:

• Reduces fixation strength by ~34%

Patient Positioning:

• Use radiolucent table, abdomen free-hanging

4. Complications: Mechanisms, Prevention, and Management

A key concept is distinguishing between:

• Malposition (radiographic issue)

• Complication (clinical consequence)

Many malpositioned screws are asymptomatic and do not require intervention.

• Malposition rate: 20–30%

• Neurological injury: 1–2%

4.1 Pedicle Screw Malposition and Breach

Classification:

• Gertzbein-Robbins grading system

Clinical Significance by Direction:

• Medial breach: risk to spinal canal

• Inferior breach: highest risk for nerve root injury

• Lateral breach: usually tolerated but not risk-free

• Anterior breach: Screw over-length or excessive angle resulting in penetration of the anterior vertebral body cortex, with risk of injury to the retroperitoneal great vessels (aorta, vena cava, common iliac vessels).

Neurological Complications：

• Nerve Root Injury

• Mechanism: The most common cause is medial or inferior breach of the screw, resulting in direct mechanical compression or irritation of the nerve root. The reported incidence of postoperative radiculopathy directly caused by screw malposition is 1%-2%.

• Special Case: L5 Nerve Root Injury from S1 Screw
  In L5-S1 fusion, after exiting the L5-S1 foramen, the L5 nerve root travels anterior to the sacral ala. If the S1 screw trajectory is excessively lateral (outward), it can breach the anterior cortex of the sacral ala, directly impacting or compressing the L5 nerve root against the bone, leading to severe postoperative L5 radiculopathy.

• Avoidance Strategy: Direct the S1 pedicle screw medially, towards the sacral promontory. This is anatomically safer and biomechanically stronger.

  Dural Tear：

  Mechanism: Direct puncture from a medially misplaced screw, or instrument slippage (e.g., osteotome, Kerrison rongeur) during decompression. In revision surgery, dural tears are also prone to occur due to epidural scar tissue obscuring normal tissue planes.

• Intraoperative Management: The primary goal is to achieve a direct, watertight primary closure to prevent postoperative cerebrospinal fluid (CSF) leakage. Key steps include:

1. Adequate Exposure: May require extending the laminectomy to visualize the tear without tension.

2. Nerve Protection: Place a cotton pad over the tear to prevent nerve root herniation.

3. Primary Closure: Suture the tear using fine, non-absorbable suture (e.g., 7-0 Gore-Tex).

4. Use of Adjuncts: If primary closure is not possible or the closure is not watertight, use dural substitutes, autologous muscle/fat graft, or fibrin glue.

5. Postoperative Management: Maintain bed rest for a period postoperatively. For persistent leakage, a lumbar drain can be placed. The last resort is surgical re-exploration.

Vascular and Visceral Injury：

1. Although rare, vascular injury is catastrophic and potentially life-threatening.

• Mechanism: Almost always caused by an excessively long or incorrectly directed screw penetrating the anterior or anterolateral vertebral body cortex. The great vessels (abdominal aorta, inferior vena cava, common iliac vessels) lie directly anterior to the lumbar vertebral bodies.

• Presentation: Can be dramatic, with intraoperative hemorrhage leading to hemodynamic instability, or insidious, presenting days to even years postoperatively as a pseudoaneurysm, arteriovenous fistula, or retroperitoneal hematoma.

• Management:

• Intraoperative Bleeding: If great vessel injury is suspected, do not remove the screw immediately, as it may be acting as a tamponade. Immediate vascular surgery consultation is mandatory.

• Asymptomatic Screw Contact: If postoperative CT shows the screw simply abuts a great vessel without any signs of bleeding or hematoma, the literature consensus favors conservative management. The risk of causing catastrophic bleeding during revision surgery to reposition the screw is generally considered higher than the risk of leaving an asymptomatic, malpositioned screw in place. In this situation, close observation and imaging follow-up are recommended.

  Implant-Related Complications

  These complications typically occur months to years postoperatively and their appearance often signals a biological or biomechanical failure of fusion.

  • Screw Loosening/Pullout:
    Most commonly associated with poor bone quality (osteoporosis) or high mechanical stress (e.g., long-segment deformity fusions).

  • Implant Fracture (Screw/Rod Fracture):
    Fatigue fracture of a screw or rod is a nearly pathognomonic sign of pseudarthrosis (i.e., failed fusion). If solid bony fusion is not achieved across the instrumented segment, the implant will endure cyclic loading with every patient movement, eventually leading to metal fatigue and fracture.

  • Adjacent Segment Degeneration (ASD):
    The stiffness of the fused segment alters the normal biomechanics of the spine, causing stress concentration at the mobile segments above and below the fusion, thereby accelerating the degenerative process at these levels.

  • Avoidance Strategy:
    The ultimate strategy to prevent long-term implant-related complications is to achieve solid biological fusion. This is the primary goal of surgery. Techniques to maximize fusion rates include meticulous decortication of posterior elements, application of ample autograft bone, and providing anterior column support via interbody fusion (e.g., PLIF or TLIF) when significant instability or high mechanical stress is present.

    Conclusion

    Lumbar pedicle screw placement remains the gold standard for posterior spinal fixation, offering unparalleled biomechanical stability. However, its technical demands and the proximity of critical neurovascular structures mandate an evidence-based approach to maximize accuracy and minimize complications.
