Facing a patient with an intertrochanteric femur fracture, the surgical plan may be set, but choosing exactly which “nail” to use is truly an art.
To understand their differences, you cannot focus only on appearance; you must look deeper to see the clinical problems they were designed to solve—their design philosophy.
Core Design: The essence lies in its helical blade.
Design Philosophy: PFNA was created to address the shortcomings of traditional lag screws, which tend to lose purchase in osteoporotic femoral heads and rotate or cut out.
The blade does not drill in—it presses in, compacting the surrounding cancellous bone. This creates a denser bone–implant interface, producing excellent anti-rotation stability.
In One Sentence: PFNA leverages bone compaction to overcome the anti-rotation challenge in osteoporotic femoral heads.

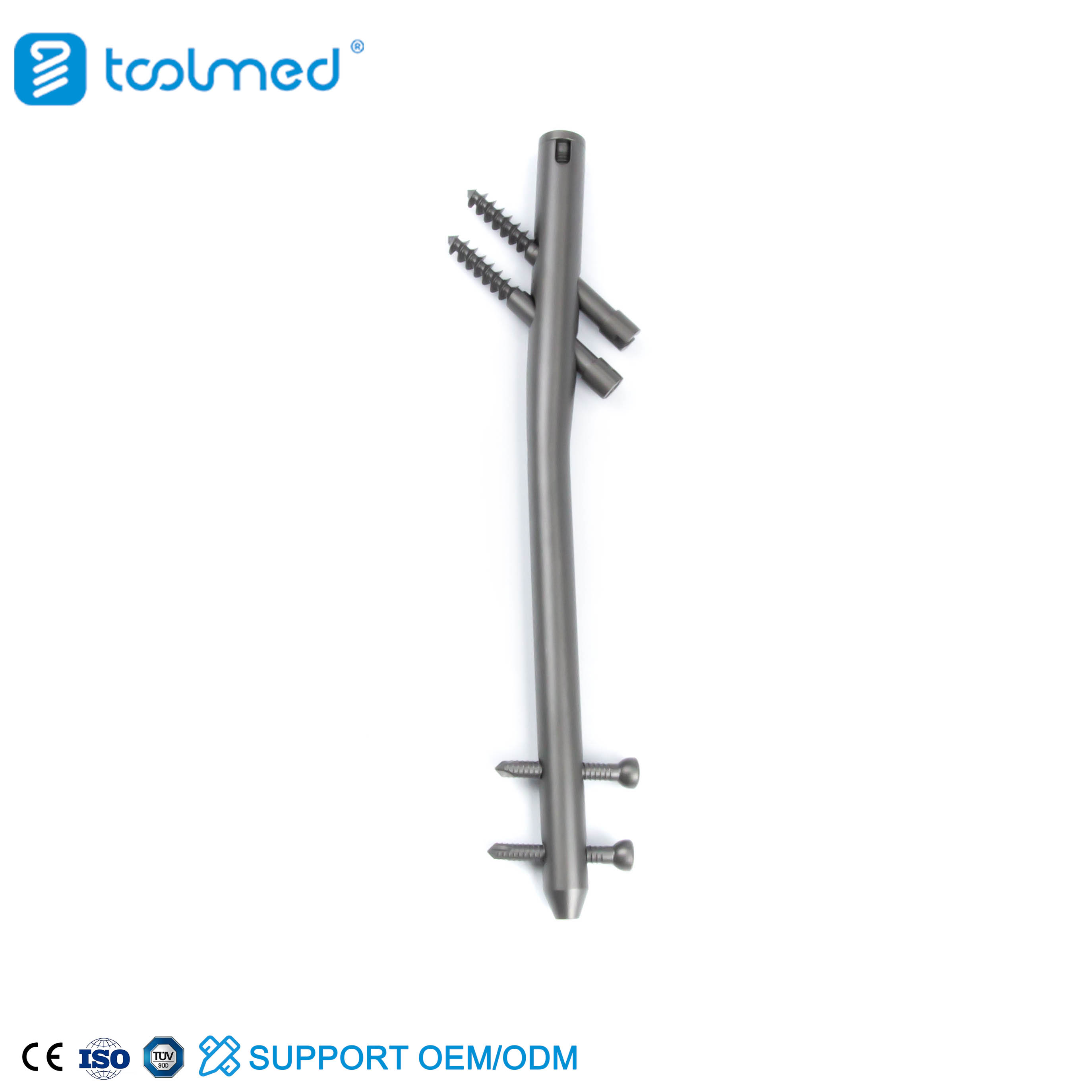

Core Design: A traditional large-diameter lag screw + a distal set screw for anti-rotation.
Design Philosophy: As the pioneer of intramedullary nails, its philosophy is “classic, reliable, and efficient.” A strong lag screw provides primary mechanical stability, while controlled sliding and compression at the fracture site promote biologic healing.
The set screw engages with the lag screw groove to prevent rotation.
The latest Gamma4 further optimizes proximal geometry and instrumentation to improve efficiency and minimally invasive handling.
In One Sentence: The Gamma nail is a time-tested workhorse emphasizing sliding compression and surgical efficiency.

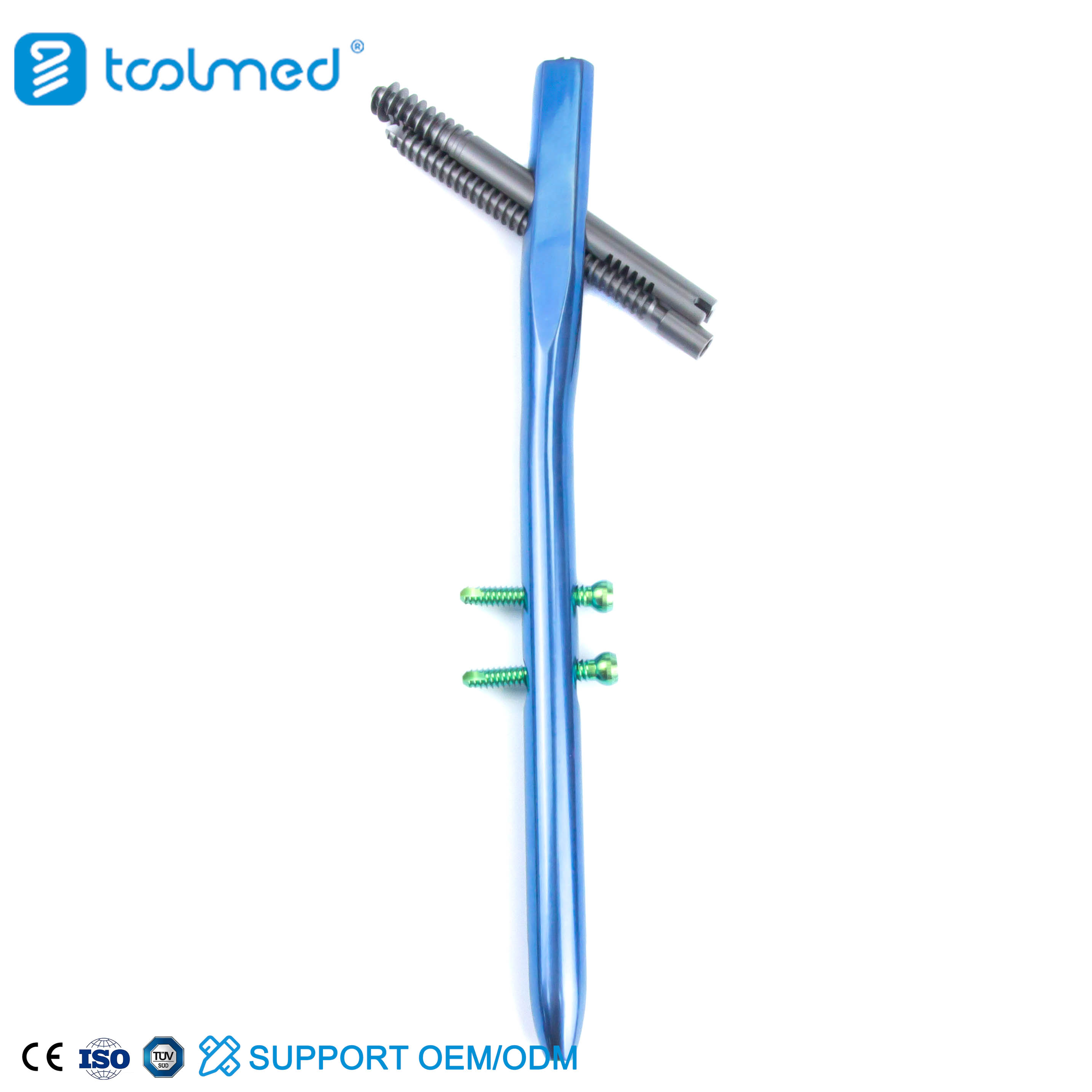

Core Design: An integrated dual-screw system.
Design Philosophy: InterTAN’s design is ambitious—it attempts to simultaneously solve all mechanical problems of unstable fractures: rotation, shortening, and varus collapse.
Two integrated screws form a broad, locked platform in the femoral head, providing the strongest anti-rotation performance among the three.
More importantly, its unique instrumentation (worm-gear mechanism) allows active, linear, and continuous intraoperative compression, firmly securing the fracture fragments and minimizing postoperative shortening.
In One Sentence: InterTAN is a “control freak,” using a precision dual-screw system for comprehensive and active mechanical control.
Theoretical differences must ultimately be validated during surgery. Based on literature and your provided materials, here are key techniques and pitfalls.
Reduction Is King: No implant can salvage a poorly reduced fracture. Achieve near-anatomic reduction in AP and lateral views, and avoid varus reduction at all costs.
Entry Point Matters: The “golden entry point” at the tip of the greater trochanter is critical.
Too medial → varus
Too lateral → valgus
Too anterior → posterior screw/blade position
And vice versa.
TAD Is the Lifeline: Tip–Apex Distance (TAD) < 25 mm is the iron rule against cut-out. Guide wire must be central or inferior-central in both AP and lateral views.
Technique: The blade is hammered, not drilled. Use tactile feedback and hammering sound to gauge bone density to avoid femoral head penetration.
Pitfall: The blade may rotate slightly during impaction due to its non-threaded design. Closely monitor with fluoroscopy to keep the blade sleeve markings parallel to the floor.
Technique: Workflow is classic and familiar, with a gentle learning curve. Gamma4 tools—such as the threaded Precision Pin™—reduce wire slippage and improve accuracy.
Pitfall: In severely comminuted fractures, the single lag screw’s anti-rotation capability is relatively weaker. Be mindful of the “Z-effect” or rotational instability in highly unstable patterns.
Technique: Its active compression is a unique advantage—make full use of it. Once reduction and guide wire placement are satisfactory, controlled compression provides visible fracture coaptation.
Pitfall: Technically the most demanding. The two guide wires must be placed precisely in parallel. Because the system is integrated and rigidly locked, poor reduction leaves little room for adjustment.
Studies clearly show its surgery duration, blood loss, and fluoroscopy time are higher than the other two—an important risk for elderly and fragile patients.
Back to the fundamental question: which implant should be used for a specific patient? An evidence-based, stratified decision-making approach is essential.
Although InterTAN demonstrates superior biomechanical performance in laboratory models (especially unstable patterns), large clinical studies and meta-analyses show no significant long-term clinical difference among the three implants regarding:
Harris Hip Scores (1 year)
Union rates
Long-term function
This means:
Once fixation stability surpasses a “good enough” threshold, the ultimate outcome is influenced more by:
Patient factors (age, bone quality, comorbidities, rehabilitation)
Surgical quality (reduction, TAD, technique)
Conclusion: Don’t use a cannon to kill a mosquito.
Recommendation: PFNA or Gamma Nail.
These offer fast, minimally invasive surgeries with adequate stability. Choose the implant with which you are most familiar and most efficient.
This is where “clinical judgment” is required.
Recommendation: Prefer InterTAN.
These patients require maximal mechanical stability and can tolerate a longer procedure. InterTAN’s anti-rotation and anti-shortening advantages provide the highest protection against failure.
Recommendation: Prefer PFNA or Gamma Nail.
Minimizing operative time, bleeding, and anesthesia risks is priority. These implants provide “good enough” stability with minimal physiologic impact.
If bone quality is extremely poor, consider cement augmentation.
The best implant is always the one you can implant most accurately and confidently.
After understanding these foundational principles, mastering one or two systems thoroughly is far more important than blindly pursuing the “newest” or “strongest.”
