ATLAS 5.5 Polyaxial Pedicle Screw

ATLAS 5.5 Polyaxial Pedicle Screw Overview

ATLAS 5.5 Polyaxial Pedicle Screw Features and Benefits

Available in diameters of 4.5, 5.0, 5.5, 6.0, 6.5, and 7.0 mm, with lengths ranging from 30 to 55 mm depending on

specification

Polyaxial head offers multi-plane flexibility during rod assembly

Dual‑lead thread design enhances insertion efficiency and pedicle anchoring

StarDrive recess and extended notch tabs improve torque control and ease of removal

Tapered screw tip promotes accurate pedicle trajectory and allows bicortical fixation

Low-profile design minimizes soft tissue irritation and improves surgical ergonomics

Conforms to CE, ISO 13485, and GMP quality standards and includes a 5‑year warranty

ATLAS 5.5 Polyaxial Pedicle Screw Indications

The ATLAS 5.5 Polyaxial Pedicle Screw is indicated for spinal stabilization in adult patients undergoing posterior thoracolumbar instrumentation, including:

Degenerative spinal disorders

Traumatic fractures of the thoracolumbar spine

Spinal deformity correction

Spondylolisthesis and stabilisation after decompression

（插入产品图片-组图形式）

ATLAS 5.5 Polyaxial Pedicle Screw Specifications

（插入产品规格的列表）

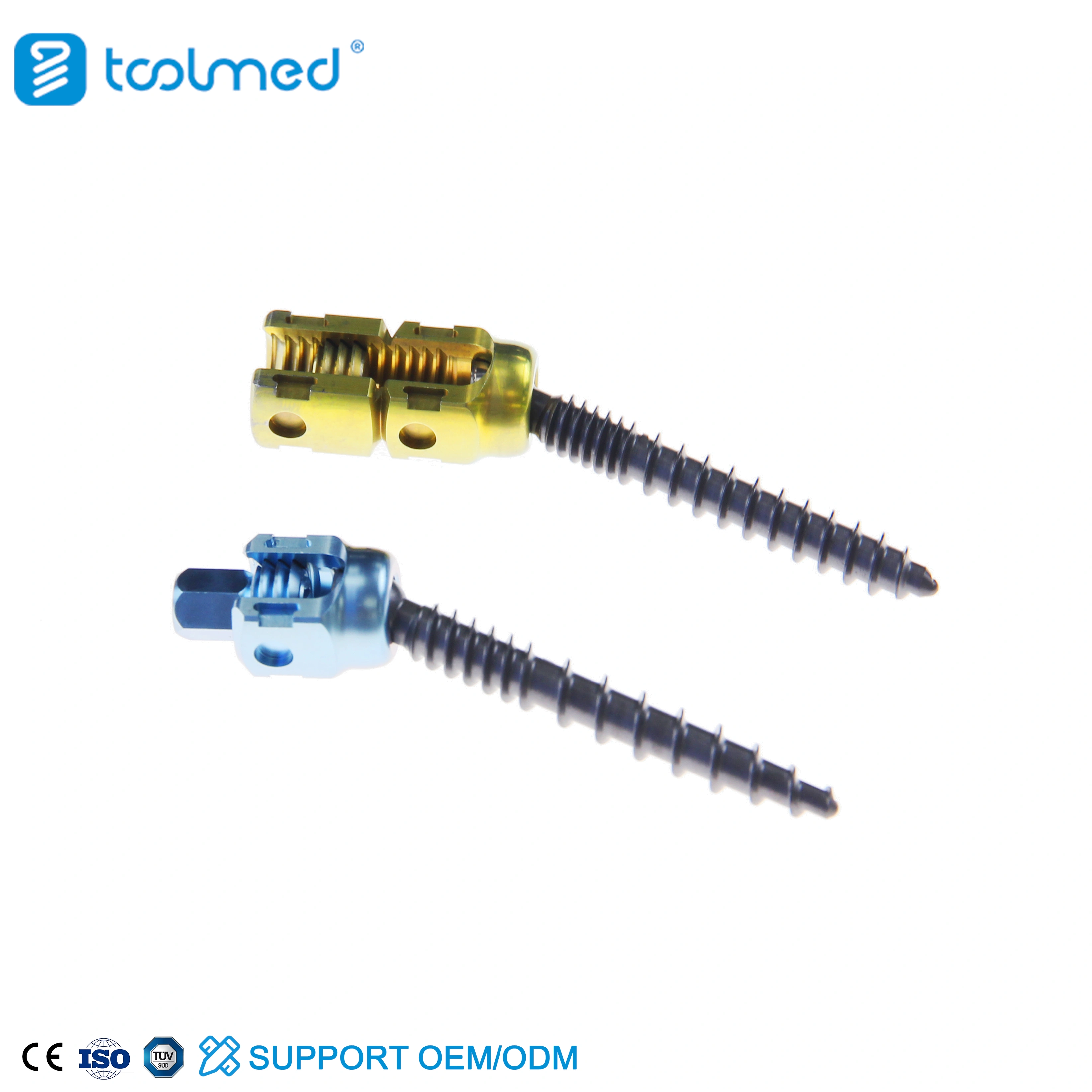

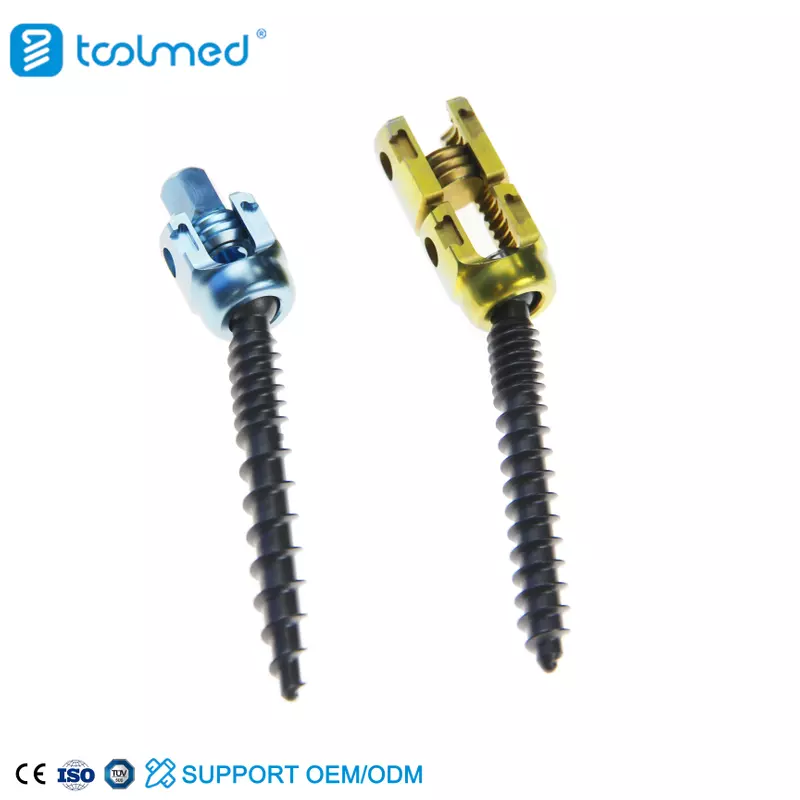

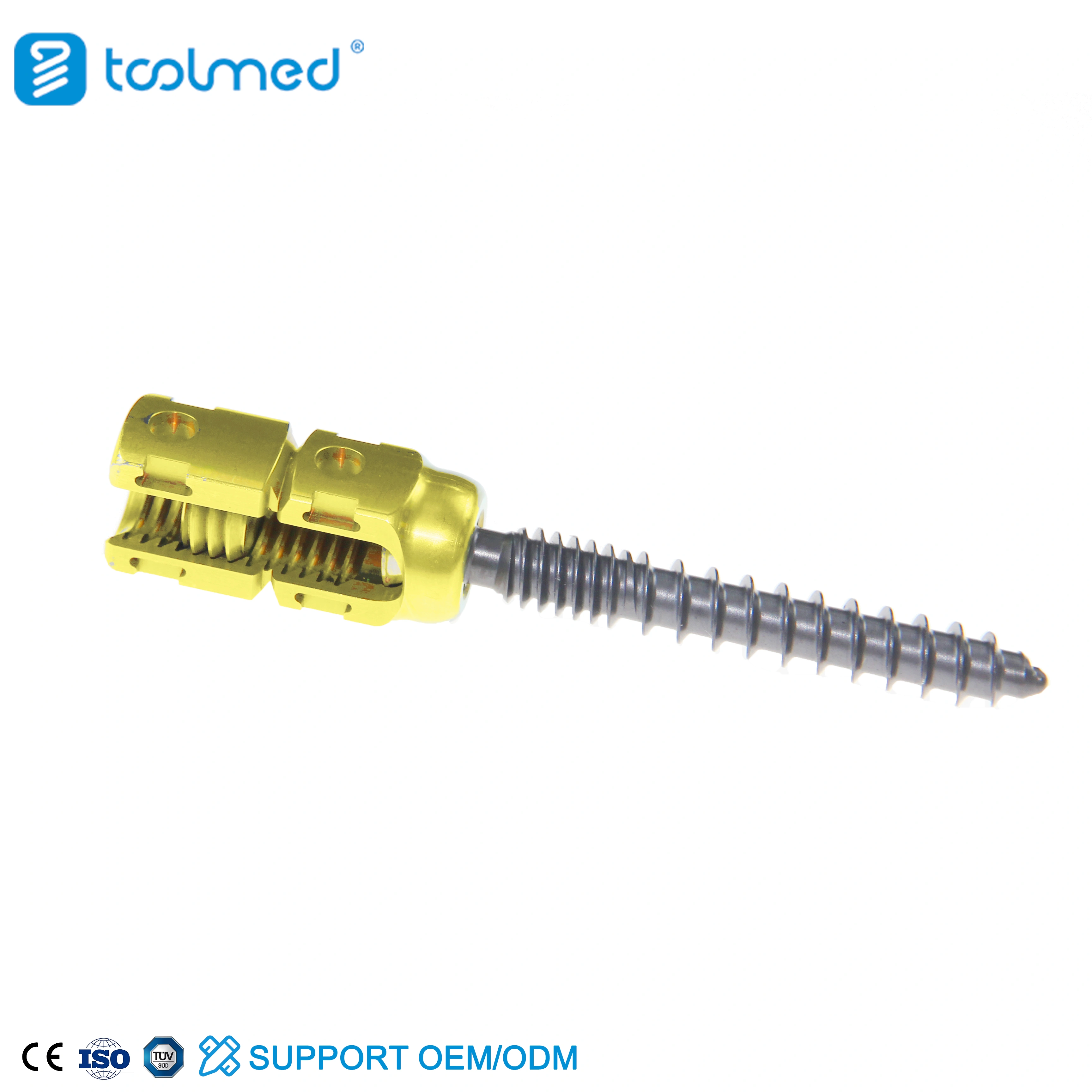

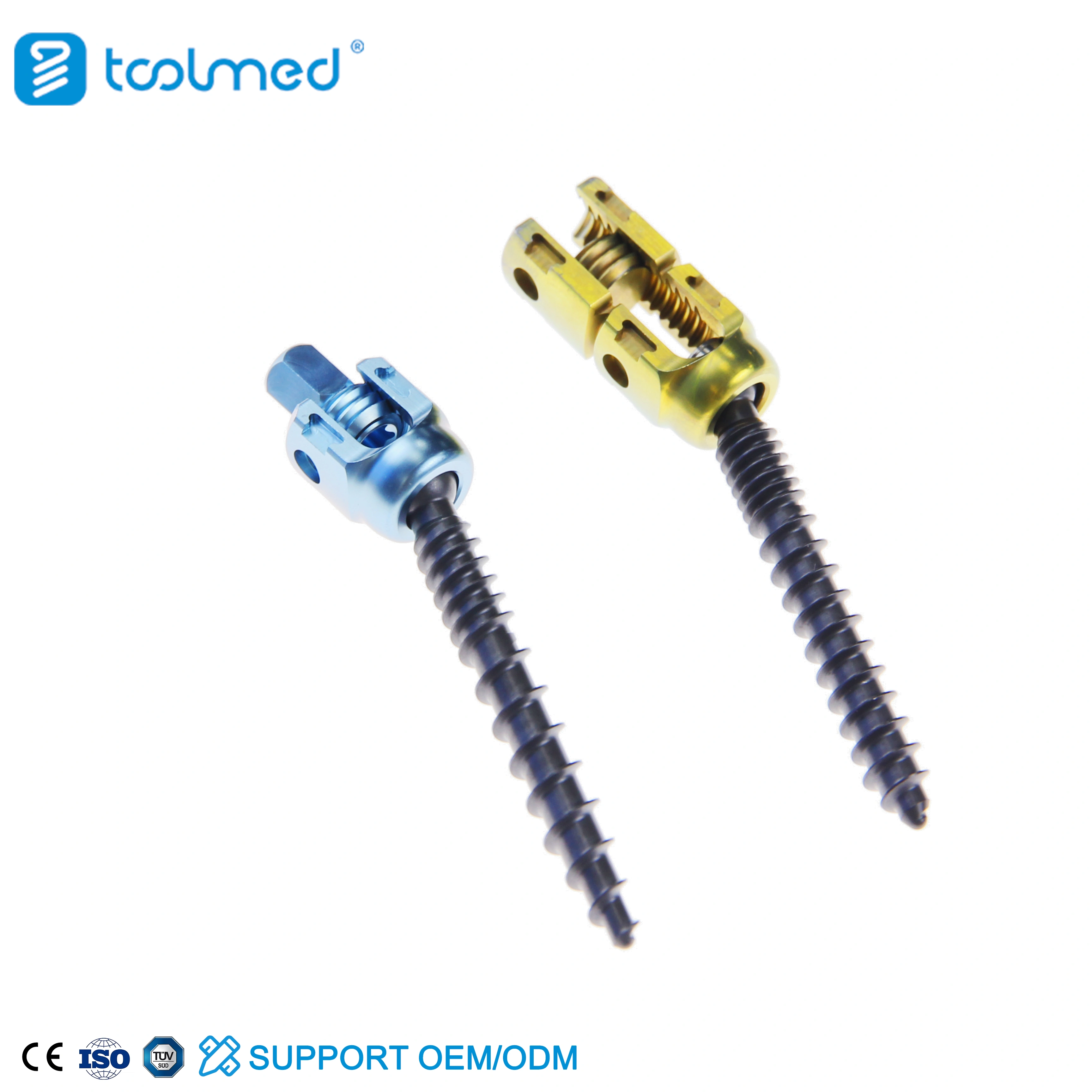

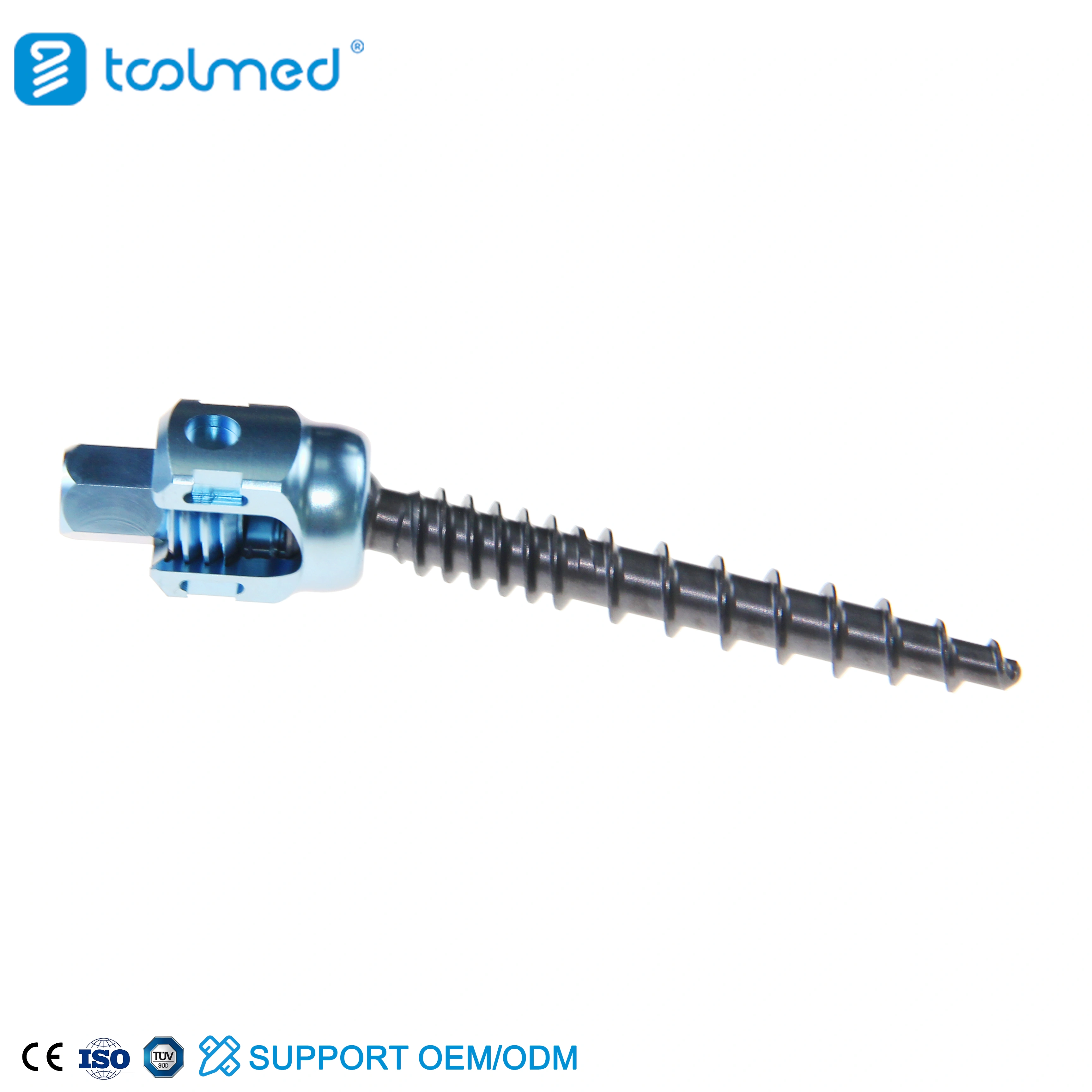

Actual Pictures of ATLAS 5.5 Polyaxial Pedicle Screw

（插入产品实拍图，多角度实拍，3-5张，做成组图）

ATLAS 5.5 Polyaxial Pedicle Screw Insights

What is a Polyaxial Pedicle Screw?

A polyaxial pedicle screw is a type of spinal implant used in posterior spinal fusion surgeries. Unlike monoaxial screws, polyaxial screws have a swivel head that allows movement in multiple directions, typically ±20–30°. This flexibility helps surgeons align the connecting rods more easily, especially in complex anatomical conditions or spinal deformities. It improves construct stability while reducing stress at the bone-screw interface during correction maneuvers.

Applications of ATLAS 5.5 Polyaxial Pedicle Screw

The ATLAS 5.5 Polyaxial Pedicle Screw is indicated for use in:

Degenerative disc disease

Spondylolisthesis

Spinal deformities such as scoliosis and kyphosis

Fracture stabilization

Tumor resection and spinal fusion procedures

Advantages of ATLAS 5.5 Polyaxial Pedicle Screw

Polyaxial Design: Allows ±20–30° of angulation for easier rod alignment and optimal screw placement

Robust Fixation: Enhanced thread geometry ensures secure grip in both cortical and cancellous bone

Rod Compatibility: Seamlessly integrates with 5.5 mm spinal rods for stable construct formation

Ease of Use: Reduced instrumentation steps improve OR efficiency and surgical workflow

Corrosion-Resistant Material: Titanium alloy ensures durability and long-term implant integrity

Biomechanics of ATLAS 5.5 Polyaxial Pedicle Screw

The design features a ball‑and‑socket polyaxial interface to accommodate rod contouring, while the dual‑lead threads reduce insertion torque and distribute compression effectively. The tapered tip supports safe pedicle entry and strong bicortical fixation.

Surgical Technique of ATLAS 5.5 Polyaxial Pedicle Screw

Fracture Reduction: Bone fragments are aligned and stabilized using clamps or temporary fixation.

Plate Placement: The implant is contoured to match the bone surface if needed.

Screw Insertion: Combination of cortical and locking screws is used based on the surgeon’s plan.

Fixation Finalization: Locking screws are secured into the threaded portion to create angular stability.

Postoperative Care of ATLAS 5.5 Polyaxial Pedicle Screw

Following implantation, proper postoperative care is essential to ensure healing and prevent complications:

Activity Restriction: Patients should avoid bending, twisting, or lifting heavy objects during early recovery.

Physical Therapy: A supervised rehabilitation plan is recommended to restore mobility and muscle strength.

Follow-up Imaging: Regular X-rays or CT scans may be required to monitor fusion progress and implant positioning.

Infection Monitoring: Surgical site should be observed for any signs of infection such as redness, swelling, or discharge.

Medication Compliance: Pain management and prescribed medications must be taken as directed by the physician.

Conclusion

The ATLAS 5.5 Polyaxial Pedicle Screw offers exceptional stability, alignment flexibility, and surgical efficiency for complex spine procedures. Supported by strong biomechanical performance and certified quality standards, it is a dependable choice for modern spinal fixation needs.

FAQs of ATLAS 5.5 Polyaxial Pedicle Screw

What materials are used in the ATLAS 5.5 Polyaxial Pedicle Screw?

The screw is manufactured from high-grade titanium alloy (Ti-6Al-4V), known for its strength, lightweight properties, and excellent biocompatibility.

What rod size is this system compatible with?

This system is specifically designed to integrate with 5.5 mm diameter rods, commonly used in thoracolumbar spinal fixation procedures.

What is the range of angulation for the polyaxial head?

The screw head allows ±20–30° of motion, providing flexibility for rod placement and optimal anatomical alignment.

Is this screw suitable for pediatric use?

The ATLAS 5.5 system is primarily designed for adult patients. Please consult clinical guidelines or contact our team for pediatric-specific solutions.

Can the screw be used for deformity correction?

Yes, it is ideal for complex deformity corrections including scoliosis and kyphosis, due to its polyaxial flexibility and strong construct integrity.

Our Factory

Our factory is equipped with over 60 advanced CNC machines operated by 100+ skilled technicians, a 300 m² GMP-compliant clean room, and a 10,000 m² production facility. We maintain a CNAS and ISO 17025 certified testing center, invest heavily in CNC turning technology, and utilize high-precision inspection systems including CMM, PP, and QV to ensure product quality and consistency.

FAQs of Our Company and Factory - ATLAS 5.5 Polyaxial Pedicle Screw

What is your typical delivery time?

We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.

Do you ship internationally?

Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.

What payment methods do you accept?

We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.

Can I get samples before placing a bulk order?

Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.

Do you support OEM or custom manufacturing?

Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
