The orientation and position of the acetabular component are among the most critical determinants of both short-term and long-term outcomes in total hip arthroplasty (THA). Precise cup placement is essential for restoring hip biomechanics, maximizing implant longevity, and minimizing postoperative complications.
Improper acetabular cup positioning may lead to:
Limited range of motion
Increased dislocation risk
Accelerated wear of polyethylene, metal-on-metal, or ceramic-on-ceramic bearings
Fatigue fracture of highly cross-linked polyethylene
Ceramic noise generation and ceramic fracture
Inferior patient-reported outcomes
Iliopsoas impingement and tendinitis
Leg length discrepancy and biomechanical imbalance
Osteolysis and aseptic loosening
Implant migration
Higher revision rates
Despite continuous advances in surgical techniques, even experienced surgeons still demonstrate variability in cup placement accuracy. Multiple studies have shown that 20%–70% of acetabular components are positioned outside the traditionally accepted “safe zone” (Table 1).
This variability is primarily caused by:
The intrinsic relationship between cup inclination and anteversion
Variations in pelvic orientation during surgery
Inconsistent alignment of the cup introducer during implantation
Differences in acetabular anatomy and reaming techniques
References | Anteversion | Inclination | Proportion within the Safe Zone |
Bosker et al. | 5-25° | 30-50° | 70.5% |
Callanan et al. | 5-25° | 30-45° | 47% |
DiGioia et al. | 5-25° | 30-50° | 20.3% |
Grammatopoulos et al. | 5-25° | 30-50° | 50% |
Hassan et al. | 5-25° | 30-50° | 58% |
Leichtle et al. | 10-30° | 35-55° | 65.5% |
Reize et al. | 5-25° | 30-50° | 41% |
Saxler et al. | 5-25° | 30-50° | 25.7% |
One of the major sources of confusion in THA literature is the inconsistent definition of cup inclination and anteversion.
According to Murray’s classification:
The angle between the acetabular axis and the longitudinal axis of the body.
The angle between the acetabular axis and the sagittal plane during surgery.
The angle measured between the projected acetabular axis on the coronal plane and the body’s longitudinal axis.
The angle between the projected acetabular axis on the transverse plane and the transverse body axis.
The angle between the acetabular axis projected onto the sagittal plane and the patient’s longitudinal axis.
The angle between the acetabular axis and the coronal plane.
For surgeons, understanding the conversion between operative and radiographic measurements is essential.
The relationship between operative anteversion and radiographic anteversion is defined by:
tan(RA)=tan(OA)×cos(RI)
This means that as radiographic inclination increases, the difference between operative anteversion and radiographic anteversion becomes larger.
For example:
If the target radiographic anteversion is 15°
And radiographic inclination is between 35°–50°
Then the surgeon should aim for approximately 20° operative anteversion when the pelvis is in a neutral position.

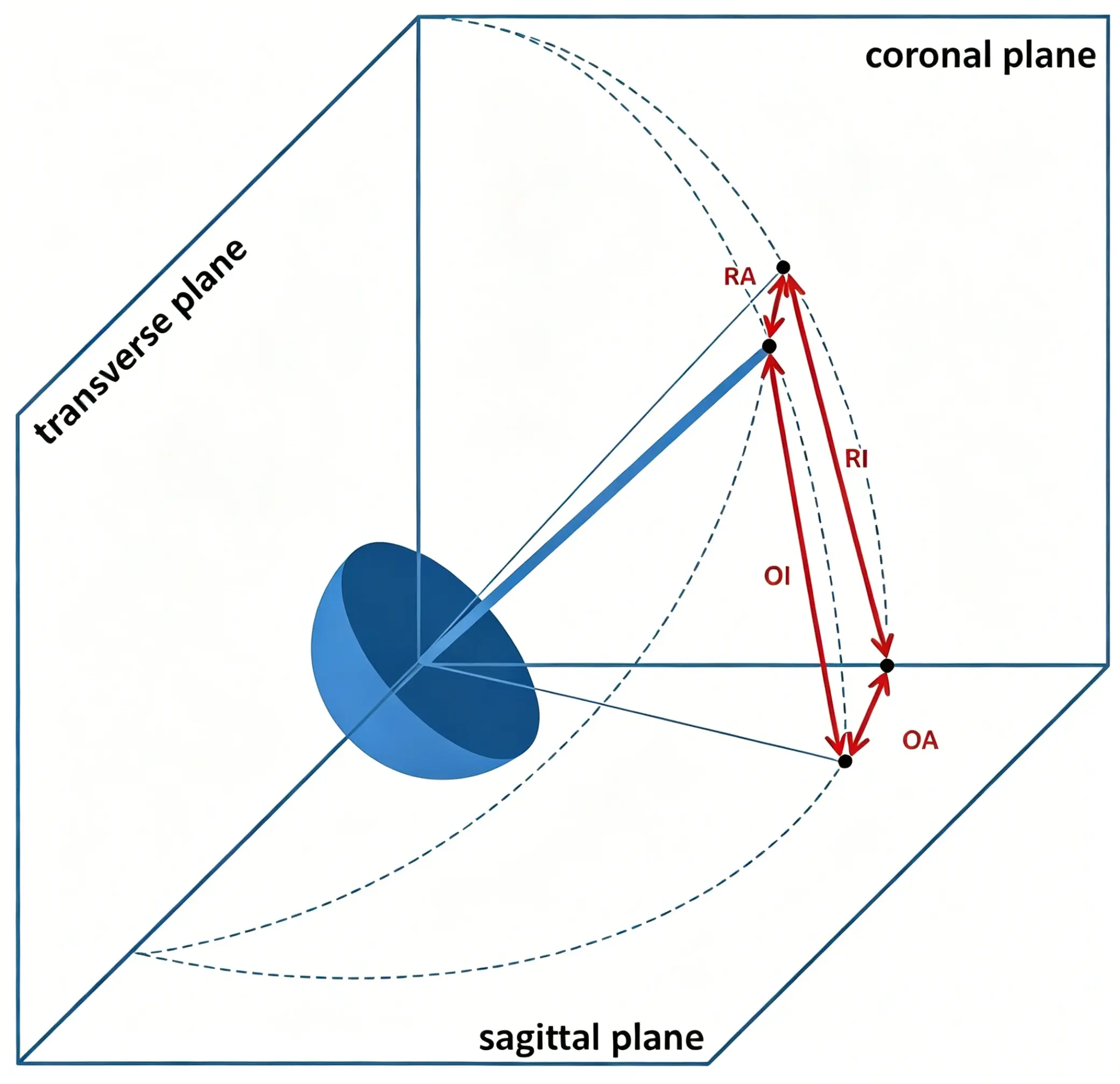

Figure 1.Three-dimensional model demonstrating acetabular cup positioning in the lateral decubitus position.
OA: Operative Anteversion
OI: Operative Inclination
RA: Radiographic Anteversion
RI: Radiographic Inclination
The relationship between operative inclination and radiographic inclination is defined by:
tan(OI)=tan(RI)×cos(OA)
This indicates that surgeons aiming for a specific radiographic inclination should implant the cup with a slightly smaller operative inclination angle.
Fortunately, because anteversion values are relatively small, the discrepancy between operative and radiographic inclination is generally less pronounced.
However, these mathematical relationships assume:
A stable pelvis during surgery
Perfect lateral decubitus positioning
The sagittal plane parallel to the floor

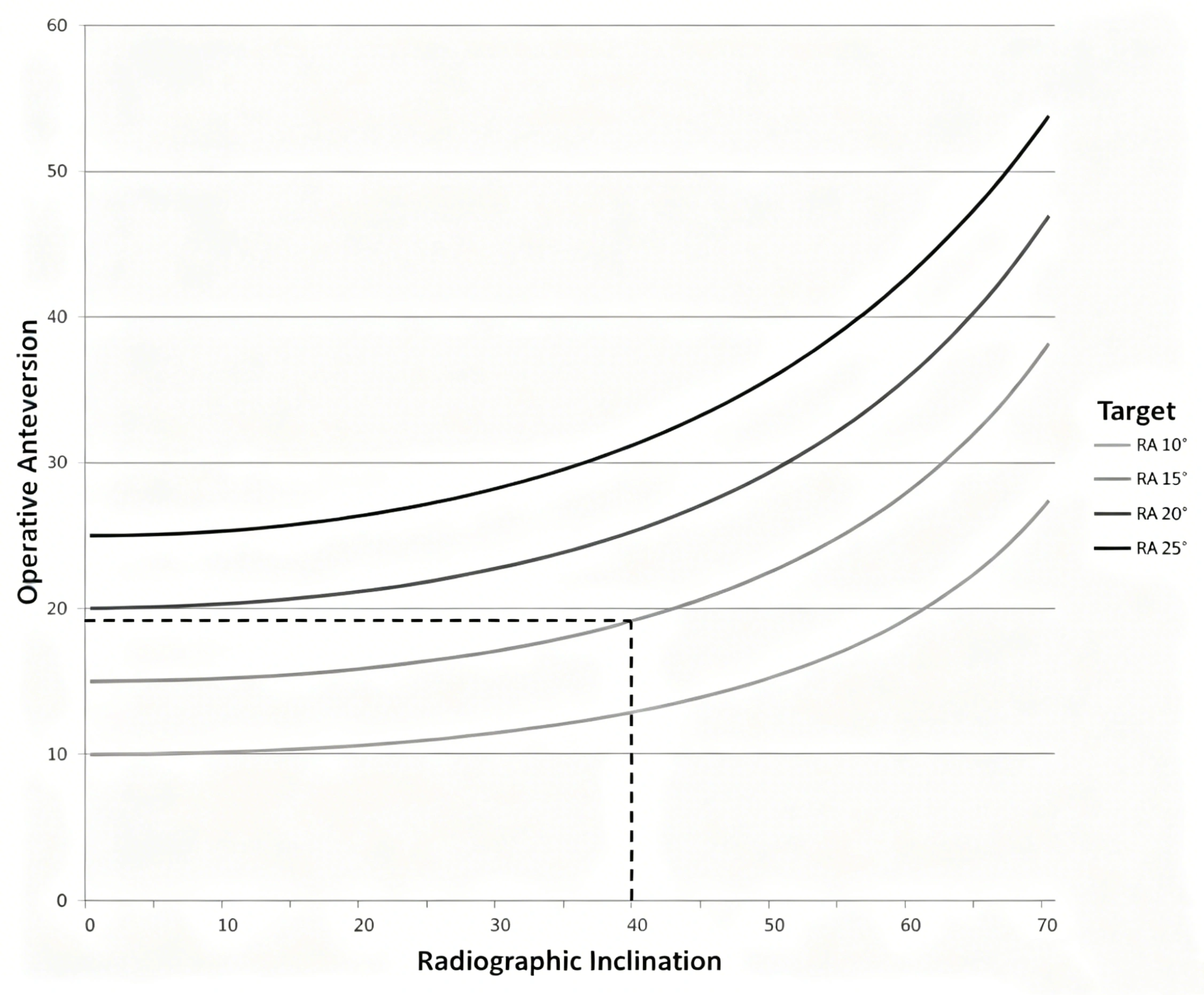

Figure 2 Relationship between target radiographic anteversion, operative anteversion, and radiographic inclination angle. When the radiographic inclination angle is 40° and the target radiographic anteversion is 15°, the operative anteversion should be set to 19° (indicated by the dashed line). RA: radiographic anteversion.

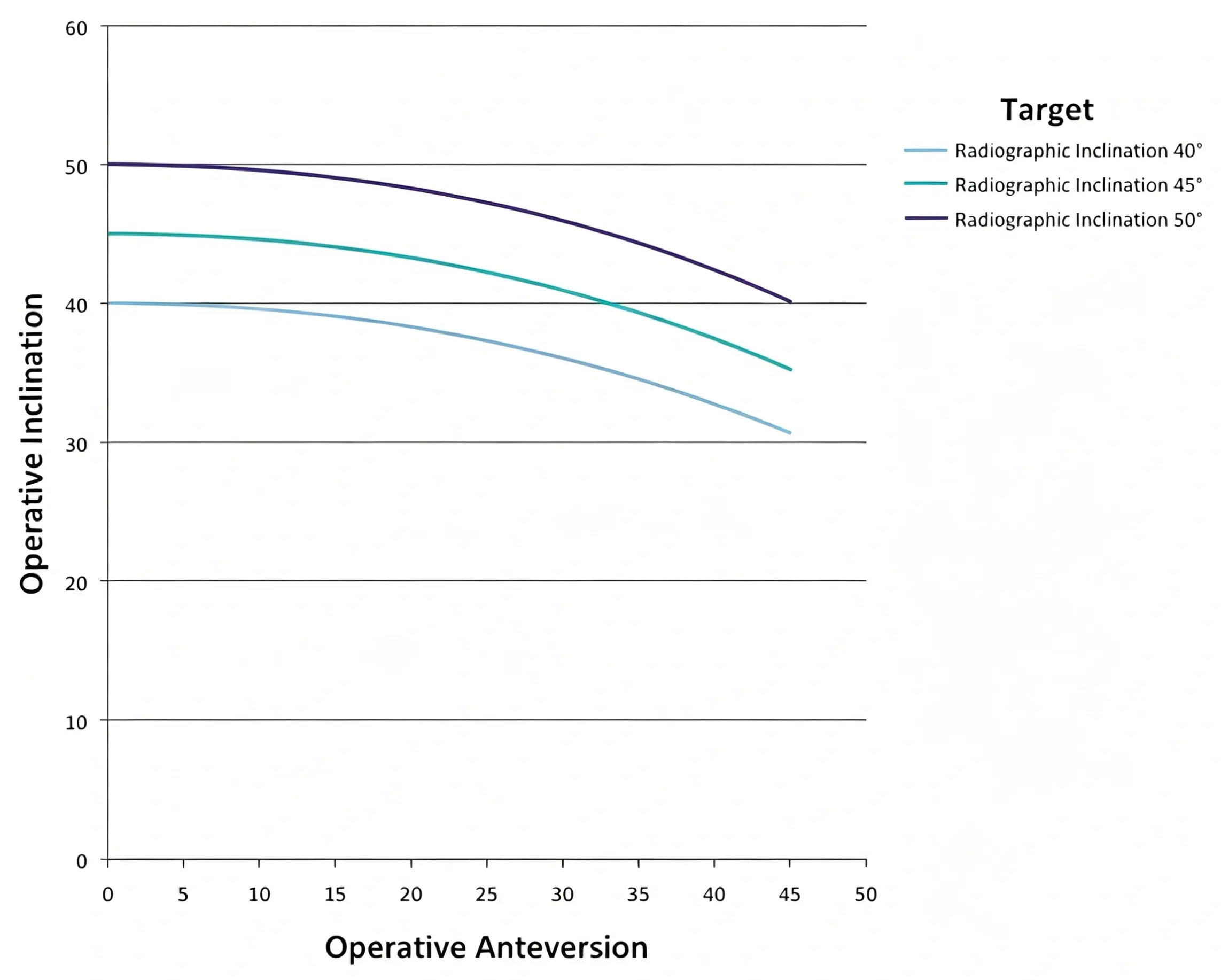

Figure 3 Relationship between target radiographic inclination angle, operative inclination angle, and operative anteversion. RA: radiographic anteversion.
There is still no universal consensus regarding the ideal acetabular cup orientation.
Although the classic Lewinnek safe zone remains widely referenced:
40° ± 10° inclination
15° ± 10° anteversion
modern studies have questioned its predictive value.
The original study had several limitations:
Only 9 dislocation cases
Majority were revision THA cases
Some dislocations occurred despite cups being inside the safe zone
Limited radiographic quality
Recent evidence suggests that mechanical complications and instability can still occur even when cups are positioned within the traditional safe zone.
This highlights an important reality:
Hip stability depends on multiple factors, including:
Patient anatomy
Surgical approach
Femoral version
Spinopelvic mobility
Soft tissue tension
Implant design
Research has shown that the surgical approach significantly influences cup orientation accuracy.
Demonstrated approximately 20% greater accuracy
Better visualization
More reliable instrumentation alignment
Reduced surgical exposure
Limited visualization
Greater variability in cup positioning
High-volume surgeons performing approximately 164 THAs annually demonstrated significantly better cup orientation accuracy than low-volume surgeons performing roughly 13 cases annually.
Studies suggest that mastering acetabular cup positioning requires substantial experience.
Some research indicates:
Approximately 50 cases are needed before surgeons achieve consistent accuracy
Early cases show significantly higher positioning variability
High BMI patients demonstrate:
More difficult exposure
Reduced visualization
Greater soft tissue interference
Increased pelvic movement during surgery
Thicker soft tissue layers may also alter the angle of the cup inserter, especially in deep surgical wounds.
The primary goal of THA is anatomical reconstruction of the hip joint.
This requires restoration of:
Hip biomechanics
Joint stability
Limb length equality
Muscle tension balance
Functional range of motion
Preoperative templating should include:
AP pelvis radiographs
Lateral radiographs
Contralateral hip comparison
After accounting for radiographic magnification:
The pelvic axis is drawn using the inter-teardrop line
Hip center of rotation (COR) is identified
Acetabular depth is carefully evaluated
Excessive medialization or superior migration of the hip center may cause:
Altered biomechanics
Increased impingement risk
Reduced offset
Accelerated wear
Higher loosening risk
Current recommendations suggest:
Superior migration < 3 mm
Medialization < 5 mm
Recent studies have demonstrated that abnormal spinopelvic motion is strongly associated with postoperative instability after THA.
The spine, pelvis, and hip form a dynamic biomechanical chain.
Reduced mobility in one segment must be compensated by another.
Pelvic tilt significantly changes functional anteversion.
For every 1° change in sagittal pelvic tilt:
Functional cup anteversion changes by approximately 0.7°
Functional inclination is also affected, although to a lesser extent.
Two major predictors of postoperative instability are:
Defined as:
PI−LL>10∘PI-LL>10^\circPI−LL>10∘
Where:
PI = Pelvic Incidence
LL = Lumbar Lordosis
This pattern is often associated with flatback deformity.
Defined as less than 20° change in lumbar lordosis between standing and deep sitting positions.
These patients compensate poorly during posture changes and therefore place greater biomechanical demands on the hip joint.

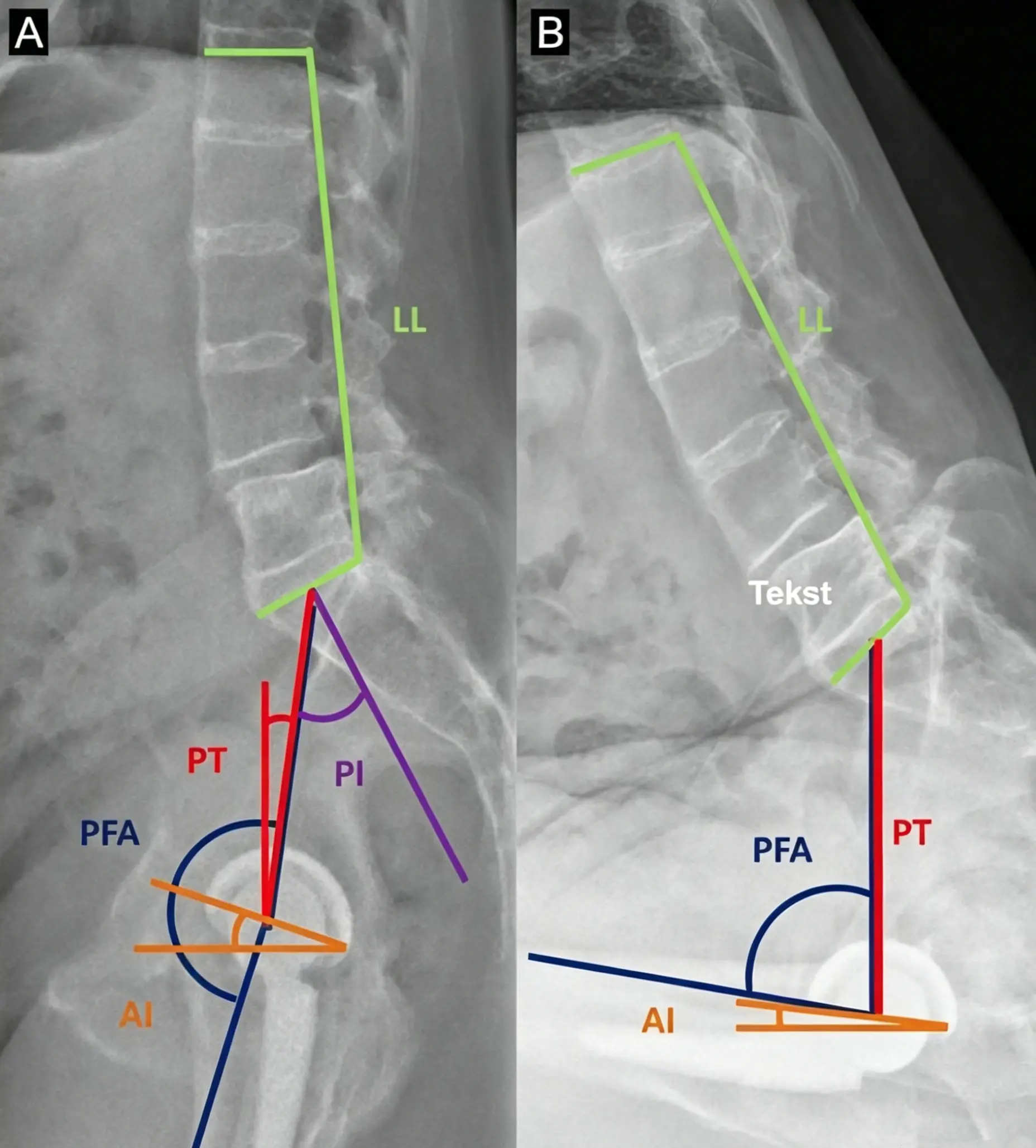

Figure 4.
Standing and deep-sitting spinopelvic radiographs demonstrating lumbar stiffness and sagittal imbalance.
The Combined Sagittal Index (CSI) has emerged as an important tool for individualized cup positioning.
It is calculated as:
CSI=PFA+AICSI=PFA+AICSI=PFA+AI
Where:
PFA = Pelvic Femoral Angle
AI = Ante-Inclination
A standing CSI between 205°–245° is associated with lower instability risk.
Patients with spinopelvic imbalance may require a narrower target range of 215°–235°.
Pelvic positioning during surgery significantly affects cup orientation accuracy.
For lateral decubitus THA:
The pelvis should remain neutral
The sagittal plane should remain parallel to the floor
Both anterior superior iliac spines should be securely stabilized
Even small degrees of pelvic rotation may substantially alter anteversion and inclination.
Traditional reaming techniques may inadvertently medialize the hip center.
This can:
Reduce offset
Alter biomechanics
Increase impingement risk
Some surgeons advocate “peripheral” or anatomical reaming techniques.
Compared with standard reaming, anatomical reaming:
Better restores the native hip center
Preserves bone stock
Produces less variability
Minimizes excessive medialization
This is especially important in patients with deep acetabular floors.

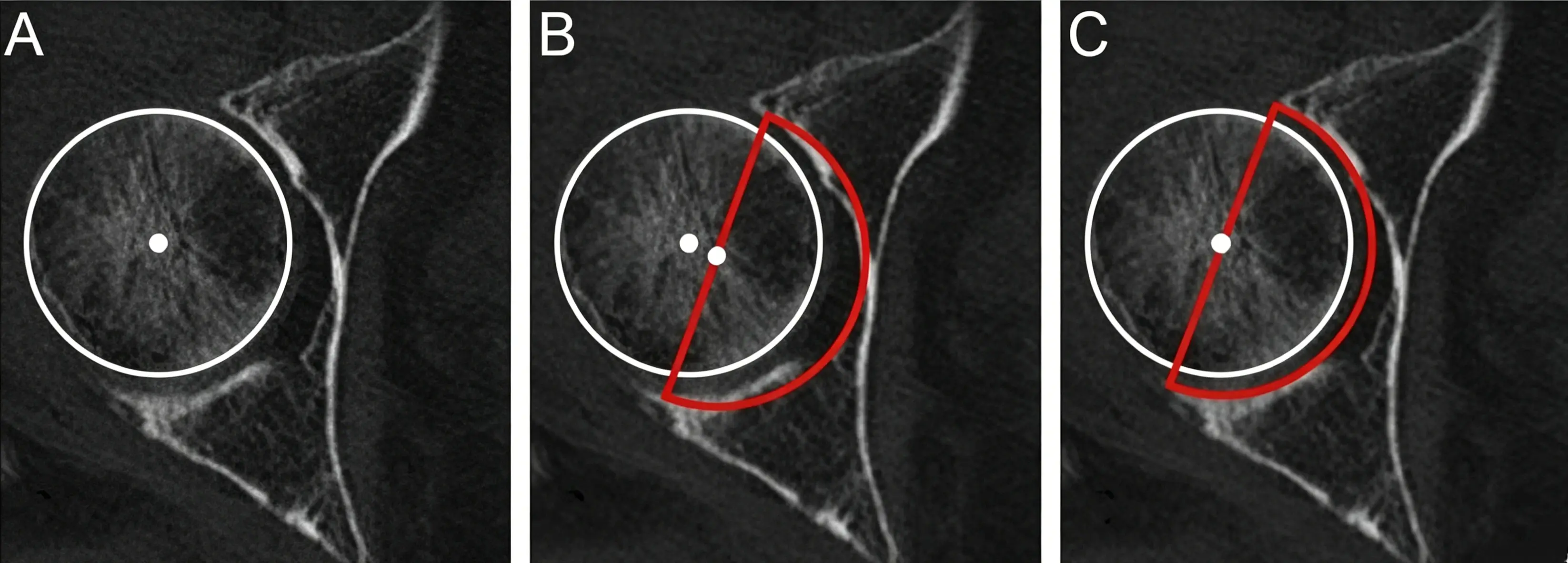

Figure 5 (A) Femoral head center. (B) When the acetabular cup is placed flush with the acetabular floor using conventional techniques, the center of rotation shifts medially. (C) When the acetabular cup is placed using anatomic techniques, the center of rotation remains in situ.
Figure 6 (A) Preoperative radiograph of a patient with a shallow acetabular floor; (B) Postoperative radiograph; (C) Preoperative radiograph of a patient with a deep acetabular floor; (D) Postoperative radiograph.
The Transverse Acetabular Ligament is one of the most reliable intraoperative landmarks for determining cup anteversion.
Using TAL-guided implantation has been associated with dramatic reductions in dislocation rates.
Advantages include:
Patient-specific anatomy
Independence from pelvic positioning
No additional instrumentation required
Limitations include:
Distorted anatomy
Osteophyte formation
Dysplasia or trauma-related deformity
Figure 7.
Intraoperative use of the transverse acetabular ligament as a guide for cup anteversion.
Most surgeons agree that radiographic inclination greater than 50° should be avoided.
Traditional mechanical alignment guides are often inaccurate because:
Surgeons visually estimate angles inconsistently
Pelvic motion changes intraoperative orientation
Fixed-angle guides cannot account for individual anatomy
Compared with freehand techniques or mechanical guides, inclinometers provide:
Greater accuracy
Lower variability
Fewer outliers
Lower cost than navigation systems
For lateral decubitus THA, many surgeons recommend aiming for a cup introducer angle of approximately 30°–35° relative to the floor.
Total hip arthroplasty remains one of the most successful procedures in orthopedic surgery, but accurate acetabular cup positioning remains technically demanding.
Surgeons must understand:
The definitions of inclination and anteversion
Their mathematical relationships
Patient-specific risk factors
Spinopelvic biomechanics
The limitations of conventional safe zones
There is no universally ideal cup position for every patient.
Future advances in THA will likely move toward:
Patient-specific cup orientation
Personalized biomechanics
Quantitative intraoperative guidance
Navigation and robotic-assisted surgery
Rather than relying solely on generalized “safe zones,” modern THA increasingly emphasizes individualized acetabular positioning tailored to each patient’s anatomy and spinopelvic function.
