What Are the Key Principles for Complex Pilon Fracture Fixation?
Successful treatment of complex Pilon fractures focuses on restoring fibular length, achieving anatomic reduction of the tibial plafond, reconstructing the metaphysis, and providing stable fixation while protecting soft tissues. Modern surgical strategies combine the classic Rüedi-Allgöwer principles with minimally invasive techniques such as MIPO and the Four-Step Foundation Technique to improve reduction accuracy and reduce complications.
Introduction
Pilon fractures are high-energy fractures involving the distal tibial plafond and surrounding metaphysis. First described by French radiologist Étienne Destot in 1911, the term pilon—French for "pestle"—reflects the mechanism in which the talus is driven into the tibial plafond under powerful axial compression.
Although Pilon fractures account for only approximately 5–7% of all tibial fractures, they remain one of the most technically demanding injuries in orthopedic trauma surgery. These fractures frequently result from motor vehicle collisions, falls from height, and other high-energy mechanisms that produce extensive articular comminution, metaphyseal bone loss, fibular fractures, and severe soft tissue compromise.
Unlike many long bone fractures, successful treatment of a Pilon fracture depends not only on restoring bone alignment but also on accurately reconstructing the weight-bearing articular surface while minimizing additional soft tissue injury. Failure to achieve anatomical reduction significantly increases the risk of post-traumatic ankle arthritis, chronic pain, malunion, nonunion, and long-term functional disability.
Over the past five decades, surgical management has evolved substantially. The classic fixation strategy proposed by Rüedi and Allgöwer remains the foundation of modern treatment, while advances in computed tomography (CT), locking compression plates (LCP), minimally invasive plate osteosynthesis (MIPO), and staged surgical protocols have greatly improved patient outcomes. More recently, the Four-Step Foundation Technique has been introduced to facilitate accurate reduction of highly comminuted Rüedi–Allgöwer type III Pilon fractures while reducing surgical trauma.
This article reviews the current evidence-based principles of complex Pilon fracture management, including surgical planning, fixation strategies, modern reduction techniques, bone grafting, and the Four-Step Foundation Method.
A Pilon fracture, also known as a tibial plafond fracture, is an intra-articular fracture involving the distal tibial weight-bearing surface. Unlike isolated malleolar fractures, Pilon fractures combine articular injury with metaphyseal impaction and varying degrees of soft tissue damage, making restoration of ankle function considerably more difficult.
Most injuries occur following high-energy axial loading, where the talus is forcefully driven into the distal tibia. The severity of injury depends on several factors, including impact energy, foot position at the time of injury, and rotational forces. Consequently, fracture morphology ranges from simple articular splits to severe multifragmentary comminution with metaphyseal bone defects.
Common characteristics of complex Pilon fractures include:
Articular surface depression and fragmentation
Distal tibial metaphyseal comminution
Fibular fractures in the majority of cases
Significant swelling and soft tissue injury
High risk of wound complications and post-traumatic arthritis
Because soft tissue damage often exceeds the apparent osseous injury, careful preoperative evaluation is essential before definitive fixation.
Complex Pilon fractures present unique technical challenges because both the osseous anatomy and surrounding soft tissues are severely disrupted.
Extensive Articular Comminution
Restoring the congruity of the tibial plafond is the primary objective of surgery. Even minimal residual step-off or incongruity may accelerate cartilage degeneration and significantly increase the likelihood of post-traumatic osteoarthritis.
Metaphyseal Bone Loss
High-energy compression frequently creates metaphyseal voids beneath the reconstructed joint surface. Without adequate structural support, secondary collapse may occur despite apparently successful fixation.
Severe Soft Tissue Injury
The distal tibia has limited muscular coverage, leaving the overlying skin and subcutaneous tissues particularly vulnerable. Extensive swelling, fracture blisters, contusions, and compromised vascularity substantially increase the risk of wound complications, infection, and delayed healing.
For this reason, modern treatment emphasizes staged fixation, allowing soft tissue recovery before definitive open reduction and internal fixation (ORIF).
Fibular Fracture Complexity
Approximately 70–85% of Pilon fractures are associated with fibular fractures. The morphology of the fibular injury strongly influences surgical planning because restoration of fibular length often provides an important reference for reconstructing the tibial plafond.
Restoration of Mechanical Alignment
Successful surgery must restore not only the articular surface but also the overall mechanical alignment of the distal tibia, including length, rotation, and coronal and sagittal alignment. Failure to achieve these goals increases the likelihood of malunion and chronic ankle dysfunction.
Although fixation techniques continue to evolve, the surgical philosophy established by Rüedi and Allgöwer remains the cornerstone of modern Pilon fracture management. Their four classic principles continue to guide surgeons worldwide when treating both simple and highly comminuted fractures.
These principles include:
Restoration of fibular length
Anatomical reduction of the tibial articular surface
Bone grafting of metaphyseal defects when indicated
Stable internal fixation while preserving soft tissues
Together, these principles establish the biological and mechanical foundation necessary for successful fracture healing and long-term ankle function.
Restoration of fibular length is often the first step in treating Pilon fractures when a simple fibular fracture is present. Anatomical reduction of the fibula re-establishes lateral column length, restores rotational alignment, and provides an important reference for reconstructing the tibial plafond.
In contrast, severely comminuted fibular fractures may not be suitable for immediate anatomical reduction. In these situations, many surgeons prefer to reconstruct the tibial plafond first and perform bridge plating of the fibula as the final stage of fixation.
Maintaining proper fibular alignment improves ankle stability and facilitates accurate reduction of the distal tibial articular surface.
Restoration of the distal tibial articular surface is the most technically demanding step of Pilon fracture surgery.
The talar dome serves as the primary template for anatomical reduction. After ensuring that the talus is correctly positioned beneath the restored fibula (or beneath the intact lateral column), the surgeon progressively reconstructs the articular fragments from the center toward the periphery.
For AO/OTA Type C fractures, two reduction strategies are commonly applied:
Convert Type C to Type B
If a large weight-bearing articular fragment remains attached to an intact metaphyseal segment, it can first be reduced and fixed to the tibial shaft. Once this stable foundation has been established, the remaining joint fragments are reconstructed sequentially.
Fig. a, b. Preoperative X-rays showed a Pilon fracture (AO type 43-C3). A large posterior articular fracture fragment (outlined in yellow) extended simply into the metaphyseal/diaphyseal region. Fig. c, d. Through an anterolateral approach (c, dashed blue line), the posterior articular fragment (d, outlined in yellow) was anatomically reduced to the metaphysis/diaphysis using a reduction clamp and fixed with two screws. Through this maneuver, the type C fracture was converted into a type B fracture.
Convert Type C to Type A
When no reliable metaphyseal reference exists because of severe comminution, the entire articular block is first reconstructed independently using the talus as a template. After temporary fixation, the reconstructed joint block is aligned with the tibial shaft according to correct length, rotation, and mechanical axis before definitive fixation.
This staged reconstruction technique is particularly useful in fractures with extensive metaphyseal bone loss.
Fig. a, b. Preoperative radiographs showed a Pilon fracture (AO type 43-C3). Due to the presence of a comminuted zone in the metaphysis, there was no reference between the articular fragment and the intact diaphysis. Fig. c, d. Through an extended lateral approach combined with a small medial approach, the articular fragments were first anatomically reduced, thereby converting the type C fracture into a type A fracture. Subsequently, the fracture was functionally aligned and fixed to the diaphysis.
High-energy Pilon fractures frequently produce substantial metaphyseal bone loss after impacted fragments have been elevated and the articular surface has been restored. These metaphyseal defects reduce subchondral support and increase the risk of postoperative collapse if left untreated.
Bone grafting provides structural support beneath the reconstructed joint surface while promoting biological healing. In addition to preventing secondary displacement, graft material helps restore metaphyseal continuity and distributes load more evenly across the distal tibia during rehabilitation.
Autologous cancellous bone harvested from the ipsilateral iliac crest or proximal tibia remains the preferred graft source because it possesses excellent osteogenic, osteoinductive, and osteoconductive properties. In selected cases, bone substitutes or allografts may be considered when autologous graft harvesting is contraindicated.
Bone grafting is generally recommended for large metaphyseal voids or whenever the reconstructed articular surface lacks sufficient structural support following fixation.
The final principle focuses on maintaining stable alignment throughout fracture healing. Historically, Rüedi and Allgöwer recommended medial buttress plating to prevent varus collapse, one of the most common deformities following Pilon fractures.
Modern fixation strategies have evolved considerably with the introduction of locking compression plate (LCP) technology. Today, anatomically contoured locking plates are available for medial, anterolateral, and posterior fixation, allowing implant selection to be tailored to the fracture configuration and soft-tissue condition.
Whenever soft tissues permit, minimally invasive plate osteosynthesis (MIPO) is preferred for medial plate insertion. This technique minimizes periosteal stripping, preserves local blood supply, and reduces wound complications while still providing adequate mechanical stability.
Rather than relying solely on a medial plate, contemporary biological fixation emphasizes restoring the stability of all affected columns using the least invasive approach possible. Implant selection should therefore be individualized according to fracture morphology, surgical exposure, and the condition of the surrounding soft tissues.
One of the key concepts in Pilon fracture surgery is that the fixation sequence should be determined by the condition of the fibula rather than following a rigid protocol.
The recommended strategy can be summarized as follows.
Fibular Fracture Pattern | Recommended Surgical Sequence |
|---|---|
No fibular fracture | 1. ORIF of the tibial plafond → 2. MIPO fixation of the metaphysis/shaft → 3. Bone grafting if required |
Simple fibular fracture | 1. Fibular ORIF → 2. Tibial plafond ORIF → 3. MIPO fixation of the tibia → 4. Bone grafting if required |
Comminuted fibular fracture | 1. Tibial plafond ORIF → 2. Tibial fixation with MIPO → 3. Bone grafting if required → 4. Bridge plating of the fibula |
This progressive fixation strategy continues to represent the current gold standard for complex Pilon fracture reconstruction.
A recently published surgical technique developed by Professor Li Dong and colleagues from the Second Hospital of Shanxi Medical University introduces a minimally invasive method known as the Four-Step Foundation Technique.
Unlike conventional extensile approaches, this method combines an anterolateral incision with limited medial exposure to achieve precise articular reduction while minimizing soft-tissue disruption.
The technique has shown encouraging clinical outcomes, particularly in Rüedi–Allgöwer Type III Pilon fractures.
Instead of the traditional anteromedial approach, a long anterolateral incision is created.
The incision begins along the anterior border of the fibula, extends across the lateral malleolus, and continues toward the base of the fourth metatarsal, providing excellent visualization of the distal tibial plafond while preserving medial soft tissues.
The fibula is restored to its anatomical length and fixed with an anatomical locking plate.
Because the talus is frequently displaced anterosuperiorly following injury, it is gently reduced until the articular surface aligns with the medial aspect of the lateral malleolus.
The normal tibiofibular-talar relationship serves as an important reference during reduction.

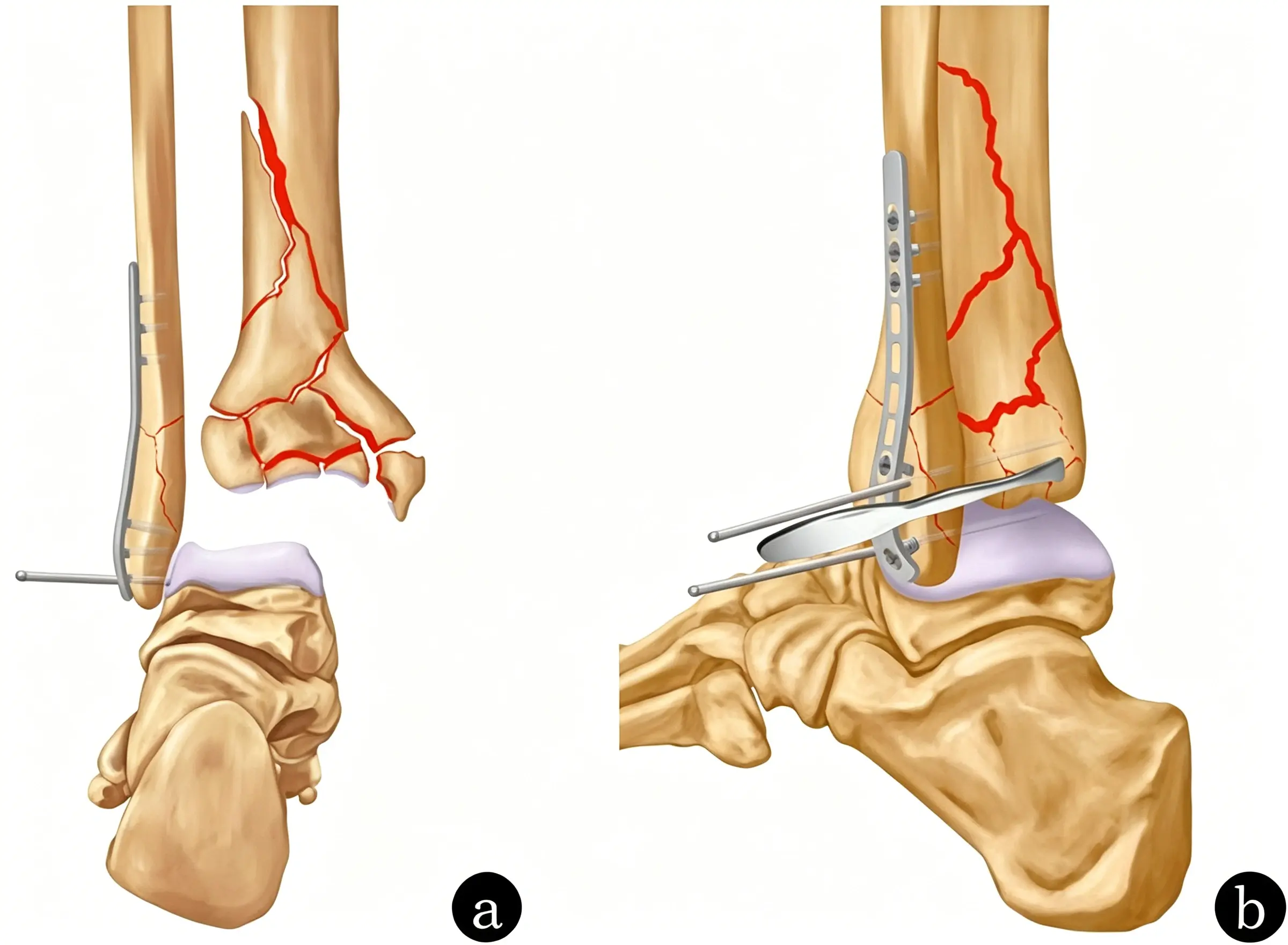

Temporary fixation is achieved using 2.0-mm Kirschner wires while the distal tibial articular surface is reconstructed using the talus as the reduction template.
Two reduction techniques may be selected depending on fracture morphology.
One option is to elevate the posterior fragment using a periosteal elevator from behind until the posterior articular surface matches the talar dome.
Alternatively, manual reduction can be performed through the interval lateral to the peroneal muscles.
After satisfactory reduction, temporary fixation is achieved with 1.5-mm Kirschner wires inserted through the fibula.
Two small medial incisions are created to minimize additional soft-tissue injury.
The displaced medial malleolus is anatomically reduced using reduction forceps, followed by temporary Kirschner wire fixation.
Definitive fixation is performed with a pre-contoured reconstruction plate. The distal screw is inserted at approximately 45° inferiorly, while the proximal screws are directed superiorly at approximately 45° to maximize stability.
When medial soft tissues are severely compromised, Kirschner wire fixation alone may be preferred to reduce the risk of wound complications.

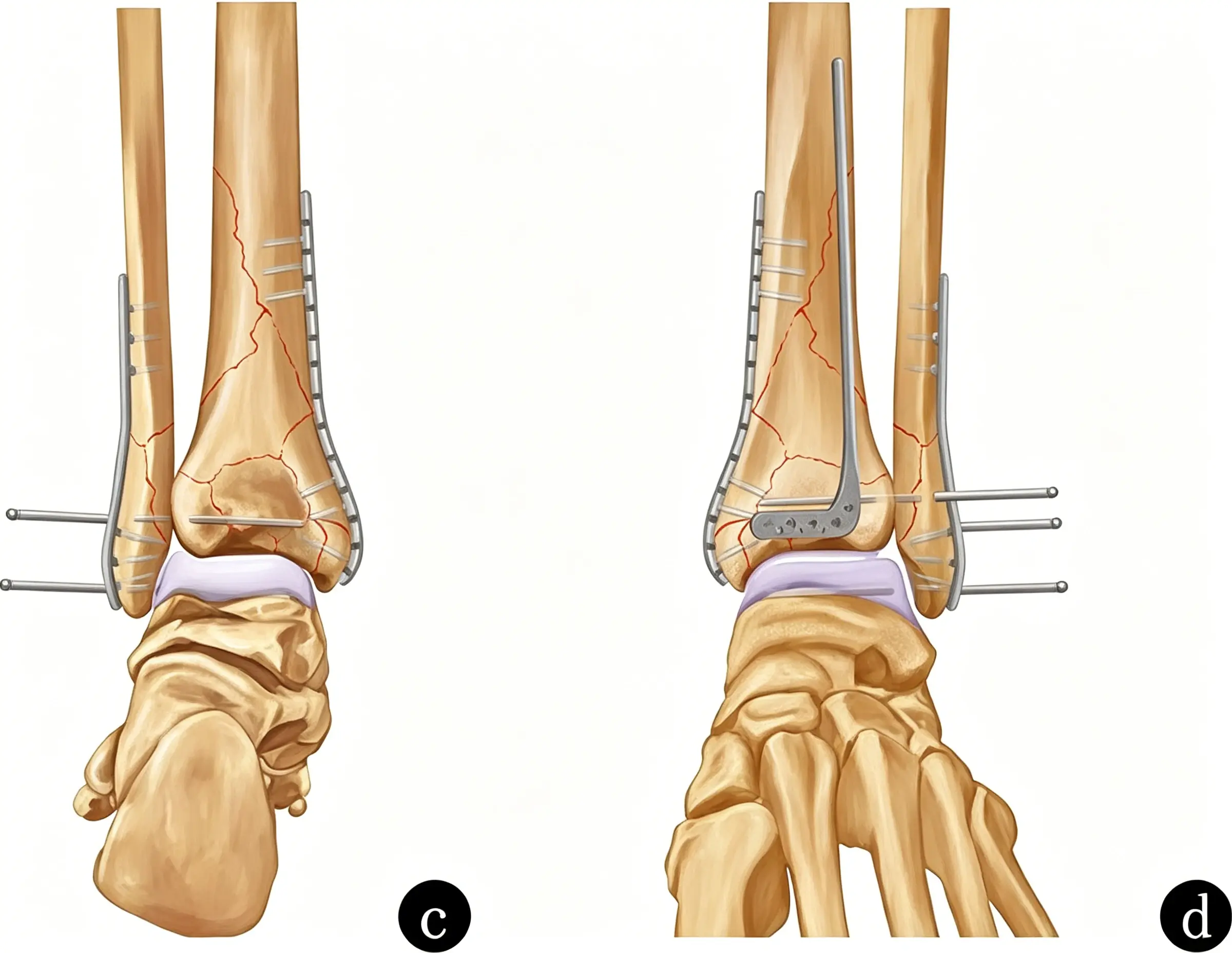

Finally, the distal tibial articular surface is reconstructed following the principle of posterior-to-anterior and lateral-to-medial reduction, using the talar dome as the anatomical template.
Compared with conventional extensile approaches, the Four-Step Foundation Technique offers several important clinical advantages.
The combined anterolateral and limited medial approach improves visualization of the articular surface while reducing soft-tissue stripping. The staged reconstruction process allows surgeons to restore the distal tibial plafond with greater precision and maintain stable fixation using minimally invasive techniques.
Potential benefits include:
Reduced soft-tissue trauma
Improved visualization of complex articular fragments
More accurate restoration of joint congruity
Lower risk of wound complications
Better preservation of blood supply
Increased flexibility in implant placement
Enhanced biological fixation principles
Although longer-term studies are still needed, early clinical results suggest that this technique is particularly valuable for managing highly comminuted Rüedi–Allgöwer Type III Pilon fractures.
Successful treatment of complex Pilon fractures requires careful preoperative planning and strict adherence to biological fixation principles.
The following technical considerations may improve surgical outcomes:
Restore fibular anatomy whenever possible before reconstructing the tibial plafond.
Use the talar dome as the primary reference for articular reduction.
Address metaphyseal bone defects with structural bone grafting when necessary.
Preserve soft tissues through minimally invasive approaches whenever feasible.
Select plate position according to fracture pattern rather than using a single universal approach.
Prioritize stable fixation while minimizing disruption of local blood supply.
What is the most important principle in Pilon fracture surgery?
Accurate restoration of the distal tibial articular surface is considered the most critical factor for achieving good long-term ankle function and reducing the risk of post-traumatic arthritis.
Should the fibula always be fixed first?
Not always. Simple fibular fractures are typically fixed first to restore ankle alignment, whereas severely comminuted fibular fractures may be addressed after tibial reconstruction.
When is bone grafting recommended?
Bone grafting is generally indicated when substantial metaphyseal bone defects remain after reduction or when additional structural support is needed beneath the reconstructed joint surface.
What are the advantages of the Four-Step Foundation Technique?
The technique minimizes soft-tissue injury while allowing accurate articular reconstruction through a combination of anterolateral exposure and minimally invasive medial fixation.
