Clavicle Hook Plate Placement in Acromioclavicular Joint Dislocation: Anterior Vs Posterior Positioning And Optimal Surgical Technique

Quick Answer

Clavicle hook plate is commonly used for surgical treatment of high-grade acromioclavicular (AC) joint dislocation. The optimal placement of the hook plate depends on its position relative to the acromion. Current biomechanical evidence suggests that slightly posterior and anatomically centered placement within the acromion provides better contact area, improved load distribution, and reduced risk of subacromial impingement and acromial osteolysis compared to malpositioned anterior or excessively medial placement. Proper angulation and positioning significantly influence implant stability and postoperative complications.

Introduction

Acromioclavicular (AC) joint dislocation is a common shoulder injury, typically caused by direct trauma to the lateral shoulder. According to the Rockwood classification, type III and higher injuries involve complete disruption of the acromioclavicular and coracoclavicular ligaments, leading to instability that often requires surgical intervention.

Among multiple fixation techniques, including TightRope systems, loop plates, and ligament reconstruction procedures, the clavicle hook plate remains widely used due to its reliable fixation strength and predictable clinical outcomes.

However, implant-related complications—especially subacromial impingement and acromial osteolysis—remain significant concerns, prompting investigation into optimal hook plate positioning.

Limitations of Clavicle Hook Plate Fixation

Despite its effectiveness, the hook plate relies on mechanical compression of the acromion, which may lead to complications.

Clinical studies report:

• Acromial osteolysis in approximately 42–45% of cases

• Chronic shoulder pain after fixation

• Limited shoulder abduction due to subacromial impingement

• Potential need for early implant removal

▲ Imaging shows subacromial osteolysis. (Source: 10.1016/j.jse.2024.09.027)

Why Complications Occur

Complications are mainly caused by:

• Mismatch between hook geometry and acromion anatomy

• Excessive pressure concentration on the undersurface of the acromion

• Abnormal hook angulation

• Improper anterior or posterior placement

These factors increase localized stress and lead to bone resorption over time.

Key Surgical Question — Anterior vs Posterior Placement

The optimal placement of the clavicle hook plate can be analyzed from two perspectives:

1. Medial–Lateral Position (Coverage of the acromion)

• Medial placement: hook covers ~25% of acromion width

• Lateral placement: hook covers ~50% of acromion width

▲ Demonstration of hook positions at different placement angles under the acromion. (From: 10.1007/s00590-024-03981-z, all subsequent images from the same source)

2. Anterior–Posterior Position (Angulation of the hook)

Hook plate angle is defined as:

The angle between the hook axis and a line perpendicular to the acromion width plane.

Angles evaluated in biomechanical studies include:

• -10° (anterior tilt)

• 0° (neutral alignment)

• +10° to +30° (posterior tilt)

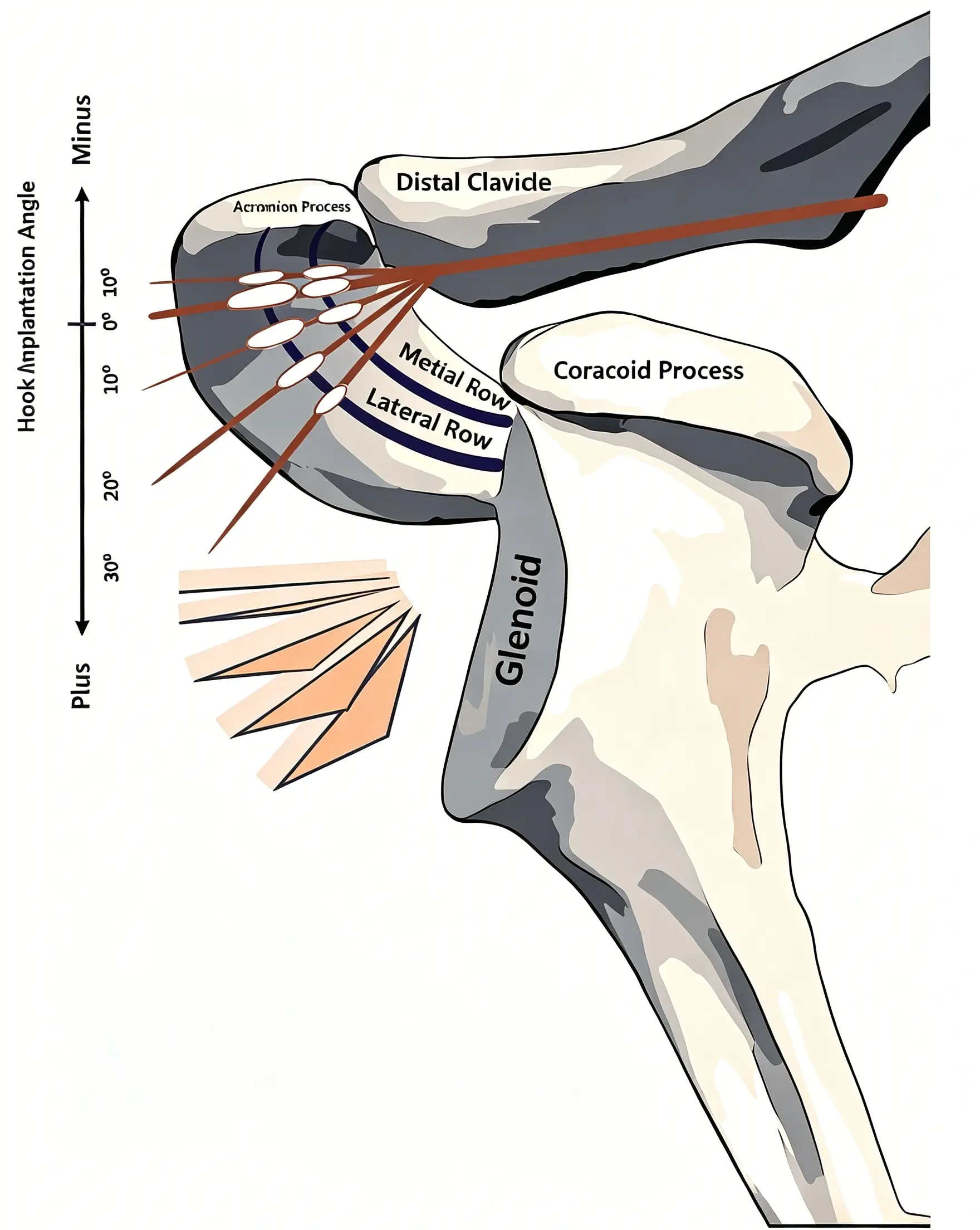

▲ Clavicular hook placement positions and angles are demonstrated.

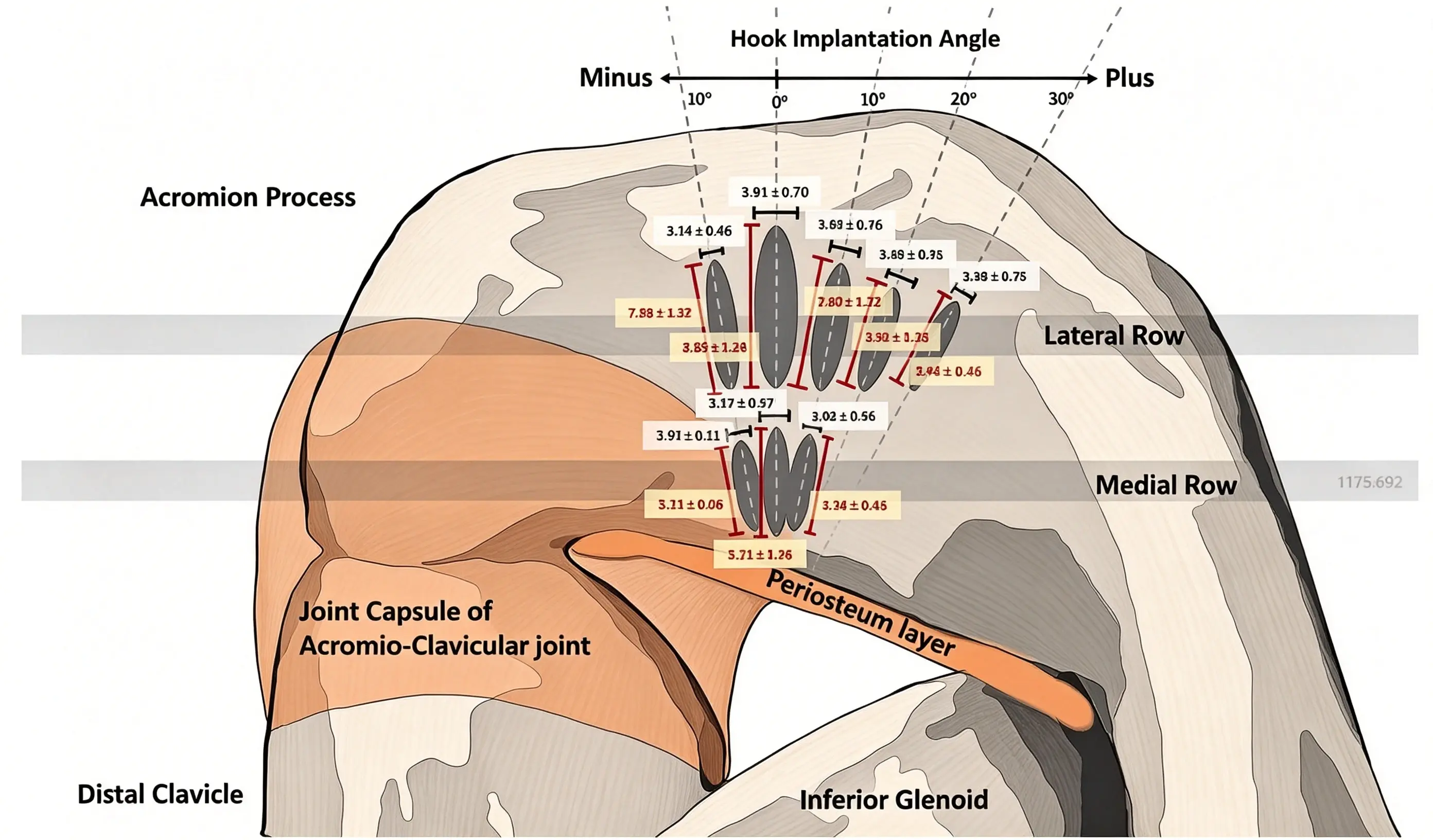

Biomechanical Findings

Contact Length Comparison

• Medial group

  • 0°: 5.71 mm

  • +10°: 4.38 mm

• Lateral group

  • 0°: 8.85 mm (maximum contact)

  • +30°: 5.42 mm (minimum contact)

Greater acromial coverage improves stability and reduces focal stress.

Contact Width Comparison

• Medial group

  • -10°: 2.97 mm

  • 0°: 3.17 mm

• Lateral group

  • -10°: 3.14 mm

  • 0°: 3.91 mm (maximum)

Wider contact distribution reduces pressure concentration.

Contact Area (Key Surgical Parameter)

• Medial group

  • 10%–70% matching rate

  • Best performance at 0°

• Lateral group

  • 55%–100% matching rate

  • -10°: lowest

  • 0° & +10°: up to 100%

  • +20°: 90%

  • +30°: 75%

Optimal biomechanics occur when the hook is placed near neutral or slightly posterior alignment.

Clinical Interpretation — Why Posterior Placement Matters

From a functional and biomechanical perspective:

Advantages of Neutral to Slight Posterior Positioning

• Improves acromial contact surface area

• Distributes stress more evenly

• Reduces focal pressure on subacromial bone

• Decreases risk of osteolysis

• Improves shoulder range of motion postoperatively

Risks of Anterior Malposition

• Reduced contact stability

• Increased subacromial impingement

• Higher mechanical stress concentration

• Greater likelihood of implant-related pain

Surgical Technique Implications

During clavicle hook plate fixation, surgeons should focus on:

• Ensuring the hook follows the natural curvature of the acromion

• Avoiding excessive anterior tilt of the implant

• Achieving balanced medial-lateral coverage of the acromion

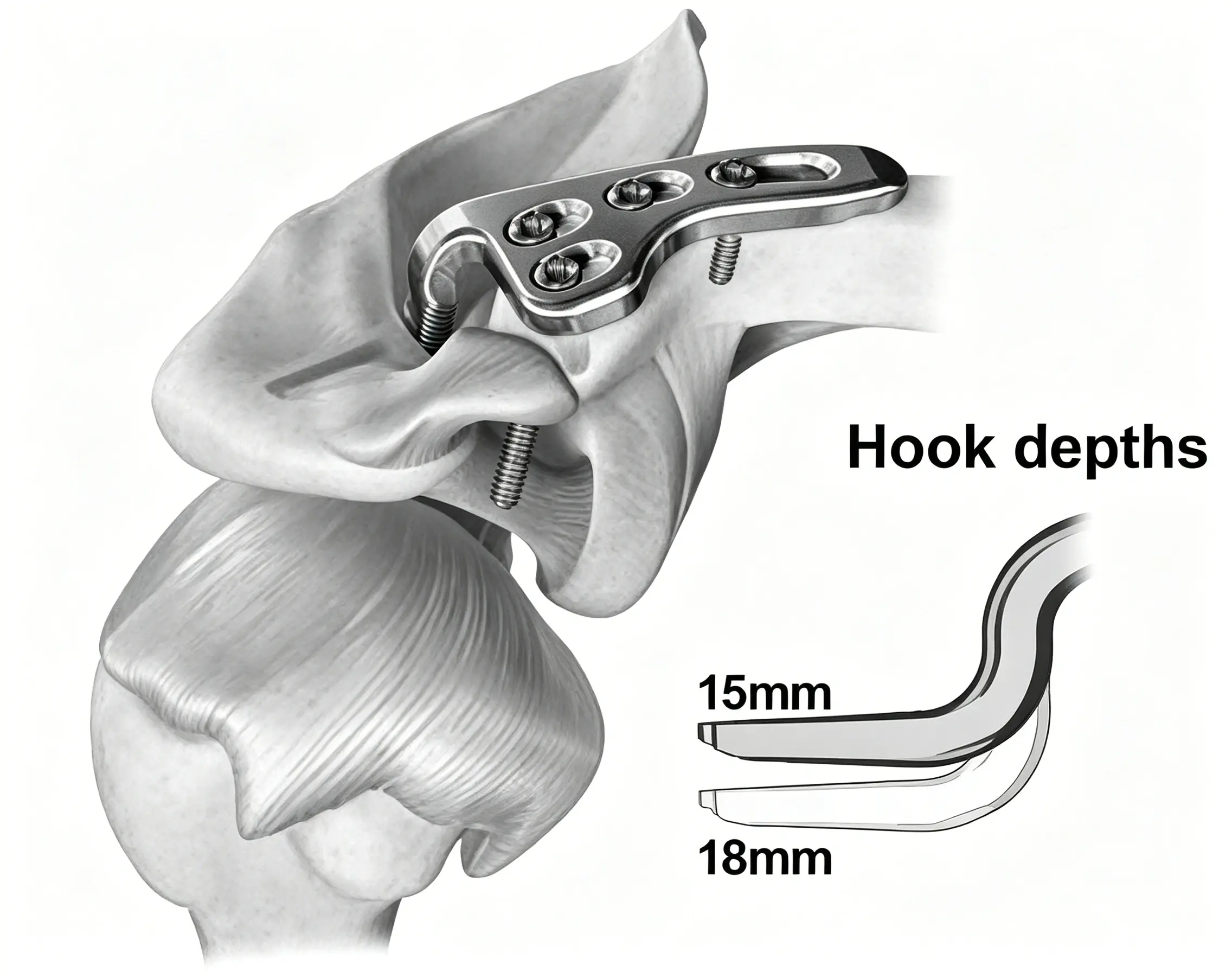

• Confirming correct hook depth under fluoroscopy

• Minimizing subacromial pressure concentration

Postoperative Complications Related to Implant Position

Improper hook plate positioning may lead to:

• Subacromial impingement syndrome

• Acromial osteolysis

• Shoulder stiffness

• Chronic pain

• Early implant failure or removal requirement

Proper positioning significantly reduces these risks.

Comparison With Other AC Joint Fixation Methods

Although hook plates remain widely used, alternative techniques include:

• TightRope / suspensory fixation systems

• Suture button devices

• Coracoclavicular ligament reconstruction

• Bioabsorbable fixation systems

However, hook plates still provide:

• Strong immediate stability

• Reliable reduction maintenance

• Predictable surgical outcomes in complex cases

Clinical Summary

The optimal placement of clavicle hook plates plays a crucial role in determining surgical outcomes for acromioclavicular joint dislocation. Evidence suggests that neutral to slightly posterior positioning with adequate acromial coverage provides the best biomechanical performance, improving contact area while reducing complications such as osteolysis and impingement.

Careful intraoperative positioning remains essential to maximize fixation stability and minimize long-term implant-related complications.

FAQ

What is the best position for a clavicle hook plate?

Neutral or slightly posterior placement with adequate acromial coverage provides the best biomechanical performance.

Why does hook plate cause pain?

Pain is mainly due to subacromial impingement and pressure on the undersurface of the acromion.

Is hook plate still commonly used?

Yes, it remains widely used, especially for high-grade AC joint dislocations requiring strong fixation.

When should hook plates be removed?

Typically after fracture or ligament healing, often within 3–6 months depending on clinical progress.

Conclusion

Clavicle hook plate fixation remains an effective surgical option for AC joint dislocation. However, implant positioning significantly affects outcomes. Lateral positioning of the hook plate at a 0° insertion angle achieves the maximum contact area, thereby reducing focal stress concentration and decreasing the incidence of implant-related complications.
