Ankle Fracture Classification Explained: Lauge-Hansen, Danis-Weber, And AO/OTA Systems

Ankle fractures are among the most common injuries treated by orthopedic surgeons. Accurate fracture classification is essential because it helps clinicians understand the mechanism of injury, evaluate ankle stability, predict associated ligament damage, and determine the most appropriate surgical or non-surgical treatment strategy.

Among the numerous classification systems available, three remain the most widely used in clinical practice:

• Lauge-Hansen Classification

• Danis-Weber Classification

• AO/OTA Classification

Each system offers unique advantages. While the Lauge-Hansen classification provides detailed insight into injury mechanisms, the Danis-Weber classification offers simplicity and practical treatment guidance. The AO/OTA classification further expands upon the Weber system with greater anatomical detail.

This article reviews these three major ankle fracture classification systems and explains how they are applied in modern orthopedic trauma management.

Why Ankle Fracture Classification Matters

Proper classification helps surgeons:

• Understand the mechanism of injury

• Assess ankle stability

• Identify syndesmotic injuries

• Predict associated ligament damage

• Plan surgical fixation strategies

• Improve treatment outcomes

No single classification system is perfect. Therefore, many orthopedic surgeons combine multiple systems to gain a more comprehensive understanding of the injury.

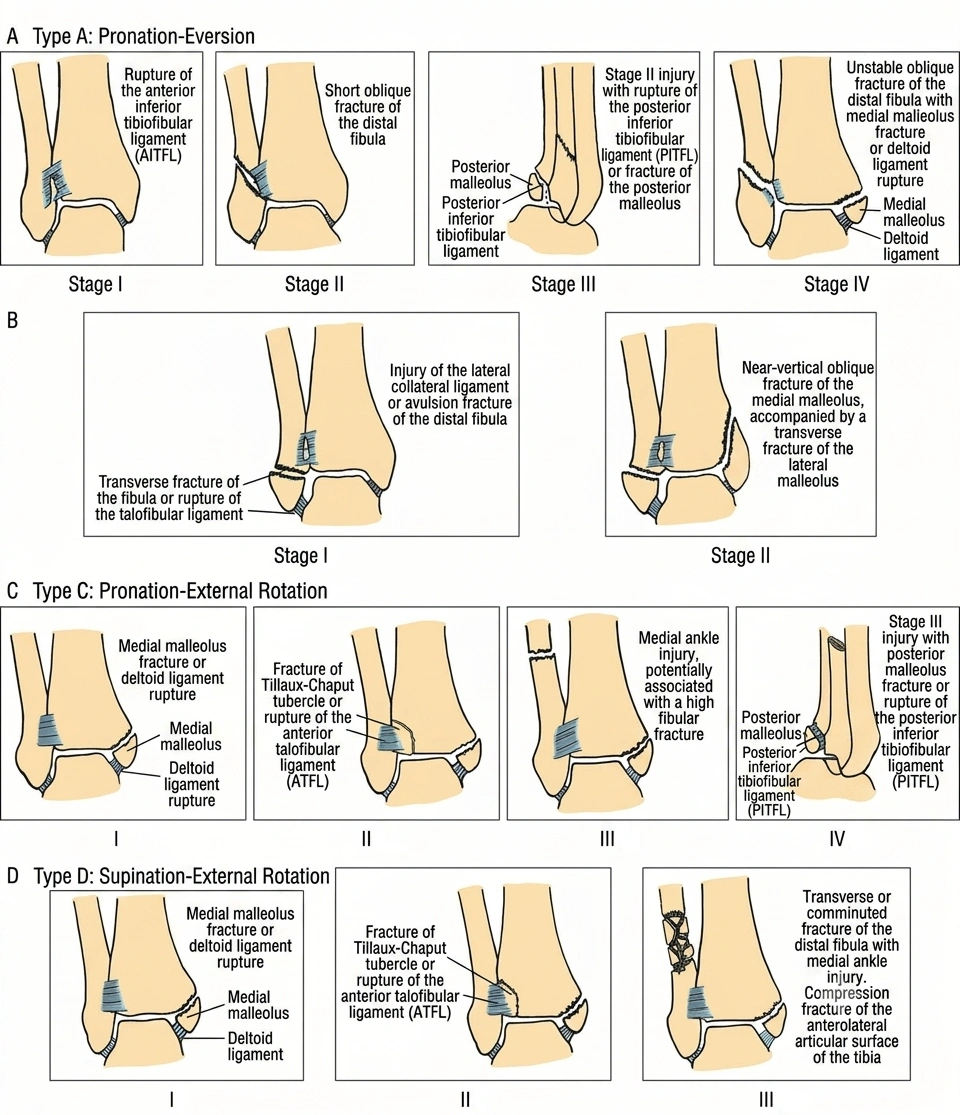

Lauge-Hansen Classification: Understanding the Injury Mechanism

What Is the Lauge-Hansen Classification?

Developed through cadaveric studies, the Lauge-Hansen system classifies ankle fractures according to:

1. Foot position at the time of injury

2. Direction of deforming force

This classification focuses on the sequential pattern of ligament and bone injuries.

Four Major Injury Patterns

• Supination-External Rotation (SER)

• Supination-Adduction (SA)

• Pronation-External Rotation (PER)

• Pronation-Abduction (PA)

The Lauge-Hansen system provides valuable insight into injury biomechanics and associated soft tissue damage.

1. Supination-External Rotation (SER) Fractures

The Most Common Ankle Fracture Pattern

SER injuries account for approximately 40%–75% of ankle fractures.

The injury occurs when the foot is supinated and subjected to an external rotational force.

Stage I

• Rupture of the anterior inferior tibiofibular ligament (AITFL)

Stage II

• Oblique or spiral fracture of the distal fibula at the syndesmotic level

Stage III

• Posterior inferior tibiofibular ligament (PITFL) injury or posterior malleolar fracture

Stage IV

• Deltoid ligament rupture or medial malleolar fracture

Clinical Significance

SER fractures typically produce the classic spiral fibular fracture seen at the level of the ankle joint.

2. Supination-Adduction (SA) Fractures

A Less Common but Distinct Injury Pattern

SA injuries account for approximately 10%–20% of ankle fractures.

The foot is in a supinated position while an adduction force acts on the ankle.

Stage I

• Lateral ligament rupture or transverse fracture of the distal fibula below the syndesmosis

Stage II

• Vertical fracture of the medial malleolus caused by talar impaction

Clinical Significance

These fractures frequently involve medial impaction injuries and may be associated with articular cartilage damage.

3. Pronation-External Rotation (PER) Fractures

High-Energy Rotational Injury

PER injuries occur when the foot is pronated and subjected to an external rotation force.

Stage I

• Deltoid ligament rupture or transverse medial malleolar fracture

Stage II

• AITFL rupture

Stage III

• Spiral fracture of the fibula above the syndesmosis

Stage IV

• PITFL rupture or posterior malleolar fracture

Clinical Significance

PER fractures are often unstable and frequently require surgical fixation.

4. Pronation-Abduction (PA) Fractures

Complex Injury Pattern

PA fractures occur when the foot is pronated and exposed to a strong abduction force.

Stage I

• Deltoid ligament rupture or medial malleolar fracture

Stage II

• Syndesmotic disruption involving anterior and posterior tibiofibular ligaments

Stage III

• Transverse or comminuted fibular fracture above the syndesmosis

Clinical Significance

These injuries are often associated with significant instability and may present substantial surgical challenges.

Advantages and Limitations of the Lauge-Hansen Classification

Advantages

• Explains injury mechanisms in detail

• Predicts associated ligament injuries

• Improves understanding of fracture progression

• Useful for teaching and surgical planning

Limitations

• Complex to learn and apply

• Moderate interobserver reliability

• Does not classify every fracture pattern

• Limited direct treatment guidance

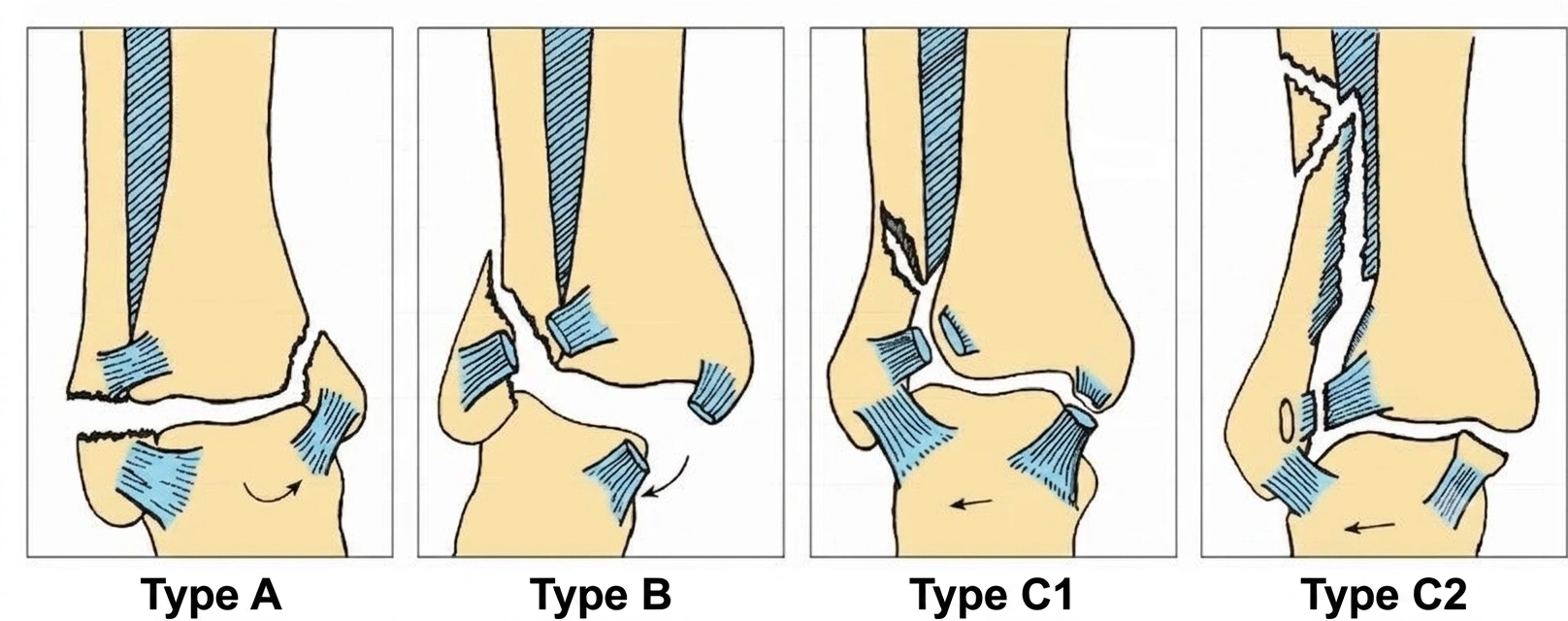

Danis-Weber Classification: Simple and Practical

What Is the Danis-Weber Classification?

The Danis-Weber system classifies ankle fractures based on the location of the fibular fracture relative to the syndesmosis.

Because of its simplicity and clinical relevance, it remains one of the most widely used classification systems worldwide.

Weber Type A

Fracture Below the Syndesmosis

Characteristics:

• Fibular fracture below the distal tibiofibular joint

• Syndesmosis remains intact

• Often associated with inversion injuries

Common Findings

• Distal fibular avulsion fracture

• Lateral ligament injury

• Possible medial malleolar fracture

Stability

Most Weber A fractures are relatively stable.

Weber Type B

Fracture at the Level of the Syndesmosis

Characteristics:

• Oblique fibular fracture at syndesmotic level

• Variable syndesmotic injury

• Interosseous membrane usually intact

Common Findings

• Medial malleolar fracture or deltoid ligament injury

• Syndesmotic disruption may occur

Stability

Stability depends on associated medial and syndesmotic injuries.

Weber Type C

Fracture Above the Syndesmosis

Characteristics:

• Fibular fracture proximal to the syndesmosis

• Syndesmotic injury is always present

• Frequently associated with medial ankle injury

Common Findings

• Deltoid ligament rupture

• Medial malleolar fracture

• Posterior malleolar involvement

Stability

Weber C fractures are highly unstable and typically require surgical fixation.

Advantages and Limitations of the Danis-Weber Classification

Advantages

• Easy to understand

• Quick to apply

• Helps assess syndesmotic injury risk

• Useful for treatment planning

Limitations

• Limited information regarding injury mechanism

• Does not fully describe fracture complexity

• Less detailed than AO/OTA classification

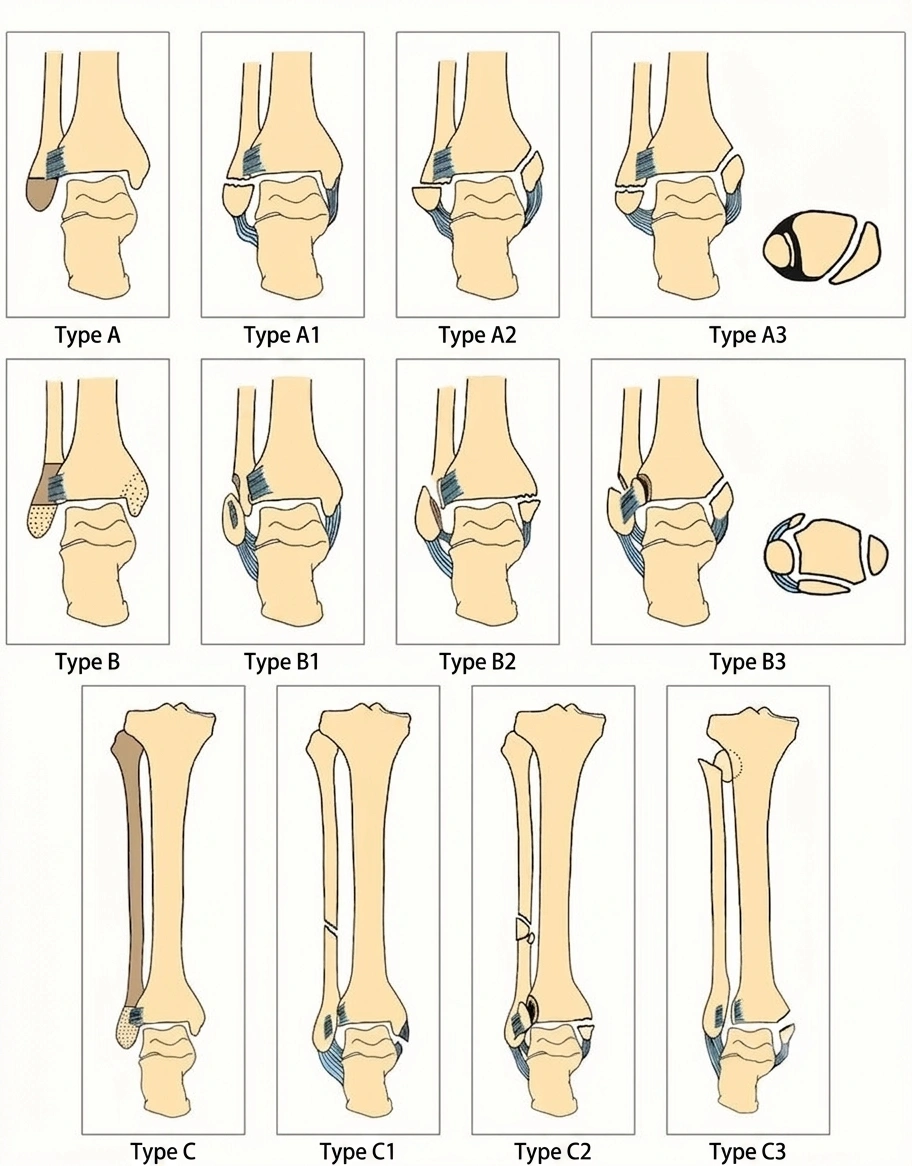

AO/OTA Classification: Comprehensive and Detailed

What Is the AO/OTA Classification?

The AO/OTA ankle fracture classification expands upon the Weber system by incorporating:

• Fracture morphology

• Associated malleolar injuries

• Syndesmotic injuries

• Posterior malleolar involvement

This system is commonly used in research and academic orthopedic trauma centers.

AO/OTA Type A

Infrasyndesmotic Fractures

A1

• Isolated injury below the syndesmosis

• Lateral ligament rupture or distal fibular avulsion

A2

• Associated medial malleolar fracture

A3

• Associated posterior malleolar fracture

AO/OTA Type B

Trans-Syndesmotic Fibular Fractures

B1

• Isolated fibular fracture at syndesmotic level

B2

• Fibular fracture with medial injury

B3

• Fibular fracture with medial injury and posterior malleolar fracture

AO/OTA Type C

Suprasyndesmotic Fractures

C1

• Simple fibular shaft fracture above the syndesmosis

C2

• Comminuted fibular shaft fracture

C3

• High fibular fracture (including Maisonneuve-type injuries)

These injuries are commonly associated with:

• Syndesmotic disruption

• Medial malleolar fracture

• Deltoid ligament rupture

• Posterior malleolar fracture

Comparison of the Three Classification Systems

Which Classification System Should Clinicians Use?

Recommended Clinical Approach

Many orthopedic surgeons use a combination of systems:

Step 1: Use Lauge-Hansen

To understand:

• Mechanism of injury

• Expected ligament damage

• Fracture progression

Step 2: Use Danis-Weber

To quickly assess:

• Syndesmotic involvement

• Stability

• Surgical indications

Step 3: Use AO/OTA

For:

• Detailed documentation

• Research studies

• Complex fracture planning

This combined approach provides the most complete assessment of ankle fracture patterns.

Key Takeaways

• Lauge-Hansen classification explains how the injury occurred and predicts ligament damage.

• Danis-Weber classification is simple, practical, and useful for treatment decisions.

• AO/OTA classification offers the most comprehensive anatomical description.

• SER fractures are the most common ankle fracture pattern.

• Weber C and AO Type C fractures usually indicate syndesmotic disruption and ankle instability.

• Combining Lauge-Hansen and Danis-Weber classifications often provides the best balance between biomechanical understanding and clinical decision-making.
