Posterior Knee Anatomy: Key Structures, Clinical Significance And Surgical Considerations

Posterior Knee Anatomy: Quick Answer

The posterior knee contains several important stabilizing structures, including the semimembranosus complex, oblique popliteal ligament (OPL), posterior oblique ligament (POL), popliteofibular ligament (PFL), popliteus tendon, posterior capsule, and gastrocnemius heads. These structures work together to provide posterior, rotational, and hyperextension stability of the knee joint and are critical landmarks during ligament reconstruction and posterior knee surgery.

Key Structures of the Posterior Knee

• Semimembranosus Complex

• Oblique Popliteal Ligament (OPL)

• Posterior Oblique Ligament (POL)

• Popliteus Tendon

• Popliteofibular Ligament (PFL)

• Fabellofibular Ligament

• Posterior Capsule

• Gastrocnemius Heads

Why Is Posterior Knee Anatomy Important?

The posterior aspect of the knee is one of the most anatomically complex regions of the human body. It contains multiple static and dynamic stabilizers that play essential roles in preventing hyperextension, controlling rotational movement, and maintaining overall joint stability. Accurate understanding of posterior knee anatomy is particularly important for posterior cruciate ligament (PCL) reconstruction, posterolateral corner (PLC) surgery, treatment of Baker's cysts, and management of complex knee instability.

Why Understanding Posterior Knee Anatomy Matters

In sports medicine and reconstructive knee surgery, injuries involving the posterior knee are frequently associated with:

• Posterior knee pain

• Hyperextension instability

• Rotational instability

• Posterior cruciate ligament (PCL) injuries

• Popliteal cysts (Baker’s cysts)

• Posterolateral corner injuries

Despite its clinical importance, the posterior knee remains one of the least standardized anatomical regions in orthopedic literature, with inconsistent terminology and conflicting descriptions of major stabilizing structures.

This study helps resolve many of these uncertainties.

Study Overview

Researchers analyzed:

• 20 fresh-frozen cadaveric knee specimens

• No previous knee injury

• No prior surgery

• Mean donor age: 59.2 years (range 43–76 years)

Using meticulous dissection techniques and precision caliper measurements (accuracy 0.01 mm), investigators documented the morphology, dimensions, and attachment sites of key posterior knee structures.

Eight Constant Attachments of the Semimembranosus Complex

The Semimembranosus: A Major Posterior Knee Stabilizer

The semimembranosus tendon forms a complex network of attachments that contribute significantly to posterior and posteromedial knee stability.

The study identified eight constant attachment sites:

1. Direct Arm

Primary distal insertion onto the posteromedial proximal tibia.

2. Tendinous Expansion to the Oblique Popliteal Ligament (OPL)

A lateral expansion from the semimembranosus tendon that contributes to formation of the OPL.

3. Coronary Ligament Attachment

Connection to the posterior horn of the medial meniscus.

4. Oblique Popliteal Ligament (OPL)

One of the largest static stabilizers of the posterior knee.

5. Proximal Capsular Arm

Extends toward the posterolateral capsule.

6. Distal Tibial Expansion

Forms part of the fascial coverage over the popliteus muscle.

7. Anterior Arm

Consistently present in all specimens.

8. Posterior Oblique Ligament (POL) Components

Includes:

• Capsular arm

• Tibial arm

• Superficial arm

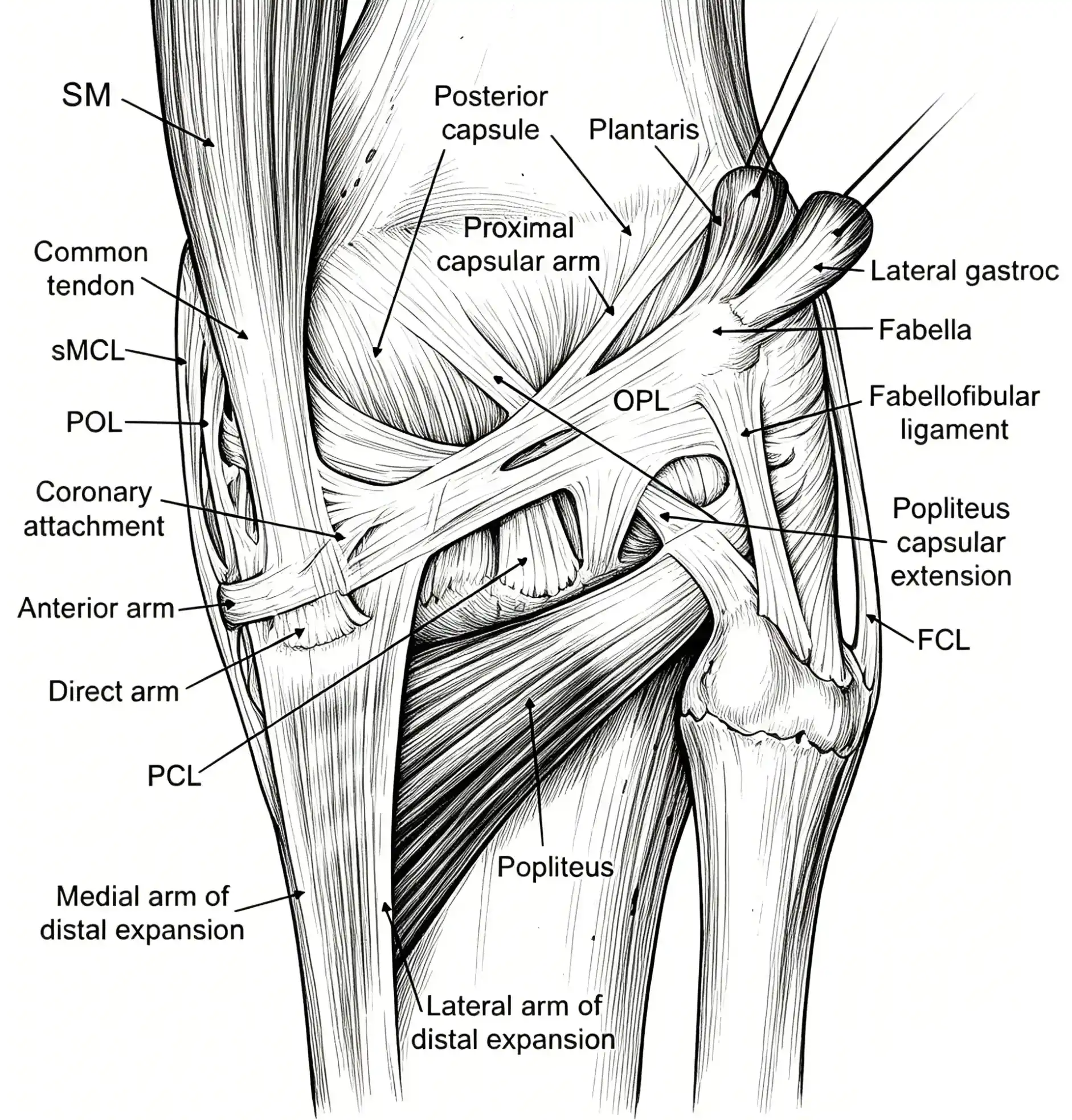

Figure 1. Posterior view of the right knee joint (with medial and lateral gastrocnemius complexes and neurovascular structures removed).

Note: SM, semimembranosus; sMCL, superficial medial collateral ligament; OPL, oblique popliteal ligament; FCL, fibular (lateral) collateral ligament; Lateral gastroc, lateral head of gastrocnemius; POL, posterior oblique ligament; PCL, posterior cruciate ligament.

The Oblique Popliteal Ligament (OPL): The Largest Posterior Knee Structure

Key Anatomical Findings

The OPL was found to be the most substantial stabilizing structure in the posterior knee.

Quantitative Measurements

• Medial origin width: 9.5 mm

• Mid-substance width: 10.4 mm

• Lateral insertion width: 16.4 mm

• Average length: 48.0 mm

Important Surgical Discovery

Previous literature often described the OPL as attaching directly to the lateral femoral condyle.

However, this study demonstrated that:

The OPL does NOT attach to the posterior lateral femoral condyle.

Instead, it consistently attaches to:

• The posterolateral capsule

• Meniscofemoral portion of the capsule

• Fabella (when present)

This finding has significant implications for:

• Posterior knee reconstruction

• Posterolateral corner surgery

• PCL reconstruction procedures

Table 1. Quantitative measurements of the oblique popliteal ligament

The Semimembranosus Bursa: A Constant Structure

Researchers found the semimembranosus bursa in 100% of specimens.

The bursa lies between:

• The direct arm of the semimembranosus

• The tibial attachment

• The coronary ligament

Clinical Relevance

Inflammation of this bursa may contribute to:

• Posteromedial knee pain

• Semimembranosus tendinopathy

• Chronic irritation syndromes

Orthopedic surgeons should consider this structure during posterior-medial knee approaches.

Figure 2. Posterior view of the left knee joint.
Note: The proximal posterior capsular arm of the semimembranosus (indicated by arrows) is located superior to the proximal margin of the oblique popliteal ligament (OPL). MG, medial head of the gastrocnemius.

Posteromedial Capsular Defects and Baker's Cysts

A Remarkably Consistent Finding

One of the most clinically significant observations was that:

90% of specimens demonstrated a posteromedial capsular defect

Specifically:

• 18 out of 20 knees showed a true capsular opening

• The remaining 2 specimens demonstrated severe capsular thinning

Location

The defect was consistently located between:

• The semimembranosus tendon

• The medial head of the gastrocnemius

Figure 3. Posterior view of the left knee joint.
Note: The posteromedial capsular defect of the knee joint (indicated by the hemostat) is located distal to the attachment of the medial head of the gastrocnemius (MG) to the posterior capsule and proximal to the attachment of the direct arm of the semimembranosus. OPL, oblique popliteal ligament; SM, main tendon of the semimembranosus (retracted distally).

Relationship to Baker's Cysts

This anatomical defect corresponds closely to the common location of:

Popliteal (Baker's) Cysts

The findings support the theory that Baker's cysts develop through progressive weakening of the posteromedial capsule with age.

Surgical Implications

Understanding this defect allows:

• More accurate cyst excision

• Better portal placement

• Reduced risk of iatrogenic injury

• Improved recurrence prevention

Figure 4. Posterior view of the left knee joint.
Note: The proximal capsular expansion of the popliteus (indicated by arrows) is the capsular thickening located between the popliteal tendon medially and the attachment to the posteromedial capsule of the intercondylar fossa; the popliteofibular ligament is held by the hemostat; OPL, oblique popliteal ligament.

The Newly Described Popliteus Capsular Expansion

A Previously Underrecognized Structure

The authors identified a distinct structure termed:

Proximal Popliteus Capsular Expansion

Characteristics include:

• Extends from the popliteus musculotendinous junction

• Courses toward the posterior intercondylar region

• Runs deep to the OPL

• Functions in coordination with the popliteofibular ligament

Potential Function

The structure may contribute to:

• Rotational stability

• Posterolateral restraint

• Dynamic control during knee motion

Further biomechanical studies are needed to confirm its exact role.

Key Surgical Applications

Posterior Cruciate Ligament (PCL) Reconstruction

Surgeons performing PCL reconstruction should:

• Preserve the distal OPL attachment

• Avoid excessive posterior capsule dissection

• Protect semimembranosus expansions

Damage to these structures may increase:

• Rotational instability

• Hyperextension laxity

• Graft overload

Posterolateral Corner Reconstruction

The study emphasizes preserving:

• OPL

• Popliteofibular ligament

• Fabellofibular ligament

• Popliteus capsular expansion

These structures likely function as a coordinated stabilizing complex.

Meniscal Repair and Posteromedial Approaches

The direct arm of the semimembranosus attaches to:

• The posteromedial tibia

• The medial meniscus coronary ligament

Careless dissection may compromise:

• Meniscal stability

• Posteromedial knee support

Baker's Cyst Surgery

Knowledge of the posteromedial capsular defect can improve:

• Surgical access

• Cyst decompression

• Repair techniques

• Long-term outcomes

Clinical Pearls for Orthopedic Surgeons

Key Takeaways

✅ The semimembranosus complex has eight constant attachment sites

✅ The oblique popliteal ligament (OPL) is the largest posterior stabilizer

✅ The OPL does not attach directly to the lateral femoral condyle

✅ A posteromedial capsular defect exists in approximately 90% of knees

✅ The semimembranosus bursa is present in all specimens

✅ A previously underrecognized proximal popliteus capsular expansion may contribute to rotational stability

✅ These findings have direct implications for:

• PCL reconstruction

• Posterolateral corner repair

• Meniscal surgery

• Baker's cyst treatment

• Posterior knee approaches

Conclusion

The posterior knee remains one of the most challenging anatomical regions in orthopedic surgery. This landmark JBJS study provides a comprehensive roadmap of the semimembranosus complex, oblique popliteal ligament, posteromedial capsule, and popliteus-related structures.

By standardizing terminology and providing precise anatomical measurements, these findings enhance our understanding of posterior knee biomechanics and offer valuable guidance for surgeons performing ligament reconstruction, posterior knee stabilization procedures, and popliteal cyst surgery.

As future biomechanical and imaging studies build upon these discoveries, the detailed anatomical framework established here will continue to improve diagnosis, surgical precision, and patient outcomes in complex knee disorders.
