What is Gerdy’s Safe Zone in proximal tibia surgery?
Gerdy’s Safe Zone is a three-dimensional anatomical region on the anterolateral proximal tibia that helps surgeons avoid peroneal nerve injury during percutaneous procedures. It is defined based on the consistent spatial relationship between the common peroneal nerve and Gerdy’s tubercle, which serves as a central landmark. Anatomical studies show that the peroneal nerve and its branches follow an arc-shaped course around Gerdy’s tubercle with an average radius of approximately 45 mm, leaving a relatively nerve-free zone over the anterolateral tibial surface. This zone can be mapped preoperatively using simple surface landmarks such as the fibular head and Gerdy’s tubercle, allowing safe placement of screws, pins, and surgical instruments in proximal tibial surgery.
The common peroneal nerve is one of the most vulnerable neurovascular structures during proximal tibial surgery. It innervates the anterior and lateral compartments of the leg, controlling ankle dorsiflexion and toe extension, which are essential for normal gait.
Iatrogenic injury to this nerve can result in foot drop, gait dysfunction, and long-term disability. With the increasing use of percutaneous and minimally invasive techniques in proximal tibial procedures, precise anatomical understanding of the nerve course has become critical for surgical safety.
Traditional anatomical descriptions mainly rely on two-dimensional relationships around the fibular head, which fail to fully represent the three-dimensional spatial variability of the nerve.
This study analyzed 31 fresh adult lower limb specimens without prior trauma or surgery. Dissections were performed via a lateral proximal tibial approach, tracing the common peroneal nerve from the popliteal fossa to its terminal branches.
Gerdy’s tubercle was used as the primary anatomical landmark. Key distances measured included:
Gerdy’s tubercle to the common peroneal nerve posterior to fibular head
Gerdy’s tubercle to the origin of the superficial peroneal nerve
Gerdy’s tubercle to the anterior recurrent branch
All measurements were performed using high-precision calipers.
The common peroneal nerve and its branches form a consistent arc-shaped pathway centered on Gerdy’s tubercle.
Mean radius: ~45.32 mm
Range: 41–49 mm
Standard deviation: ±2.6 mm
This arc represents a predictable “nerve-risk boundary” on the proximal tibia.
Figure 1. Anatomical location of the common peroneal nerve at the proximal tibia.
Note: The black arrow indicates the close relationship between the main trunk of the common peroneal nerve and the neck of the fibula. The distance from the fibular head to the nerve varies as its branches fan out toward the anterior muscle groups of the leg. The white arrow indicates the most proximal anterior recurrent branch among the terminal branches of the superficial peroneal nerve.
The nerve demonstrates a characteristic three-dimensional course:
Superficial around the fibular neck
Deeper as it enters anterior compartment muscles
Oblique orientation across axial, coronal, and sagittal planes
This confirms that the nerve cannot be described accurately using only linear measurements.

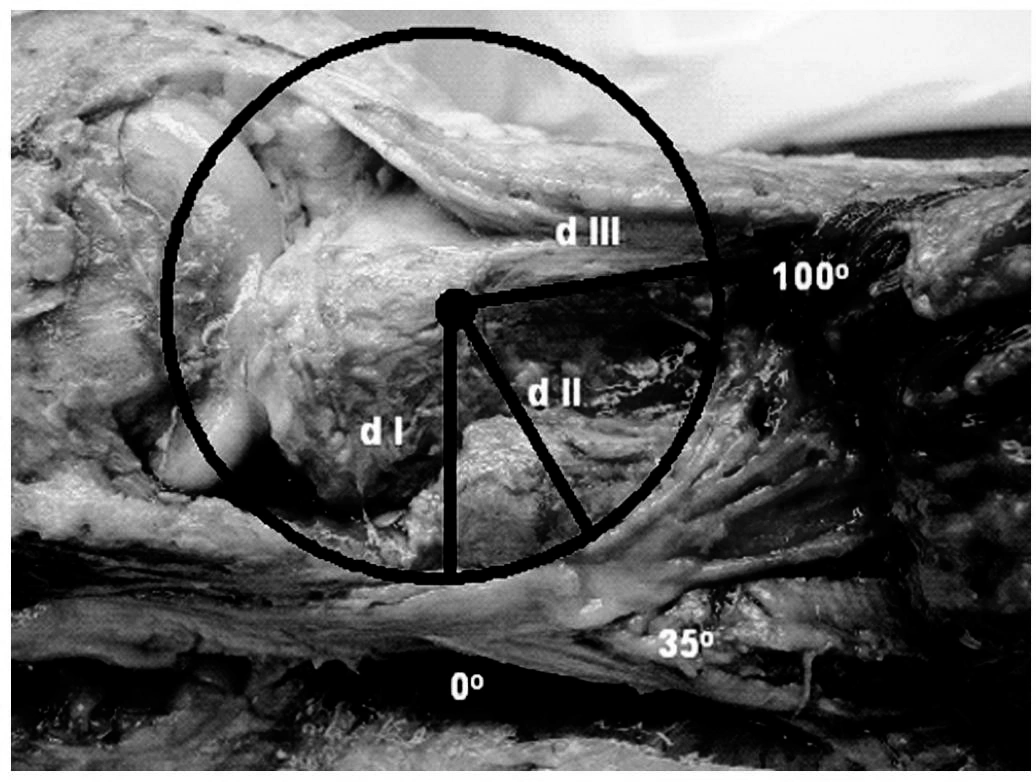

Figure 2. Anatomical dissection of a fresh tissue specimen showing a nerve-free annular region at the proximal tibia.
Note: This annular region is centered at Gerdy's tubercle, with a mean radius of 45.32 ± 2.6 mm. dⅠ represents the distance from the most prominent point of Gerdy's tubercle to the common peroneal nerve posterior to the fibular head. dⅡ represents the distance from the most prominent point of Gerdy's tubercle to the origin of the superficial branch of the common peroneal nerve. dⅢ represents the distance from the most prominent point of Gerdy's tubercle to the anterior recurrent branch of the common peroneal nerve.
The Gerdy’s Safe Zone is defined as the anterolateral proximal tibial region that lies outside the arc of the common peroneal nerve.
It can be mapped using:
Gerdy’s tubercle (central reference point)
Fibular head (posterior reference)
Tibial crest (anterior boundary)
Within this region, no major branches of the common peroneal nerve were consistently observed.
Figure 3-A. Preoperative lateral marking of Gerdy's safe zone.
Note: The marking lines follow the three-dimensional surface contour, clearly delineating the safe zone devoid of neural structures at the proximal tibia.
Figure 3-B. Preoperative anterior marking of Gerdy's safe zone.
Note: The marking is centered on Gerdy's tubercle, establishing a clear spatial correspondence with the tibial crest and the fibular head.
Surgeons can identify the safe zone intraoperatively using simple palpation:
Identify Gerdy’s tubercle and fibular head
Measure the distance between them
Transfer this radius anteriorly along the tibial crest
Connect landmarks to outline the safe surgical corridor
Alternatively, a suture-based arc technique can be used to reproduce the nerve-free boundary.
Reduces risk of iatrogenic peroneal nerve injury
Guides safe placement of percutaneous screws and pins
Improves precision in minimally invasive proximal tibial surgery
Provides a reproducible 3D anatomical reference system
The applicability of the Gerdy’s Safe Zone may be affected in:
Previous proximal tibial surgery
Severe fracture deformity
Pediatric patients
Obesity or poor landmark palpation
Therefore, intraoperative confirmation remains essential.
Gerdy’s Safe Zone represents a reproducible three-dimensional anatomical corridor on the anterolateral proximal tibia defined by the arc-shaped trajectory of the common peroneal nerve around Gerdy’s tubercle. This landmark-based system provides a practical and reliable method for avoiding nerve injury during proximal tibial surgery and offers superior clinical utility compared to traditional two-dimensional safety definitions.
