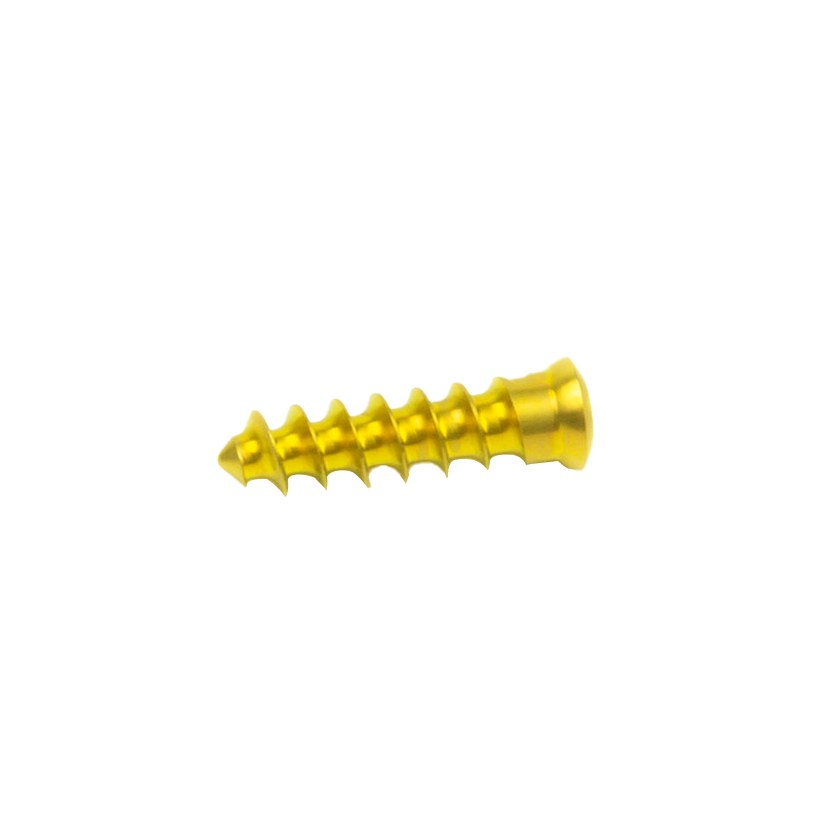

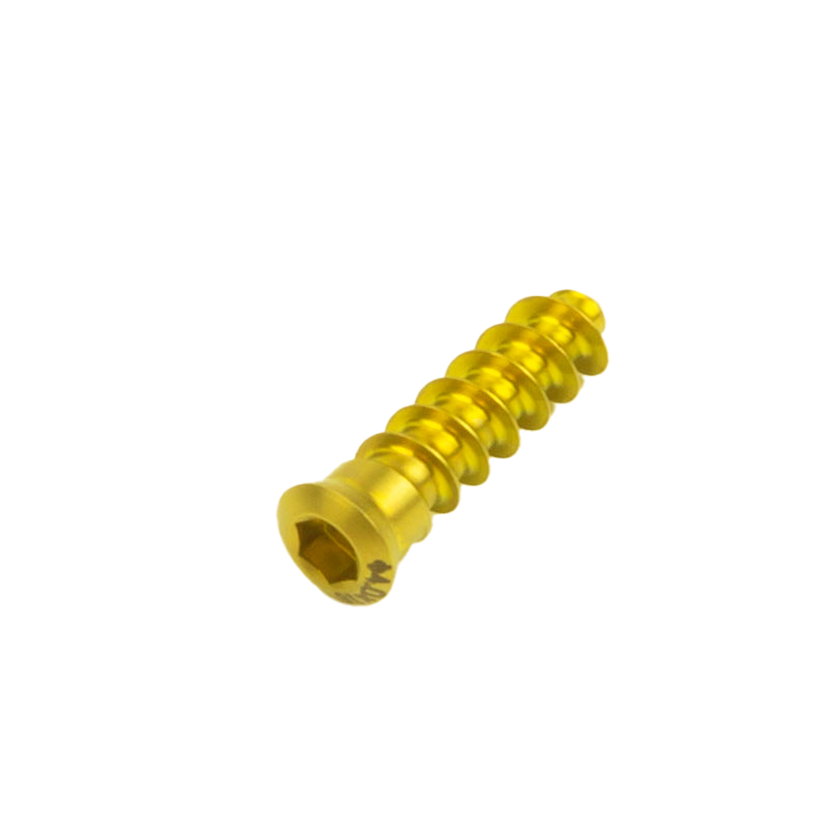

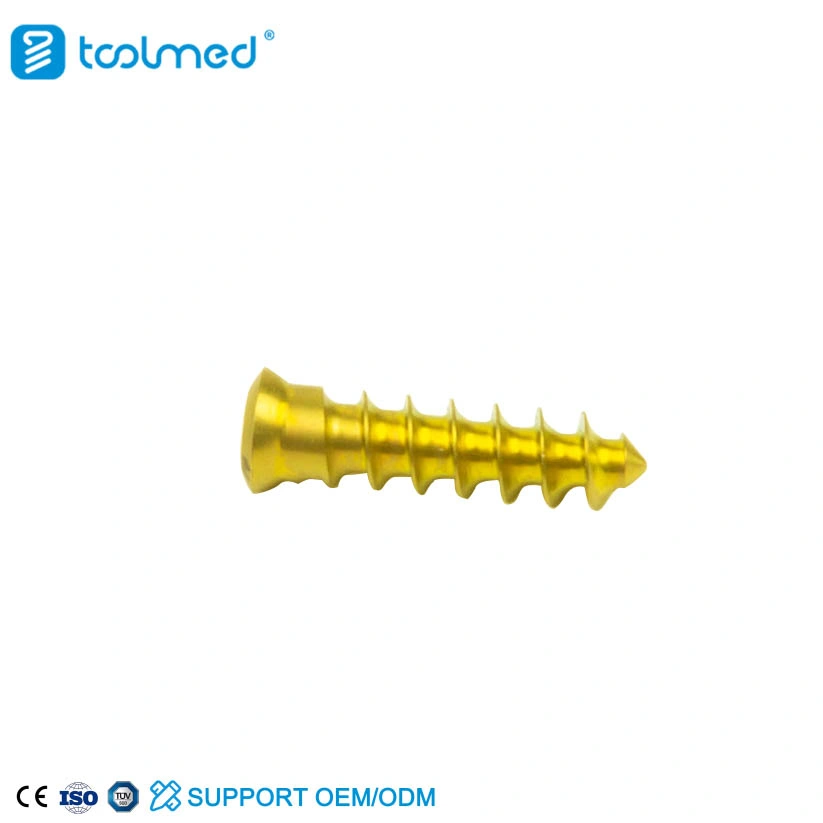

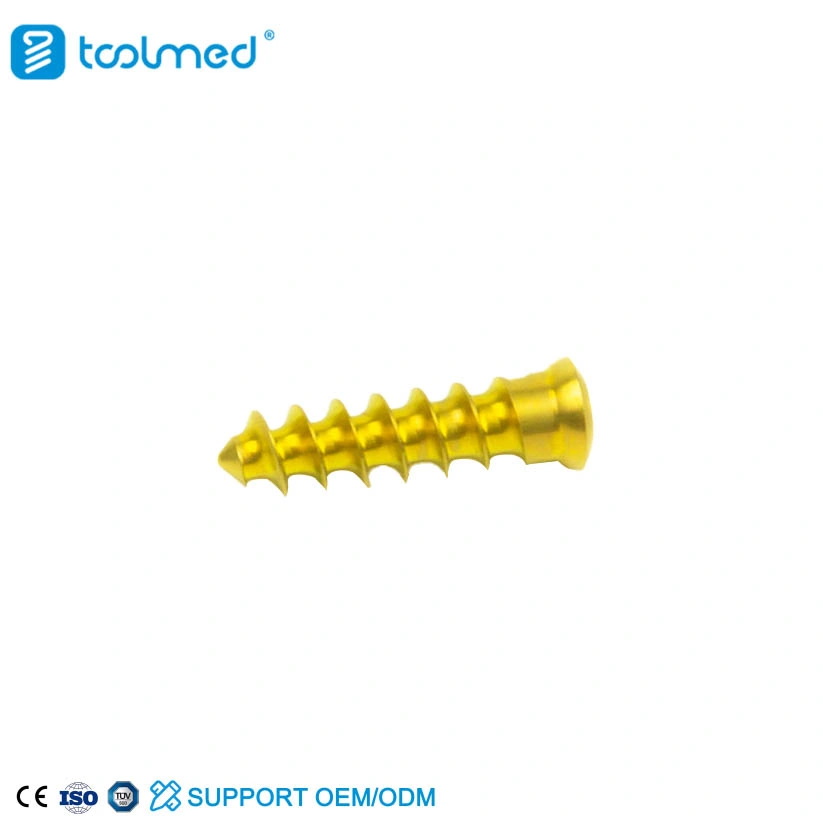

Crafted from biocompatible TC4 titanium alloy, the CERVINO Self‑tapping screw cuts its own thread during insertion, eliminating the need for pre‑tapping. Designed in lengths of 13, 14, 15, 16, and 17 mm, it’s compatible with both fixed-angle and variable-angle cervical plating constructs. Its star‑drive head design supports controlled insertion torque and tactile feedback. CE‑ and ISO‑certified, and works seamlessly within CERVINO™ plate systems—available in OEM/ODM configurations.
2003-0102
TOOLMED
TC4
1 Pcs
5-15 Days
Product Description
Self‑tapping design enables insertion directly into pre-drilled holes without tapping
Available in 13–17 mm lengths, color-coded for easy identification
Manufactured from TC4 titanium alloy, offering strong fatigue resistance and biocompatibility
Star‑drive head assists with torque control and reduces cam‑out risk

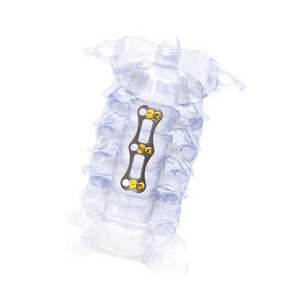

Compatible with both fixed‑ and variable‑angle plates in the CERVINO™ system
Low-profile design reduces prominence and enhances patient comfort
Certified under CE 0123, ISO 13485, ISO 9001, and produced in GMP compliant facility
These screws are intended for use in anterior cervical fixation following ACDF procedures:
Single- to multi-level fusion procedures (C2–T1)
Cases of degenerative disc disease, radiculopathy, spondylosis, or myelopathy
Trauma, deformity, pseudoarthrosis, or revision surgeries requiring anterior stabilization
Use with self-tapping technique when screw anchorage and streamlined workflow are prioritized
| Product Name | CERVINO Anterior Cervical Screw Self-tapping |
| Material | TC4 |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-15 Days |
| Shipping | DHL EMS UPS TNT FEDEX |
It’s a bone screw designed to thread directly into pre-drilled cervical vertebral bodies—without the need for tapping—saving time and instrument steps. Its thread profile creates internal threads in bone, and its star‑drive design ensures controlled torque insertion. Compatible with the CERVINO™ plate system and available in fixed or variable angle configurations.
The CERVINO Anterior Cervical Screw Self‑tapping is indicated for use in:
Anterior plating in ACDF surgery for stabilization and fusion
Used in conjunction with either fixed-angle or semi-constrained (variable-angle) plate systems
Streamlining surgeries by eliminating tapping for efficiency
Ideal in standard and revision cervical procedures requiring efficient screw placement
Reduces surgical steps by eliminating the tapping process
Faster insertion with consistent anchorage in vertebral bone
Enhanced pull-out resistance vs. conventional screws due to self-formed bone threads
Color‑coded sizes simplify intraoperative length selection
Low-profile head design less likely to irritate soft tissue

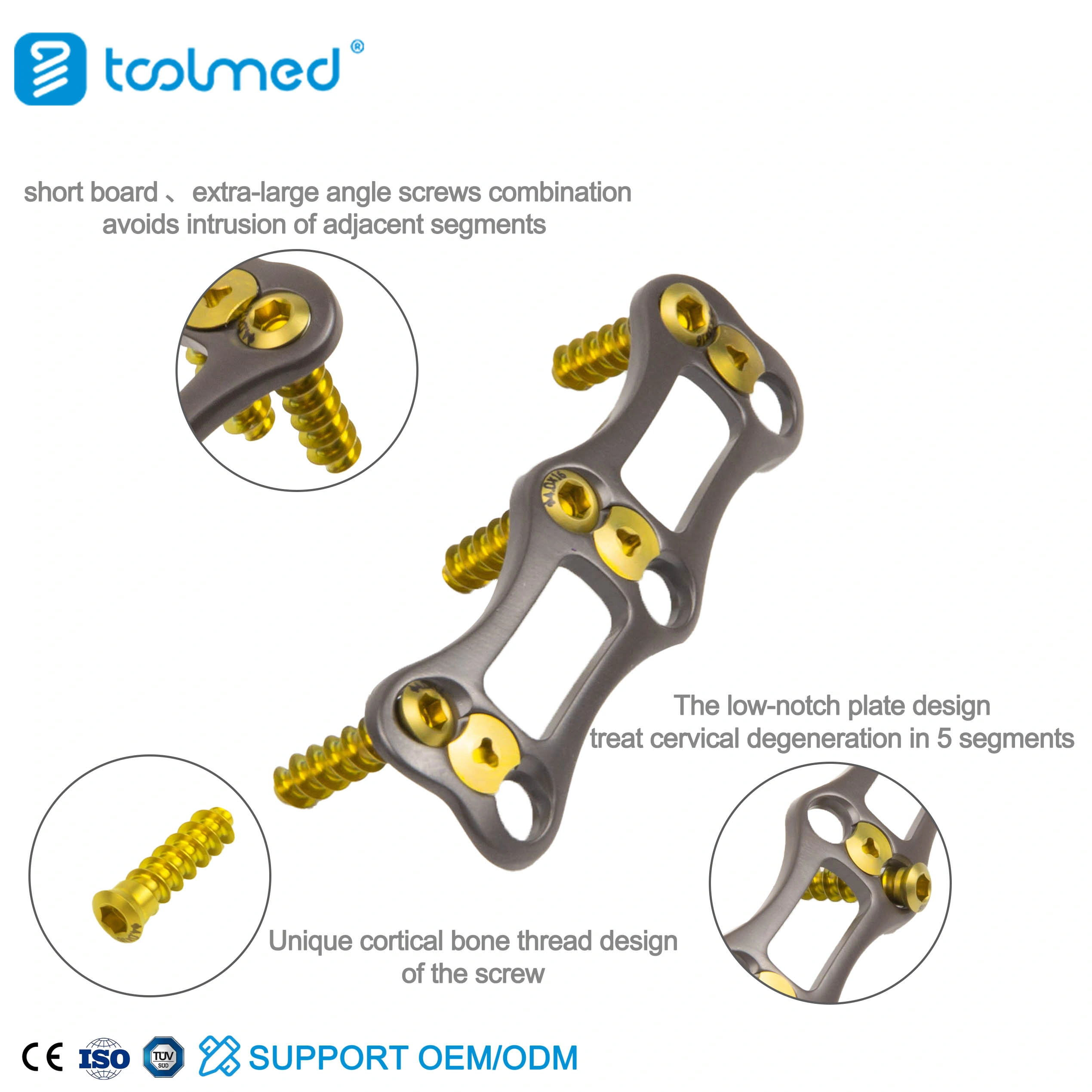

Works with both fixed and variable screw angulation plates
Self‑tapping screws produce effective bone thread formation leading to reliable pull‑out strength. In vivo studies demonstrate that self‑drilling screws have higher insertion torque, greater bone‑screw contact, and enhanced anchorage than self‑tapping screws, but self‑tapping solutions still offer strong fixation while reducing thermal damage from drilling.
Prepare vertebral body via standard Smith–Robinson approach and perform ACDF with bone graft placement
Drill pilot hole of appropriate diameter (per system guidelines)
Select correct screw length (13–17 mm), verifying via pre-operative imaging
Using star‑drive screwdriver insert screw into plate and into bone; threads will self-cut into bone
Seat screw until firm resistance is felt; avoid overtightening
Engage the plate locking mechanism after all screws are placed (rotation‑locking cap or plate feature)
Confirm construct position under fluoroscopy before wound closure
Following implantation, proper postoperative care is essential to ensure healing and prevent complications:
Obtain immediate postoperative X-ray or CT to verify implant and graft positioning
Encourage early mobilization according to surgeon’s protocol (often with cervical collar support)
Monitor for dysphagia or throat discomfort; low-profile plating reduces incidence
Commence rehabilitation once early fusion stability is confirmed
Periodic imaging follow-up to assess bone fusion and ensure implant security
The CERVINO Anterior Cervical Screw Self‑tapping is a high-efficiency fixation screw designed for rapid insertion and reliable anchorage in anterior cervical plating. Made of TC4 titanium, available in multiple lengths, and compatible with fixed or variable-angle CERVINO plate systems, it balances workflow efficiency and mechanical strength. CE- and ISO-certified and produced in TOOLMED’s GMP facilities, it supports high-quality, customizable cervical stabilization protocols.

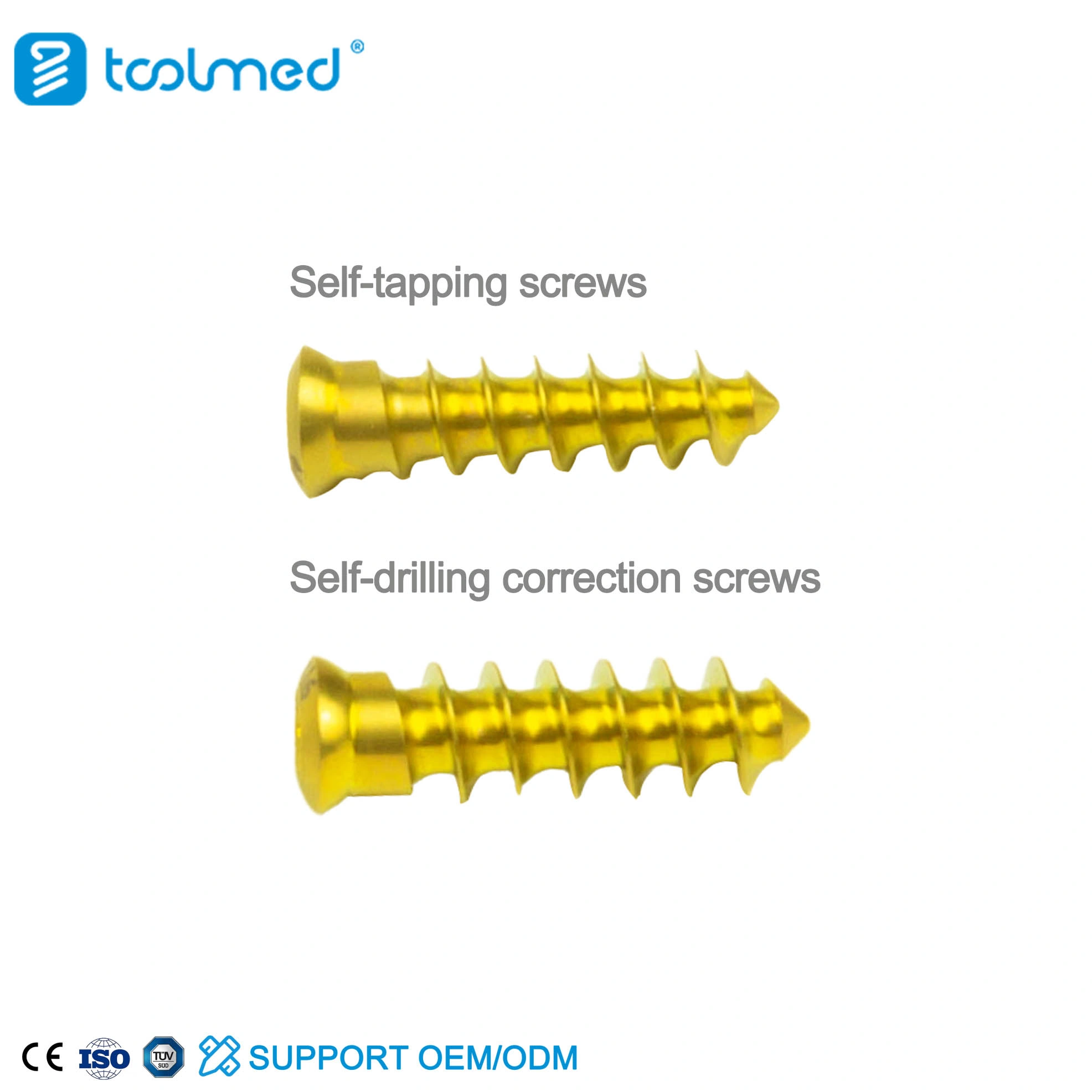

Self‑tapping screws require a pilot hole but avoid the heat generation and potential damage of self‑drilling screws. They offer reliable anchorage while reducing instrumentation required.
Yes—the same stock screw design can be used in either fixed or variable hole configurations depending on plate.
Screened by star‑drive driver; insert until resistance indicates secure seating. Avoid excessive torque to prevent bone stripping.
No—this is a single-use implant; screw integrity may be compromised after initial insertion.
Yes—a small pilot hole per system instructions is needed prior to screw insertion.
Our factory is equipped with over 60 advanced CNC machines operated by 100+ skilled technicians, a 300 m² GMP-compliant clean room, and a 10,000 m² production facility. We maintain a CNAS and ISO 17025 certified testing center, invest heavily in CNC turning technology, and utilize high-precision inspection systems including CMM, PP, and QV to ensure product quality and consistency.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
