6.0 Crosslink I

6.0 Crosslink I Overview

6.0 Crosslink I Features and Benefits

Compatible with standard 6.0 mm titanium or CoCr rods

Low-profile design minimizes soft tissue irritation and hardware prominence

Adjustable length options (e.g. 50, 60, 70, 80, 90 mm) to match inter-rod spacing

Secure clamp locking ensures stable rod engagement and prevents micromotion

Precise torque-controlled fixation maintains construct integrity under load

Enhances torsional and axial stiffness in multi-rod systems

6.0 Crosslink I Indications

The 6.0 Crosslink I is indicated for use in adult and adolescent spinal instrumentation requiring enhanced stability, such as:

Long-segment posterior thoracolumbar fusion

Deformity correction (scoliosis, kyphosis)

Trauma with multi-level constructs or rotational instability

Tumor or infection stabilization involving multiple vertebral levels

Revision instrumentation scenarios needing construct reinforcement

6.0 Crosslink I Specifications

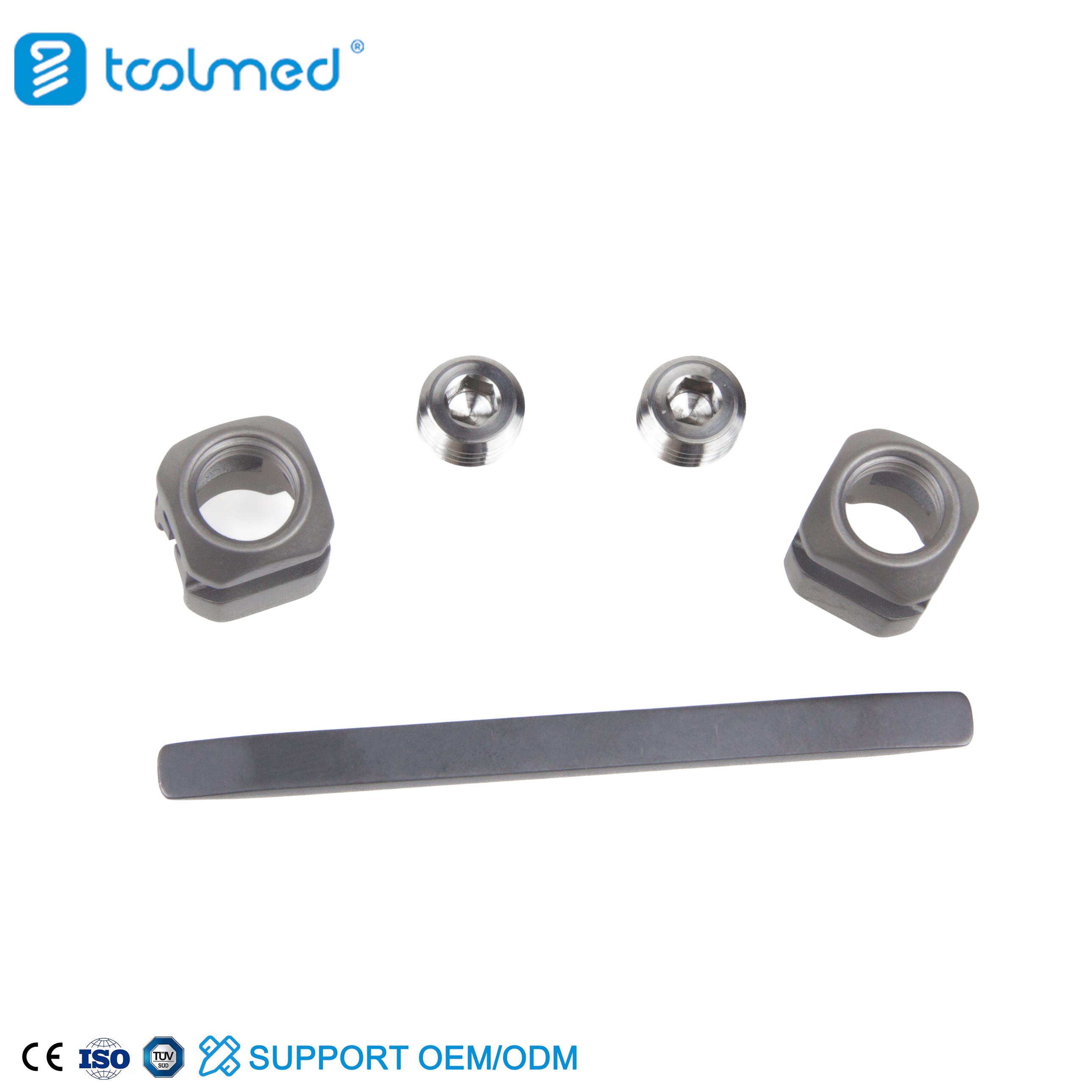

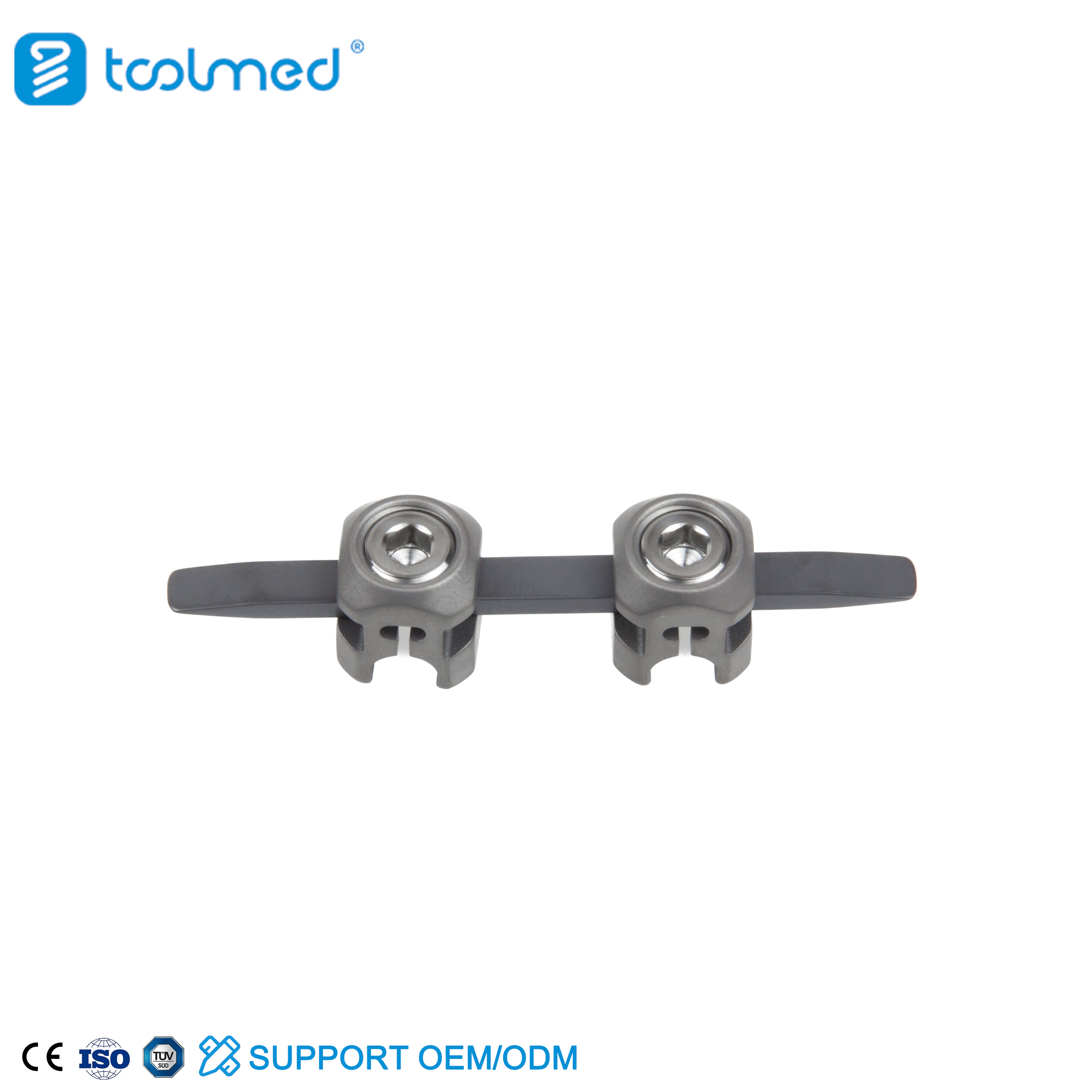

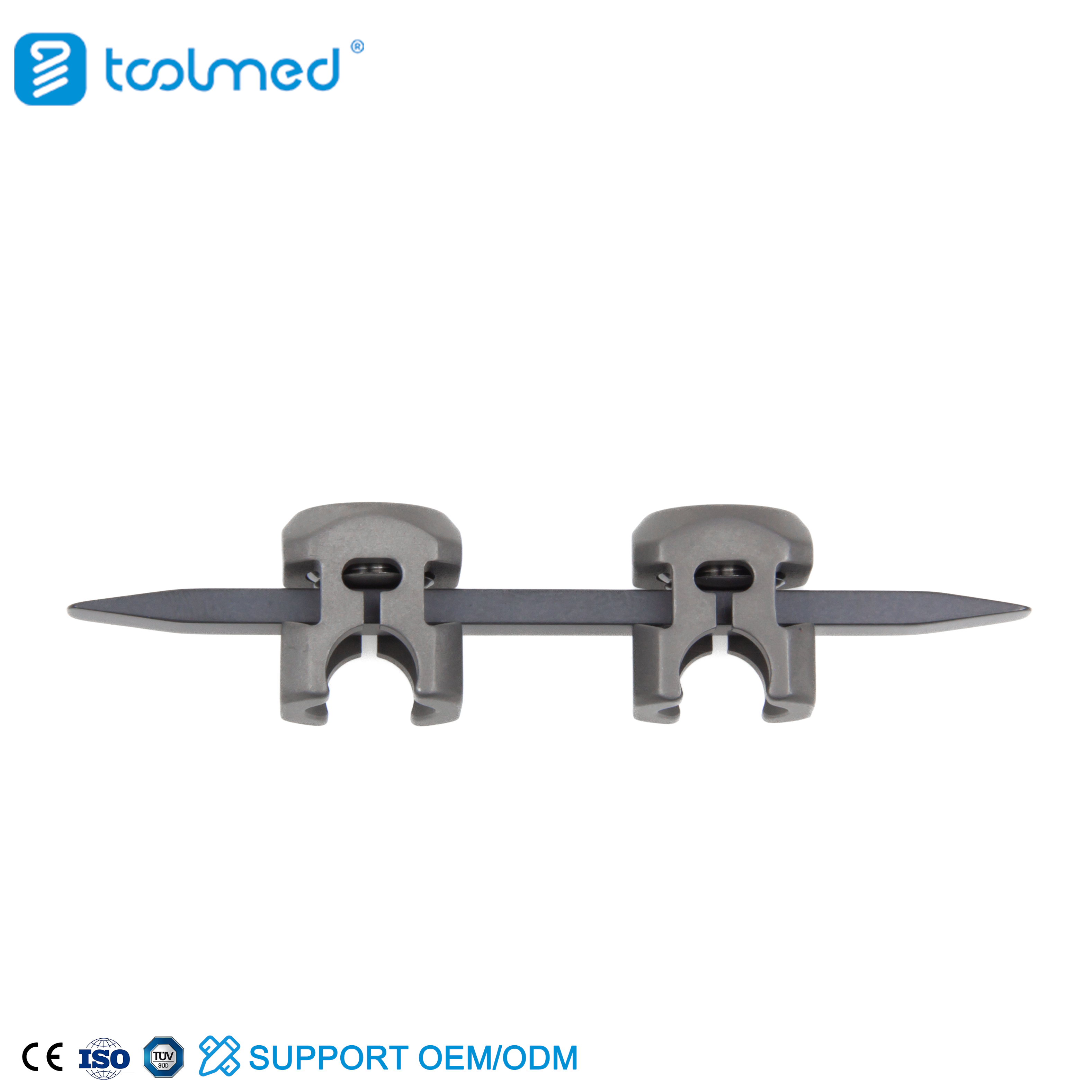

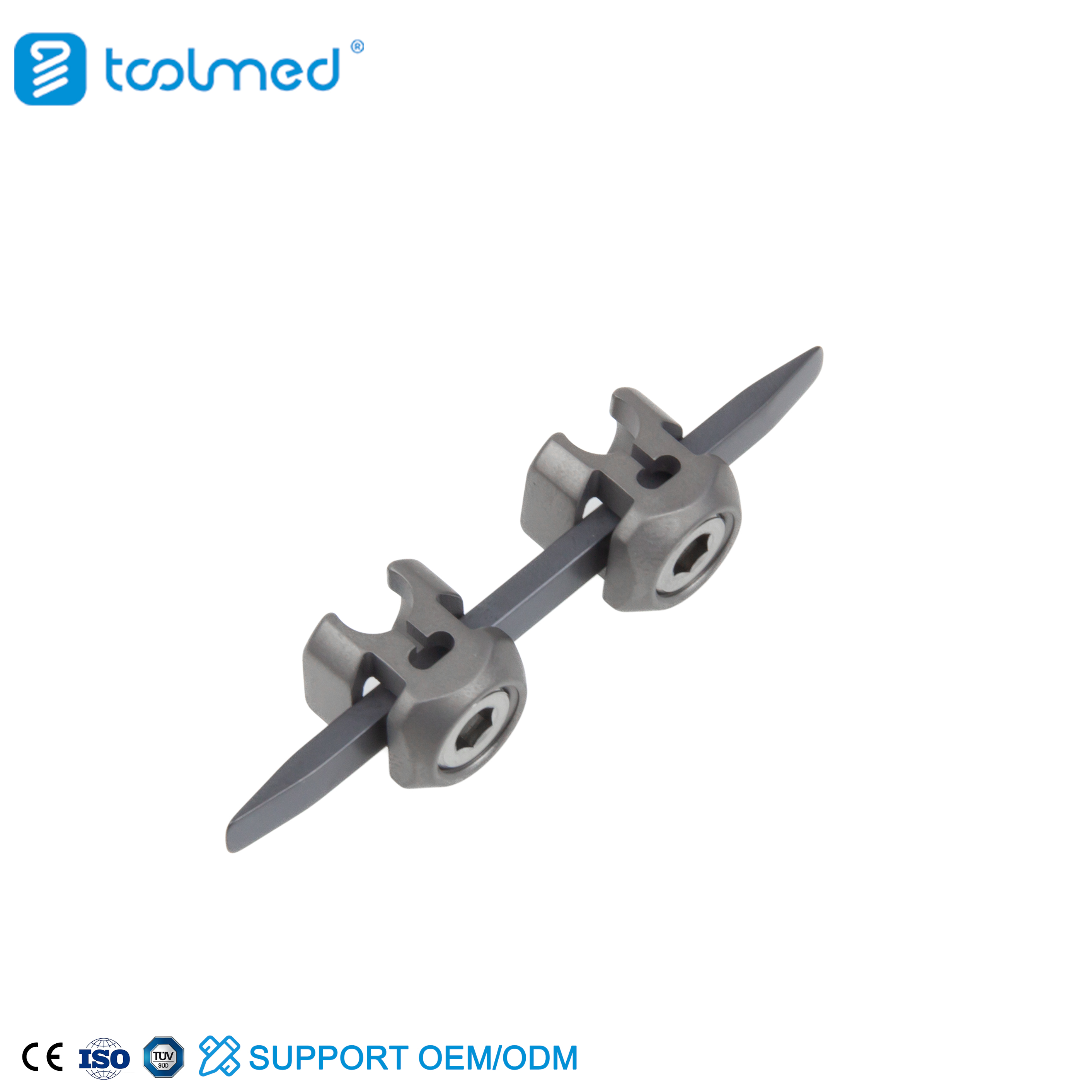

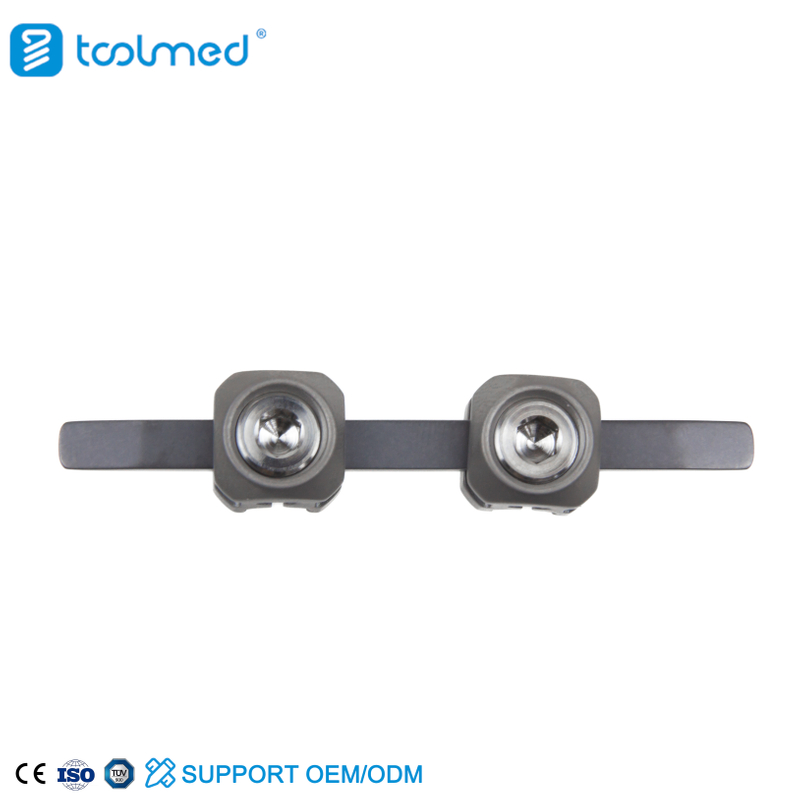

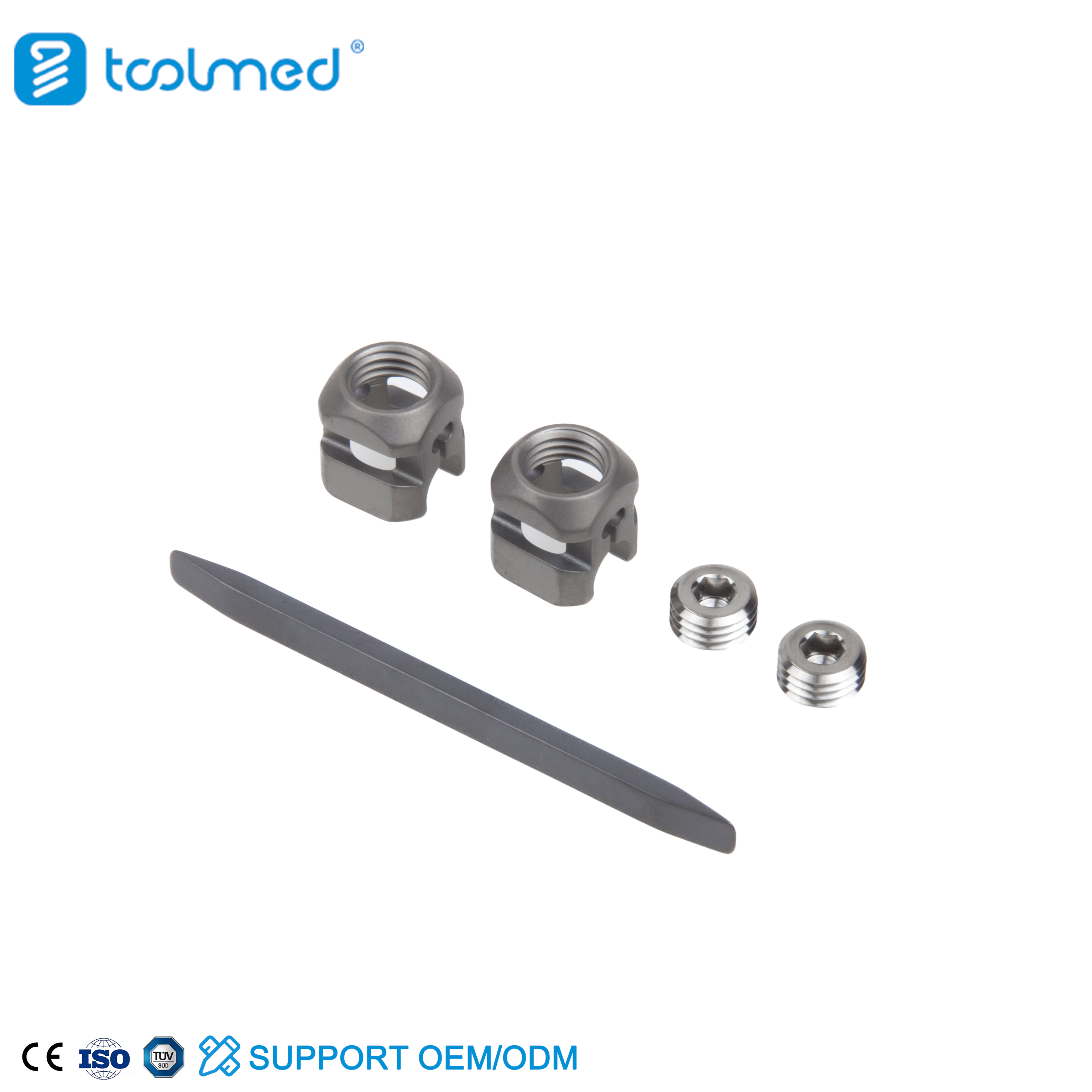

Actual Pictures of 6.0 Crosslink I

6.0 Crosslink I Insights

What is a 6.0 Crosslink I?

The 6.0 Crosslink I is a transverse connector that rigidly couples two parallel 6.0 mm rods, converting them into a unified quadrilateral construct. This significantly reduces axial rotation “parallelogram” deformation and screw rotation under torsional load. Crosslinks create a more rigid system, especially important in long and multilevel constructs.

Applications of 6.0 Crosslink I

The 6.0 Crosslink I is indicated for use in:

Used at proximal and distal levels in long thoracolumbar constructs to enhance torsional rigidity

Recommended in scoliosis or kyphosis corrections to maintain alignment under multi-axis loading

Employed in constructs where rotational stability is critical—such as trauma or revision surgery

Supports tumor or infection fusion procedures where rods span multiple levels

Advantages of 6.0 Crosslink I

Provides improved rotational stiffness—studies show up to 60% reduction in parallelogram deformation under axial rotation when crosslinks are used

Enhances screw-rod stability by substantially lowering screw rotation under torsional load

Minimizes soft tissue irritation due to low-profile geometry

Offers length adjustability to fit anatomical variability, streamlining surgical workflow

Helps reduce long-term failure rates by reinforcing hardware at vulnerable junctions

Biomechanics of 6.0 Crosslink I

In axial rotation testing under controlled torque, crosslink augmentation reduced parallelogram deformation by ~60% and screw head rotation by ~48%. However, during lateral bending and flexion-extension, where parallelogram deformation is minimal, crosslinks had negligible effect. This highlights its selective biomechanical advantage: torsional control rather than flexural stiffness.

Surgical Technique of 6.0 Crosslink I

Measure rod-to-rod distance using calipers and select suitable crosslink length

Position the crosslink to capture both rods using alignment guide or slot insertion tools.

Secure clamp screws sequentially with torque-limited driver to lock each rod.

Confirm rod and crosslink alignment under fluoroscopy before final closure.

In long constructs, consider placement both proximally and distally for maximal effect

Postoperative Care of 6.0 Crosslink I

Following implantation, proper postoperative care is essential to ensure healing and prevent complications:

Radiographic follow-up recommended to confirm hardware placement and alignment integrity.

Standard activity restrictions during early fusion phase (6–12 weeks), avoiding rotational load.

Begin progressive rehabilitation after initial stability is achieved.

Monitor for micro-motion or loosening, particularly in long-segment or osteoporotic constructs.

Conclusion

The 6.0 Crosslink I is a key reinforcement accessory in posterior spinal fusion systems using 6.0 mm rods. By linking bilateral rods, it substantially enhances construct rigidity under axial rotation and improves fixation stability. Its low-profile structure, adjustable length, and secure locking mechanism make it ideal for high-demand spinal procedures—providing biomechanical strength and surgical versatility where needed most.

FAQs of 6.0 Crosslink I

Why is a crosslink necessary when two rods are already used?

Even well-placed rod constructs exhibit screw rotation and parallelogram deformation, especially under torsional stress. Crosslink coupling greatly reduces this motion and reinforces construct integrity.

Where should crosslinks be placed within a construct?

Optimal stability is achieved when crosslinks are positioned in the upper and lower thirds of long constructs. Two well-spaced crosslinks are more effective than a single central one.

Are adjustable lengths available?

Yes—typically ranging between ~50 mm and 90 mm to match surgical spacing needs. Slotted or modular designs support intraoperative adjustment.

Does crosslink use impact lateral bending rigidity?

No—the mechanical studies show crosslinks make little difference in lateral bending or flexion-extension, as those motions are mainly influenced by screw-rod connection rigidity.

Can this product be used in minimally invasive procedures?

Yes—a low-profile design and modular clamp allow insertion via standard MIS approaches.
