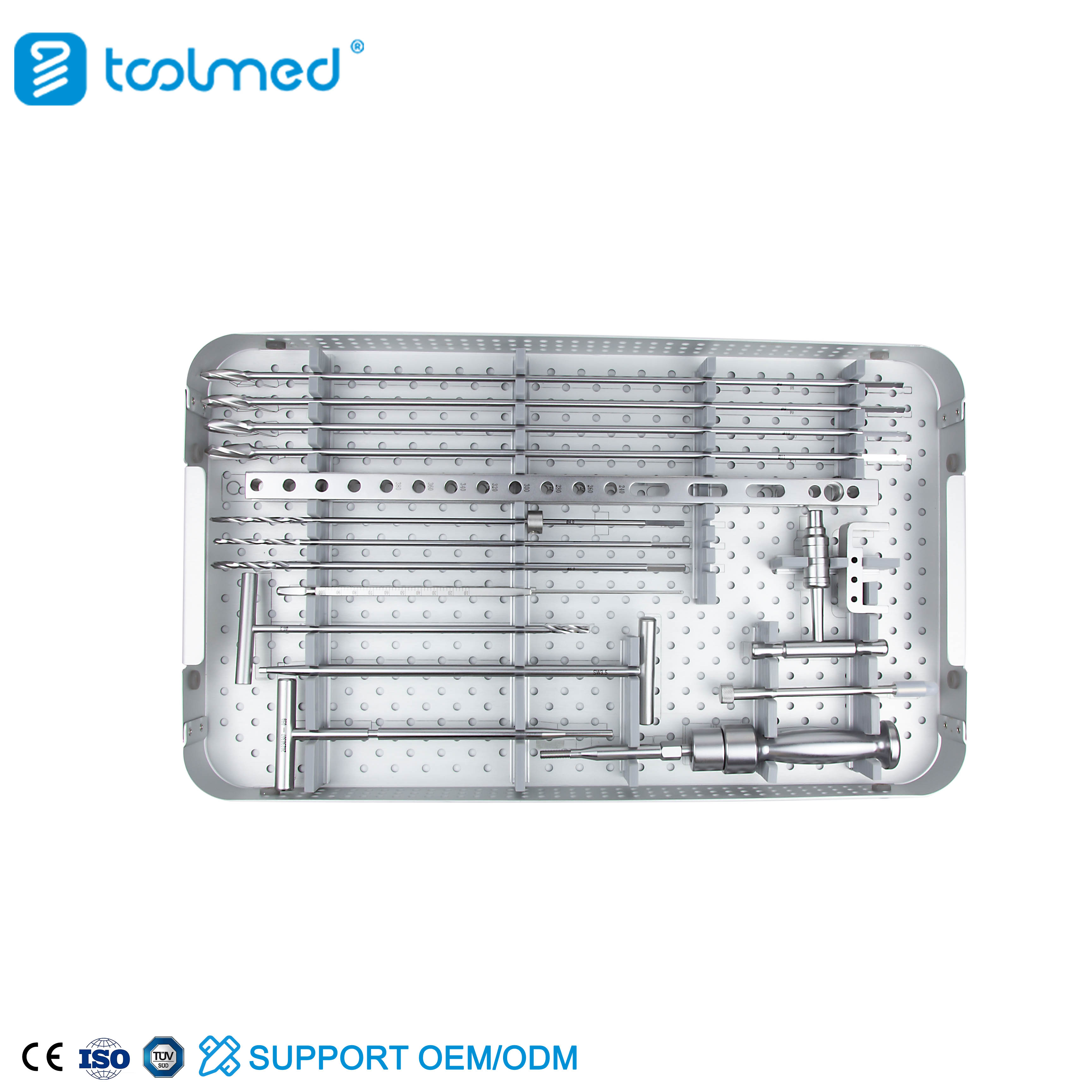

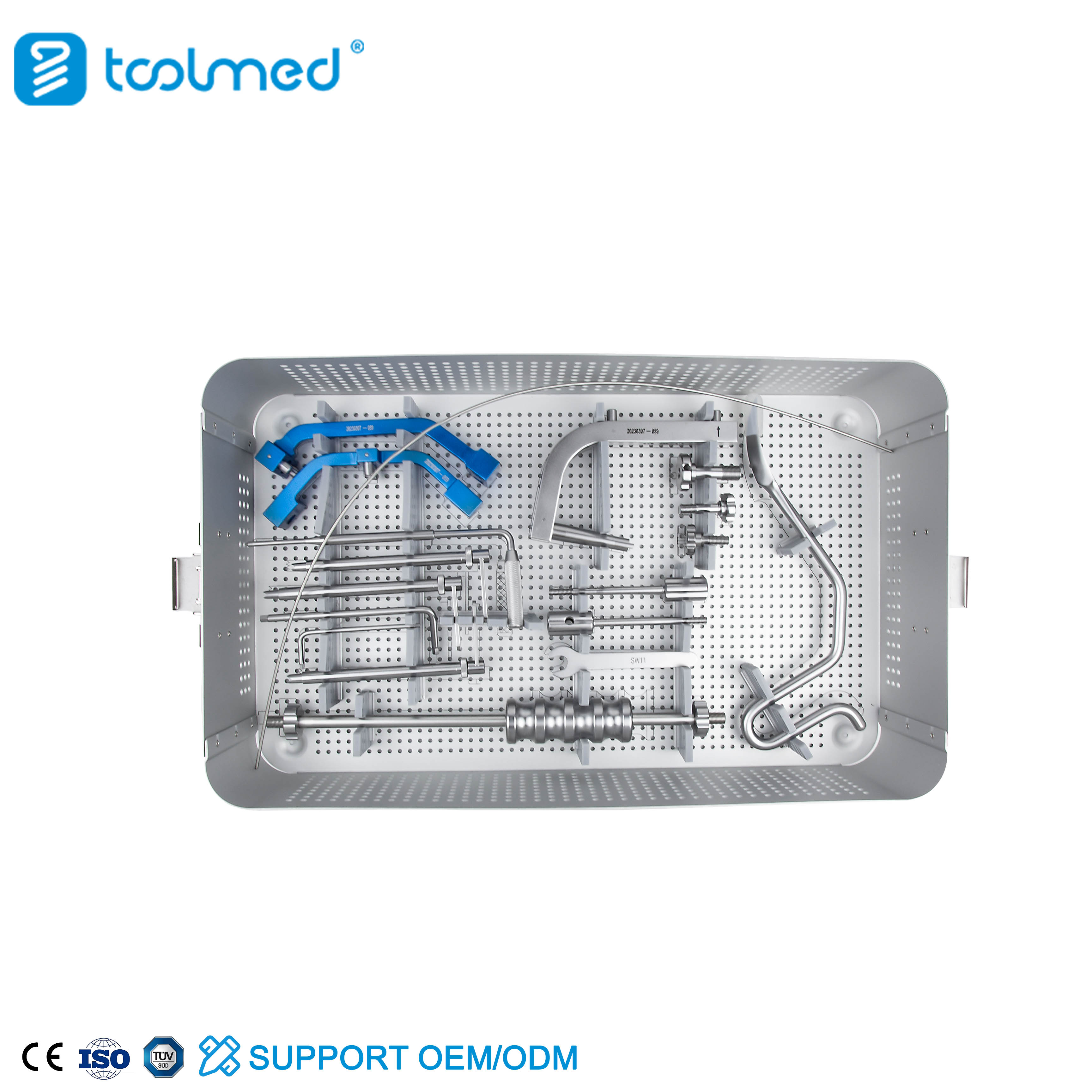

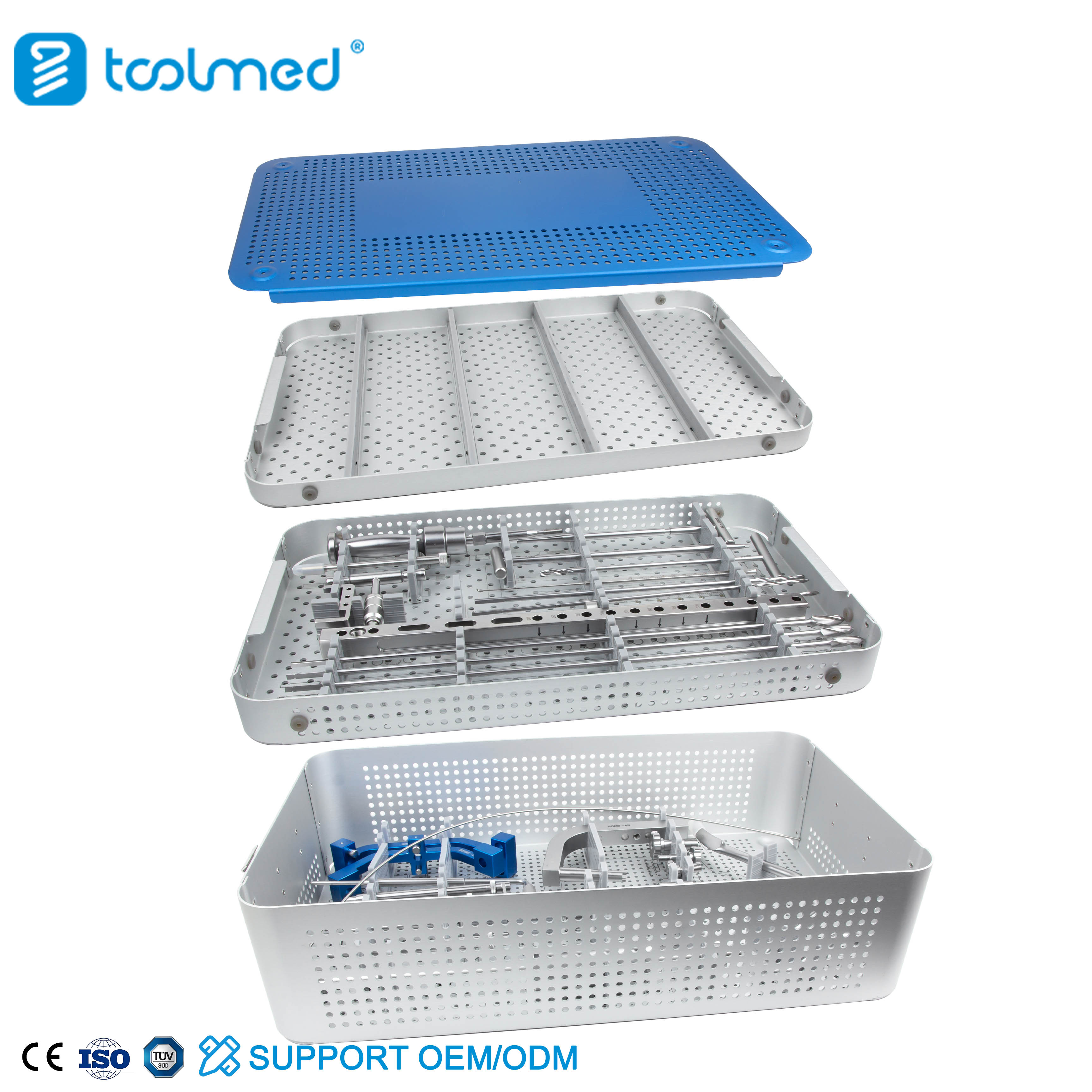

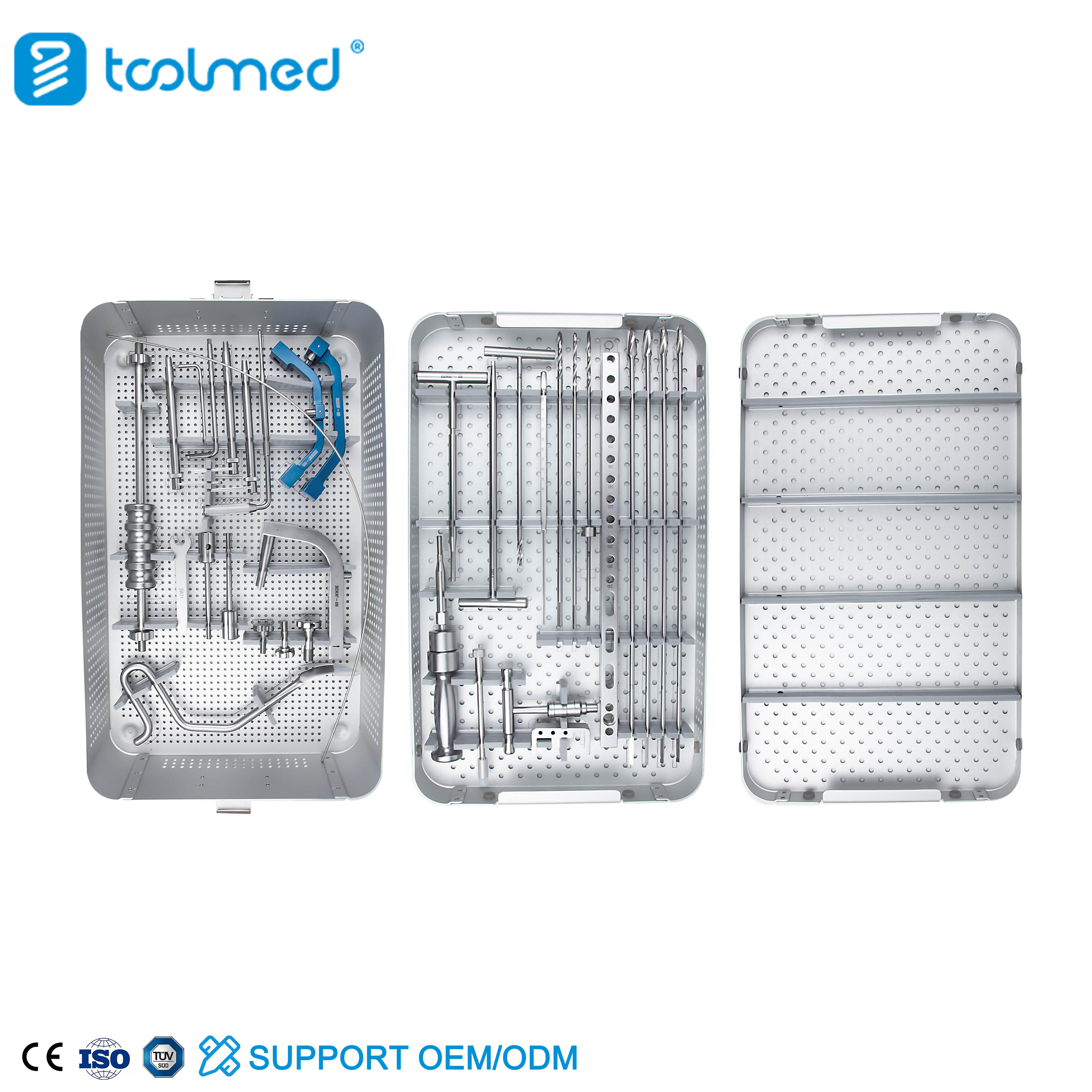

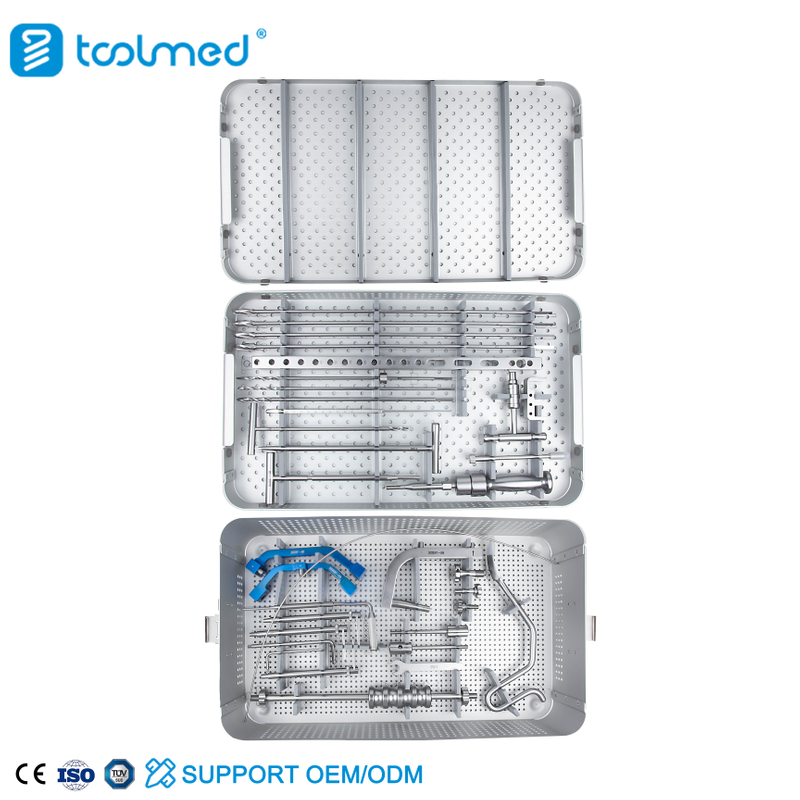

The TOOLMED Tibial Intramedullary Nail Instrument Set is a professional-grade surgical toolkit engineered for the efficient and accurate implantation of titanium tibial nails. This comprehensive set is designed to support both the traditional infrapatellar approach and the modern, semi-extended suprapatellar technique. Each tray contains a full array of high-torque flexible reamers, anatomical entry reamers, and specialized protection sleeves to safeguard soft tissue and articular cartilage. The heart of the system is the high-precision targeting jig, which is available in both stainless steel and radiolucent carbon fiber versions to ensure perfect alignment with multi-planar locking holes. The instruments are manufactured from premium 17-4PH stainless steel and aircraft-grade aluminum, ensuring long-term durability and resistance to repeated sterilization. Organized in a modular, double-decker tray system, the TOOLMED Tibial Instrument Set streamlines the surgical workflow, reduces operative time, and ensures consistent, reproducible results in the treatment of complex tibial fractures.
1200-02
TOOLMED
/
/
/
1 Pcs
5-7 days
Product Description
Includes specialized long-sleeve protection systems and entry tools for both infrapatellar and suprapatellar (semi-extended) surgical techniques.
The expert-level targeting jigs are calibrated for advanced nail designs, ensuring effortless placement of oblique and multi-directional distal locking screws.
Features a range of high-performance reamer heads designed to quickly and safely prepare the tibial canal while minimizing intramedullary pressure.
Includes high-contrast, laser-etched depth gauges and measurement tools that provide the surgeon with precise nail and screw length requirements instantly.
The set is indicated for all tibial nailing procedures, providing the specialized trocars and cannulated drills needed for both the traditional flexed-knee and modern semi-extended entry points.
Equipped with expert targeting arms specifically indicated for fractures in the proximal and distal thirds of the tibia, where precise multi-planar screw placement is critical for stability.
Indicated for the systematic reaming of the tibial diaphysis in simple, comminuted, or segmental fractures, ensuring the canal is perfectly sized for the titanium implant.
Contains the specialized extraction tools and heavy-duty reamers required for revision surgeries, allowing for the safe removal of old hardware and preparation for new fixation.
| Product name | Tibial Intramedullary Nail Instrument Set |
| Material | Stainless Steel |
| Diameter | / |
| Length | / |
| Application | / |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-7 days |
| Shipping | DHL EMS UPS TNT FEDEX |
The Tibial Intramedullary Nail Instrument Set is a specialized system of high-precision surgical tools designed to facilitate the implantation of titanium tibial nails. This comprehensive set includes every instrument required for a modern tibial nailing procedure, ranging from the initial awl and guide wire to the final locking screw drivers. It features anatomical entry reamers that match the nail's Herzog bend, flexible reamers for canal expansion, and a sophisticated targeting jig system. These tools are manufactured from medical-grade materials such as 17-4PH stainless steel and radiolucent carbon fiber, ensuring they can withstand the mechanical stresses of orthopedic surgery while providing the surgeon with the accuracy needed to achieve stable internal fixation.
This instrument set is applied in the operating room for the stabilization of various tibial fracture types, including diaphyseal, proximal third, and distal third fractures. It is highly effective for both antegrade infrapatellar approaches and the increasingly popular suprapatellar technique, where the knee is kept in a semi-extended position. The set is also applied in complex trauma cases involving segmental fractures or severe comminution where multi-planar locking is required. Furthermore, it is utilized in revision surgeries to remove failed implants and in the management of tibial non-unions. Its versatile reaming and targeting components make it a standard requirement for any trauma center performing lower limb internal fixations.
The primary advantage of the TOOLMED Tibial Instrument Set is its superior accuracy and ergonomic design. The targeting jigs are precision-engineered to eliminate "drill-bit deflection," ensuring that locking screws align perfectly with the nail every time. By offering radiolucent carbon fiber targeting arms, we provide an unobstructed fluoroscopic view of the proximal tibia, which is crucial for preventing mal-reduction. The modular tray layout is another significant advantage, as it organizes tools by the sequence of the surgical technique, reducing the burden on the surgical scrub team. Additionally, the durability of our high-grade stainless steel components ensures a long service life and consistent performance through hundreds of sterilization cycles.
Biomechanically, the instrument set is designed to ensure the nail and bone function as a unified load-sharing unit. The reaming system is calibrated to create a canal that allows for a "snug fit" of the nail, which is essential for maximizing the contact area and improving rotational stability. The targeting jigs are biomechanically aligned with the nail's geometry, ensuring that the locking screws are positioned to resist the specific bending and torsional forces experienced by the tibia during early mobilization. By facilitating a precise fit and fixed-angle locking, these instruments help minimize the risk of hardware failure and promote the physiological loading necessary for secondary bone healing.
The surgical technique involves establishing a precise entry point using the set's cannulated awl and protection sleeve. A guide wire is then advanced into the canal, followed by systematic reaming using the flexible reamer shafts. The titanium nail is mounted onto the inserter handle and driven into the tibia. The targeting jig is then attached to the handle, allowing for the guided placement of proximal locking screws through multi-planar sleeves. For distal locking, the set provides the necessary "free-hand" instrumentation or specialized distal jigs depending on the nail model. Throughout the process, the set’s depth gauges and screw drivers are used to ensure every component is seated with anatomical precision.

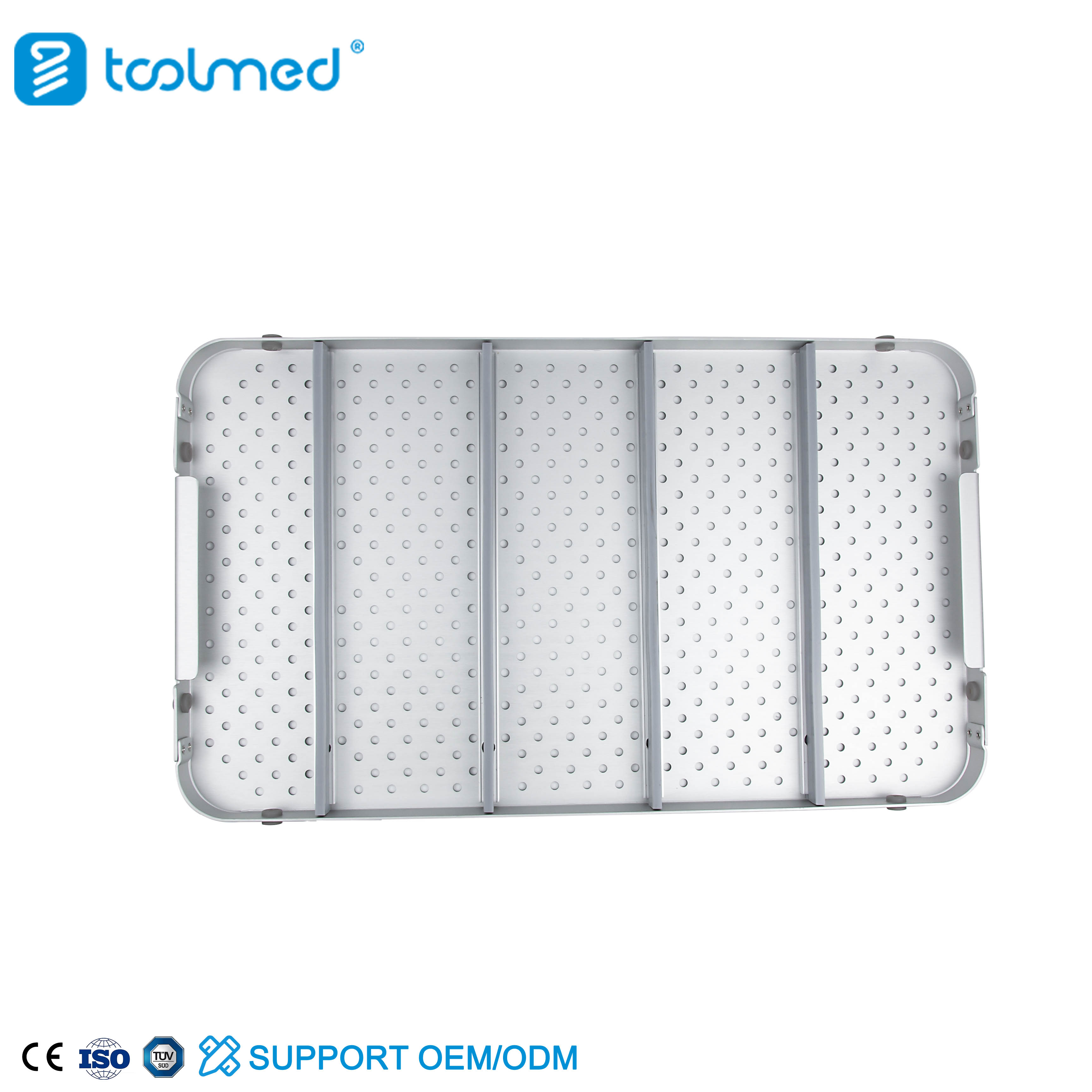

Postoperative care for the instrument set involves a strict regimen of cleaning and sterilization. After the procedure, all instruments must be disassembled and cleaned of biological material using pH-neutral detergents and ultrasonic cleaners. Particular care must be taken with the cannulated reamers and sleeves. The facility must conduct regular visual inspections for wear, especially on the cutting edges and targeting jig connections. Sterilization should be performed in a steam autoclave at 134°C. Proper storage in our dedicated, perforated trays ensures the instruments remain organized and protected, ready for the next surgical case, thereby maintaining the high standards of the orthopedic department.
The TOOLMED Tibial Intramedullary Nail Instrument Set is an essential partner for surgeons treating tibial trauma. By combining precision engineering with clinical versatility for both infrapatellar and suprapatellar approaches, this set ensures that every tibial nailing procedure is performed with maximum accuracy, efficiency, and safety for the patient.
Yes, our Tibial Instrument Set includes the specialized long protection sleeves and trocars required for the suprapatellar (semi-extended) approach, which helps protect the patellofemoral joint during reaming.
We recommend a "bench test" before surgery by attaching the nail to the jig and passing a drill bit through the sleeves. If the drill bit passes smoothly through the nail holes, the system is perfectly calibrated.
Yes, the set features a quick-connect system that allows for easy switching between different reamer head diameters (8mm to 13mm) on a single flexible shaft, speeding up the surgical process.
We offer both high-strength Aluminum alloy and radiolucent Carbon Fiber targeting arms. Carbon fiber is preferred by many surgeons because it does not block the X-ray view during proximal locking.
Flexible reamers must be cleaned using specialized wire brushes to ensure the internal cannulation is free of debris. They should then be processed in an ultrasonic cleaner before being autoclaved.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
