Introduction
Pedicle screws remain one of the most important components of modern spinal fixation systems. Over the past decades, advances in spinal surgery have significantly expanded the role of pedicle screw instrumentation, from traditional posterior stabilization to complex procedures involving spinal deformity correction, tumor surgery, minimally invasive spine surgery, and osteoporotic fracture treatment.
However, conventional titanium alloy pedicle screws still have several limitations, including:
Metal artifacts affecting postoperative imaging
Reduced fixation strength in osteoporotic bone
Risk of screw loosening during long-term follow-up
Difficulty achieving optimal accuracy in complex spinal anatomy
With the increasing demand for personalized and precision-based spinal treatment, next-generation pedicle screw technologies have emerged.
Recent innovations focus on:
Improving postoperative imaging quality
Enhancing fixation strength
Promoting bone integration
Providing real-time implant monitoring
Increasing navigation and robotic compatibility
This article reviews six major categories of advanced pedicle screw technologies developed or clinically applied in recent years:
Carbon fiber reinforced PEEK (CFR-PEEK) pedicle screws
Expandable pedicle screws
Cortical bone trajectory (CBT) screws
3D-printed porous pedicle screws
Sensor-integrated smart pedicle screws
Robot and navigation-compatible pedicle screws
The clinical characteristics, advantages, limitations, and future applications of each technology are discussed to provide guidance for spine surgeons and medical professionals.

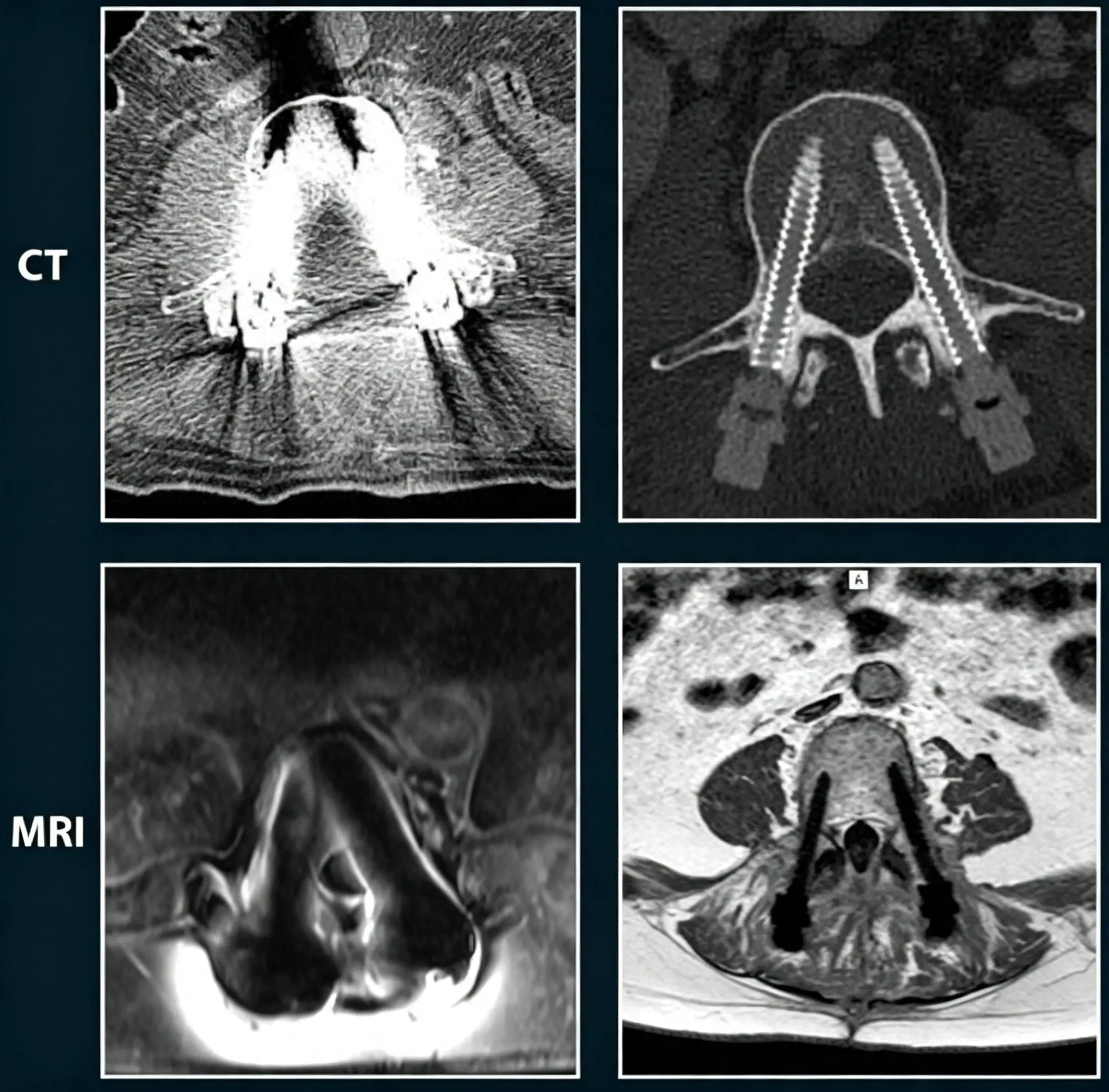

One of the most significant advantages of CFR-PEEK pedicle screws is their excellent radiological compatibility.
Traditional titanium implants can generate substantial imaging artifacts during:
Magnetic resonance imaging (MRI)
Computed tomography (CT)
These artifacts may interfere with:
Tumor recurrence assessment
Infection monitoring
Spinal cord evaluation
Radiation treatment planning
CFR-PEEK implants have electromagnetic properties closer to human soft tissue, resulting in:
Minimal MRI artifact
Reduced CT distortion
Improved visualization of surrounding anatomical structures
This makes CFR-PEEK particularly valuable in patients requiring long-term imaging surveillance.
Clinical applications include:
Spinal tumor surgery
Metastatic spinal disease
Spinal infection treatment
Patients requiring repeated postoperative imaging

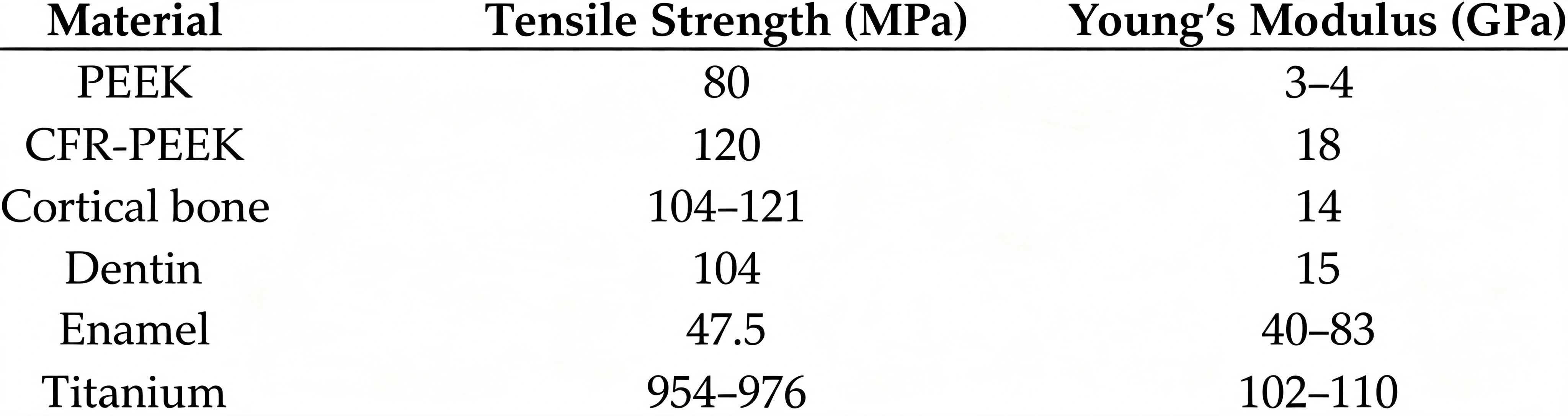

The elastic modulus of CFR-PEEK is approximately:
18 GPa
which is closer to cortical bone:
12–20 GPa
compared with titanium alloys, which have a much higher stiffness.
This closer biomechanical match may help reduce:
Stress shielding
Abnormal load transfer
Adjacent segment degeneration
By allowing a more physiological distribution of mechanical forces, CFR-PEEK implants may provide advantages in long-term spinal reconstruction.
CFR-PEEK has become increasingly important in spinal oncology.
In separation surgery for metastatic spinal tumors, surgeons often require:
Stable mechanical reconstruction
Accurate postoperative MRI evaluation
Compatibility with radiotherapy planning

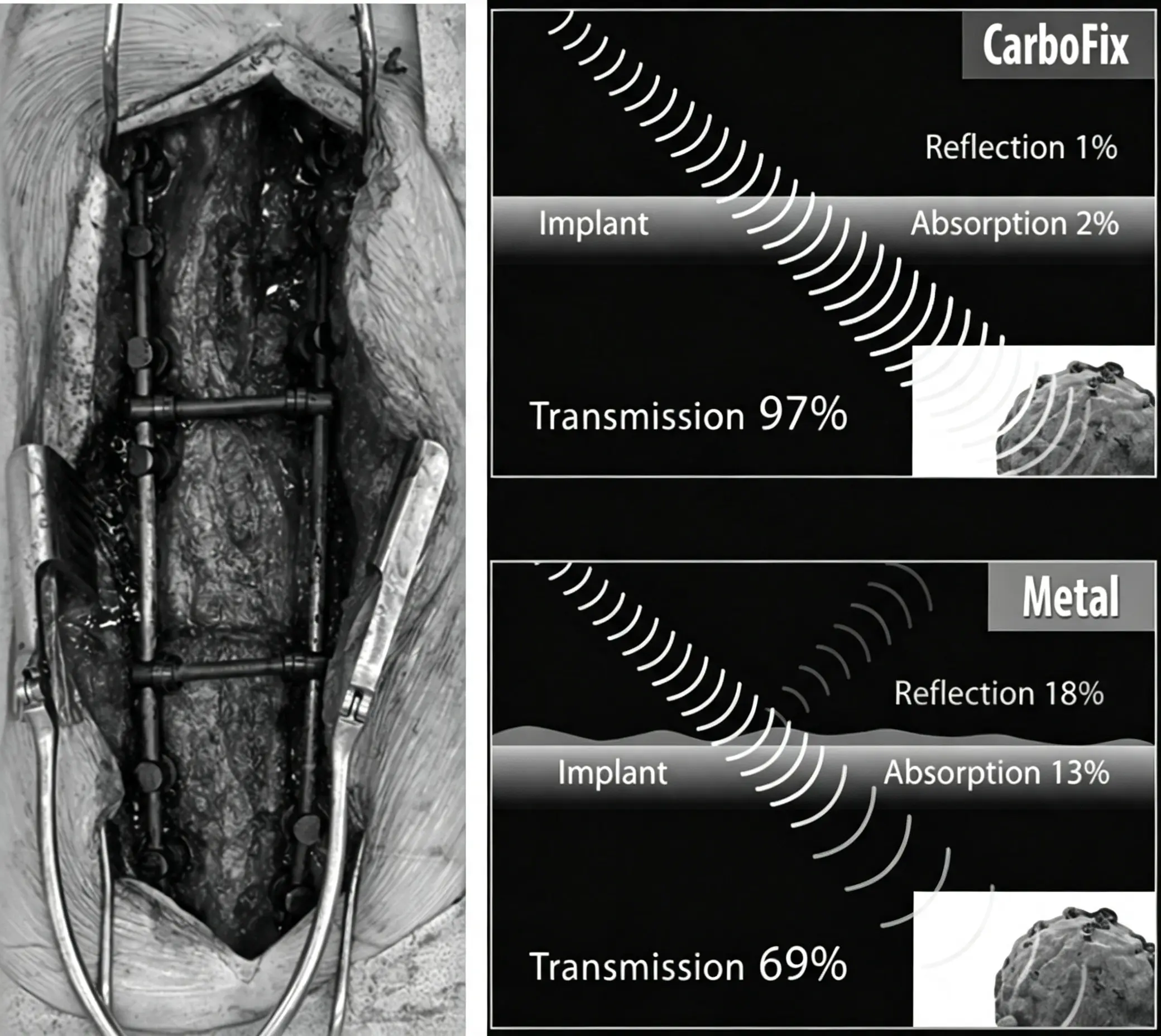

Unlike conventional metallic implants, CFR-PEEK produces fewer artifacts during radiation planning, allowing:
More accurate radiation dose calculation
Better visualization of residual tumor tissue
More efficient treatment planning
Therefore, CFR-PEEK pedicle screws are considered one of the most promising fixation technologies for spinal tumor surgery.
Osteoporosis remains a major challenge in spinal instrumentation.
Traditional pedicle screws may experience:
Reduced pullout strength
Screw loosening
Loss of fixation stability
especially in elderly patients with poor bone quality.

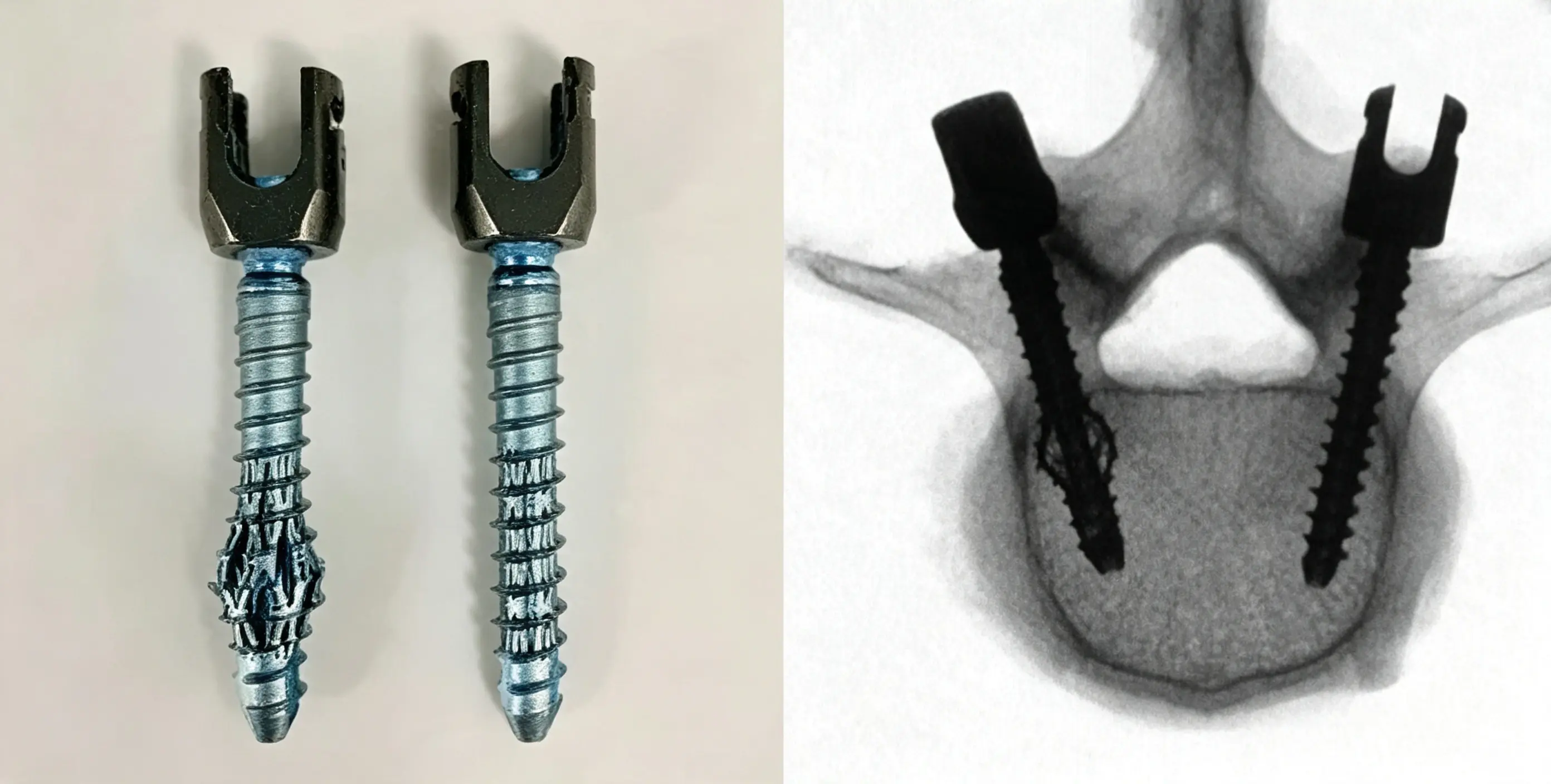

Expandable pedicle screws were developed to overcome this limitation.
After insertion into the vertebral body, the screw mechanism expands, increasing contact with surrounding bone.
The expansion process improves:
Bone-screw interface
Pullout resistance
Mechanical stability
Expandable screws are mainly used in:
Osteoporotic vertebral fractures
Elderly spinal deformity correction
Revision spinal surgery
Poor bone quality patients
Biomechanical studies suggest that expandable screws provide stronger fixation than conventional screws.
However, compared with cement-augmented pedicle screws, their fixation strength may still be slightly lower.
Bone cement augmentation remains a common strategy for osteoporotic fixation.
However, cement-based techniques carry potential risks:
Cement leakage
Thermal injury
Pulmonary cement embolism
Expandable pedicle screws provide an alternative option for patients who:
Have concerns about cement leakage
Are unsuitable for cement augmentation
Require enhanced fixation without additional materials
Future clinical studies will determine whether expandable screws can achieve comparable outcomes to cement-augmented systems.

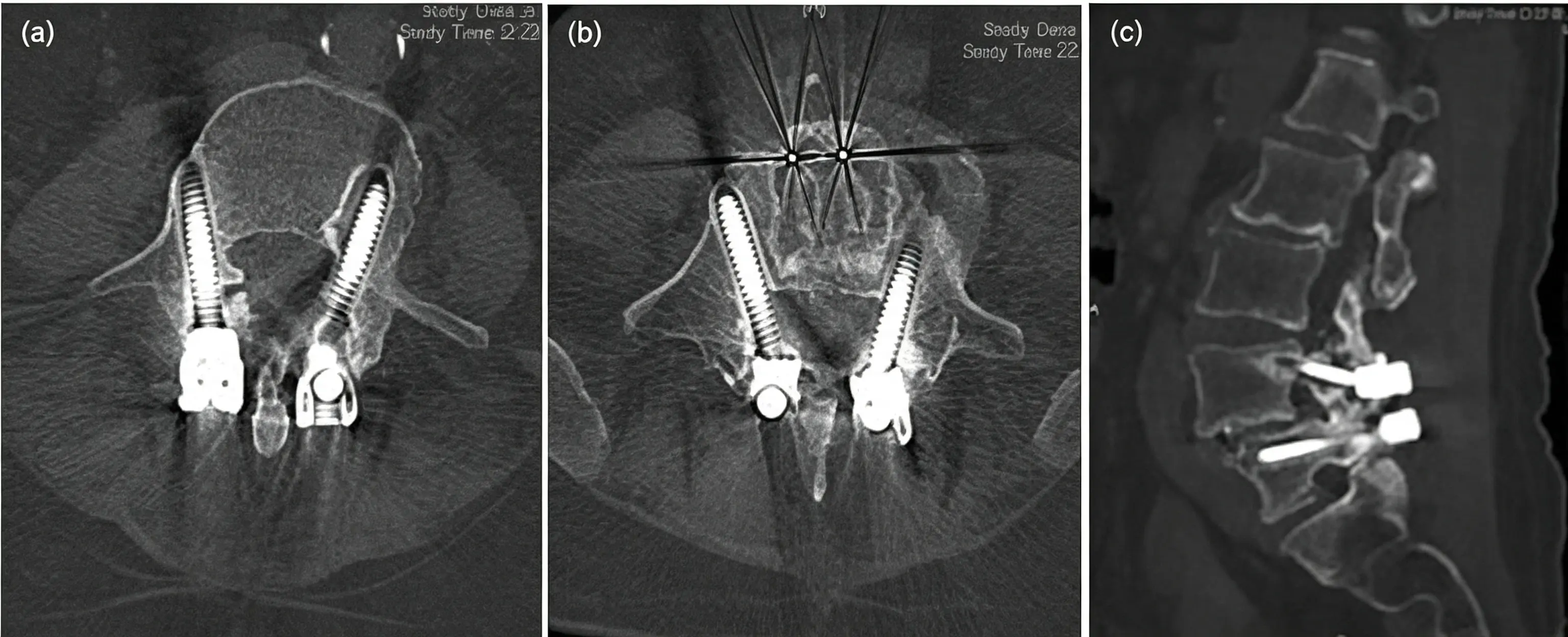

CT-based trajectory
Cortical bone trajectory (CBT) screws represent a major evolution in pedicle screw placement strategy.
Unlike traditional pedicle screws that mainly rely on cancellous bone purchase, CBT screws follow a different pathway:
Medial starting point
Caudal-to-cephalad trajectory
Increased cortical bone contact
The screw engages multiple cortical structures:
Lamina cortex
Pars interarticularis cortex
Pedicle cortical walls
Vertebral body cortex
This creates a stronger bone-screw interface.
Multiple biomechanical studies have demonstrated that CBT screws may provide:
Higher insertional torque
Improved pullout resistance
Better fixation in osteoporotic bone
Published studies report that CBT screws may improve pullout strength by approximately:
30%–70%
compared with conventional trajectories, depending on vertebral level and bone quality.
CBT screws are increasingly used in:
Minimally invasive lumbar fusion
Short-segment fixation
Osteoporotic patients
Revision procedures
Because the trajectory requires less muscle dissection and smaller exposure, CBT fixation aligns well with modern minimally invasive spine surgery concepts.
During unilateral biportal endoscopy (UBE)-assisted procedures, CT-based visualization can further improve placement accuracy.

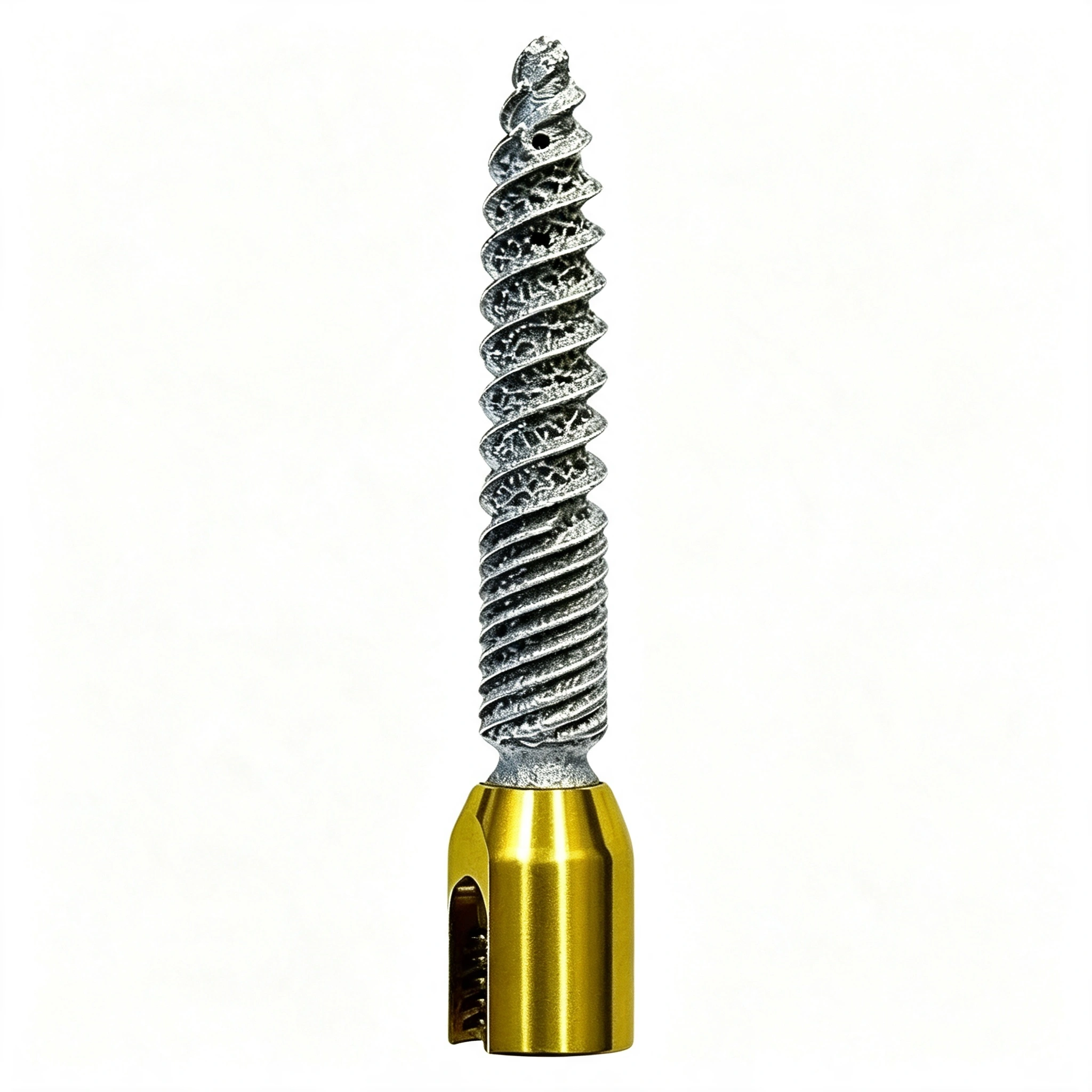

Among emerging pedicle screw technologies, 3D-printed porous pedicle screws represent one of the most innovative approaches because they aim to transform traditional mechanical fixation into biological integration.
Conventional titanium screws mainly depend on:
Thread engagement
Mechanical friction
Immediate fixation strength
However, long-term stability may be compromised by:
Osteoporosis
Repetitive mechanical stress
Micromotion at the bone-implant interface
Progressive screw loosening
3D-printed porous screws address these limitations by creating a highly controlled porous surface structure that allows:
Bone ingrowth
Improved osseointegration
Mechanical interlocking between implant and bone
This biological fixation concept may provide superior long-term stability compared with conventional smooth-surface implants.
Advanced additive manufacturing technology allows precise control of:
Porosity
Pore size
Surface architecture
Mechanical strength
The implant structure can be optimized to balance:
Bone ingrowth capability
Fatigue resistance
Elastic modulus compatibility
An ideal porous structure should provide sufficient space for new bone formation while maintaining adequate mechanical strength.
3D-printed porous pedicle screws may have particular value in:
For younger patients, spinal implants may need to remain stable for decades.
Enhanced biological integration may reduce:
Implant loosening
Revision surgery risk
Long-term mechanical failure
Revision cases often involve:
Enlarged screw holes
Reduced bone stock
Previous implant failure
Porous implants may improve fixation in compromised bone environments.
Long-segment deformity correction requires durable fixation.
Improved bone-implant integration may provide additional security in:
Adult spinal deformity
Neuromuscular scoliosis
Revision deformity surgery
Despite promising biomechanical results, several issues remain:
Limited long-term clinical follow-up
Higher manufacturing complexity
Increased production cost
Need for standardized porous parameters
Further clinical studies are required to determine whether porous screws can significantly reduce revision rates.
Traditional pedicle screws function as passive fixation devices.
After implantation, surgeons usually rely on:
X-ray
CT
Clinical symptoms
to identify complications such as:
Screw loosening
Nonunion
Implant failure
However, imaging findings often appear after mechanical problems have already developed.
Smart pedicle screws introduce a new concept:
Real-time implant monitoring.
By integrating miniature sensors into screws or screw heads, these systems can collect mechanical information during:
Surgical implantation
Postoperative rehabilitation
Long-term follow-up
Sensor-based pedicle screws may include:
Micro strain gauges
Wireless transmission modules
Piezoelectric components
These technologies can monitor:
Screw loading
Stress distribution
Mechanical changes during movement
Potential clinical benefits include:
Early detection of abnormal loading
Assessment of fusion progression
Personalized rehabilitation guidance

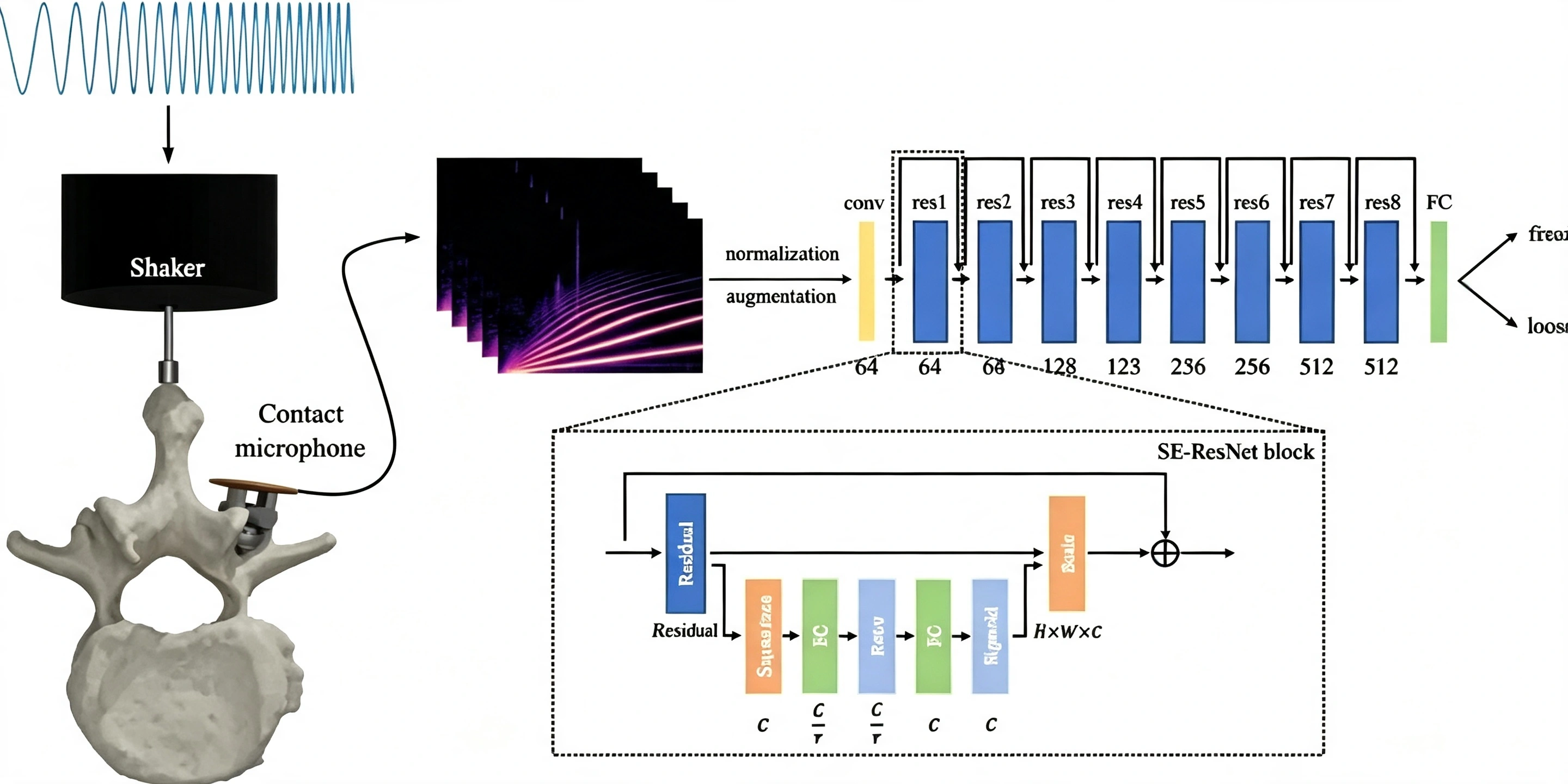

One promising application is early detection of implant loosening.
Researchers have explored methods using:
Mechanical vibration stimulation
Acoustic signal recording
Artificial intelligence analysis
By analyzing changes in implant vibration characteristics, these systems may identify early loosening.
Current studies have reported:
Sensitivity approximately 91.5%
Specificity approximately 91.1%
Although still in early clinical development, this technology may become valuable for:
Elderly osteoporosis patients
Spinal deformity correction
Tumor reconstruction
Revision surgery monitoring
Before widespread clinical adoption, several challenges must be solved:
Long-term sensor durability
Battery limitations
Data transmission reliability
Implant cost
Regulatory approval
Smart implants represent an exciting future direction but remain primarily within the research and early clinical evaluation stage.

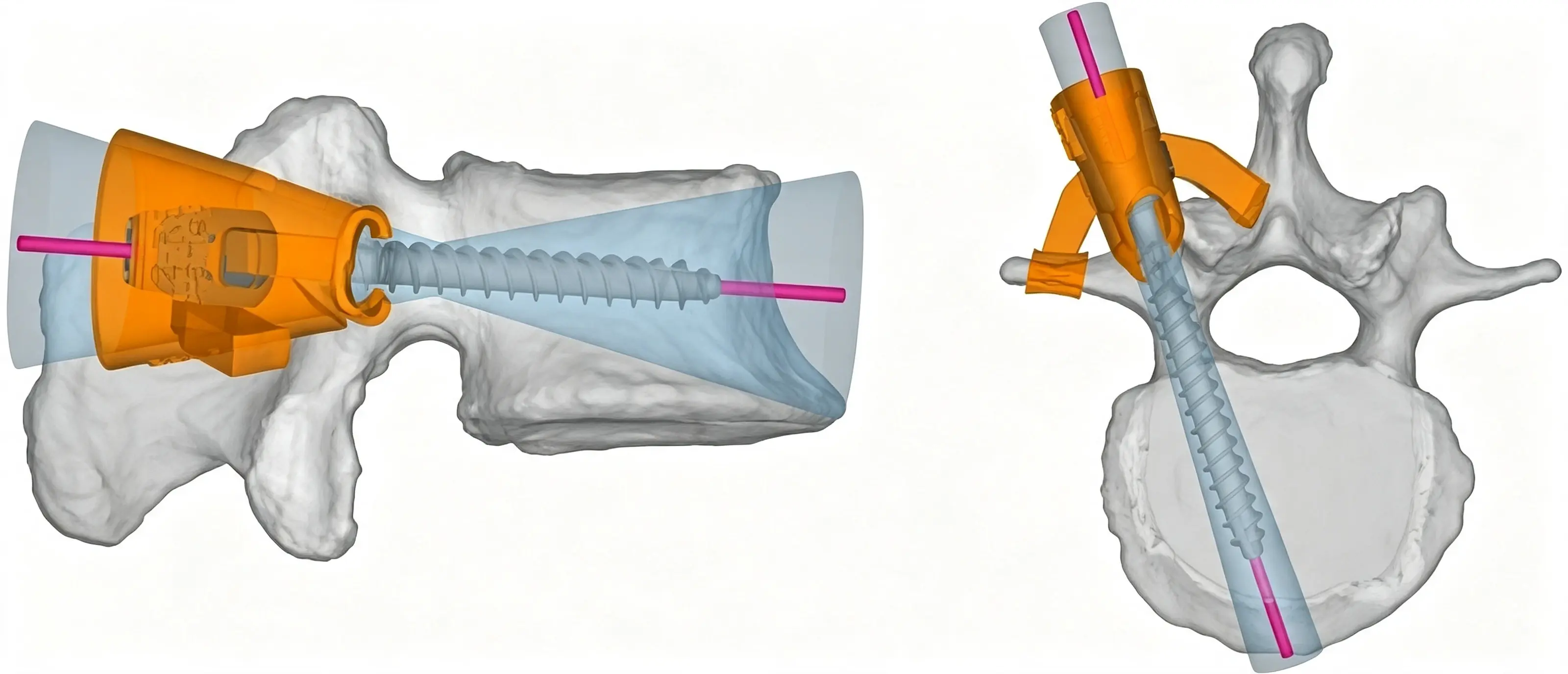

With the rapid development of:
Surgical navigation systems
Robotic-assisted spine surgery
pedicle screws are also evolving toward intelligent compatibility.
Navigation-compatible screws incorporate:
Tracking markers
Reflective reference structures
Customized geometrical designs
allowing real-time identification by:
Optical navigation cameras
Robotic systems
Intraoperative imaging platforms
These systems may improve:
Especially in challenging cases:
Severe spinal deformity
Revision surgery
Abnormal anatomy
Previously instrumented spine
Improved accuracy may reduce:
Pedicle wall violation
Neural injury risk
Vascular complications
Navigation-assisted fixation is particularly valuable in:
Percutaneous pedicle screw placement
Small incision spinal fusion
Complex trauma reconstruction
Despite technological advantages, widespread adoption remains limited due to:
High equipment costs
Learning curve
Operating room requirements
Increased workflow complexity
Currently, robotic and navigation-compatible implants are mainly concentrated in advanced spine centers.
Among the six emerging technologies, there is no single universal winner because each design addresses different clinical challenges.
The most promising technology depends on the surgical scenario.
CFR-PEEK currently demonstrates the strongest clinical advantages in spinal oncology.
Main benefits:
Minimal MRI artifact
Radiation compatibility
Better postoperative monitoring
For patients requiring:
Repeated imaging
Radiotherapy
Tumor surveillance
CFR-PEEK may provide unmatched advantages.
Osteoporosis remains one of the greatest challenges in spinal fixation.
Expandable screws provide:
Increased mechanical anchorage
CBT screws provide:
Improved cortical bone purchase
Both technologies represent valuable alternatives to traditional fixation strategies.
For younger patients and complex reconstruction cases, porous screws may offer the greatest future potential because they shift fixation from mechanical dependence toward biological integration.
Although still developing, sensor-based and navigation-compatible screws represent the future direction of:
Intelligent implants
Data-driven follow-up
Personalized spinal care
Technology | Main Advantage | Ideal Application | Current Limitation |
|---|---|---|---|
CFR-PEEK Screw | Minimal imaging artifact | Spinal tumor, infection, radiotherapy patients | Higher cost |
Expandable Screw | Improved fixation strength | Osteoporosis, poor bone quality | Limited long-term evidence |
CBT Screw | Increased cortical purchase | Minimally invasive fusion, osteoporosis | Requires specific technique |
3D-Printed Porous Screw | Bone integration | Young patients, revision surgery | Limited clinical data |
Smart Sensor Screw | Real-time monitoring | Complex reconstruction | Early development stage |
Navigation-Compatible Screw | High placement accuracy | Robotic and deformity surgery | Expensive systems |
The future development of pedicle screws will likely focus on three major directions:
Future implants may increasingly promote:
Bone regeneration
Faster fusion
Reduced loosening
through:
Porous structures
Bioactive coatings
Growth factor delivery systems
Smart implants may eventually allow surgeons to monitor:
Fusion progress
Mechanical loading
Implant stability
without repeated imaging.
With advances in:
Artificial intelligence
3D printing
Surgical robotics
future spinal implants may become increasingly customized according to:
Patient anatomy
Bone quality
Surgical objectives
CFR-PEEK screws are not universally superior.
Their main advantages include:
Better MRI visibility
Reduced imaging artifact
Improved radiotherapy planning
Titanium screws still provide:
Excellent mechanical strength
Long clinical experience
Lower cost
The choice depends on clinical indication.
For osteoporotic patients, commonly considered options include:
Expandable pedicle screws
CBT screws
Cement-augmented screws
Selection depends on:
Bone quality
Surgical level
Fixation requirements
3D-printed porous screws may reduce loosening by improving bone integration, but long-term clinical evidence is still developing.
Robotic systems improve accuracy but do not replace surgical judgment.
Successful spine surgery still depends on:
Proper patient selection
Surgical planning
Surgeon experience
The evolution of pedicle screws reflects the transformation of spine surgery from mechanical fixation toward precision-based and biologically integrated treatment.
Recent innovations have expanded the capabilities of spinal implants:
CFR-PEEK screws improve postoperative imaging and tumor management.
Expandable screws enhance fixation in osteoporotic bone.
CBT screws provide stronger cortical fixation with minimally invasive advantages.
3D-printed porous screws promote long-term biological integration.
Smart screws introduce real-time implant monitoring.
Navigation-compatible screws improve accuracy in complex surgery.
Among current technologies, CFR-PEEK screws demonstrate the most immediate clinical advantages in spinal oncology, while porous implants and intelligent systems represent promising future directions.
Ultimately, the optimal pedicle screw system should not simply be the most advanced technology, but the one that best matches:
Patient characteristics
Surgical objectives
Disease complexity
Long-term treatment requirements
Successful spinal fixation requires not only advanced implant technology but also reliable surgical instruments that support accurate and efficient procedures.
Toolmed provides professional spine surgery instrument solutions designed for hospitals, orthopedic surgeons, and medical distributors worldwide.
Our spinal product portfolio includes:
Pedicle screw instrumentation systems
Spinal fixation instrument sets
Minimally invasive spine surgery instruments
Navigation-compatible surgical instruments
Spine trauma and reconstruction instruments
With advanced manufacturing capabilities, strict quality control systems, and extensive orthopedic experience, Toolmed supports global spine surgeons with reliable surgical solutions.
[Toolmed 5.5 MIS Spine Instrument Set ]
[Cervical PEEK Instrument Set ]
[Anterior Cervical Plate Instrument Set]
Mobbs RJ, et al. Cortical bone trajectory screws: a review of techniques and clinical applications. Journal of Spine Surgery.
Ohtori S, et al. Cortical bone trajectory fixation in lumbar spinal surgery: biomechanical and clinical perspectives.
Boriani S, et al. Carbon fiber reinforced PEEK spinal implants in oncologic spine surgery. European Spine Journal.
Tschugg A, et al. Radiolucent carbon fiber spinal implants and postoperative imaging advantages.
Matsukawa K, et al. Biomechanical evaluation of cortical bone trajectory screws compared with traditional pedicle screws.
Recent advances in additive manufacturing and porous titanium spinal implants.
Studies on smart spinal implants and sensor-based monitoring technologies.
Clinical applications of robotic-assisted navigation systems in spinal instrumentation.
