Views: 0 Author: Site Editor Publish Time: 2026-10-14 Origin: Site
Introduction
In cemented orthopedic surgery, the interval between mixing bone cement and achieving secure implant fixation can be critical. The surgeon must work within a limited period to prepare the cement, apply it, position the implant and maintain the required position while polymerization progresses.
Polymethyl methacrylate (PMMA) bone cement does not harden through simple drying. It undergoes an exothermic chemical polymerization reaction. Its handling characteristics and setting time are influenced by temperature, cement formulation, mixing technique, storage conditions and the surrounding environment.
This creates a practical challenge: the working time printed in a product's instructions for use is a reference under specified conditions, not a universal countdown for every operation.
Understanding the stages of cement handling, recognizing changes in viscosity and following the manufacturer's instructions are essential for consistent cement preparation and implant fixation.
This article explains the science behind PMMA bone cement working time, the effects of temperature and humidity, the role of vacuum mixing and pre-cooling, and the practical considerations for cemented arthroplasty.
Conventional PMMA bone cement is generally supplied as two components: a polymer powder and a liquid monomer. When the components are mixed, polymerization begins and gradually converts the mixture into a hardened material.
The reaction releases heat, making the process exothermic. As polymerization progresses, the cement's viscosity changes from a relatively fluid mixture to a dough-like material and eventually to a hardened mass.
The reaction rate is affected by several interacting factors, including:
The initial temperature of the powder and liquid components
The temperature of the operating room and mixing equipment
The specific cement formulation and its initiator system
The mixing method and handling procedure
The thermal environment in which the cement is applied
The temperature of the cement itself can rise during polymerization. As the reaction progresses, this temperature increase may accelerate the reaction further.
However, the process should not be described as a universal exponential countdown. The rate and shape of the setting curve vary by formulation and experimental conditions. Surgeons should use the product-specific instructions and clinical observations rather than assume that every PMMA cement follows the same curve.
Cement may remain relatively easy to handle for a period and then become noticeably more viscous over a short interval.
This transition can be particularly important when inserting a prosthetic component. Cement that is too fluid may not provide the intended handling characteristics, while cement that has progressed too far in polymerization may resist insertion or prevent the implant from reaching its intended position.
The practical lesson is straightforward: prepare the surgical team, instruments and implant before mixing begins, and avoid relying on the apparent softness of a small cement sample as the sole indicator of the material's condition in the operative field.
The exact stage definitions and time intervals depend on the product and mixing method. A typical handling sequence includes mixing, waiting, application and setting.

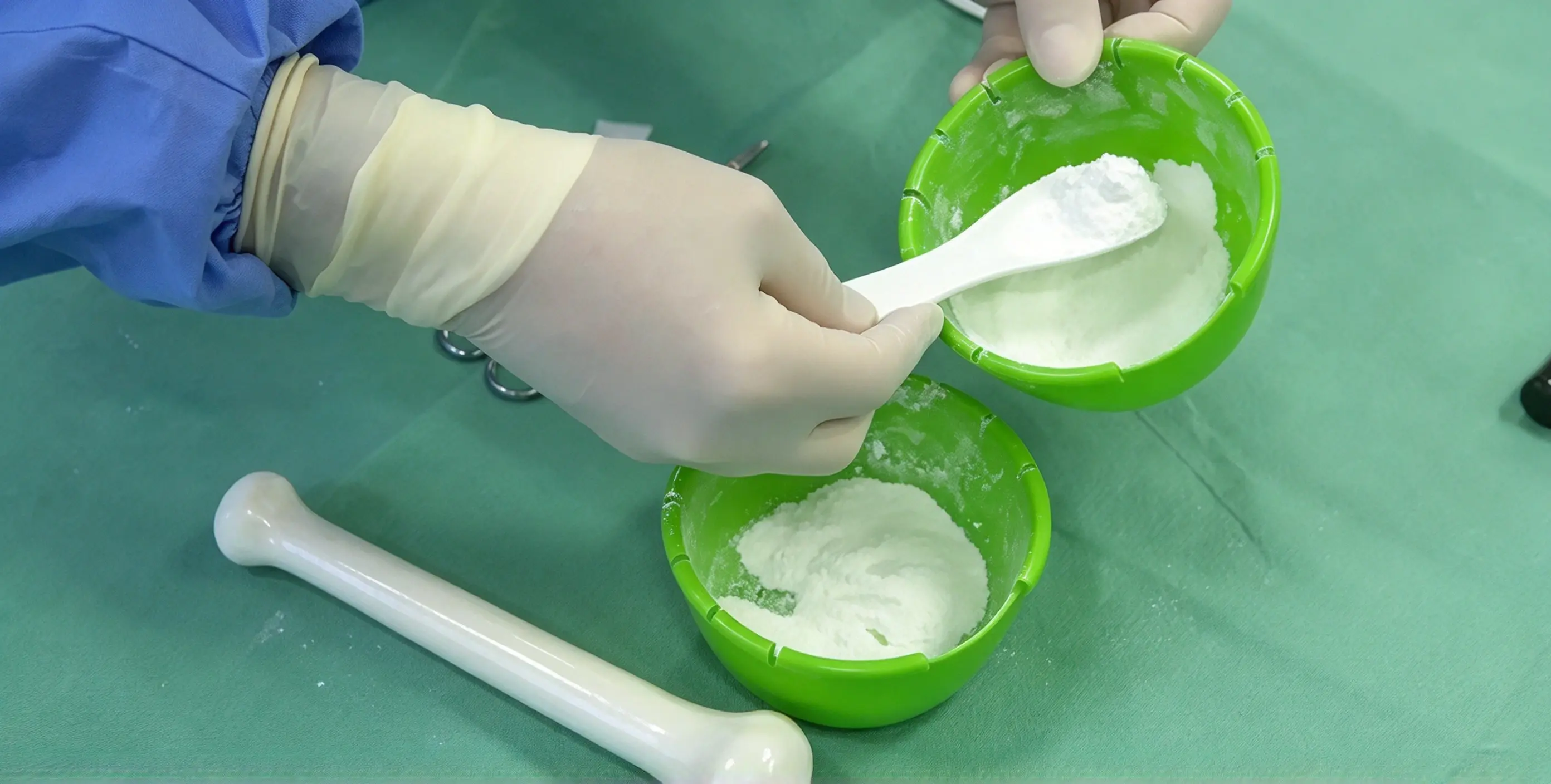

The powder and liquid components are combined according to the manufacturer's specified procedure.
The operator should use the correct mixing system, mixing duration and component proportions. Deviating from the prescribed method can affect the homogeneity and properties of the resulting cement.
For systems designed for vacuum mixing, the prescribed vacuum conditions and mixing procedure should be followed.
After mixing, the cement may pass through a period during which it remains sticky or unsuitable for the intended application technique.
For dough-type cements, the material gradually develops a more cohesive consistency. Handling it prematurely may cause unwanted adhesion to gloves or instruments and may interfere with the intended application process.
The duration of this phase varies by product and environmental conditions.
The application window is the period during which the cement has the handling characteristics required for the intended procedure.
Depending on the cement and technique, this may involve preparing a cement mantle, delivering cement through a dedicated system or applying cement in a dough-like state.
The implant must be introduced and positioned according to the product's instructions and the surgical technique. The surgeon should not wait for the cement to become difficult to handle before beginning implant insertion.
As polymerization continues, the cement becomes increasingly rigid and eventually reaches its hardened state.
The time at which the cement becomes difficult to manipulate is not necessarily identical to the time at which the implant has achieved the intended fixation conditions.
The surgeon must follow the prescribed technique for implant positioning and holding, and should avoid unnecessary movement or adjustment as the cement sets.
Temperature affects the kinetics of chemical reactions. In general, warmer cement components and warmer surroundings accelerate PMMA cement polymerization, while cooler conditions tend to prolong the handling period.
The Arrhenius relationship describes the effect of temperature on the rate constant of a chemical reaction. However, it does not provide a single universal conversion from operating-room temperature to clinical working time without knowing the formulation and relevant reaction parameters.
For this reason, fixed rules such as “every 1°C increase removes a specific number of seconds” should not be used across all bone cement products.
The temperature of the operating room can affect cement handling, but it is only one part of the thermal environment.
Other relevant factors include:
Powder and monomer temperature
Mixing bowl and mixing equipment temperature
The temperature of the preparation surface
The duration and conditions of component storage
The cement formulation and mixing technique
A cement system handled in a warm environment may have a shorter application period than the same product handled under cooler conditions. The size of that difference should be determined from the manufacturer's product-specific data rather than a generic temperature correction formula.
The temperature history of the cement components also matters. A package stored in a warmer area may not immediately reach the desired temperature simply because it has been moved into a cooler room.
Nevertheless, a fixed rule that every cement package needs 24 hours to equilibrate is not universally valid. The required storage conditions and equilibration period depend on the product.
For example, the manufacturer's instructions for PALACOS R+G describe bringing the product to operating-room temperature for a specified period before use. Its instructions also describe a separate pre-chilling protocol for selected vacuum-mixing procedures. These directions are product-specific and should not automatically be applied to other cement systems. [1,2]
Practical recommendation: Review the storage and temperature requirements for the exact cement product before surgery. Do not assume that the temperature of the package exterior accurately reflects the temperature of all components.
Humidity may affect the handling and setting characteristics of some PMMA bone cements. Manufacturer documentation for PALACOS products identifies humidity, temperature, storage conditions and mixing technique as factors influencing application and setting times. [1,3]
However, the magnitude of the effect depends on the product and conditions. A claim that relative humidity above a specific percentage will always shorten setting time by a fixed number of minutes is not sufficiently generalizable.
In clinical practice, humidity should be treated as one environmental variable rather than an independent timing calculator.
For predictable cement handling:
Maintain the preparation environment within the manufacturer's recommended conditions.
Follow the specified storage and handling procedure.
Avoid making last-minute changes to the mixing method.
Consult product-specific working-time charts when environmental conditions differ from the stated reference conditions.
The aim is to control the variables that can be controlled, not to estimate an exact setting time from humidity alone.
ISO 5833 is an international standard addressing requirements and test methods for acrylic resin cements used in orthopedic surgery, including specified physical and mechanical properties and curing characteristics. The standard provides a structured framework for product evaluation. [4]
Laboratory results are obtained under defined test conditions. They allow products and performance characteristics to be assessed consistently, but they do not eliminate the effects of real-world variation.
In the operating room, the cement may be affected by differences in component temperature, ambient conditions, mixing equipment, handling and the surgical technique.
Therefore, clinicians should not take a single laboratory time value and assume that it applies unchanged to every case.
A safer approach is to:
Identify the exact cement formulation.
Read the current instructions for use.
Confirm the required storage, mixing and application conditions.
Review the product's time-temperature information.
Prepare the team and instruments before mixing.
Monitor the cement's handling characteristics while following the prescribed surgical protocol.
ISO 5833 compliance and product-specific instructions serve different but complementary purposes. The standard establishes defined testing requirements, while the manufacturer's instructions explain how the particular product should be prepared and used.
Pre-cooling is used with certain cement systems to extend handling time. It is not a universal recommendation for all PMMA cements or all orthopedic procedures.
Lowering the initial temperature of the components can slow the progression of polymerization and extend the application period under specified conditions.
For example, the PALACOS R+G instructions describe pre-chilling its components at 4–7°C for at least 24 hours for a designated vacuum-mixing method. The manufacturer also specifies the relevant mixing procedure and indicates that pre-chilling changes the cement's handling characteristics. [1,2]
This does not mean that every cement can be refrigerated, or that pre-cooling will double working time in every case.

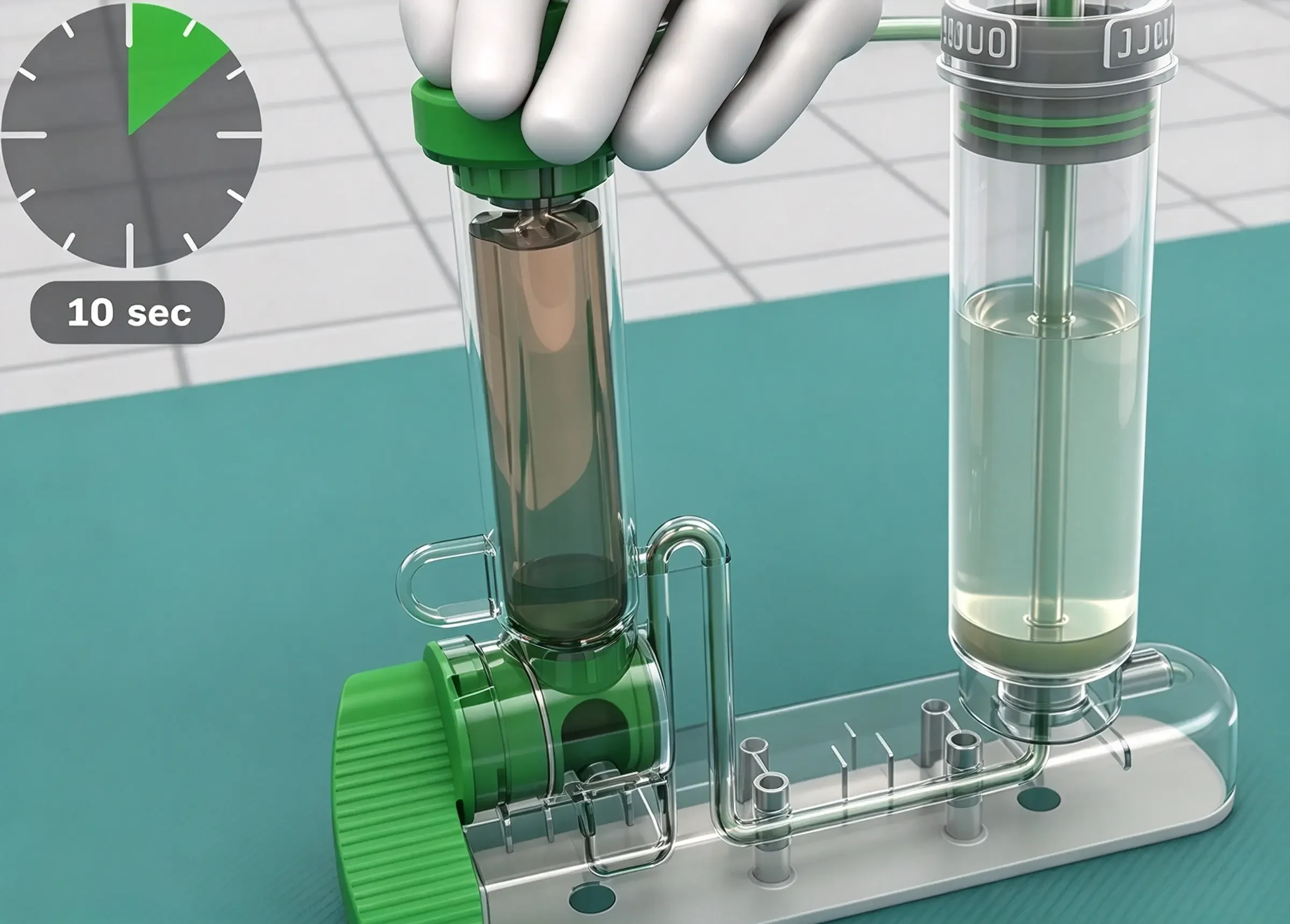

Vacuum mixing is used to reduce air incorporation and cement porosity when performed with an appropriate system and validated protocol.
Pre-cooling and vacuum mixing address different aspects of cement preparation:
Pre-cooling influences the temperature-dependent handling and polymerization process.
Vacuum mixing helps reduce entrapped air and improve cement homogeneity.
Using a mixing technique that differs from the manufacturer's validated procedure may alter the resulting cement properties. Research has shown that temperature and mixing method can influence porosity and mechanical performance, with effects varying according to cement formulation and viscosity. [5]
For that reason, pre-cooling should be performed only when the product instructions explicitly support it, and it should be paired with the specified mixing method.
No. The appropriate procedure depends on the exact product and indication.
Before using a pre-cooling protocol, confirm:
Whether the product's instructions permit it
The specified cooling temperature and duration
Whether vacuum mixing is required
Whether the procedure is appropriate for the intended application
Whether additional equipment or handling requirements apply
Pre-cooling should never be improvised to gain more time during a difficult operation.
Bone cement formulations differ in their viscosity development and intended handling characteristics.
High-viscosity cements are designed to develop a relatively cohesive, dough-like consistency suitable for the application technique specified by the manufacturer.
Their handling characteristics may make them suitable for particular cemented arthroplasty procedures. However, the application window varies by formulation, temperature and mixing method.
Low-viscosity formulations generally have different flow characteristics and may remain more fluid during part of the handling process.
The appropriate cement type depends on the procedure, the delivery system, the desired cement distribution and the product's approved indications.
It is inaccurate to state that all high-viscosity cements are intended exclusively for knee arthroplasty or that all low-viscosity cements are intended exclusively for hip arthroplasty. Cement selection should follow the specific product labeling, surgical technique and clinical requirements.
Viscosity affects the way cement flows, is delivered and conforms to the prepared bone interface. It also influences how the surgeon handles the material during the available application period.
Choosing the right formulation is therefore not simply a matter of selecting the longest possible working time. The cement must have appropriate handling and performance characteristics for the intended procedure.
The surgical team should confirm the implant, instrumentation, cement delivery system and other required equipment before starting the mixing process.
Preparation reduces avoidable delays during the limited application window.
Use the correct component quantities, mixing duration and equipment. Do not assume that different cement brands can be mixed or handled using identical procedures.
The consistency of the cement can provide useful information about its handling stage. For products that specify a dough test, the material may be considered ready for application when it no longer adheres to the gloves as described in the instructions.
However, this test is not universal. The manufacturer's directions take precedence, and a small sample may not perfectly represent the cement's condition throughout the operative field.
Similarly, a subjective sensation of warmth should not be treated as a precise indicator of remaining working time.
The implant must be positioned within the appropriate application window and maintained according to the prescribed technique.
Do not assume that the cement in a mixing bowl follows exactly the same temperature and setting profile as cement within a prepared bone cavity. The geometry, surrounding tissues and thermal conditions differ.
A hardened bowl sample cannot independently establish that an implant has achieved adequate fixation. Follow the surgical technique and manufacturer guidance for positioning and holding the implant until the required setting process is complete.
Once cement becomes difficult to manipulate, attempts to force further implant movement may compromise positioning or the intended cement mantle.
The surgical team should understand the timing requirements before cement application begins and avoid unnecessary delays during implant insertion.
Using the manufacturer's time as an inflexible universal countdown. Published times depend on specified conditions and the particular formulation.
Assuming a temperature correction formula works for every cement. Temperature affects polymerization, but the size of the effect is product-specific.
Improvising a refrigeration protocol. Pre-cooling should only be used when supported by the manufacturer's instructions.
Assuming vacuum mixing automatically makes every preparation correct. Vacuum mixing must be performed with the appropriate equipment and protocol.
Using viscosity alone to select cement. The product must be suitable for the intended procedure and application technique.
Waiting for a bowl sample to harden before deciding that an implant is stable. The sample and the implanted cement experience different conditions, and the bowl sample is not a substitute for the prescribed fixation technique.
Making last-minute changes to the mixing process. Changes to equipment, component temperature or mixing procedure may affect handling and should not be improvised during surgery.
How long is the working time of PMMA bone cement?
There is no single working time for all PMMA bone cements. It depends on the formulation, component temperature, operating-room conditions and mixing method. Always consult the current instructions for the exact product.
Does a higher operating-room temperature shorten bone cement working time?
Generally, warmer conditions accelerate polymerization and shorten the handling period. The magnitude of the change is product-specific, so a generic fixed correction should not replace the manufacturer's time-temperature information.
Can bone cement be pre-cooled to extend working time?
Some products support pre-cooling under specified conditions. The cooling temperature, duration and mixing method must follow the product's instructions. Pre-cooling should not be improvised across different cement formulations.
Does vacuum mixing improve bone cement quality?
When performed with a suitable system and validated protocol, vacuum mixing can reduce entrapped air and porosity. The actual effect depends on the cement and preparation method.
Can the surgeon determine setting time by touching the cement?
Tactile assessment can help identify the handling stage when the manufacturer's instructions specify it. However, touch alone cannot reliably establish the remaining working time or confirm implant fixation.
Is high-viscosity cement always better for knee replacement?
No. Cement selection depends on the product's approved indications, handling properties and the surgical technique. Viscosity alone does not establish which product is best for an individual procedure.
Bone cement working time is determined by the interaction of polymerization chemistry, temperature, cement formulation, mixing method and environmental conditions. The available application period can vary, making preparation and adherence to product-specific instructions essential.
The most reliable approach is not to rely on a universal number of minutes, a fixed temperature correction or a single tactile sign. Instead, clinicians should understand the handling stages, prepare the surgical team in advance, use the specified mixing technique and position the implant within the appropriate application window.
Pre-cooling and vacuum mixing can be useful in selected cement systems, but they must be applied according to validated product instructions. Ultimately, predictable cement handling depends on product-specific knowledge, disciplined preparation and coordinated surgical technique.
Heraeus Medical. PALACOS R+G: High-Viscosity Bone Cement with Gentamicin — Instructions for Use and Working-Time Information. Manufacturer product page
U.S. Food and Drug Administration. PALACOS R+G Bone Cement: 510(k) Documentation. FDA document
Heraeus Medical. PALACOS fast R+G: Instructions for Use. Manufacturer instructions
International Organization for Standardization. ISO 5833: Implants for Surgery — Acrylic Resin Cements. Check the applicable edition and its requirements for the product and market. ISO standard information
Influence of temperature and vacuum mixing on bone cement properties. PubMed. Research articl
