Introduction
Anatomic fracture reduction is one of the fundamental goals of orthopedic trauma surgery, but it is also one of the most difficult surgical skills to teach and master.
The challenge is not simply knowing which reduction forceps, distractor, Schanz pin, or elevator to use. Successful reduction requires the surgeon to understand how the fracture has displaced, which fragments are mechanically constrained, which cortical surfaces provide reliable references, and which part of the fracture should be reduced first.
A useful way to organize this complex decision-making process is through three simple concepts:
The Key: unlock the fracture, restore alignment, and then compress it.
The Door: establish a reliable hinge on one side before closing the displaced side.
The Puzzle: begin with the fracture fragment or contour that is easiest and most reliable to reconstruct.
These concepts can be combined with another important distinction: tension-side versus compression-side failure.
In many bending-type fractures, the tension side tends to produce relatively clean cortical disruption and may therefore provide a reliable surface for direct reduction. The compression side may be more comminuted but retain greater soft-tissue continuity, making it more suitable for indirect reduction through ligamentotaxis or controlled traction.
This article explains these principles and demonstrates how they can be applied to common fractures involving the proximal and distal humerus, acetabulum, femoral neck, distal radius, tibial plateau, and pilon.
Fracture displacement is rarely a simple two-dimensional problem.
A fracture may simultaneously involve:
Shortening
Translation
Angulation
Rotation
Impaction
Articular displacement
Fragmentation
The surrounding muscles, ligaments, periosteum, joint capsule, and fascia may exert forces in different directions.
As a result, trying to "push the fracture back into place" without understanding its mechanical behavior can require excessive force and still produce an inaccurate reduction.
The first step is therefore not to apply more force.
It is to understand what is preventing the fragments from moving into the correct position.

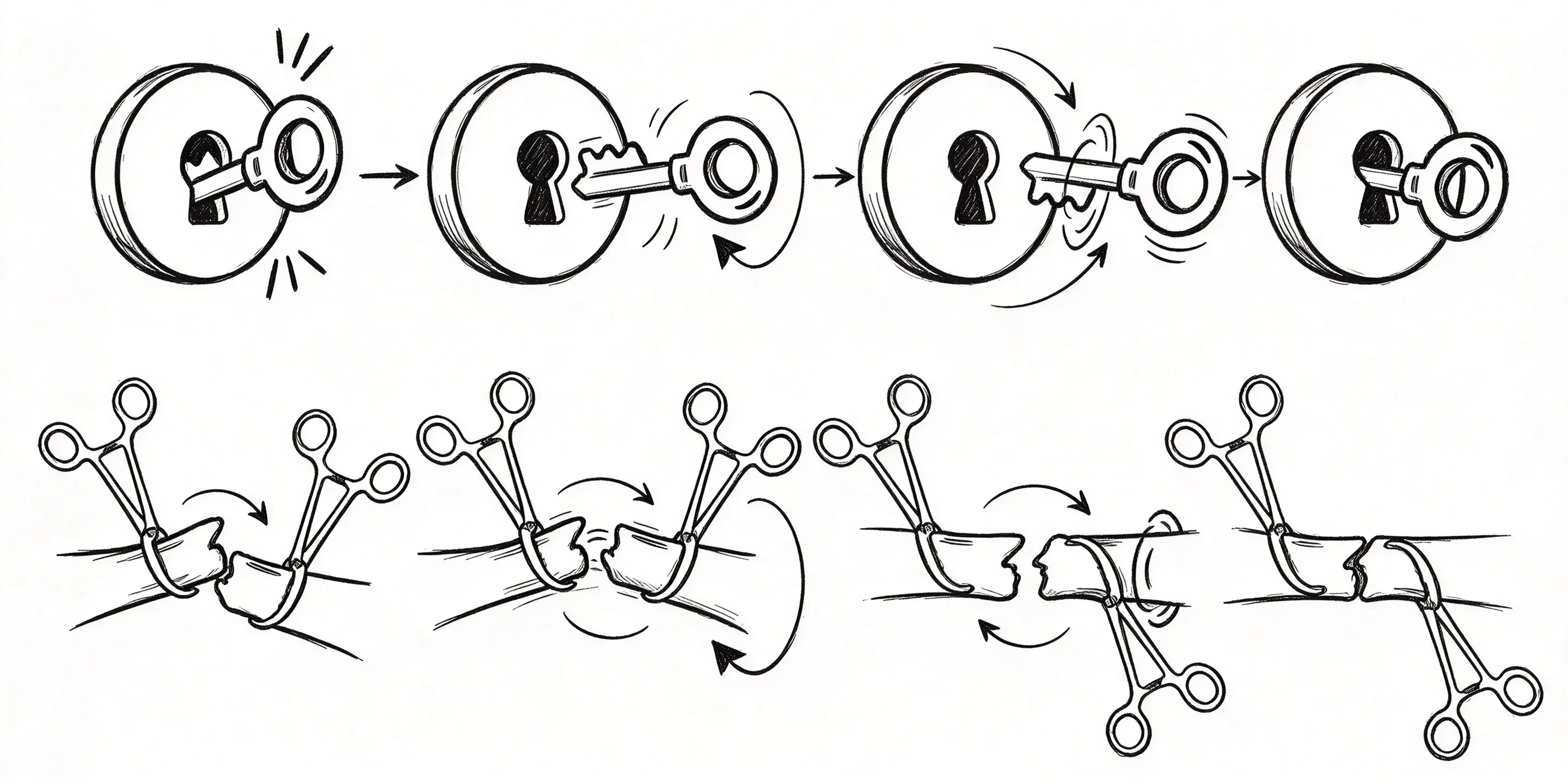

One of the most useful ways to understand fracture reduction is to compare an impacted fracture to a key incorrectly positioned inside a lock.
Imagine that a key has entered the lock upside down and become stuck.
Trying to push it deeper will not solve the problem.
The logical sequence is:
Pull the key out
Rotate it into the correct orientation
Insert it again
Many fractures behave in a similar way.
The fragments are often shortened or impacted and become mechanically interlocked. Before they can be accurately rotated or compressed, the surgeon may first need to disengage and distract the fragments.
The general sequence becomes:
Unlock → Align → Compress → Fix
The first objective is to overcome interdigitation or impaction.
This may require:
Longitudinal traction
A distractor
A Schanz pin
A joystick technique
A bone hook
A periosteal elevator
Controlled manipulation of the limb
The amount of force should be controlled.
Excessive traction can damage soft tissues, compromise blood supply, or create a new fracture line.
Once the fragments are no longer locked together, one or both fragments can be rotated or translated toward their anatomical position.
This is where understanding the three-dimensional fracture pattern becomes essential.
The surgeon should determine:
Which fragment is relatively stable?
Which fragment is displaced?
Which cortical surface can serve as a reference?
Is there a rotational deformity?
Is shortening preventing reduction?
Only after the fragments are appropriately oriented should the surgeon attempt definitive compression.
This may be achieved using:
Reduction forceps
Lag screws
Compression plates
Bone clamps
Controlled screw tightening
Specialized reduction instruments
A common reduction error is attempting to compress a fracture before correcting its orientation.
If the fragments remain interlocked or malrotated, compression can simply lock the deformity in place.
Several common errors follow directly from misunderstanding the "key" principle.
Applying a reduction clamp or compression force before correcting the major deformity may prevent the fragments from rotating into the correct position.
A surgeon may attempt to manipulate a fragment without recognizing that the fragment is mechanically locked against another fragment.
Increasing force does not necessarily improve reduction.
If the direction of force is incorrect, stronger force may produce additional fragmentation or soft-tissue injury.
Before manipulating a fracture, the surgeon should identify the direction of shortening, angulation, rotation, and translation.

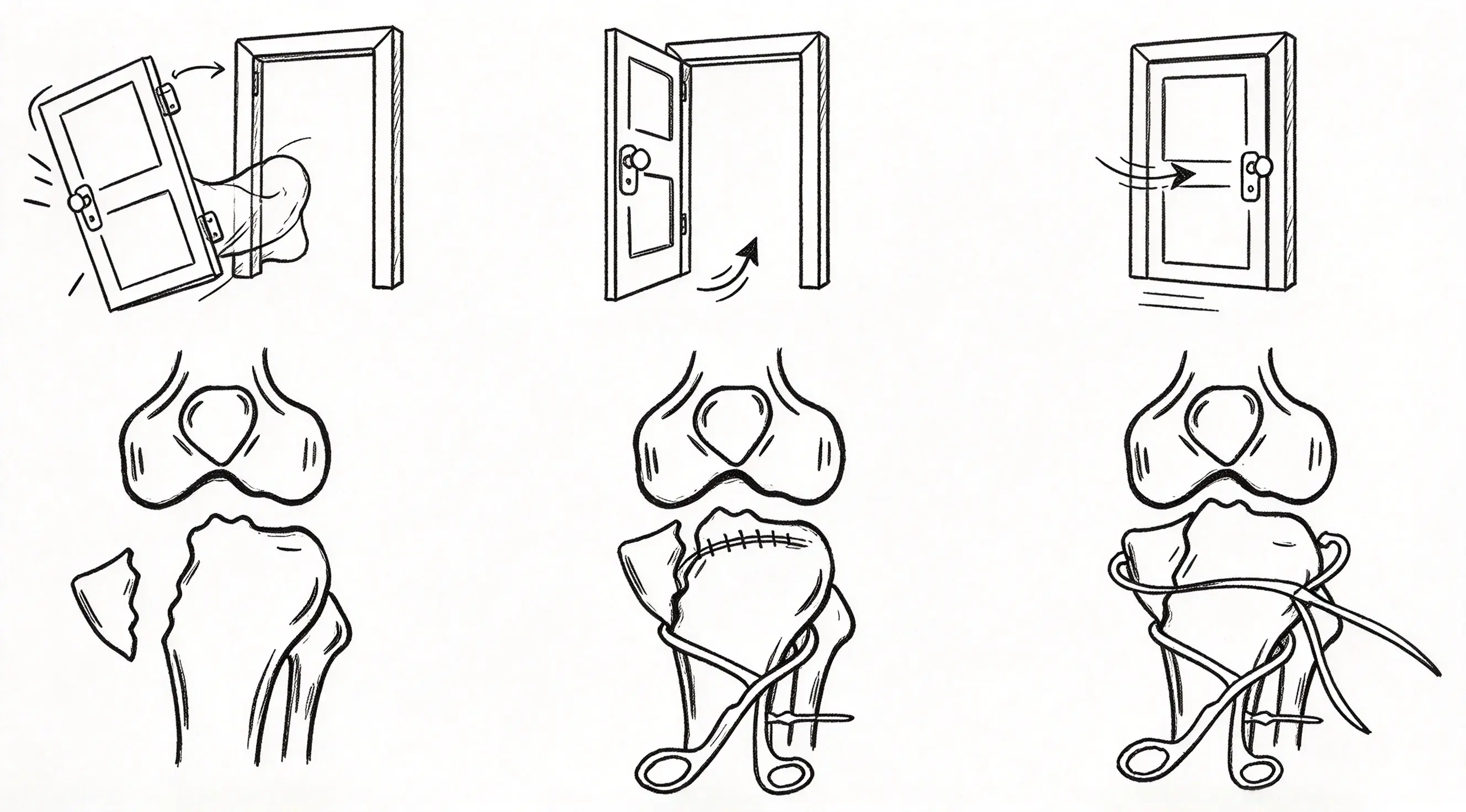

The second useful concept is the door principle.
Imagine a door that has come off its hinges.
Trying to push the door closed without first restoring the hinge is extremely difficult.
The logical sequence is:
Restore the hinge → control the door → close the gap
A similar principle applies to many oblique, spiral, pelvic, and periarticular fractures.
One side of the fracture may be relatively displaced less or remain partially connected through cortical or soft-tissue structures. This side can serve as a hinge.
Once the hinge is established, the more displaced side can be brought into position.
A hinge may be created through:
Partial cortical contact
Intact periosteum
Ligament attachments
Articular surface continuity
A relatively intact column
A stable bone fragment
The goal is not necessarily to anatomically reduce the entire fracture simultaneously.
Instead, the surgeon creates a stable reference relationship first.
The remaining displacement can then be corrected around that reference.
Fracture reduction can generally be achieved through two broad strategies.
Direct reduction involves physically manipulating the fracture fragments after surgical exposure.
Typical tools include:
Reduction forceps
Pointed reduction clamps
Bone hooks
Periosteal elevators
Dental picks
Ball-spike pushers
K-wires
Schanz pins
Direct reduction is particularly useful when the cortical surfaces are clearly visible and provide reliable anatomical landmarks.
Indirect reduction manipulates the limb or a bone segment away from the fracture site.
The surgeon uses:
Longitudinal traction
Rotation
Bending
Distractors
External fixation
Skeletal traction
Schanz-pin joysticks
Soft-tissue tension
Ligamentotaxis
The major advantage is preservation of the biological environment around the fracture.
Rather than stripping the fragments to see every fracture line, the surgeon attempts to restore alignment while preserving:
Periosteal blood supply
Muscle attachments
Fracture hematoma
Soft-tissue vascularity
This is particularly important when using biologically friendly fixation strategies.
Complex fractures create a different problem.
The surgeon may see many fragments and ask:
"Which piece should I reduce first?"

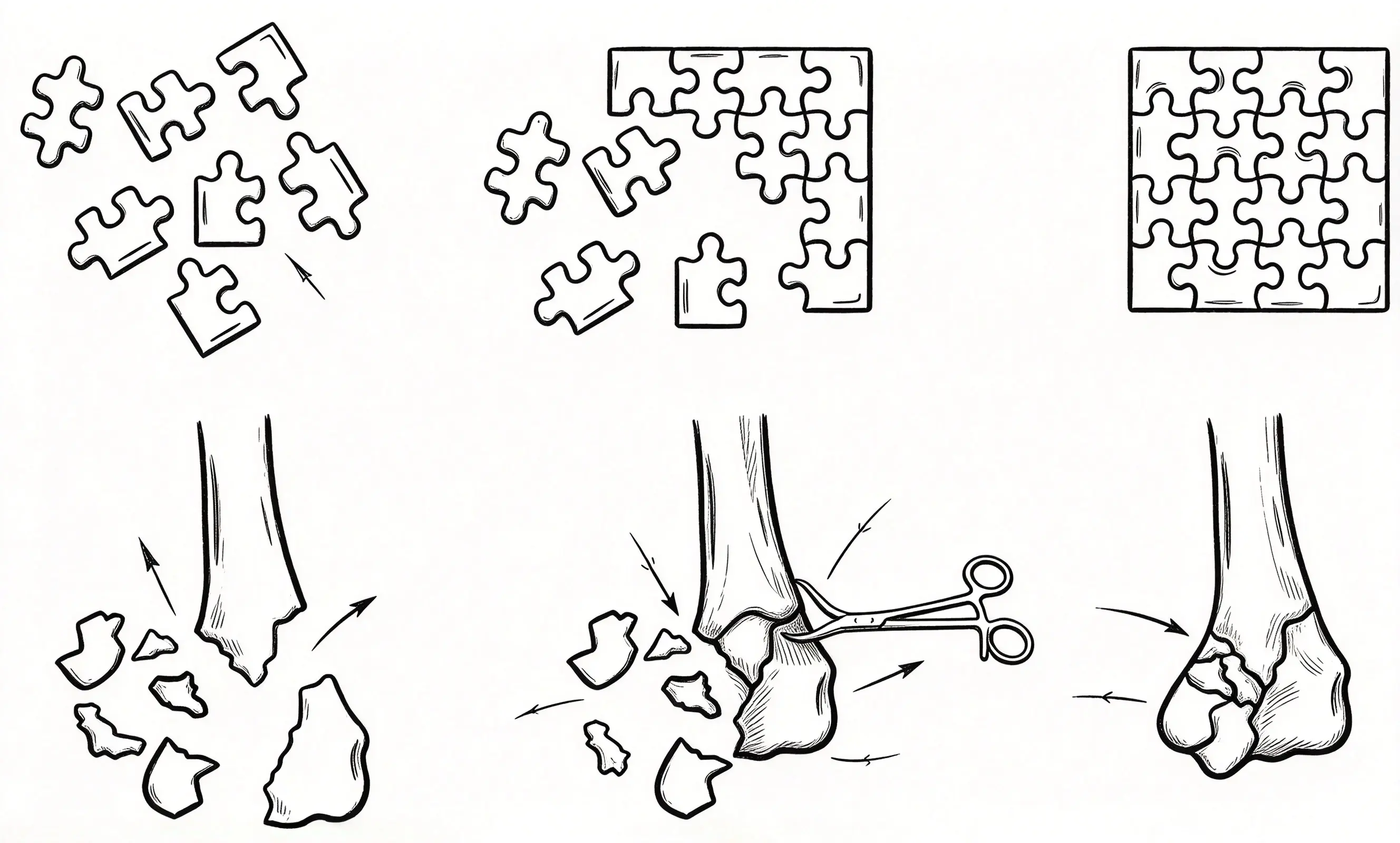

This is where the puzzle principle becomes useful.
Instead of trying to reconstruct every fragment simultaneously, begin with the fragment or fracture contour that is:
Easiest to identify
Least displaced
Most anatomically reliable
Best preserved
Most useful as a reference for the remaining fragments
Once several reliable pieces have been restored, the remaining fracture becomes easier to understand.
Imagine assembling a jigsaw puzzle.
If the picture contains a few distinctive pieces, placing those pieces first establishes the overall geometry.
The same principle applies to complex fractures.
A reliable fragment can establish:
Length
Rotation
Articular orientation
Column position
Cortical alignment
The remaining fragments can then be reduced relative to this reconstructed anatomy.
However, this strategy is most applicable to fractures where anatomic reduction of individual fragments is an important objective.
It should not be confused with biological bridge plating or intramedullary nailing, where the surgeon may intentionally avoid reducing every intermediate fragment.
This distinction is essential.
The objective is to restore the anatomical relationship of the fracture fragments as accurately as possible.
This is particularly important for:
Articular fractures
Some metaphyseal fractures
Simple fractures requiring interfragmentary compression
Fractures where restoration of the cortical contour is essential
In other fracture patterns, attempting to anatomically reconstruct every fragment may unnecessarily damage soft-tissue blood supply.
With:
Bridge plating
Intramedullary nailing
Minimally invasive plate osteosynthesis
the surgeon may instead focus on restoring:
Length
Alignment
Rotation
Overall mechanical axis
The intermediate fracture fragments can be left relatively undisturbed.
Therefore, the best reduction strategy depends on both fracture morphology and the planned fixation method.

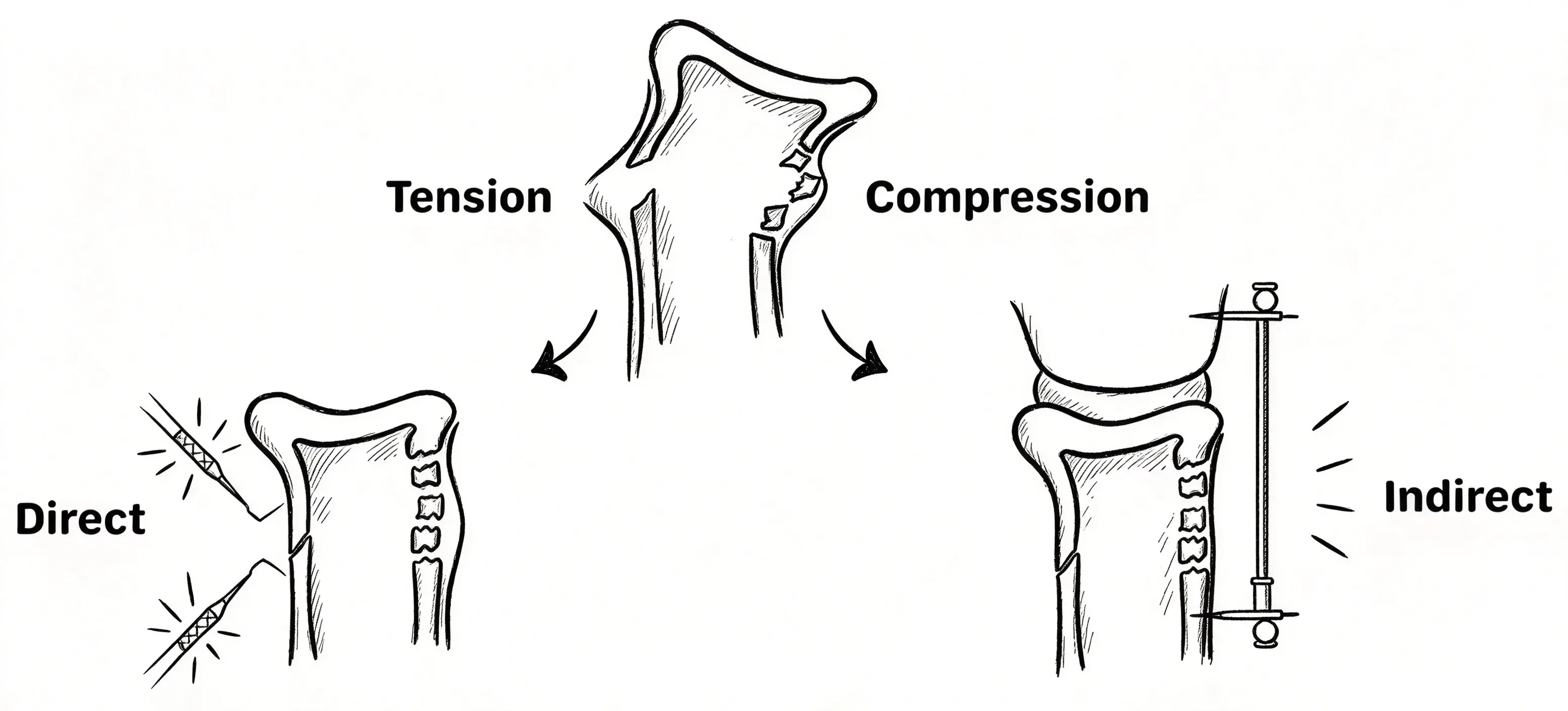

Another highly useful concept is to analyze the fracture according to the mechanical side that failed.
Many fractures result, at least partly, from bending forces.
When a bone bends:
One side experiences tension.
The opposite side experiences compression.
The fracture morphology on these two sides may be quite different.
The tension side often experiences greater separation.
The periosteum may be disrupted, producing relatively clean cortical fracture surfaces.
These cortical surfaces may therefore provide recognizable landmarks for direct reduction.
The fragments can often be brought together with:
Reduction clamps
Direct manipulation
K-wire joysticks
Bone hooks
Direct cortical visualization
The compression side may demonstrate:
Impaction
Comminution
Multiple small fragments
Extensive microcracking
Relatively preserved soft-tissue attachments
Because the cortical surfaces may be fragmented, they are not always reliable as direct reduction landmarks.
However, the preserved periosteum, ligaments, and other soft tissues may still provide a useful reduction mechanism.
This is the biological basis of indirect reduction and ligamentotaxis.
These concepts become particularly powerful when combined.
The relatively clean tension-side fracture can function as the hinge.
The more comminuted compression side can then be brought into position around this hinge.
In simplified terms:
Tension side = hinge
Compression side = door handle
The surgeon can establish the reliable side first and then use controlled traction or manipulation to close the remaining displacement.
This is not a universal rule for every fracture, but it provides a useful mental framework for many bending-related injuries.
A surgeon cannot reduce a fracture accurately without knowing what the normal anatomy should look like.
Reduction therefore requires reliable reference structures.
These may be:
Intact cortical surfaces
Articular cartilage
Subchondral bone
Metaphyseal anatomy
Ligament attachment sites
An intact bone segment
Medullary canal contours
Relatively stable fracture fragments
These reference structures can be considered constant fragments.
A constant fragment is a relatively stable anatomical reference that remains connected to important soft tissues or maintains its relationship with the rest of the skeleton.
Examples include:
The posterior iliac segment in selected acetabular fractures
The sustentaculum tali in calcaneal fractures
An intact proximal or distal shaft segment
A relatively stable articular fragment
Once the constant fragment is identified, the surgeon can reduce the remaining fragments relative to it.
This approach is especially useful in complex periarticular fractures.
Not every reduction reference needs to be visible.
Surgeons may use:
Cortical continuity
Articular surface congruity
Bone contour
Fracture-line alignment
Cortical step-off
Medullary canal continuity
Joint surface congruity
Firm seating of a fragment
Symmetry with the opposite side
Fluoroscopy
AP and lateral radiographs
Oblique views
CT
3D reconstruction when appropriate
The best reduction assessment often combines several sources of information rather than relying on a single fluoroscopic view.
Fracture reduction sometimes requires considerable force.
However, the goal is not to generate the maximum possible force.
The goal is to apply force in the correct direction and within the constraints of the surrounding anatomy.
These constraints may include:
Intact cortical surfaces
Ligaments
Periosteum
Joint surfaces
Soft tissues
Existing fixation devices
In some intra-articular fractures, an intact or relatively preserved portion of the joint surface can function as a template.
A displaced fragment is pushed firmly against this surface.
Once the fragment seats against the intact anatomy, the normal geometry of the joint helps guide the fragment into its intended position.
This concept is particularly useful when reconstructing:
Articular surfaces
Condyles
Tibial plateau fragments
Distal humerus fragments
Acetabular fragments

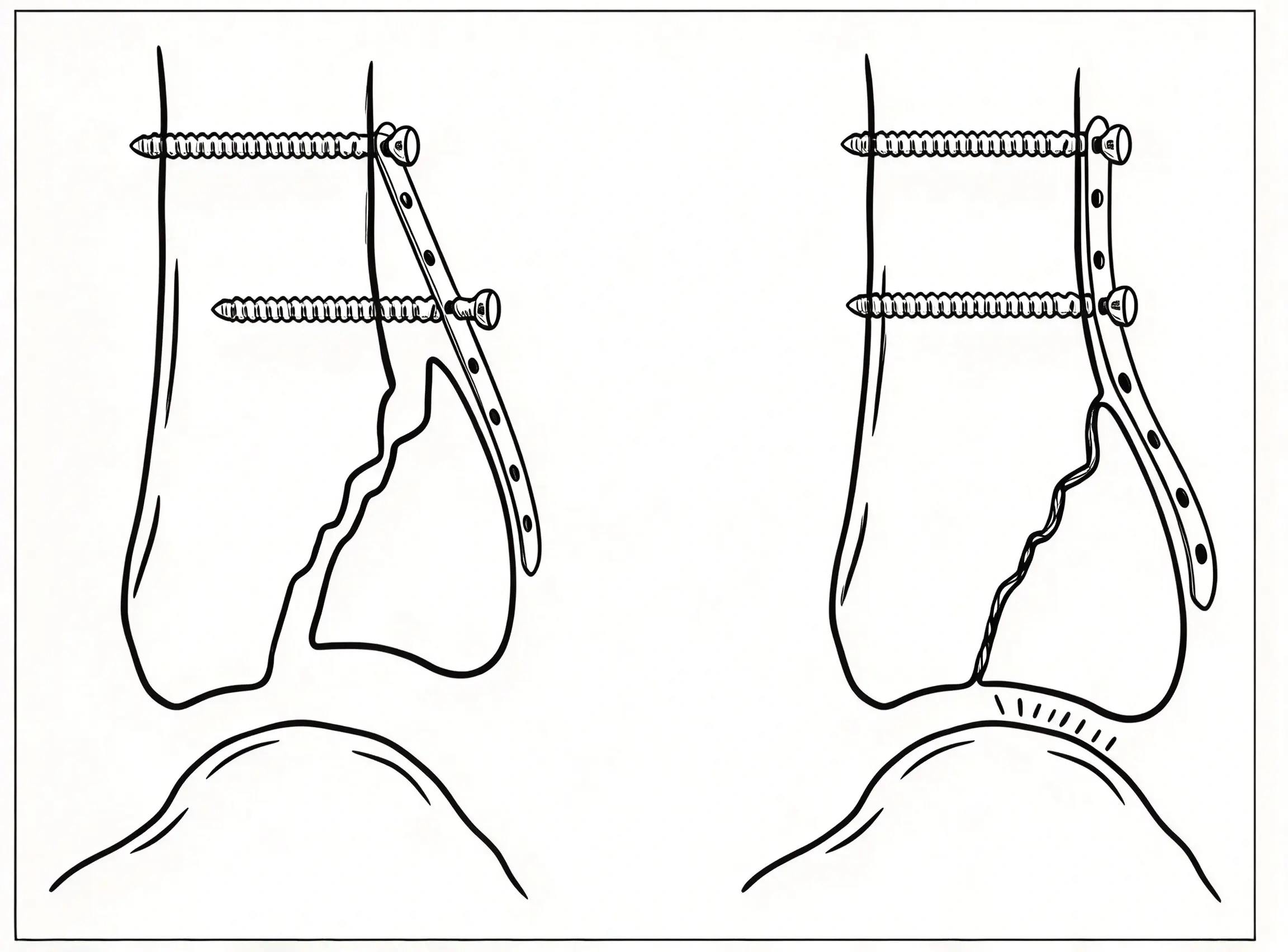

Implants can sometimes assist with fracture reduction.
This is often called reduction through fixation.
Examples include:
Plate-assisted reduction
Push-pull techniques
Distractor-assisted plating
Screw-assisted compression
Plate contouring to restore alignment
For example, a plate may be positioned against a displaced fracture fragment and then fixed to the shaft. As the screw is tightened, the plate can guide the fragment toward the intended position.
However, implant-assisted reduction should be carefully controlled.
The implant should not be used to force a poorly understood fracture into an incorrect position.
Proximal humerus fractures frequently demonstrate deforming forces from the rotator cuff and other soft tissues.
The humeral head fragment may become:
Abducted
Externally rotated
Angulated
The shaft may therefore need to be manipulated to match the position of the head.
Positioning the arm can provide an initial indirect reduction.
Depending on fracture morphology, controlled abduction and flexion of the humeral shaft may help restore alignment with the humeral head.
A relatively preserved cortical surface can serve as a direct reduction reference.
Useful anatomical landmarks include:
Greater and lesser tuberosities
Rotator cuff attachments
Bicipital groove
Humeral head orientation
The shaft can be manipulated with reduction forceps, while the humeral head may be controlled using:
K-wires
Schanz pins
Heavy sutures placed through appropriate soft-tissue attachments
The principle is to use both bony and soft-tissue landmarks rather than relying on a single fracture line.
Complex distal humerus fractures create an important puzzle problem.
For complete articular fractures, two broad reduction sequences can be considered:
First reconstruct the articular block, effectively converting the complete articular fracture into a simpler extra-articular configuration.
The reconstructed joint block is then reduced to the shaft.
Alternatively, one column can first be reconstructed.
The remaining articular block is then reduced to the already reconstructed column.
The puzzle principle provides a useful decision-making framework.
If one metaphyseal column is relatively simple while the articular surface is highly comminuted, it may be advantageous to reconstruct the simpler column first.
That column can then provide a reference for the more complex articular fragments.
Conversely, if the metaphyseal region is highly comminuted but the articular surface remains relatively reconstructable, reconstructing the joint surface first may provide the better starting point.
The best sequence is therefore determined by which component provides the most reliable anatomical reference.
A transolecranon fracture-dislocation involves anterior dislocation of the elbow associated with proximal ulna fracture while preserving the proximal radioulnar relationship.
A useful reduction concept is to work from deep to superficial.
The coronoid fragment can function as a central reference or "keystone" because it may retain capsular and, in some patterns, ligamentous attachments.
The surgeon can then reconstruct:
Coronoid
Proximal ulnar shaft
Olecranon tip and remaining proximal ulna
Restoring the proximal ulna around a reliable central fragment can help recreate the overall trochlear notch.
A typical Colles-type fracture often includes dorsal metaphyseal comminution.
The relatively preserved volar cortex can provide a useful reduction reference.
The principle resembles the door technique:
Restore the relatively reliable cortical hinge.
Position the volar plate.
Use the plate to assist restoration of volar tilt.
Indirectly reduce the dorsal comminuted fragments.
As the plate is secured to the shaft, the fixed-angle distal screws and plate geometry can help restore the distal radius alignment.
This technique demonstrates how an implant can function as a controlled reduction device rather than merely serving as a final fixation construct.
Both-column acetabular fractures present a classic example of the door principle.
The anterior column may be displaced medially and rotated because of the forces transmitted through the surrounding soft tissues.
A common strategy is first to restore the position of the femoral head relative to the acetabulum.
A Schanz pin, distractor, or other reduction device may be used to manipulate the proximal femur.
The anterior column can then be reconstructed progressively rather than attempting to correct every plane of displacement simultaneously.
If the iliac crest region provides a reliable reference, the surgeon may first restore and stabilize the more proximal portion of the anterior column.
This creates a hinge.
The lower portion of the anterior column can then be manipulated downward and laterally to close the remaining displacement.
The reconstruction proceeds around the established reference rather than through a single large corrective maneuver.
Femoral neck fractures frequently demonstrate anterior angulation.
The posterior portion of the fracture may be relatively impacted and comminuted, whereas the anterior cortex can provide a more recognizable cortical reference in selected fracture patterns.
Reduction may involve:
Internal rotation of the limb
Controlled manipulation of the femoral head
Traction
Joystick techniques
Direct manipulation of the anterior cortex when using an open approach
The posterior soft tissues may also contribute to indirect reduction.
The exact reduction sequence should be individualized according to fracture displacement, comminution, posterior tilt, and the chosen fixation method.
Bicondylar tibial plateau fractures can result from substantial varus or valgus forces and frequently involve metaphyseal and articular comminution.
In selected valgus-type patterns, the medial side may provide a relatively reliable cortical reference while the lateral side demonstrates greater compression-side comminution.
This can allow the surgeon to:
Reconstruct the more reliable column.
Establish the appropriate joint height.
Use controlled distraction to restore the more comminuted side.
Reconstruct the articular surface against the restored reference.
However, not every bicondylar fracture follows this pattern. CT-based assessment of fracture morphology should guide the reduction sequence.
Hyperextension-type tibial plateau fractures are particularly challenging.
The principal tension-side failure may occur posteriorly rather than directly on the medial or lateral side.
The anterior portion may contain displaced or depressed articular fragments.
A logical strategy in selected patterns is therefore:
Posterior reconstruction → establish joint height → elevate/reconstruct anterior articular fragments
The posterior fragment can serve as the hinge, while the anterior joint surface is restored relative to that reference.
This is another example of how understanding the mechanical behavior of the fracture can simplify a seemingly complex reduction.
Complete articular pilon fractures often involve extensive anterior and central articular comminution.
In some common patterns, the posterior metaphyseal fragment may be relatively more reconstructable.
This creates an opportunity to apply the puzzle principle.
Restore the posterior fragment and establish the appropriate distal tibial height.
The reconstructed posterior segment provides a stable reference for the remaining fragments.
The more comminuted anterior and central fragments can then be reduced progressively against the reconstructed anatomy.
Again, the exact sequence depends on fracture morphology and should be determined from preoperative CT and intraoperative findings.
The "Key, Door and Puzzle" concepts can be converted into a practical intraoperative algorithm.
Before manipulating the fragments, identify:
Direction of displacement
Shortening
Angulation
Rotation
Impaction
Comminution
Articular involvement
Soft-tissue attachments
Ask:
Which fragment or anatomical structure is most reliable?
This becomes the reduction reference.
Determine what is preventing the fragments from moving.
Is it:
Impaction?
Shortening?
Interlocking?
Rotation?
If necessary, unlock the fracture first.
Identify the relatively preserved cortical or soft-tissue side.
Use it to establish the first stable relationship.
Reduce the easiest and most reliable fragments first.
Each successful reduction should make the next fragment easier to position.
Use direct reduction when reliable cortical or articular landmarks can be safely exposed.
Use indirect reduction when soft-tissue preservation is more important and reliable alignment can be achieved without extensive dissection.
Apply force in the direction required by the fracture pattern.
Avoid simply increasing force when the fracture does not respond.
Use:
Direct visualization
Fluoroscopy
Tactile assessment
Cortical continuity
Articular congruity
Appropriate anatomical landmarks
The fixation construct should maintain the reduction rather than create a new deformity.
The greatest educational value of these concepts is that they transform reduction from a collection of isolated surgical tricks into a structured reasoning process.
Instead of asking:
"Which instrument should I use?"
Ask:
"What is preventing this fracture from reducing?"
Then ask:
What is locked?
What is the stable reference?
Where is the hinge?
Which fragment is easiest to reconstruct?
Should I use direct or indirect reduction?
Which direction should the force be applied?
What structure tells me that the reduction is correct?
These questions can often provide a more useful surgical roadmap than simply memorizing individual reduction maneuvers.
A fracture that does not reduce may not require more force. It may require a different vector.
An impacted fracture may need distraction before it can be rotated and aligned.
In complex fractures, the most comminuted fragment is often a poor starting point.
Extensive exposure can destroy the biological environment needed for healing.
Some fragments provide much more useful anatomical information than others.
Bridge plating and intramedullary nailing may intentionally preserve intermediate fragments.
A reduction that looks satisfactory on one projection may be significantly malaligned in another plane.
| Concept | Core question | Typical strategy |
|---|---|---|
| Key | What is locking the fracture? | Unlock → align → compress |
| Door | Where can I establish a hinge? | Stabilize one side → close the other |
| Puzzle | Which piece should I reduce first? | Start with the most reliable fragment |
| Tension side | Which side has cleaner cortical failure? | Often suitable for direct reduction |
| Compression side | Which side is more comminuted but soft-tissue constrained? | Often suitable for indirect reduction |
| Constant fragment | What is my anatomical reference? | Reduce other fragments against it |
| Template | What intact structure can guide reduction? | Seat displaced fragment against it |
| Implant-assisted reduction | Can fixation help restore alignment? | Use controlled plate/screw vectors |
Fracture reduction is both a technical skill and a problem-solving process.
The Key, Door and Puzzle framework provides a simple way to understand many complex reduction problems:
The Key: unlock impacted fragments before trying to align and compress them.
The Door: establish a reliable hinge before closing the more displaced side.
The Puzzle: begin with the fragment or anatomical contour that is easiest and most reliable to reconstruct.
Tension vs compression: use fracture morphology to decide whether direct manipulation or indirect reduction may be more appropriate.
Constant fragments: identify stable anatomical references and reduce other fragments relative to them.
Controlled force: use the direction and anatomical constraints of the fracture rather than simply applying more force.
Biological preservation: avoid unnecessary soft-tissue stripping when an indirect reduction strategy can achieve the desired alignment.
These concepts do not replace detailed fracture classification, preoperative CT analysis, or experience with specific reduction techniques. Instead, they provide a general decision-making framework that can help surgeons approach unfamiliar fracture patterns more systematically.
Ultimately, successful fracture reduction is not simply about moving a fragment from point A to point B. It is about understanding why the fragment moved, what is holding it there, which structure can serve as a reference, and how the surrounding anatomy can be used to guide it back into position.
That is what transforms fracture reduction from a trial-and-error maneuver into a reproducible surgical strategy.
Brodke D, DeKeyser G, Working Z, Friess D. The Key and the Door: Universal Concepts of Reduction in Fracture Surgery. Journal of the American Academy of Orthopaedic Surgeons. 2025;00:1-8. doi:10.5435/JAAOS-D-25-00956.
Müller ME, Allgöwer M, Schneider R, Willenegger H. Manual of Internal Fixation: Techniques Recommended by the AO-ASIF Group. Springer.
Rüedi TP, Buckley RE, Moran CG, eds. AO Principles of Fracture Management. Thieme.
Gardner MJ, Helfet DL, Lorich DG. Reduction techniques in orthopedic trauma surgery.
AO Foundation. Principles of fracture reduction and fixation.
