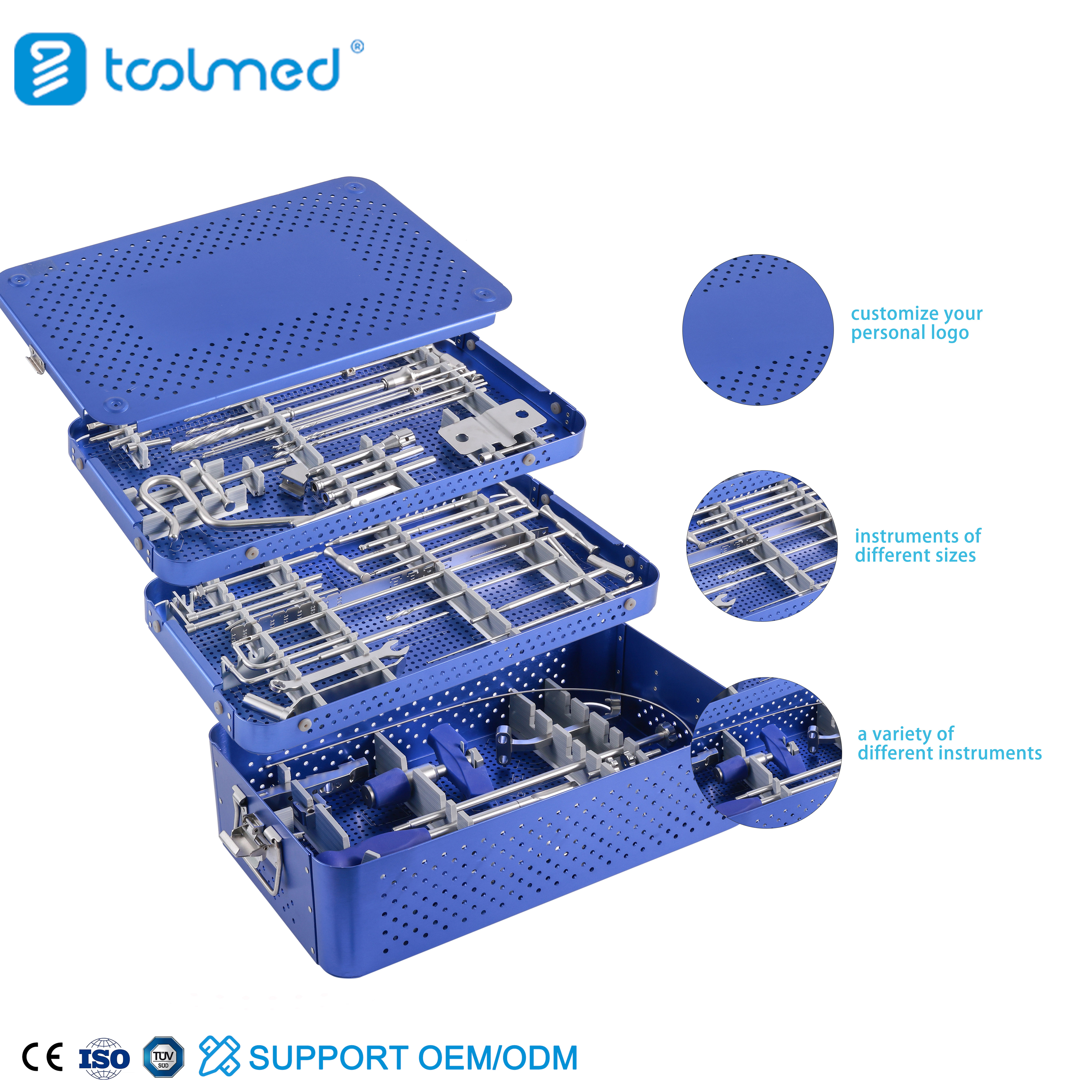

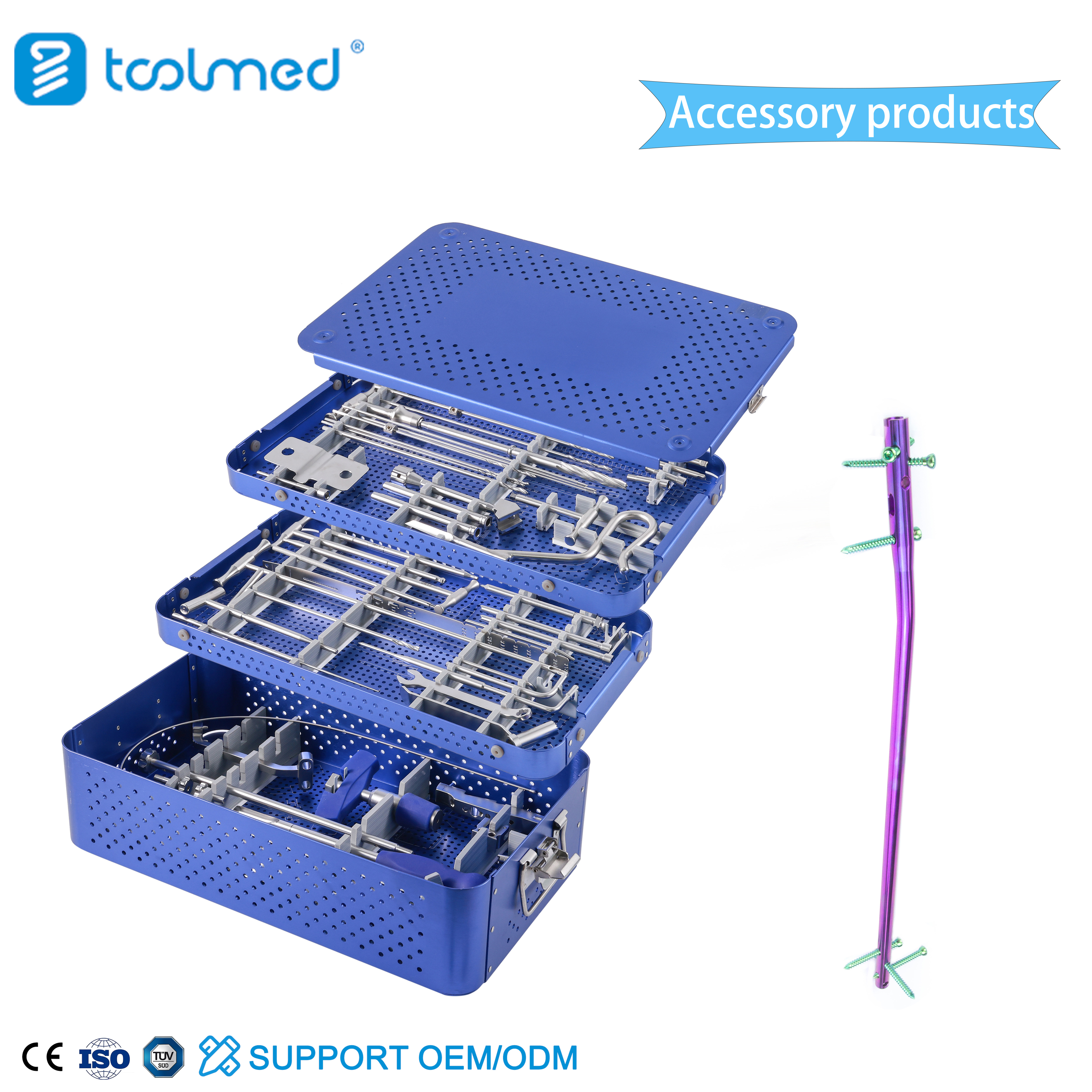

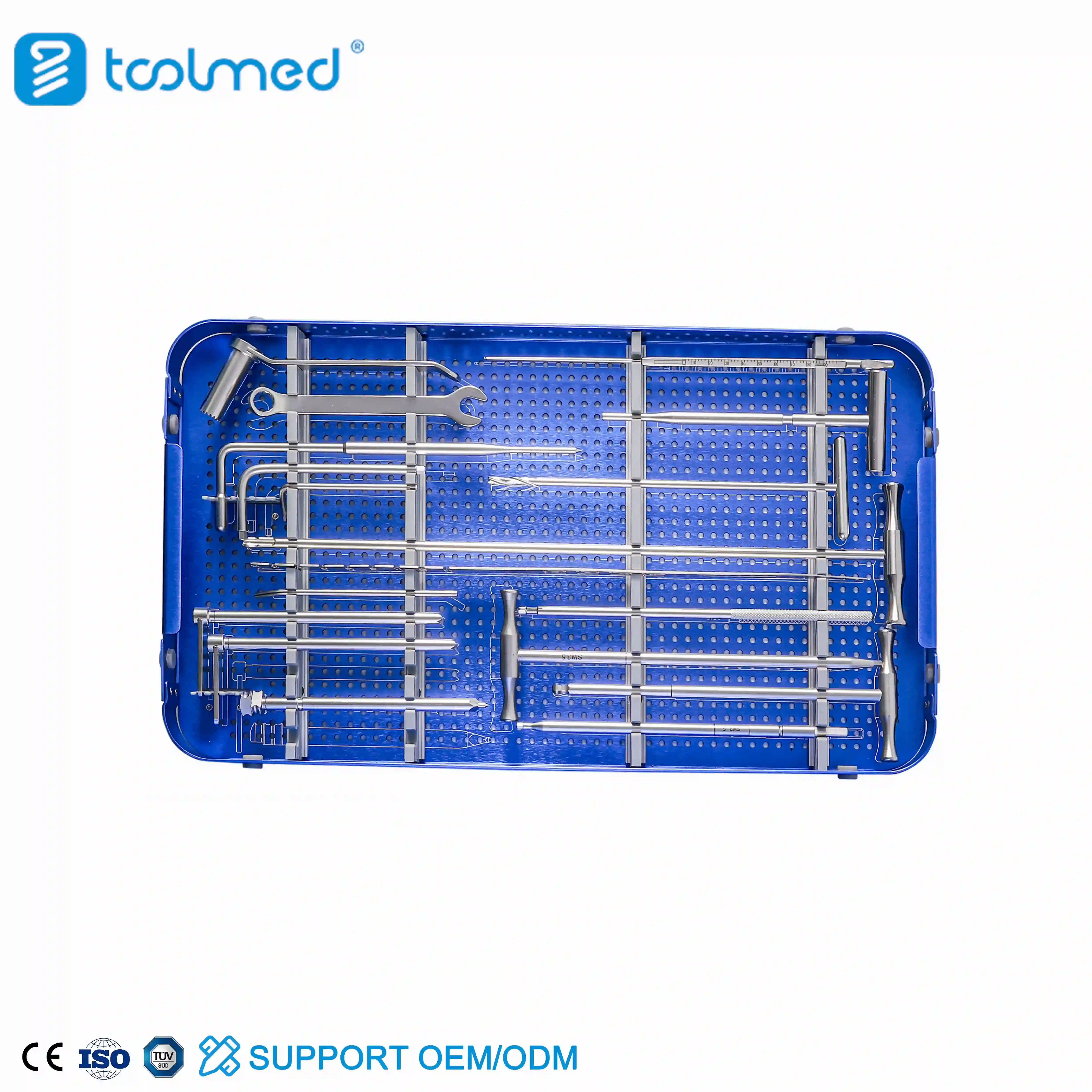

The TOOLMED Expert Tibial Intramedullary Nail Instrument Set is a specialized, high-tier surgical system designed for the management of the most challenging tibial fractures. While standard sets focus on simple shaft injuries, the "Expert" system is engineered to provide stable fixation in the proximal and distal metaphyseal zones where bone fragments are often small and unstable. This set includes an advanced targeting matrix that supports multi-planar locking, allowing surgeons to place screws in divergent orientations for maximum stability. Manufactured from premium 17-4PH stainless steel and radiolucent carbon fiber, the instruments are optimized for both the traditional infrapatellar and the modern suprapatellar (semi-extended) surgical approaches. The set features high-torque flexible reamers, precision-guided protection sleeves, and ergonomic inserters. Housed in a modular, double-decker sterilization tray, the TOOLMED Expert Tibial Instrument Set ensures surgical accuracy, reduces operative complexity, and facilitates the stable internal fixation necessary for early patient mobilization in complex trauma cases.
1200-06
TOOLMED
/
/
/
1 Pcs
5-7 days
Product Description
The expert jig system provides an increased number of locking options, including oblique and horizontal screw paths, to capture small metaphyseal bone fragments.
Includes specialized long-cannula protection systems designed to facilitate the semi-extended knee approach, protecting the patellofemoral joint during reaming.
Ensures a clear fluoroscopic view of the proximal tibia, allowing for precise screw placement without the interference of a metal targeting arm.
Features a range of quick-connect reamer heads with optimized flute designs that minimize heat generation and intramedullary pressure during canal preparation.
Specifically indicated for fractures located near the knee joint (Type 41), where the set's multi-planar "expert" locking screws prevent the common "valgus" or "procurvatum" deformities.
Equipped with specialized distal targeting tools indicated for fractures close to the ankle joint (pilon extensions), providing stable fixation where standard nails often fail.
The primary instrumentation for surgeons preferring the semi-extended approach, providing the long sleeves and trocars necessary to safeguard the articular cartilage.
Indicated for the management of non-unions or the removal of failed implants, containing the heavy-duty extraction tools and reamers required for complex reconstruction.
| Product name | Expert Tibial Intramedullary Nail Instrument Set |
| Material | Stainless Steel |
| Diameter | / |
| Length | / |
| Application | / |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-7 days |
| Shipping | DHL EMS UPS TNT FEDEX |
The Expert Tibial Intramedullary Nail Instrument Set is an advanced suite of surgical tools designed specifically for the management of complex tibial fractures. Unlike basic nailing sets, the "Expert" version is characterized by its high-precision targeting jigs that allow for multi-planar screw placement in the metaphyseal regions. The set acts as the essential interface for the surgeon, containing every tool from the initial cortical entry awl to the final locking screw drivers. It includes specialized instrumentation for the suprapatellar approach, such as long-cannula protection sleeves. Manufactured from medical-grade stainless steel and radiolucent carbon fiber, the set provides the necessary mechanical accuracy to secure multiple locking screws in divergent planes, ensuring stable fixation in small bone fragments near the knee and ankle joints.
This instrument set is primarily applied in the surgical stabilization of complex proximal and distal tibial fractures (AO/OTA Type 41 and 43). It is the standard application for fractures involving the metaphyseal area where rotational and axial stability are difficult to achieve with traditional nails. The set is also applied in suprapatellar procedures, where the knee is held in a semi-extended position to facilitate easier fracture reduction and more accurate entry point selection. In clinical practice, it is utilized for comminuted shaft fractures, segmental fractures, and in the correction of tibial non-unions. Its specialized reaming and targeting capabilities make it indispensable for high-energy trauma cases requiring "Expert-level" fixation.
The primary advantage of the TOOLMED Expert Tibial Instrument Set is its superior targeting flexibility and intraoperative visualization. By using radiolucent carbon-fiber jigs, the surgeon can maintain a clear view of the bone fragments and the nail under X-ray, which is critical for accurate screw placement. The "Multi-lock" capability of the jig is a significant advantage, as it allows for up to 4 or 5 locking screws in the proximal fragment to prevent secondary displacement. The set’s ergonomic inserters and high-precision drivers reduce surgical time and prevent hardware complications such as screw stripping. Additionally, the inclusion of specialized tools for the suprapatellar approach allows surgeons to adopt the most modern techniques with a single, unified instrument tray.
Biomechanically, the instrument set is designed to facilitate a "fixed-angle" construct in the most biomechanically demanding areas of the tibia. The targeting jigs are precisely aligned with the nail’s geometry to ensure that screws are placed in the center of the locking holes, maximizing the strength of the construct. The reaming tools are engineered to create a precise medullary canal that ensures a "press-fit" for the nail, which is essential for load-sharing. By guiding screws in multiple planes (anteroposterior, mediolateral, and oblique), the instruments help the nail resist the complex bending and torsional forces that occur during early weight-bearing, particularly in short metaphyseal fragments.
The surgical technique begins with establishing an entry point, either through a traditional infrapatellar incision or a suprapatellar approach using the set's specialized trocars. The canal is prepared using the flexible reamers provided in the tray. The Expert nail is mounted to the inserter and advanced into position. The multi-planar targeting jig is then attached, and specialized sleeves guide the drill bits through the nail. The depth gauge is used to verify the required screw length, and the star-drive or hex-drive screwdrivers are used to secure the locking screws. The technique is completed by placing the proximal end cap using the set's dedicated drivers to secure the entire construct into a rigid unit.
Postoperative care for the instrument set involves rigorous cleaning and sterilization to maintain its high-precision tolerances. After each use, all instruments must be disassembled and cleaned with pH-neutral detergents to remove biological debris. Cannulated tools must be cleaned with specialized wire brushes and processed in an ultrasonic cleaner. All components should be sterilized in a steam autoclave at 134°C. For the hospital, it is essential to regularly check the calibration of the Expert targeting jigs and the sharpness of the reamer heads. Proper maintenance ensures that the set remains a reliable tool for future complex trauma cases, preserving the surgical accuracy required for Expert-level nailing.
The TOOLMED Expert Tibial Intramedullary Nail Instrument Set is the ultimate solution for complex tibial trauma. By combining multi-planar locking precision with support for modern suprapatellar techniques, it provides surgeons with the versatility and accuracy needed to achieve stable anatomical results even in the most challenging metaphyseal fractures.
The Expert set includes more advanced targeting jigs that allow for multi-planar and oblique locking screw placement. It also contains the specialized long-cannula sleeves specifically for the suprapatellar (semi-extended) approach.
Yes, our Expert Tibial Set is a comprehensive kit that includes all necessary trocars, sleeves, and protection systems for both infrapatellar and suprapatellar surgical techniques.
Absolutely. The proximal targeting jig is fixed to the inserter handle and remains accurate regardless of the nail length. Distal locking is usually performed using the "free-hand" instrumentation provided in the set.
A radiolucent carbon fiber jig does not block the X-ray view. This allows the surgeon to clearly see the nail’s locking holes and the fracture line at the same time, making the locking procedure faster and more accurate.
These long sleeves must be cleaned with the extra-long wire brushes provided in our cleaning kit. It is vital to ensure no bone or blood debris remains inside the cannula before sterilization in the autoclave.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
