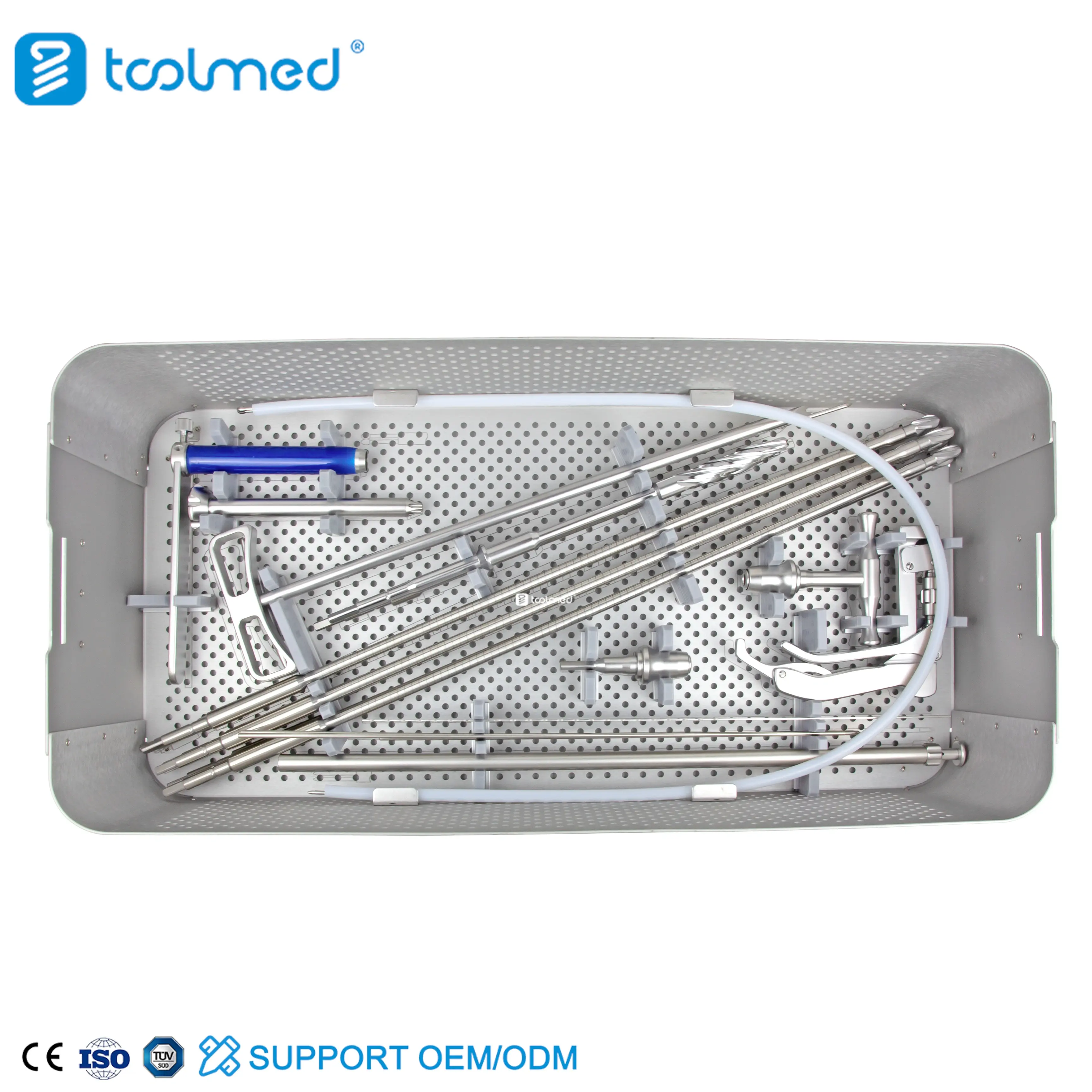

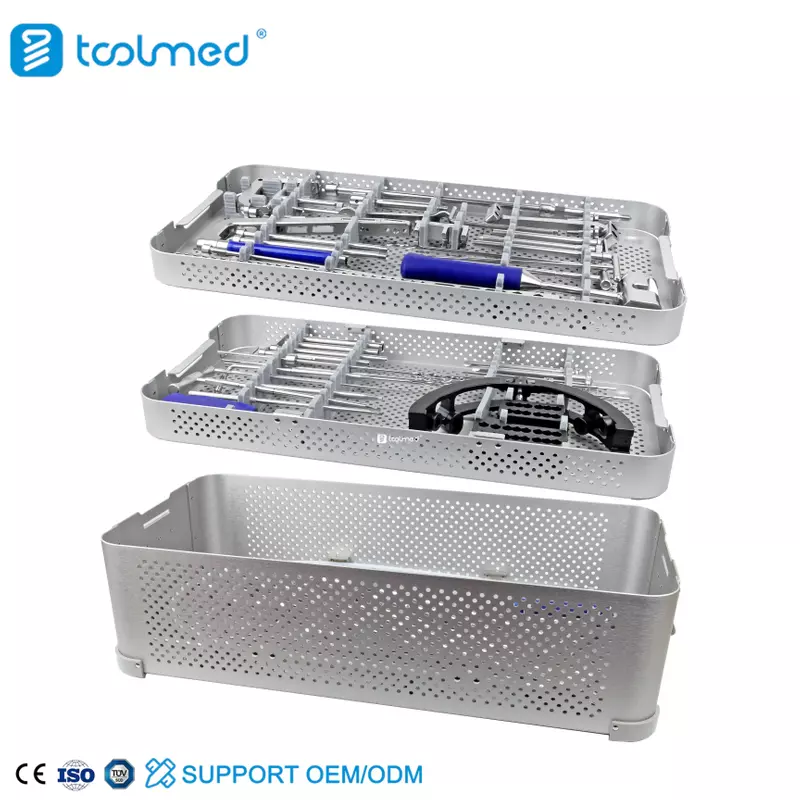

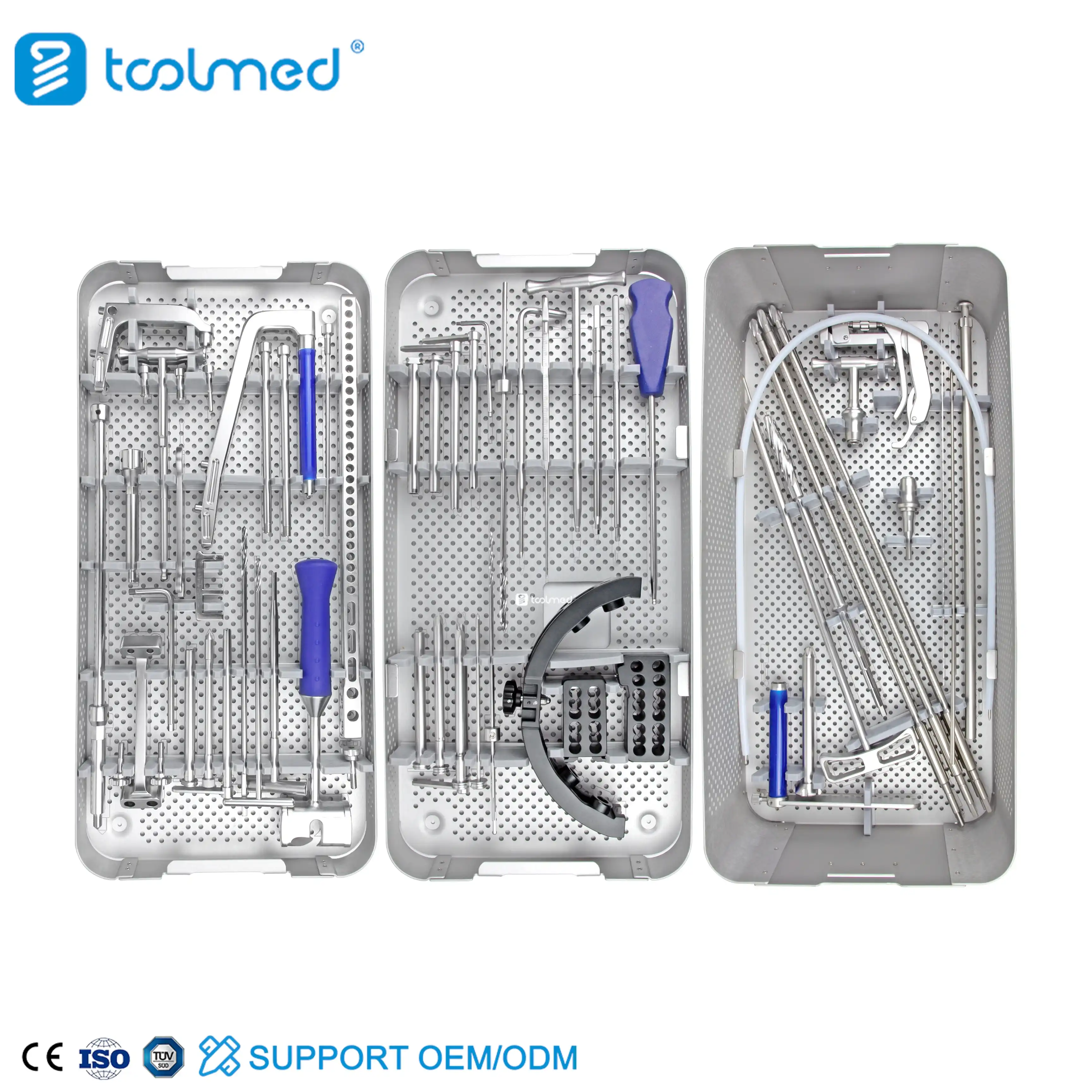

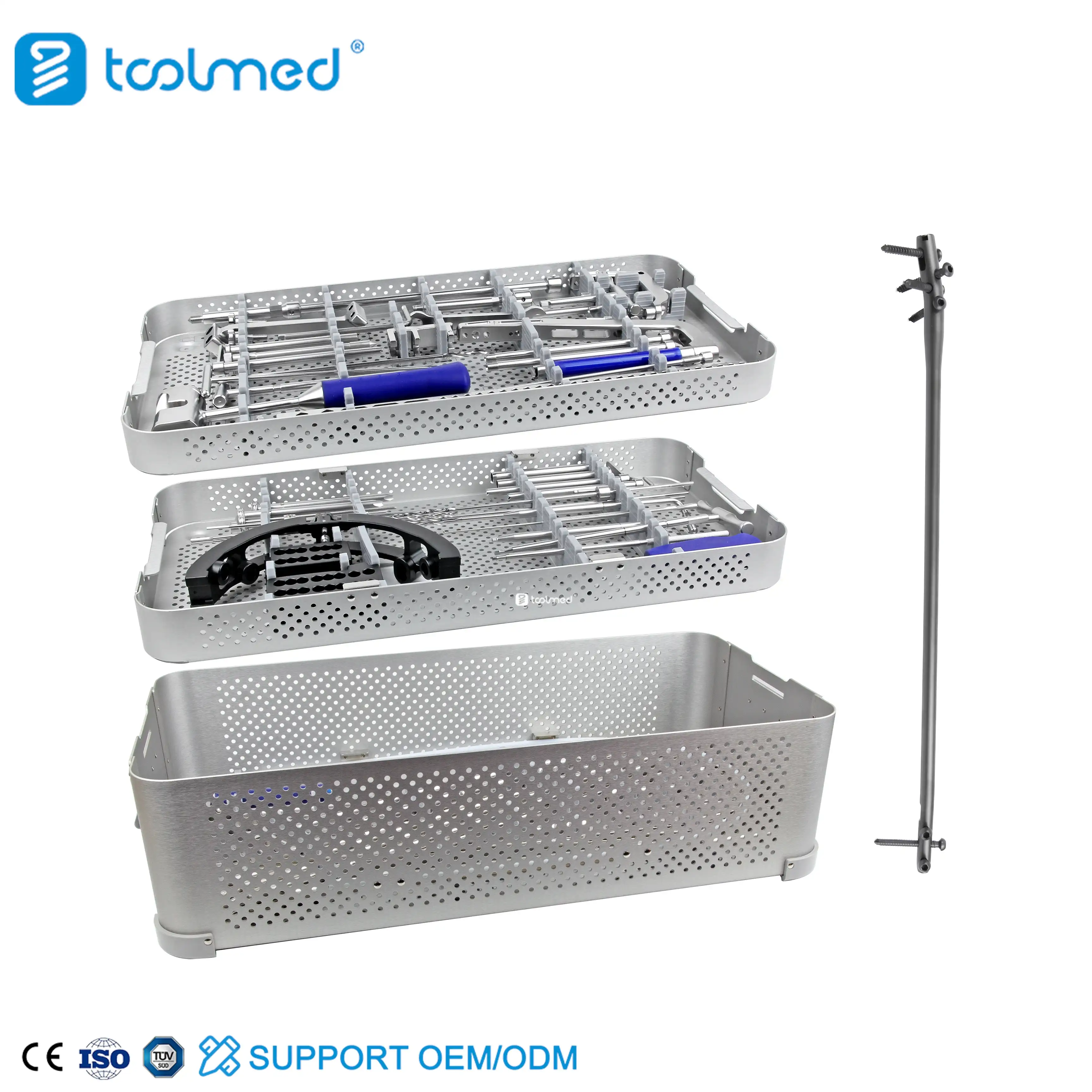

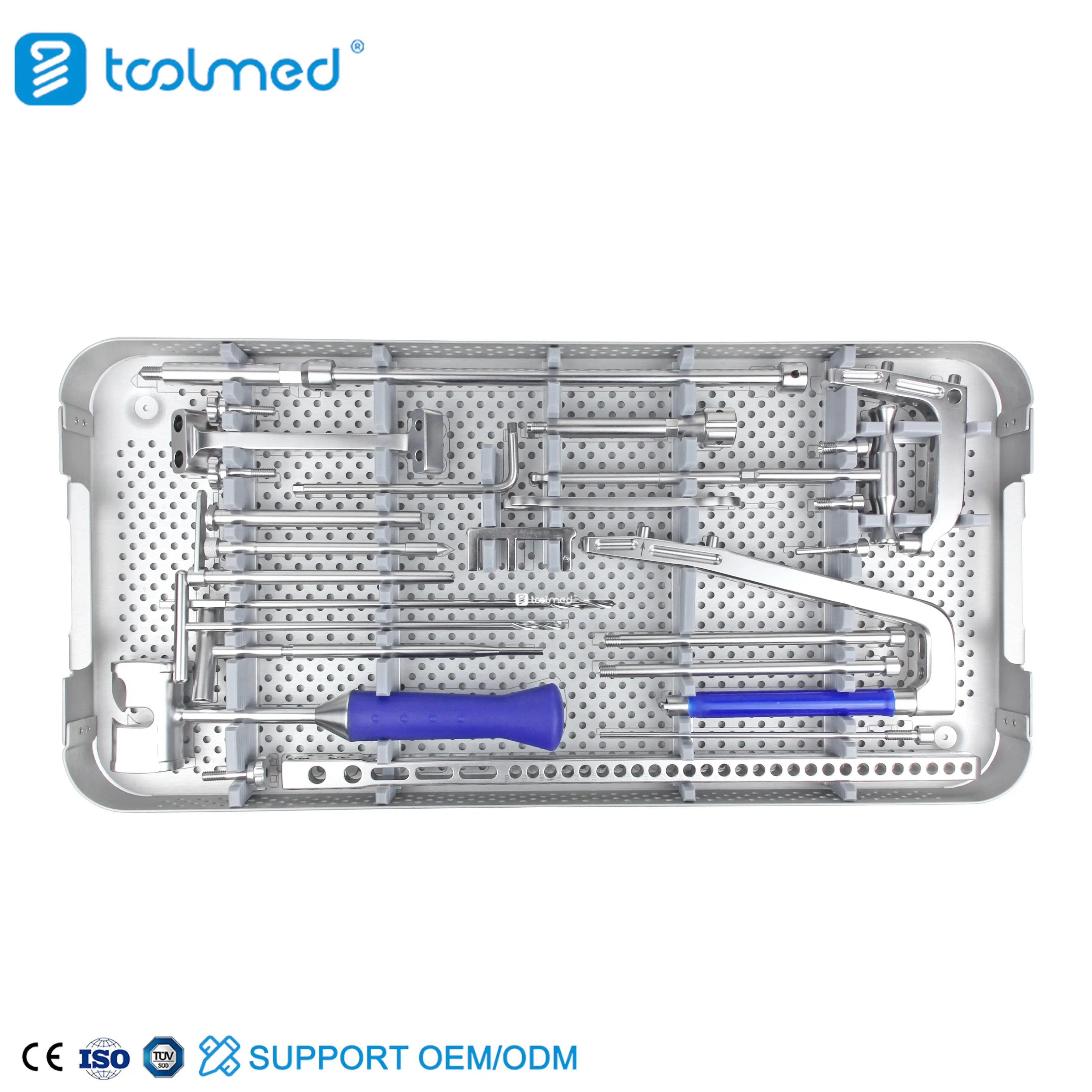

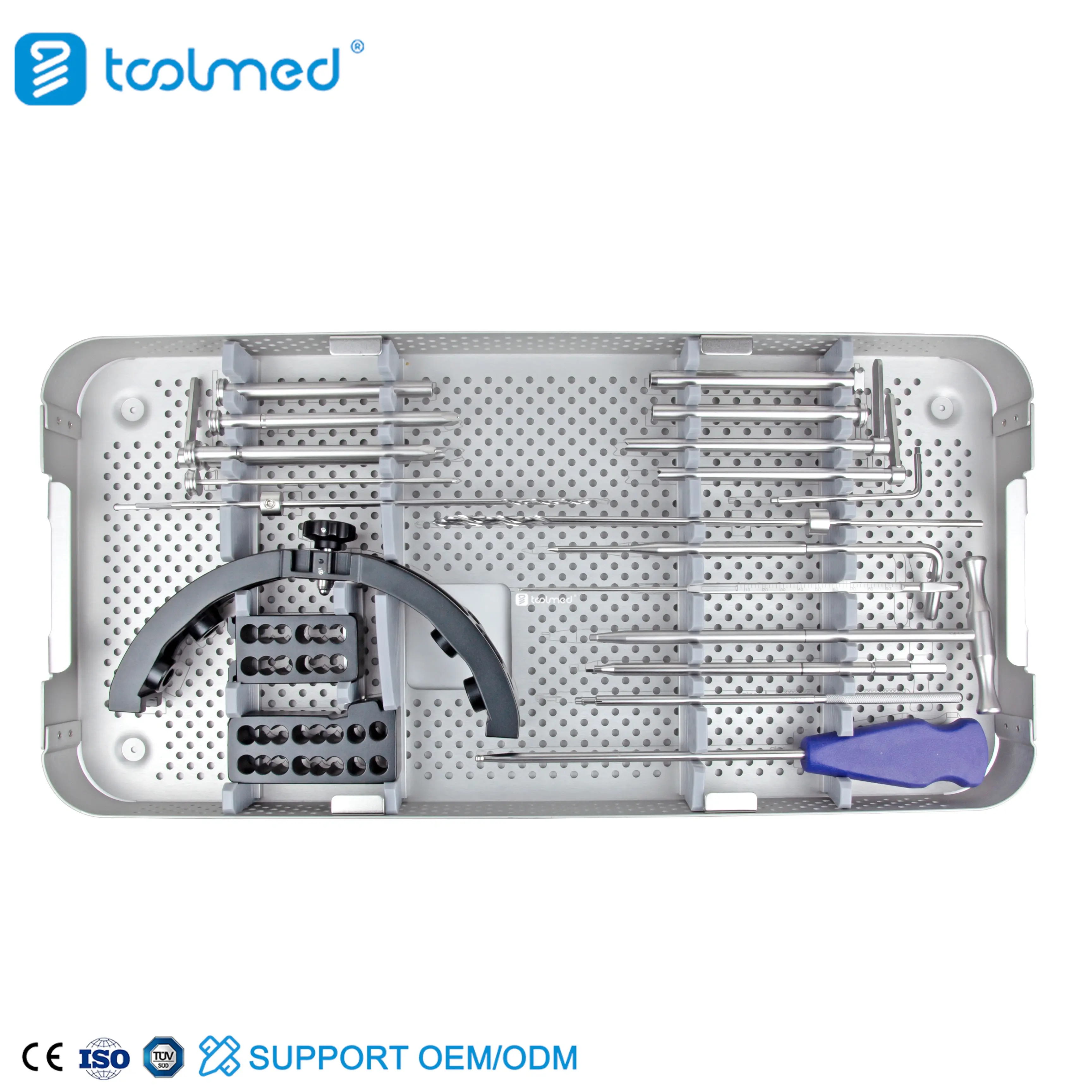

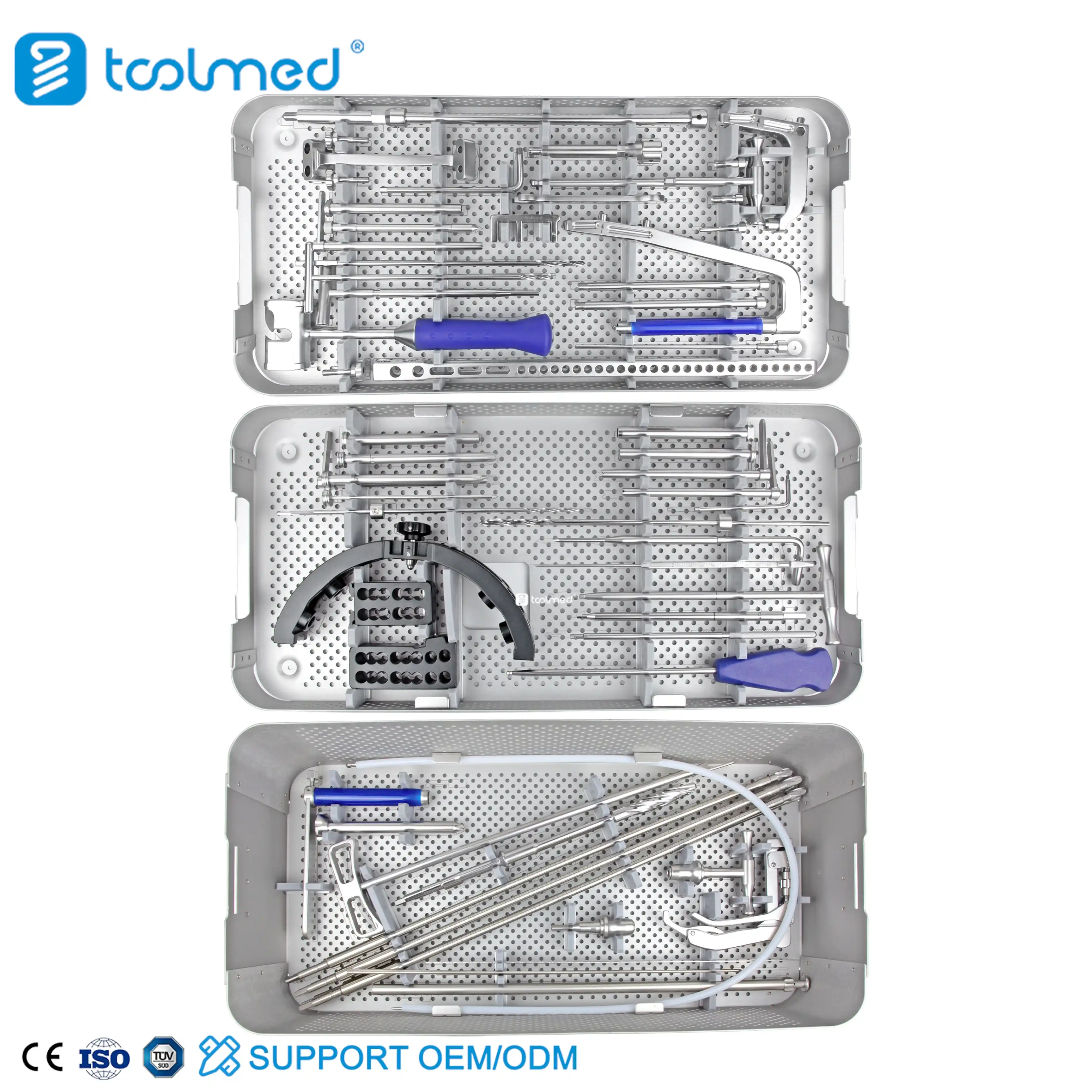

The TOOLMED Suprapatellar Approach Tibial Intramedullary Nail Instrument Set is a cutting-edge surgical system designed for the intramedullary fixation of tibial fractures through a suprapatellar (above the kneecap) entry point. This innovative set is engineered to facilitate nailing while the knee is in a semi-extended or extended position, which significantly simplifies fracture reduction and fluoroscopic imaging compared to traditional infrapatellar techniques. The kit features a sophisticated multi-component protection sleeve system that shields the patellofemoral joint and intra-articular structures throughout the reaming and insertion process. It includes extra-long cannulated drills, specialized trocars, and a dedicated suprapatellar targeting jig that accounts for the extended limb alignment. Manufactured from medical-grade 17-4PH stainless steel and radiolucent carbon fiber, the system ensures high-precision targeting and exceptional durability. Housed in a comprehensive modular sterilization tray, the TOOLMED Suprapatellar Set is the premium choice for trauma surgeons seeking to minimize surgical complexity and improve anatomical alignment in complex tibial shaft and metaphyseal fractures.
1200-14
TOOLMED
Aluminium Alloy
1 Pcs
5-15 Days
/
Product Description
Features a specialized nested sleeve design that creates a safe corridor through the suprapatellar pouch, preventing any contact between the reamers/nail and the articular cartilage.
The set is optimized for surgery with the knee flexed only 15-20 degrees, which neutralizes the deforming forces of the quadriceps and makes fracture reduction significantly easier.
Includes high-tensile, extra-long cannulated drills and reamers specifically designed to reach the tibial entry point from the suprapatellar starting zone with zero deviation.
Equipped with a long-offset carbon fiber targeting arm that ensures perfect distal locking while keeping the surgeon's hands away from the primary X-ray beam.
The set is primarily indicated for fractures in the proximal or distal metaphysis where the extended position prevents the "procurvatum" deformity common in infrapatellar nailing.
Specifically indicated for complex shaft fractures (AO/OTA 42-C) where maintaining reduction is difficult in a hyper-flexed knee position.
Indicated for patients where traditional infrapatellar access is hindered by soft tissue volume or where the patient's other injuries prevent deep knee flexion.
Contains the specialized tools indicated for cases where the knee joint must remain stable and accessible for simultaneous femoral or ligamentous procedures.
| Product Name | Suprapetellar Approach Tibial Intramedullary Nail Instrument Set |
| Material | Aluminium Alloy |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-15 Days |
| Shipping | DHL EMS UPS TNT FEDEX |
The Suprapatellar Approach Tibial Intramedullary Nail Instrument Set is a specialized surgical toolkit designed for treating tibial fractures through a portal located above the patella. This system represents a major shift in orthopedic trauma, moving the entry point from the traditional infrapatellar tendon area to the suprapatellar pouch. The set functions as a protective and guiding system, containing long-reach instruments and a critical multi-layer sleeve system that prevents damage to the knee's internal cartilage. By allowing the surgery to be performed in a semi-extended position, the set minimizes the physical strain on the surgical team and improves the accuracy of fracture reduction. Manufactured from medical-grade 17-4PH stainless steel and high-modulus carbon fiber, the set provides the technical precision required for this advanced intra-articular approach.
This instrument set is primarily applied in the surgical stabilization of tibial shaft and metaphyseal fractures. It is an essential application for proximal third tibial fractures, where the extended position helps the surgeon prevent the common varus or procurvatum deformities associated with flexed-knee nailing. The set is also widely applied in polytrauma scenarios where a patient cannot be placed in deep knee flexion due to other injuries. In clinical practice, the set is utilized with a radiolucent table to allow for seamless C-arm imaging in both AP and lateral planes without the need for constant limb repositioning. Additionally, it is applied in obese patients to avoid the technical difficulty of retracting the patellar fat pad and tendon, making it a versatile application for modern trauma centers.
The primary advantage of the TOOLMED Suprapatellar Set is the significantly improved fracture reduction control provided by the extended knee position. This position neutralizes the pull of the quadriceps, which is a major advantage for maintaining alignment throughout the reaming process. The specialized protection sleeve system offers a critical advantage by ensuring that the patellofemoral joint is never touched by the rotating reamer or the nail itself, reducing postoperative knee pain. Another advantage is the ergonomic benefit to the surgeon, who can operate in a more natural standing position with clear fluoroscopic views. Furthermore, the set’s extra-long, high-precision drills provide the reach necessary for a safe entry from the suprapatellar zone, a key advantage over improvised infrapatellar tools.
Biomechanically, the instrument set facilitates the creation of a stable, load-sharing internal construct while preserving the mechanical integrity of the knee's extensor mechanism. The suprapatellar targeting jigs are biomechanically designed to ensure that the nail entry point is perfectly aligned with the tibial medullary canal's longitudinal axis, reducing "hoop stresses" at the proximal tibia. The extended-leg technique facilitated by the set is biomechanically superior for reducing distal and proximal fragments, as it minimizes the torsional and angular deforming forces acting on the fracture site. By ensuring the nail is perfectly centered, the instruments help distribute physiological loads evenly across the tibial cortices, promoting faster and more stable bone union.
The surgical technique begins with the knee in approximately 15-20 degrees of flexion on a radiolucent bolster. A small incision is made above the patella, and the set's specialized protection sleeve and trocar are advanced into the patellofemoral joint. Once the sleeve is positioned over the tibial plateau, the entry point is established with the extra-long cannulated awl. A guide wire is passed through the fracture, and the canal is reamed using the set’s extra-long flexible reamers through the protection sleeve. The tibial nail is then mounted to the suprapatellar inserter and advanced into the tibia. The targeting jig is used to place locking screws, and the protection sleeve is removed. Finally, the joint is irrigated to ensure no debris remains, and the incision is closed.
Postoperative care for the instrument set involves a rigorous protocol for cleaning and sterilizing the complex protection sleeves and extra-long cannulated tools. After surgery, the multi-part sleeves must be fully disassembled and cleaned with specialized wire brushes to remove all bone marrow and irrigation fluid. The extra-long drills require thorough internal lumen cleaning using ultrasonic processing. All components are then sterilized in a steam autoclave at 134°C. For the facility, it is critical to regularly inspect the protection sleeves for any surface wear or burrs that could irritate soft tissue. Proper maintenance of the suprapatellar set ensures its high-precision tolerances are preserved, guaranteeing surgical safety and efficiency for future extended-position tibial procedures.
The TOOLMED Suprapatellar Approach Tibial Intramedullary Nail Instrument Set is a transformative system for the management of tibial fractures. By providing the specialized protection and reach required for the suprapatellar technique, this set ensures that surgeons can achieve superior fracture reduction and reduced postoperative pain, ultimately leading to better functional outcomes for the patient.
Our set includes a specialized multi-layer protection sleeve that shields the patellofemoral joint. When used correctly, the instruments never touch the articular cartilage, significantly reducing the risk of long-term joint issues.
The semi-extended position (15-20°) neutralizes the pull of the quadriceps muscle, which normally tilts the proximal tibial fragment. This makes it much easier to maintain fracture reduction during the nailing process.
Yes, the set includes extra-long cannulated drills and reamers designed specifically to reach the tibial entry point from the suprapatellar incision, which is further away than the traditional infrapatellar site.
Absolutely. The set includes a high-precision targeting arm designed to work with the extended limb, allowing for both proximal and distal locking under fluoroscopic guidance.
While primarily for trauma, this set can be used in cases where there is enough space above a knee prosthesis to establish the suprapatellar corridor, though careful pre-operative planning is required.
We offer fast and reliable global shipping. Standard lead times range from 7 to 15 working days, depending on order quantity and customization requirements. Express delivery options are also available upon request.
Yes, we ship to most countries worldwide. We work with trusted logistics partners to ensure timely and secure delivery.
We accept a variety of payment options, including T/T (bank transfer), L/C, and PayPal for smaller orders. Payment terms can be discussed based on order volume and partnership agreements.
Yes, samples are available for evaluation. Please contact our sales team to request product samples and shipping arrangements.
Absolutely. We offer OEM/ODM services including custom packaging, branding, and product development tailored to your specifications.
