Large Torque Drill (For Joints) T-01

Large Torque Drill (For Joints) T-01 Overview

Large Torque Drill (For Joints) T-01 Features and Benefits

High Torque Output

Features a powerful motor optimized for torque rather than speed, ensuring consistent performance when drilling through dense cortical bone or engaging high-resistance reamers, preventing stalls and maximizing efficiency.

Ergonomic and Autoclavable Design

The T-01 is sealed and designed to be fully immersed and sterilized in an autoclave, meeting stringent OR requirements. The ergonomic housing reduces hand fatigue and enhances grip, ensuring secure handling during demanding procedures.

Variable Speed and Direction Control

Provides a trigger with smooth, variable speed control, enabling the surgeon to transition precisely between drilling modes. Includes a forward/reverse switch crucial for tapping screw threads or removing instruments safely.

Quick-Change Chuck System

Equipped with a secure, rapid-release chuck system compatible with a wide range of industry-standard drill bits, reamer heads, and k-wire attachments, allowing for rapid instrumentation changes during the surgery.

Large Torque Drill (For Joints) T-01 Indications

Total Joint Arthroplasty (THA/TKA)

Essential for preparing the femoral and tibial surfaces, reaming the acetabulum, and general bone drilling during hip and knee replacement procedures.

Major Trauma and Fracture Fixation

Used for drilling pilot holes for large-diameter orthopedic screws, pins, and intramedullary nails required in the treatment of complex long bone fractures.

Orthopedic Bone Preparation

General bone drilling and reaming tasks requiring significant rotational power and control across all major orthopedic subspecialties.

Large Torque Drill (For Joints) T-01 Specifications

Maxmium Speed	0-290 rpm for joints
Gripping Diameter	0.8-8mm. Struker Quick Coupling
Operating Voltage	110V /220V

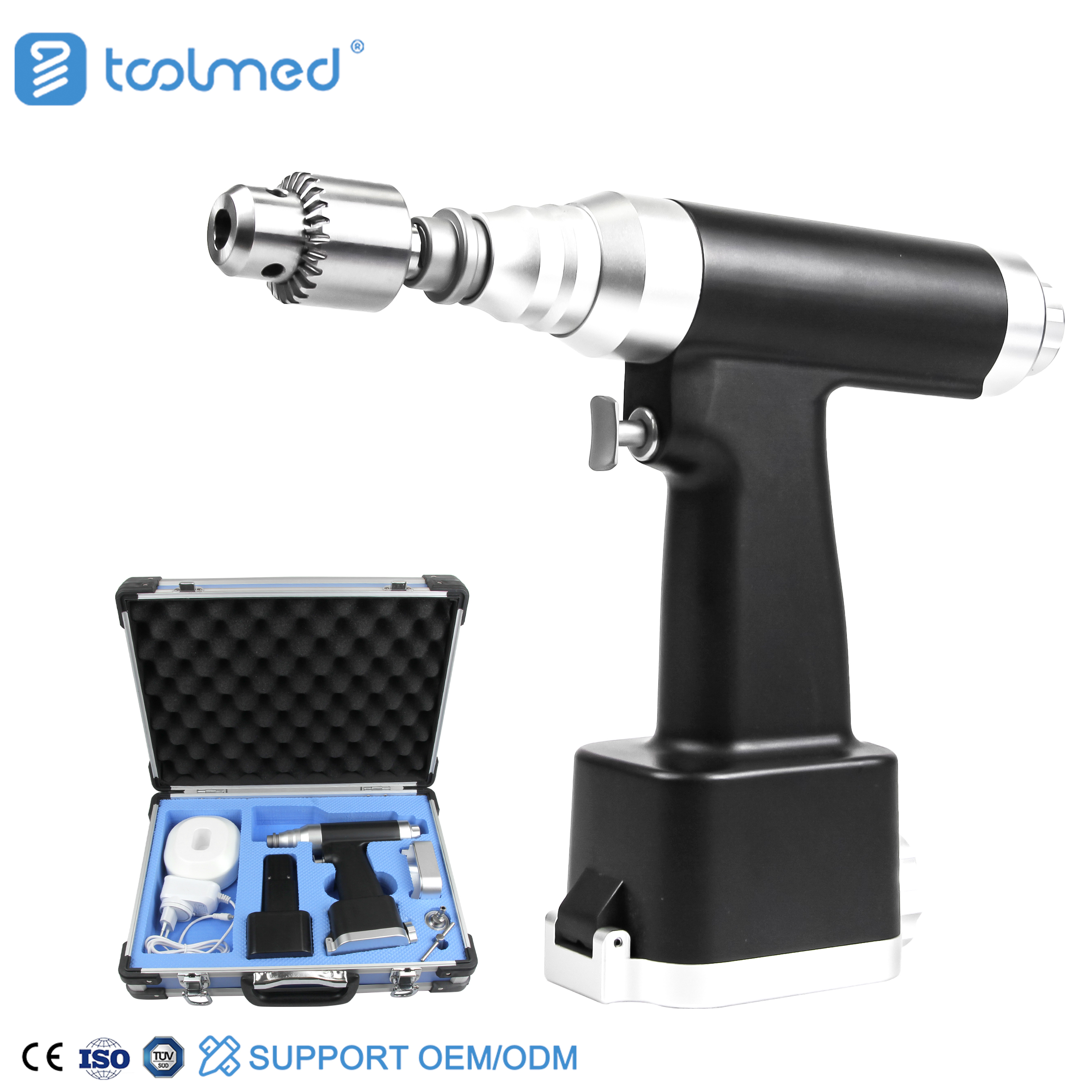

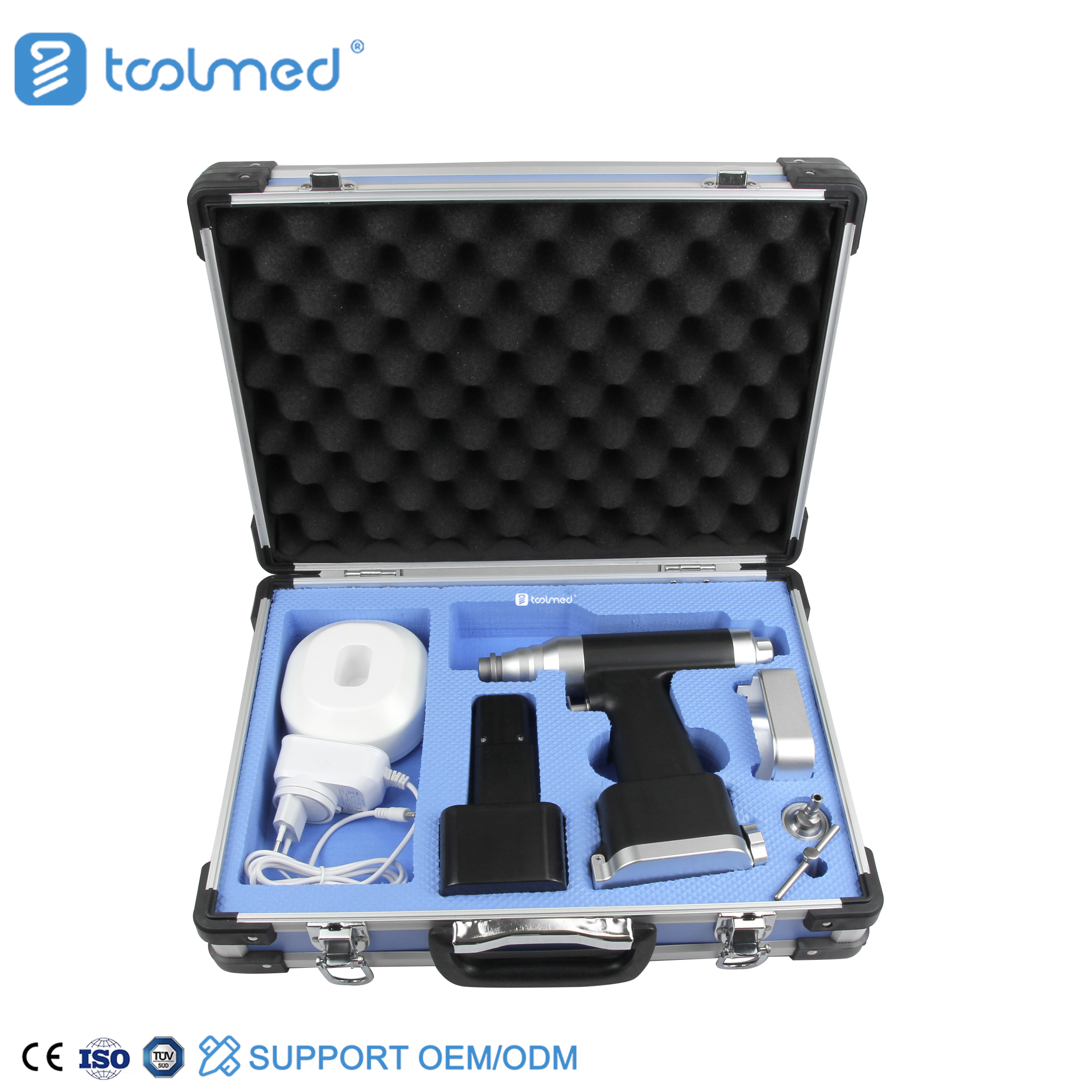

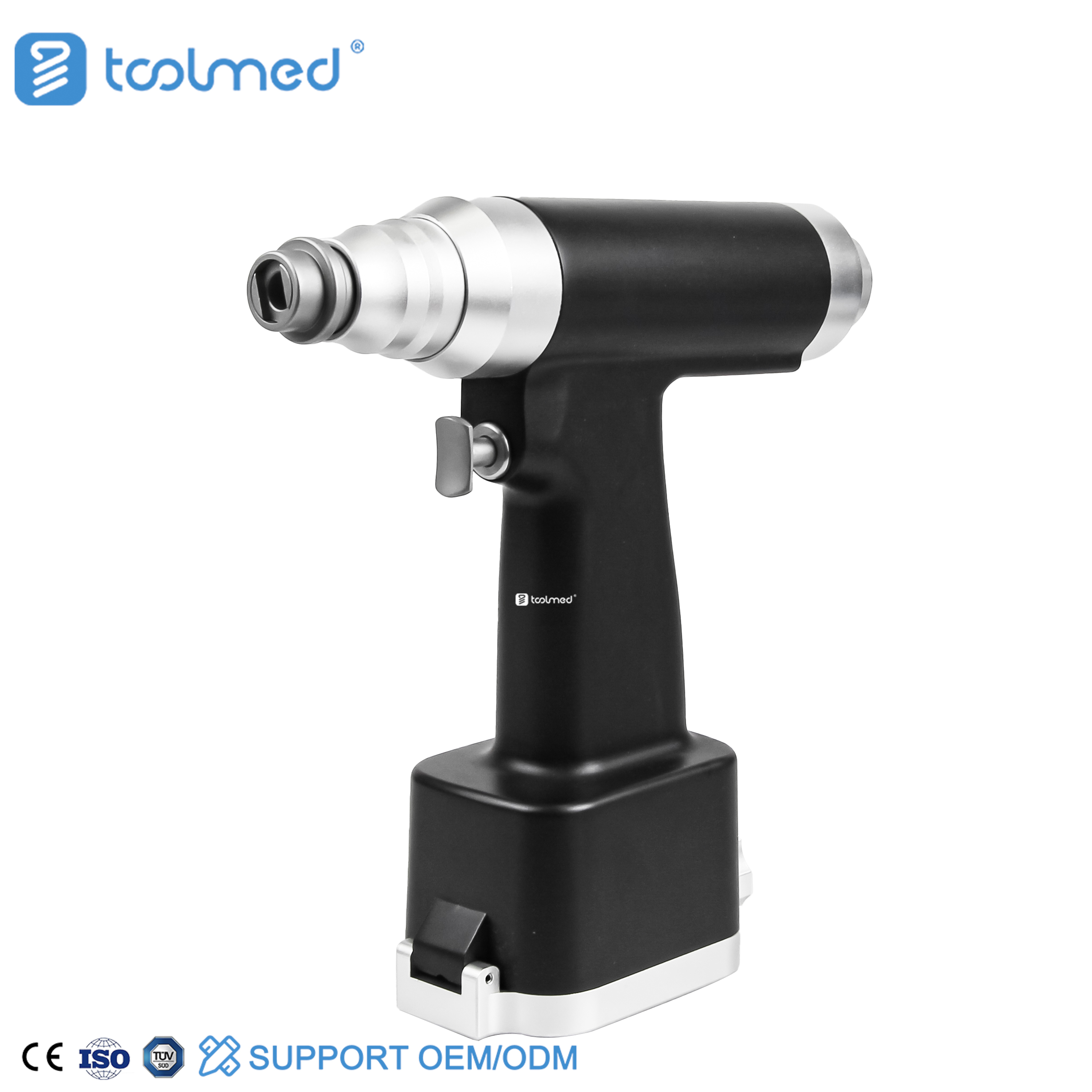

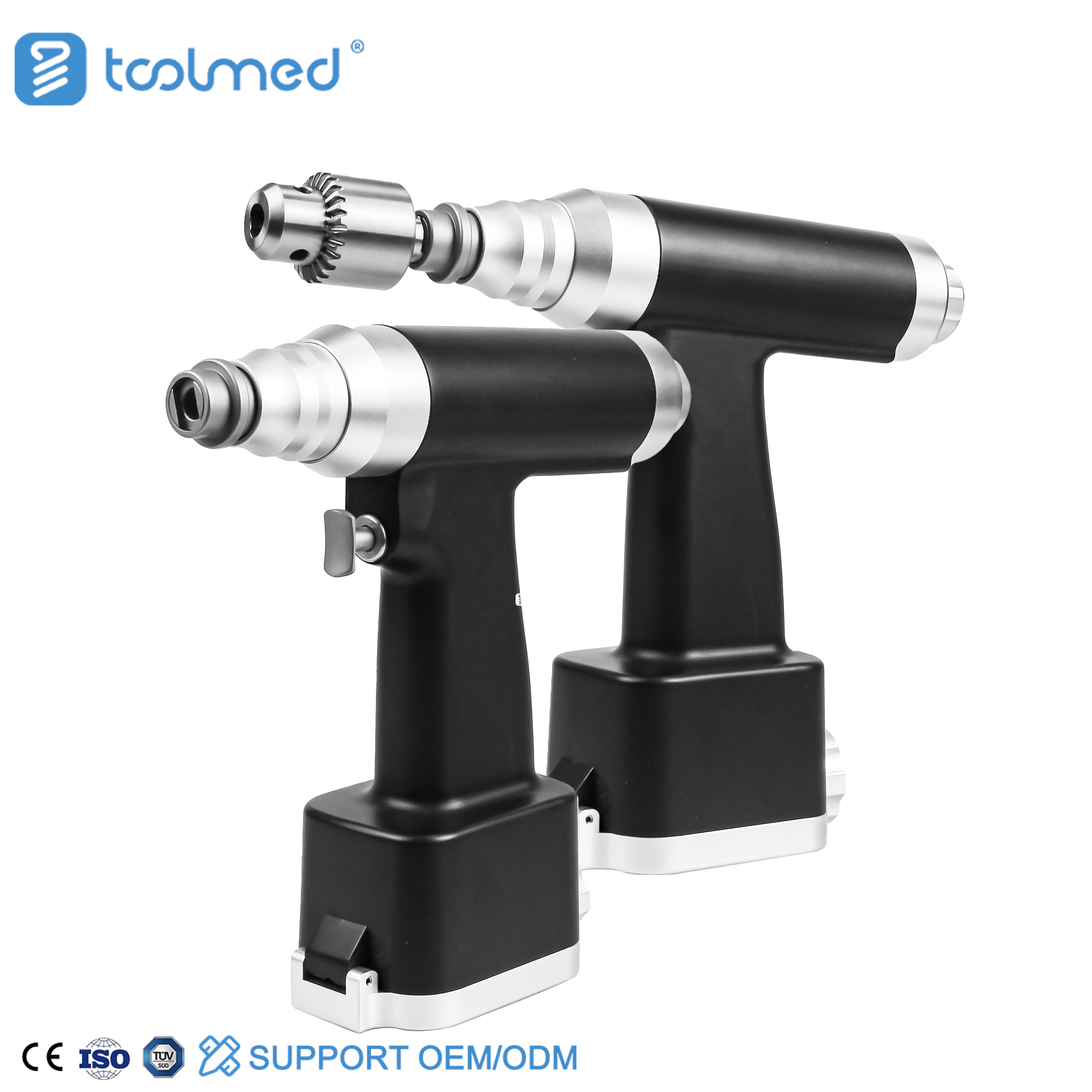

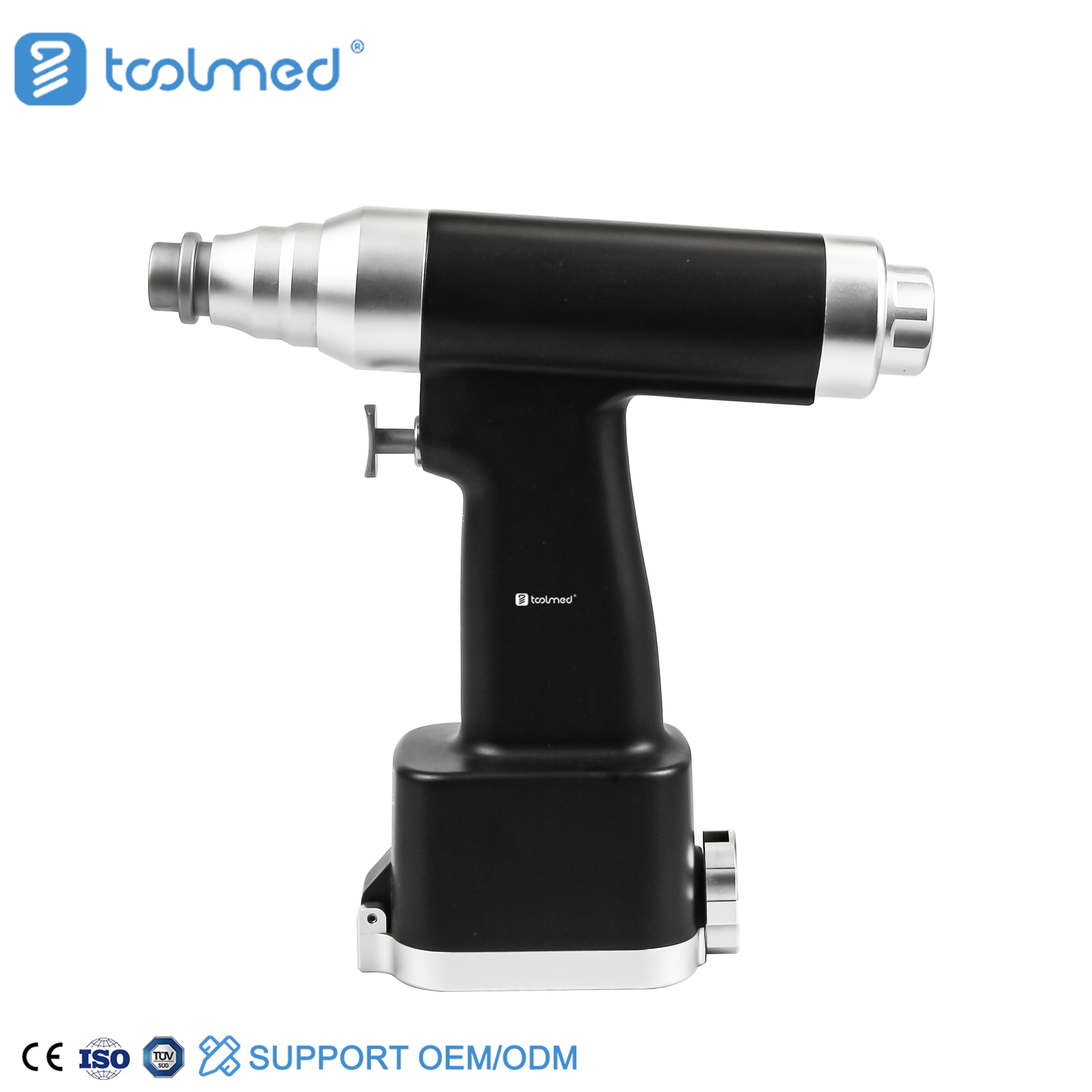

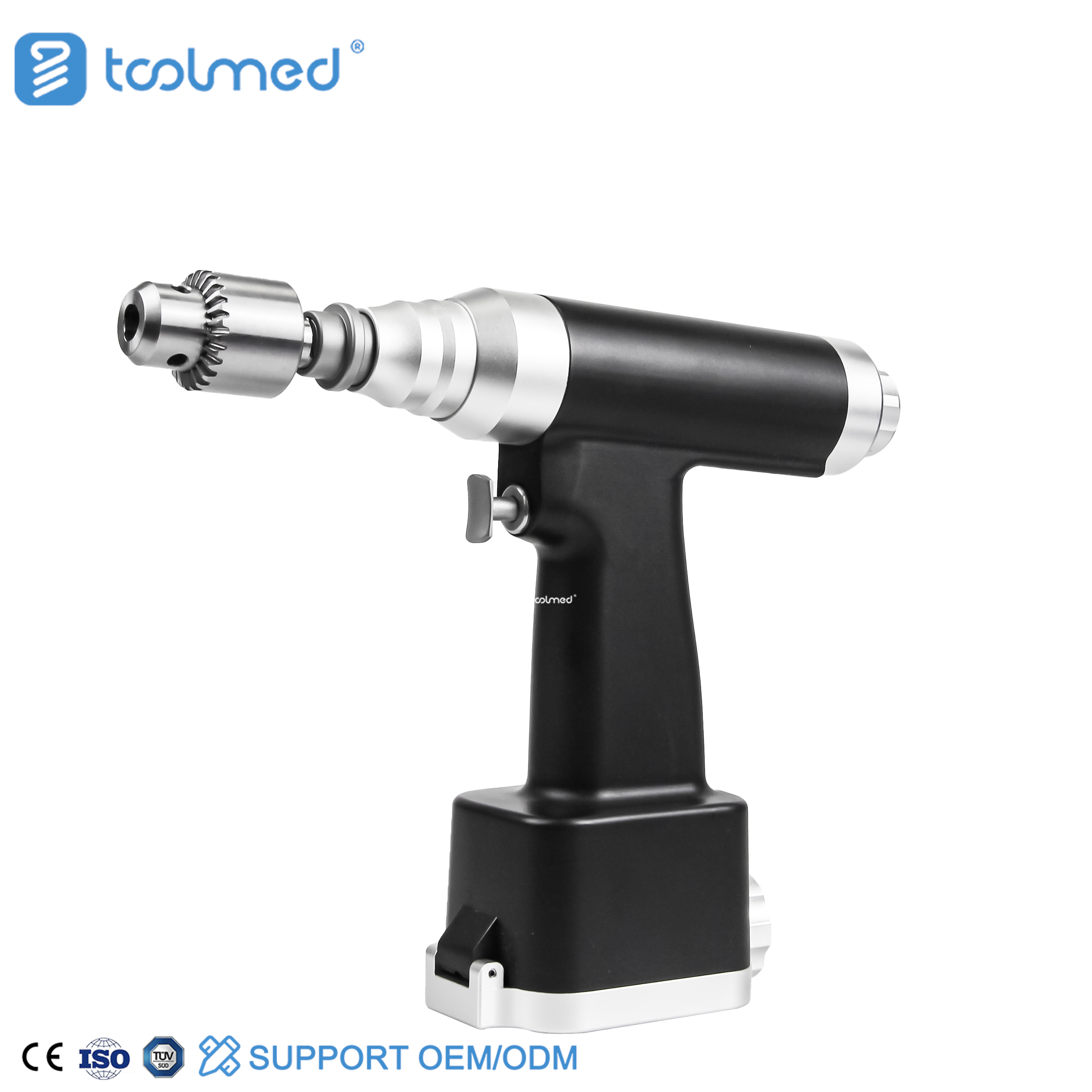

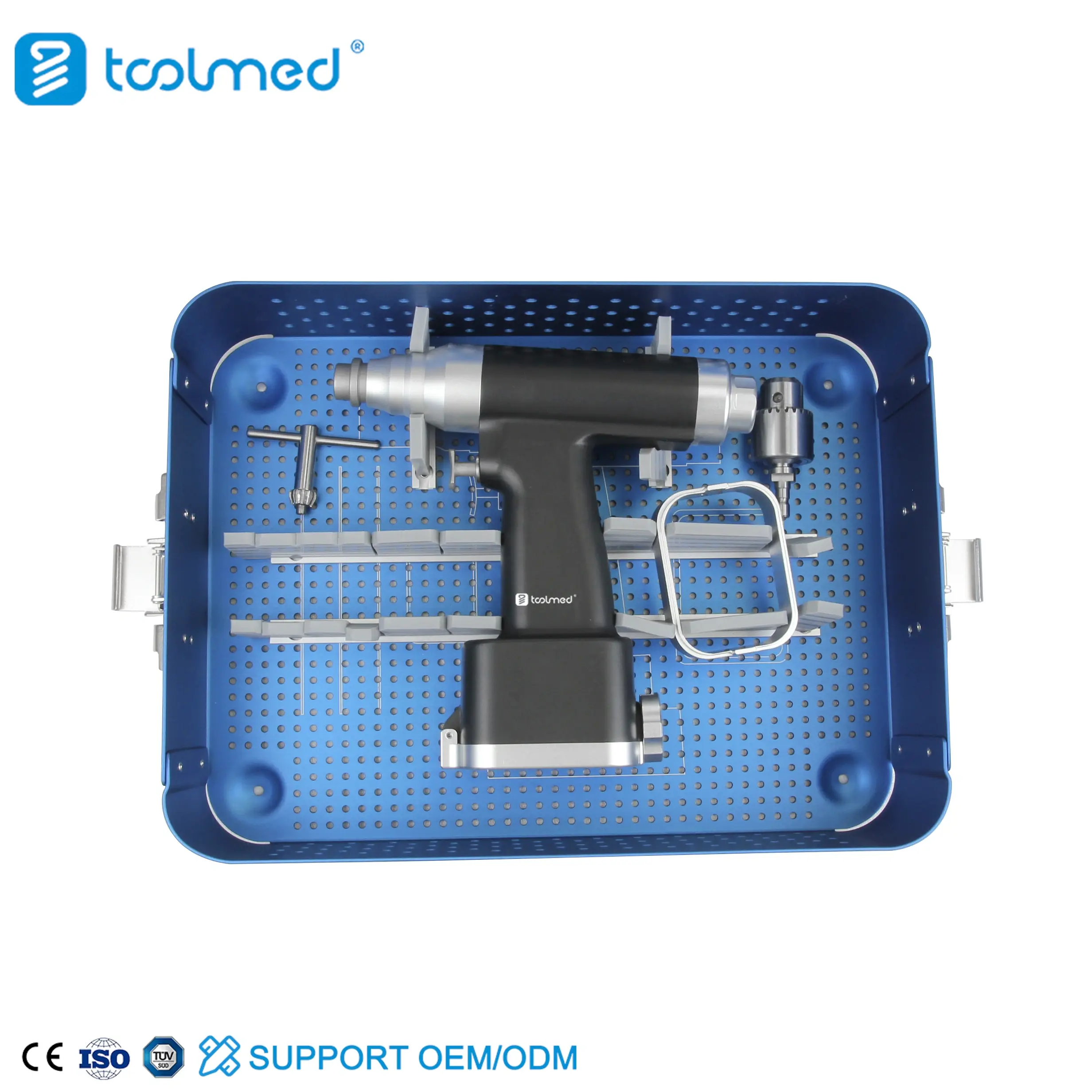

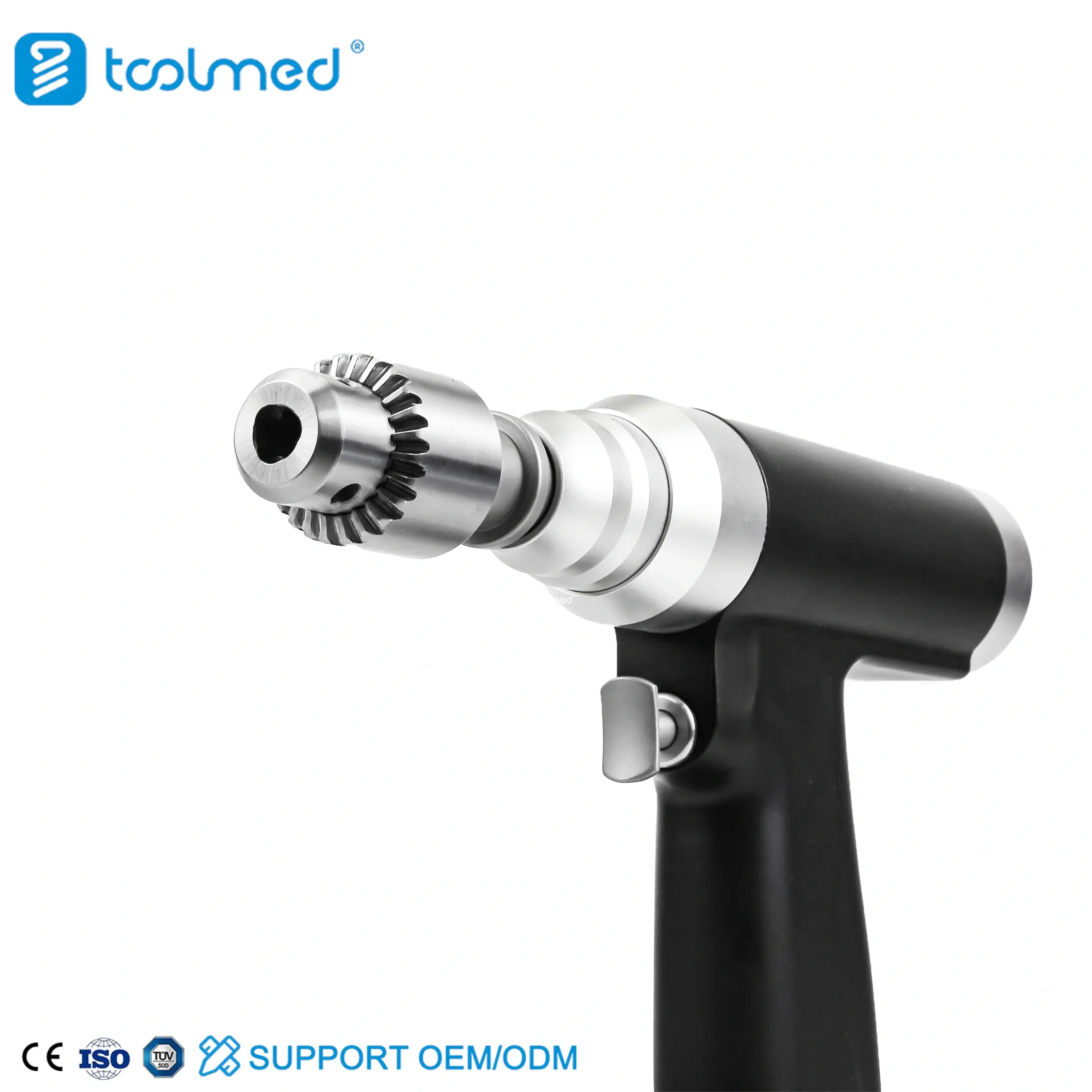

Actual Pictures of Large Torque Drill (For Joints) T-01

Large Torque Drill (For Joints) T-01 Insights

What is the Large Torque Drill (For Joints) T-01?

The Large Torque Drill T-01 is a purpose-built surgical power tool. Unlike high-speed drills used in neurological or small bone surgery, this drill is optimized for low-speed, high-resistance tasks required in large joint and long bone surgery. Its high torque output allows it to penetrate dense cortical bone efficiently without binding, which is critical for preparing the bone accurately before implant insertion.

Applications of Large Torque Drill (For Joints) T-01

High torque is essential when reaming the femoral canal for a hip stem or performing deep, large-diameter drilling. If the drill lacks sufficient torque, it can stall when meeting resistance, potentially causing heat damage to the bone (thermal necrosis) or requiring excessive pressure from the surgeon, leading to fatigue and reduced control.

Advantages of Large Torque Drill (For Joints) T-01

The Large Torque Drill (For Joints) T-01 offers significant advantages in CMF surgery. The titanium construction provides strong, corrosion-resistant, and biocompatible fixation. The low-profile design minimizes the risk of implant visibility or irritation, which is critical in the aesthetic region of the face. Furthermore, the system is designed to provide rigid fixation, which is crucial for promoting primary bone healing and reducing the risk of non-union or malunion of fractures.

Importance of Variable Speed Control

Variable speed control, managed by the pressure applied to the trigger, allows the surgeon to start drilling slowly for precise, controlled entry into the bone cortex, preventing skidding. Once the drill is engaged, the speed can be increased to rapidly complete the drilling, thereby minimizing overall operative time.

Surgical Technique of the Large Torque Drill T-01

In practice, the drill is used to create the initial pilot hole before tapping or final screw insertion. The high torque ensures the drill bit maintains a steady, clean cut. For reaming, the drill provides the rotational power needed to sculpt the bone cavity (e.g., in the hip socket) to the exact size and shape matching the prosthetic component.

Maintenance and Durability

Given the repeated exposure to high temperatures and pressures during sterilization, the T-01 is constructed from highly durable, corrosion-resistant materials (surgical stainless steel and high-grade plastics) with robust internal sealing to protect the motor and gearing, ensuring a long service life.

Conclusion

The Large Torque Drill (For Joints) T-01 from TOOLMED is a specialized workhorse in the operating room. By combining high torque, precision control, and exceptional durability, it provides orthopedic surgeons with the reliable power tool necessary for the critical bone preparation stages of complex joint and trauma surgeries.

FAQs of Large Torque Drill (For Joints) T-01

Is the T-01 suitable for drilling large orthopedic screws?

Yes, its high torque rating makes it ideal for drilling the necessary pilot holes for large-diameter screws (e.g., 6.5mm or 7.3mm cannulated screws) used in hip and long bone fracture fixation.

How is the drill sterilized?

The drill handpiece and attachments are typically sterilized via steam autoclaving. The battery pack usually requires a separate aseptic transfer technique before being inserted into the sterile handpiece.

Does the drill have a separate reamer function?

While the drill provides the core rotational power, it is compatible with quick-change reamer attachments, allowing the handpiece to function interchangeably as a drill and a power reamer.

What RPM range does the high torque setting operate at?

The T-01 operates in a lower RPM range (often up to 1000 RPM) when in high-torque mode. This slower speed maximizes rotational force for heavy bone work while minimizing heat generation.

What is the T-01's primary power source?

The T-01 is powered by advanced, rechargeable, surgical-grade Lithium-Ion batteries, known for their light weight and consistent power delivery throughout the surgical procedure.
