Product Description
The core safety mechanism: the clutch detects the reduction in resistance (as the bone is breached) and disengages the drill bit, preventing accidental plunging and protecting the underlying neural structures.
Operates at high RPMs, essential for cleanly and quickly drilling through the tough cortical bone of the skull while ensuring a smooth cut surface and minimizing frictional heat.
Designed with a compact head and balanced, lightweight body to maximize visibility and maneuverability around the surgical field, which is critical in neurosurgical procedures.

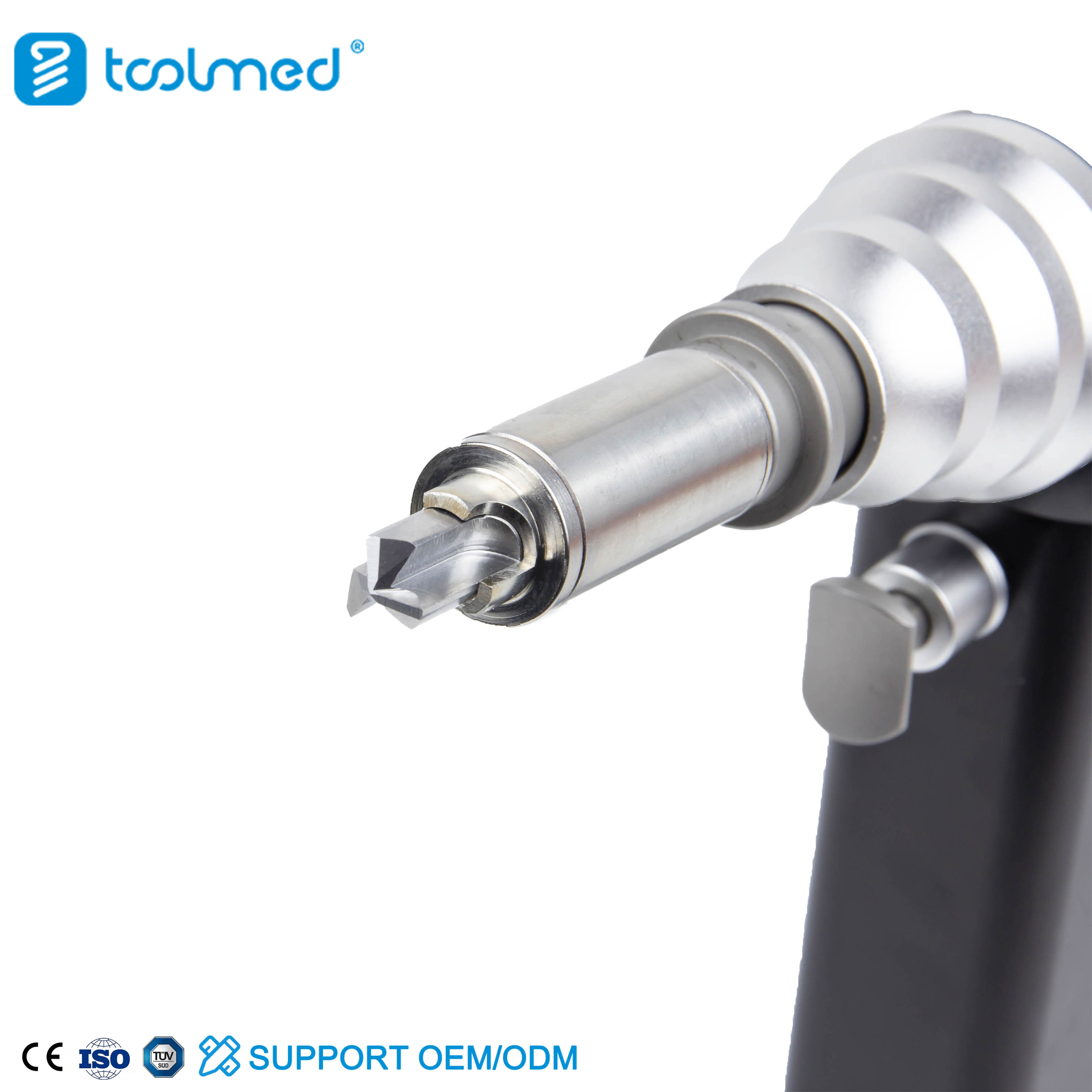

Features a secure, quick-lock mechanism compatible with specialized craniotomy burr tips and cranial perforators, allowing for rapid and safe instrument changes.
Used to create single or multiple access points in the skull for subsequent craniotomy cutting (using a craniotome) or for direct access (e.g., ventricular shunt placement).
Essential tool for rapid, safe access to the brain in neurosurgical emergencies, such as relieving acute subdural hematomas.
Applicable in craniofacial and reconstructive surgery where precise and safe bone drilling through thin bone is required.
（插入产品图片-组图形式）
（插入产品规格的列表）
（插入产品实拍图，多角度实拍，3-5张，做成组图）

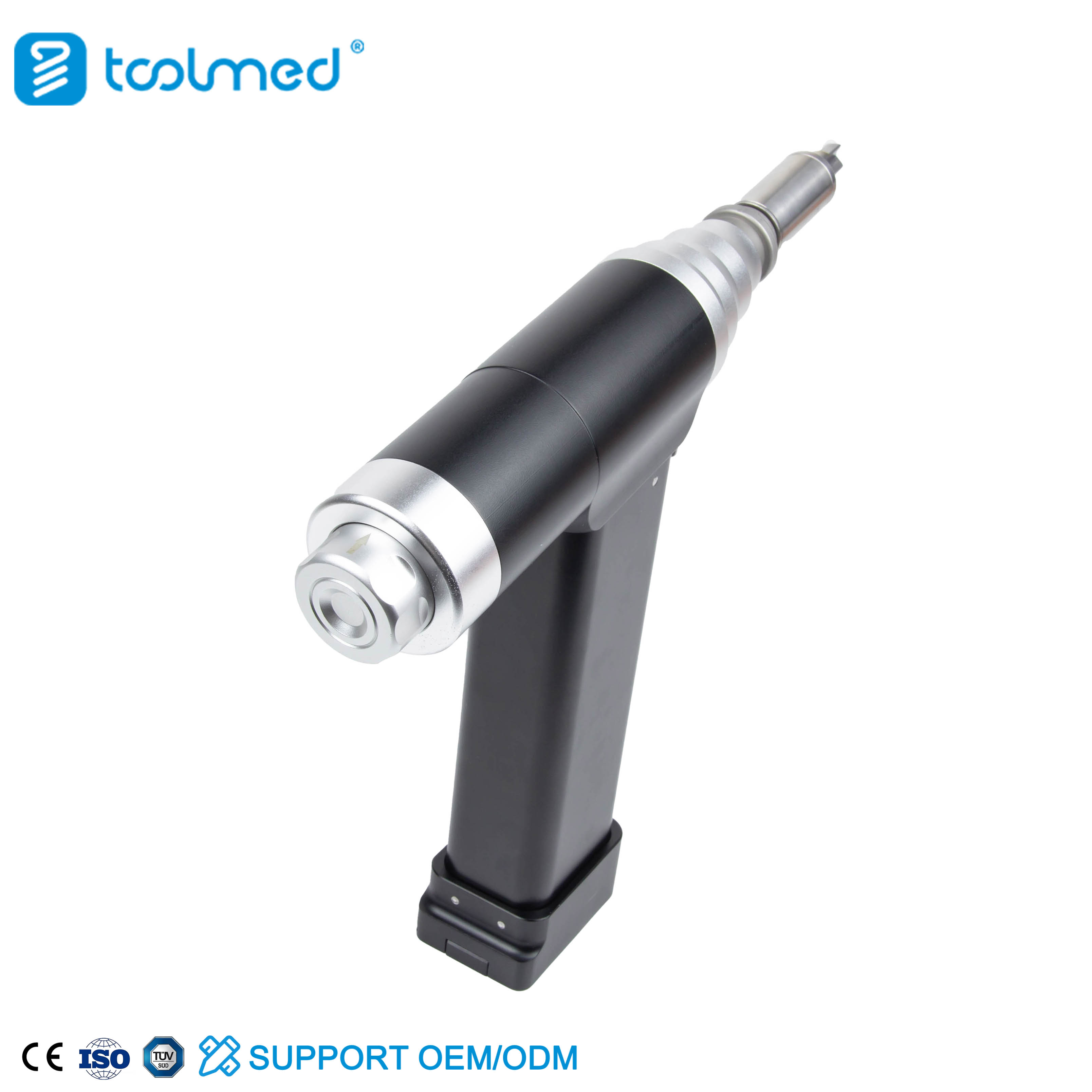

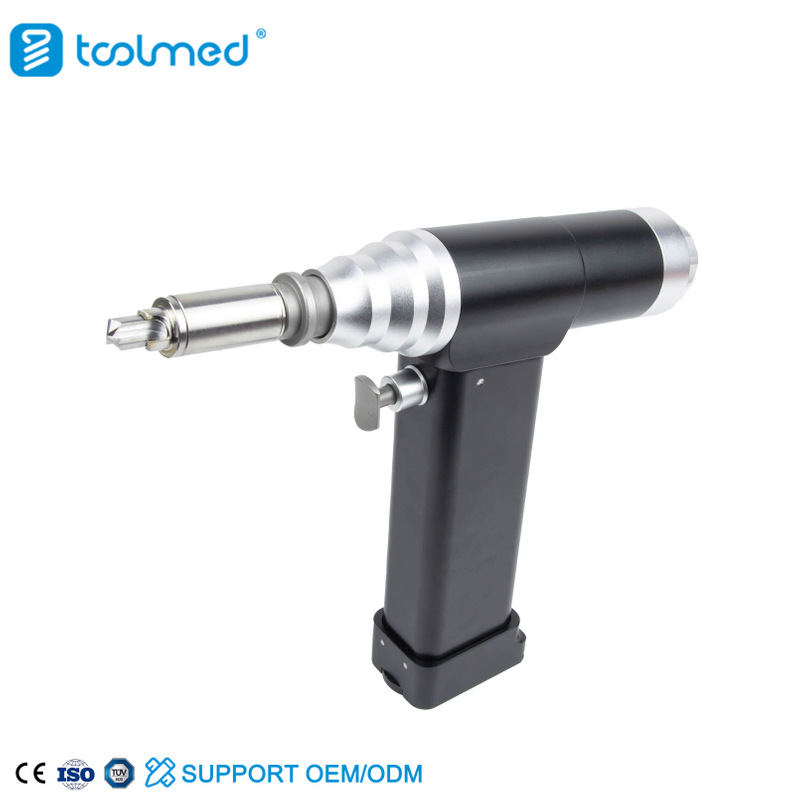

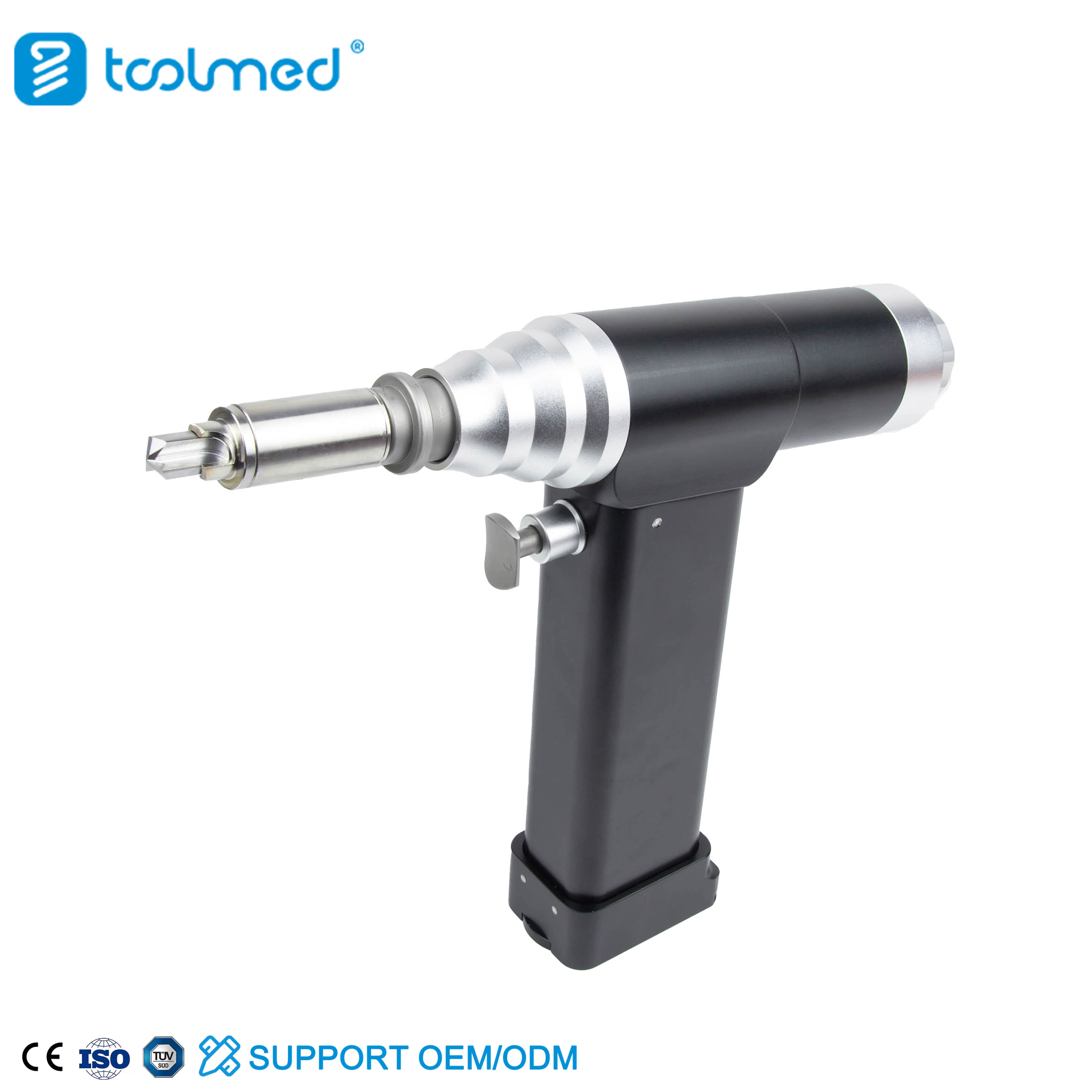

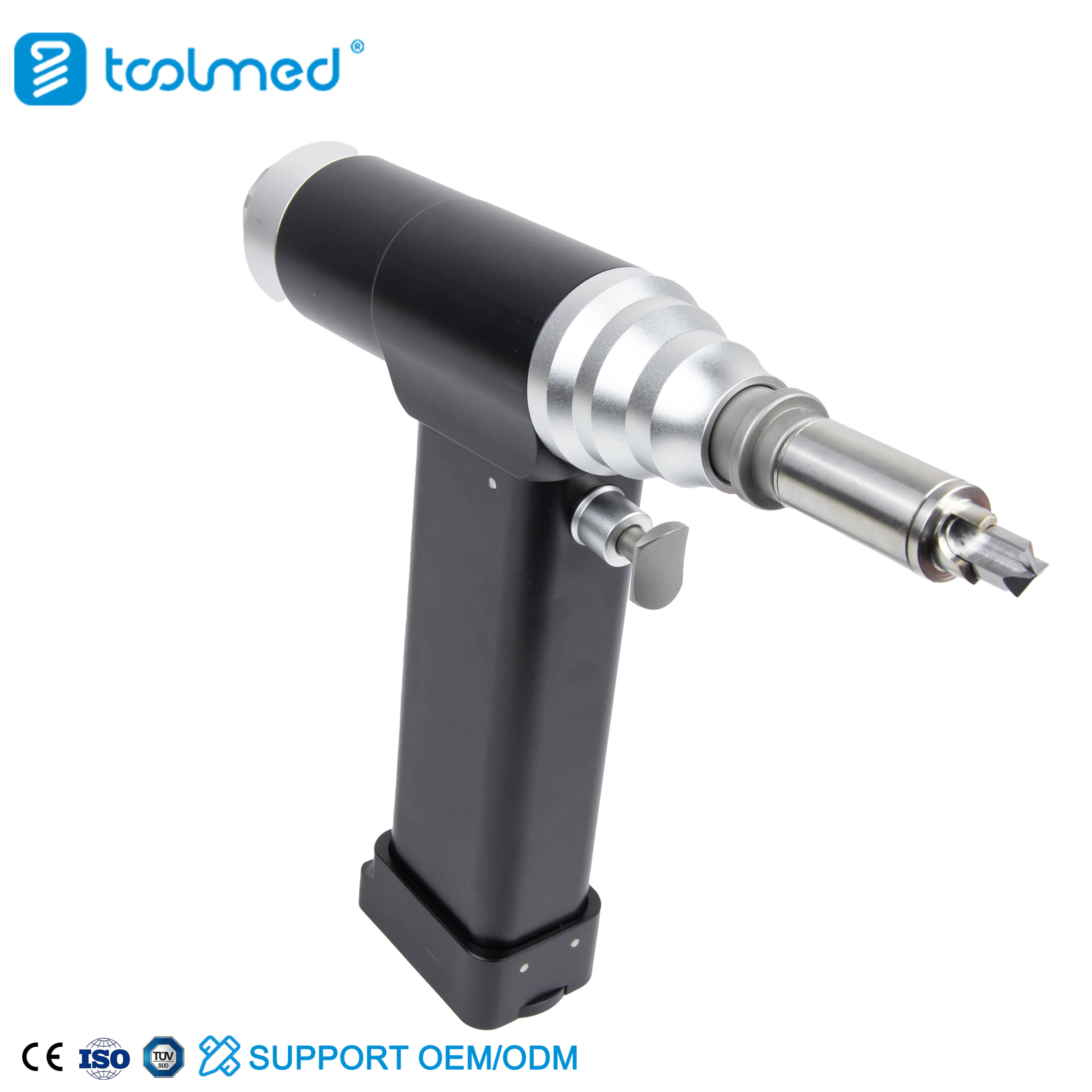

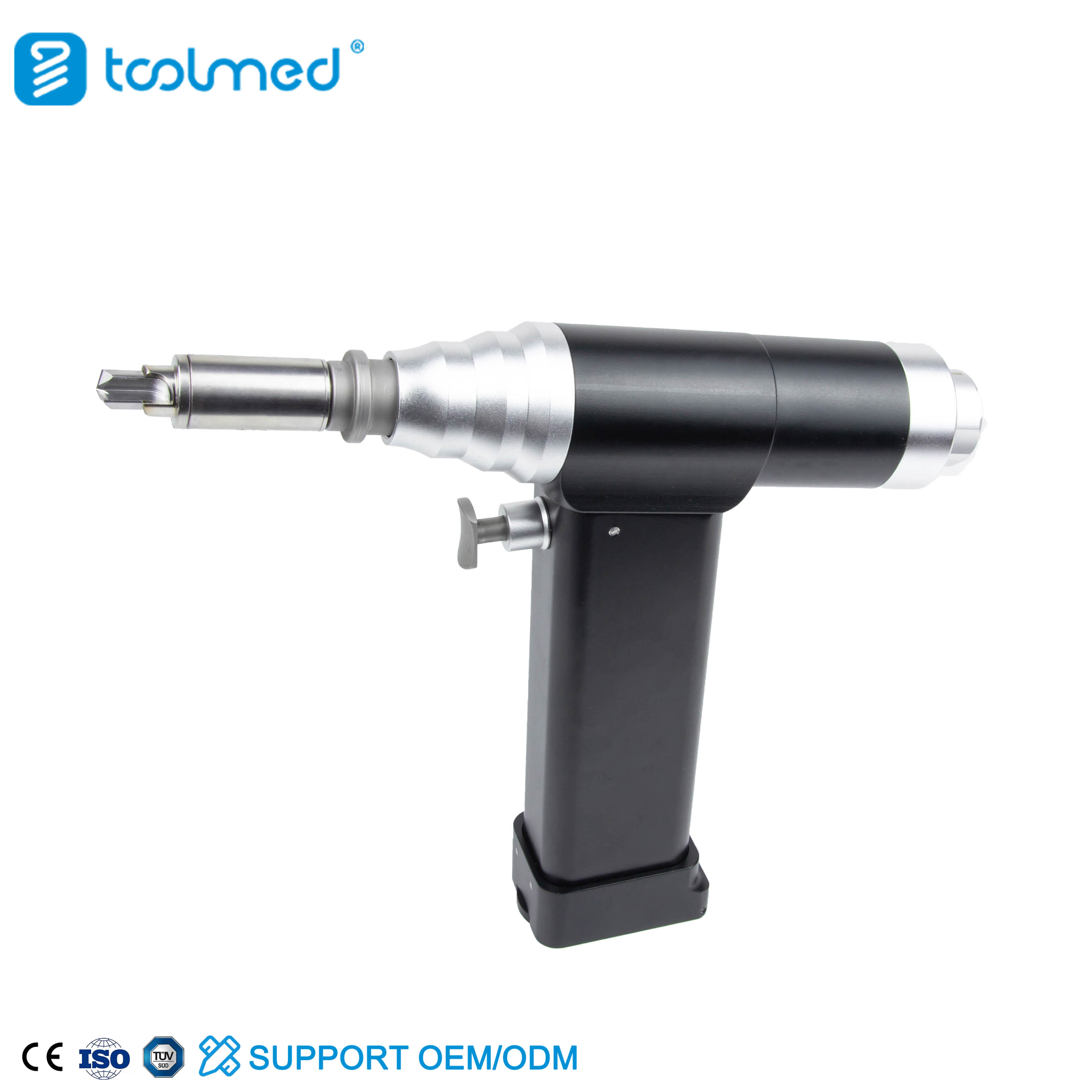

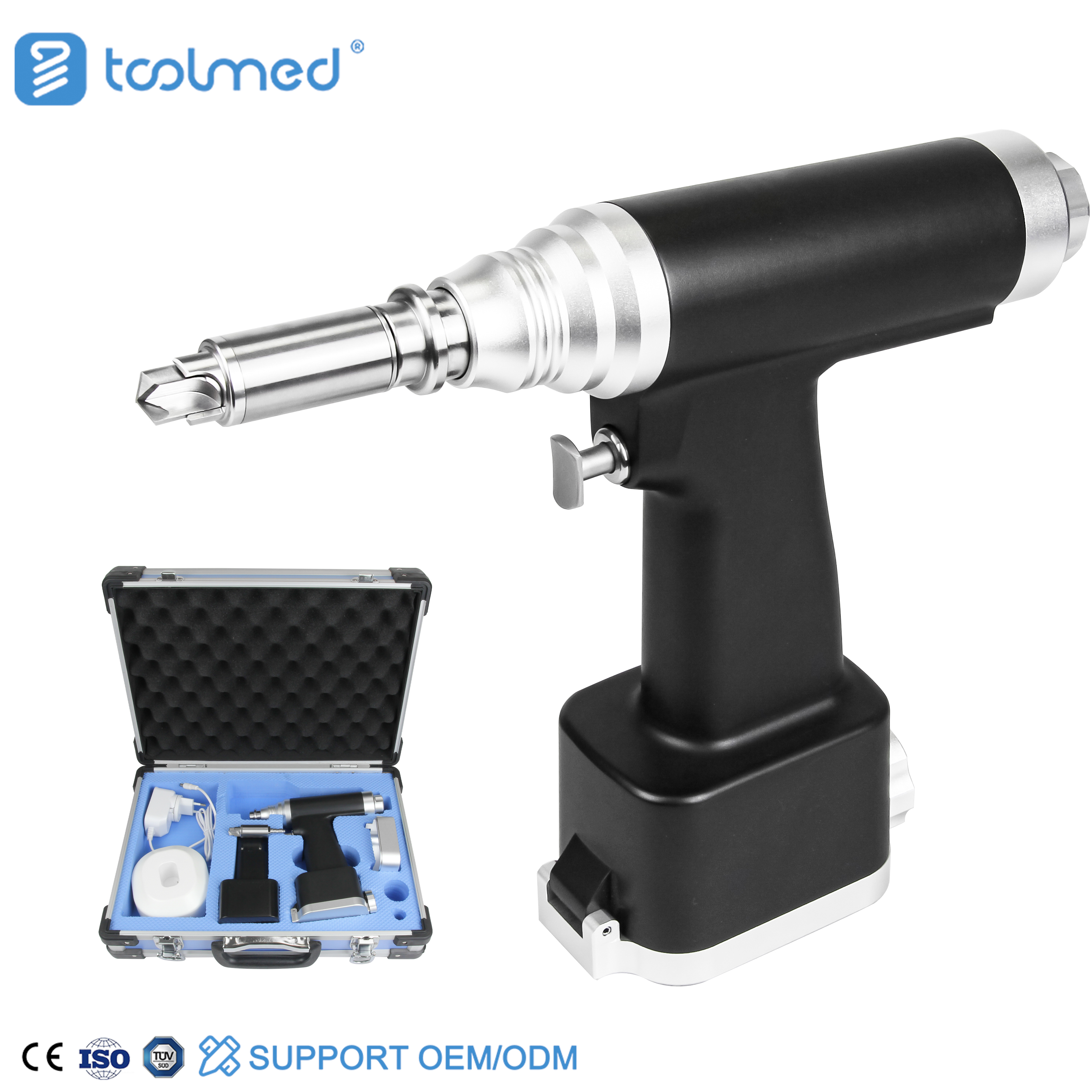

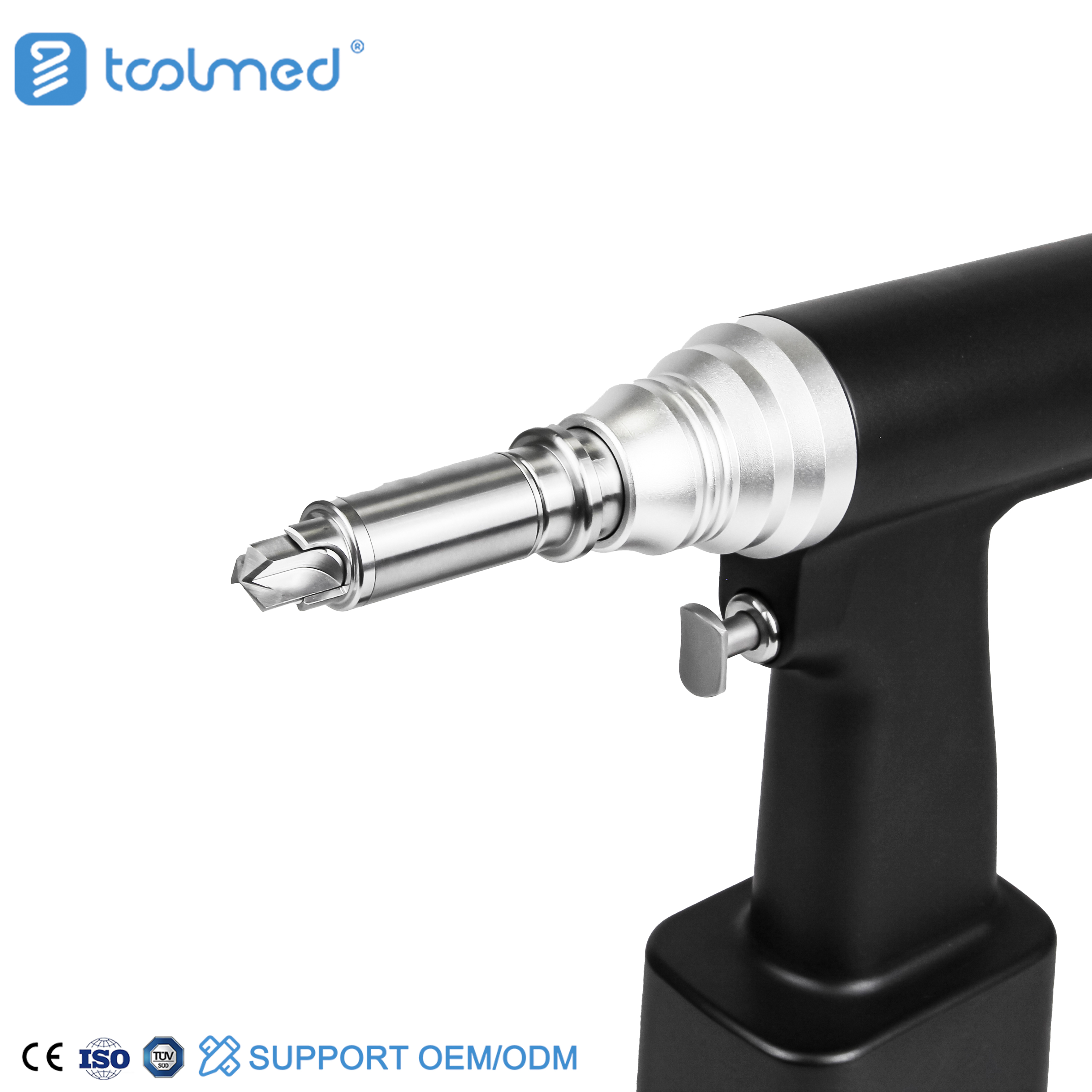

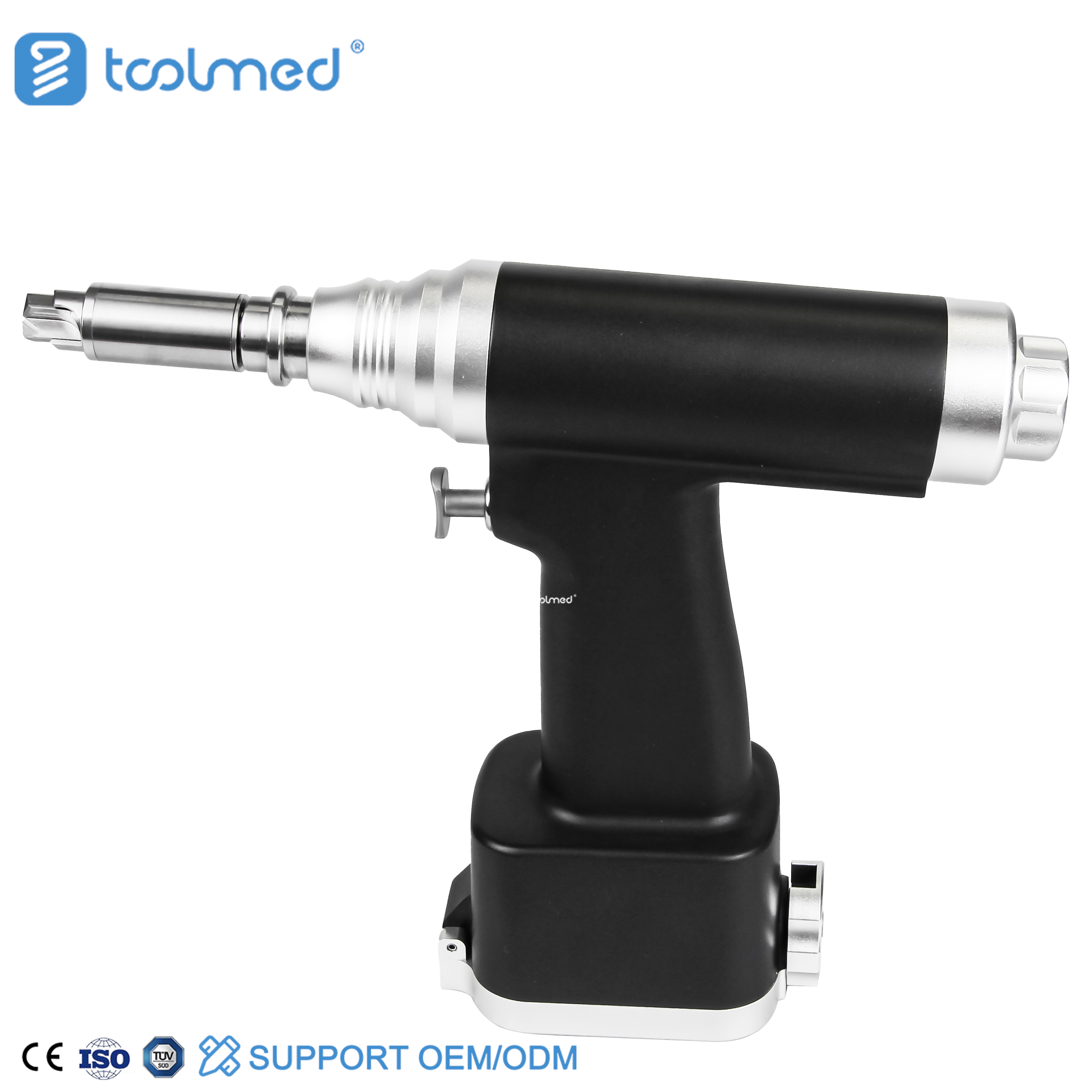

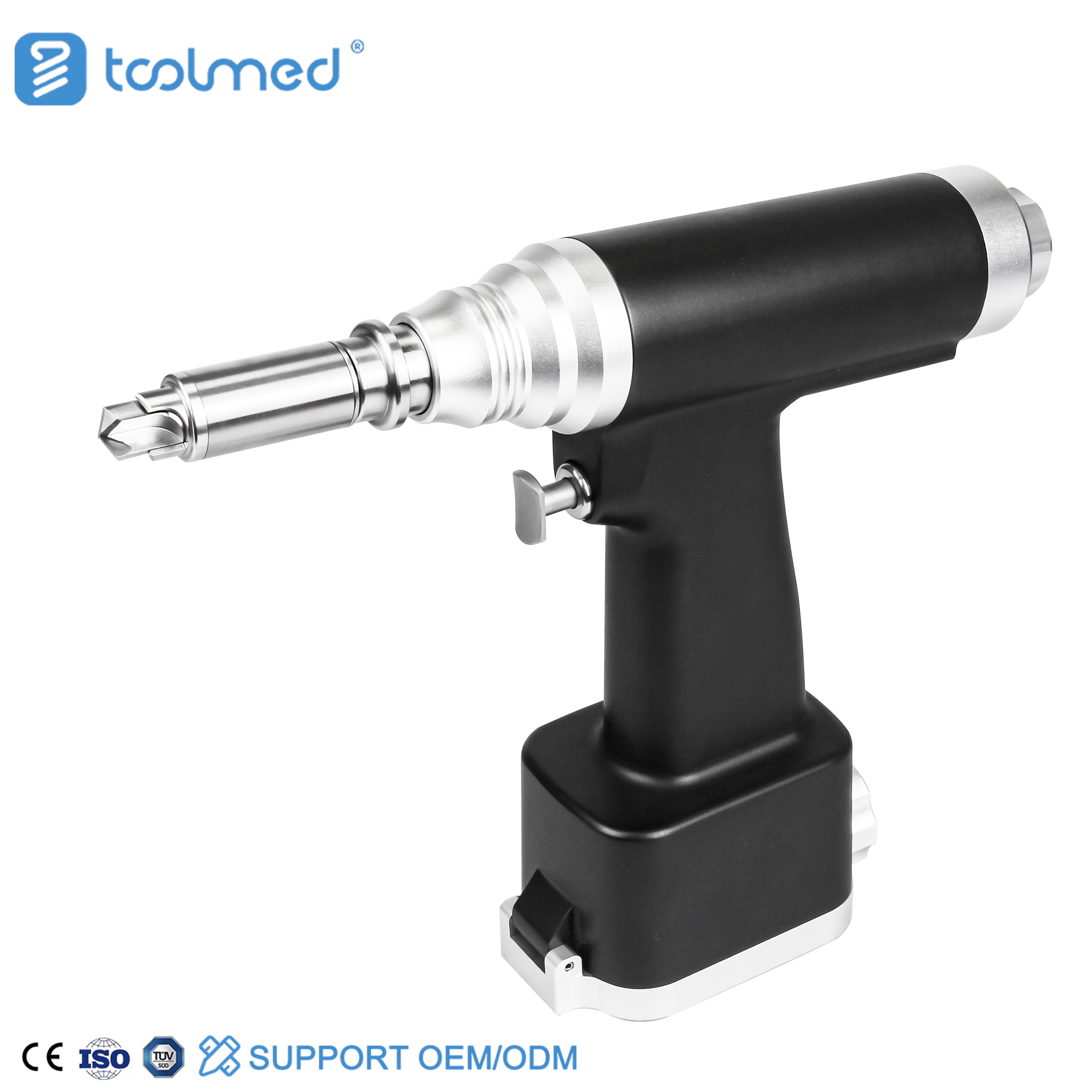

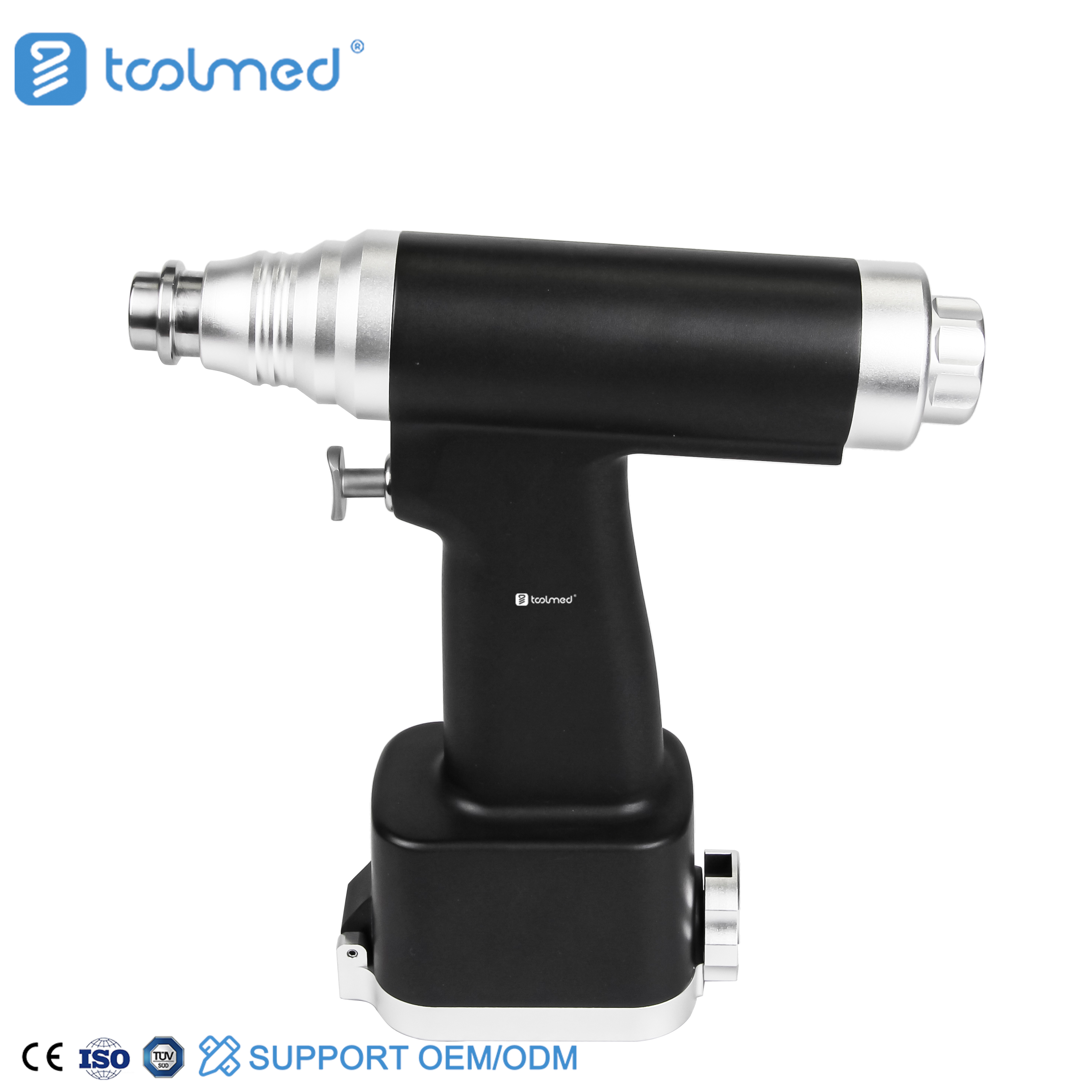

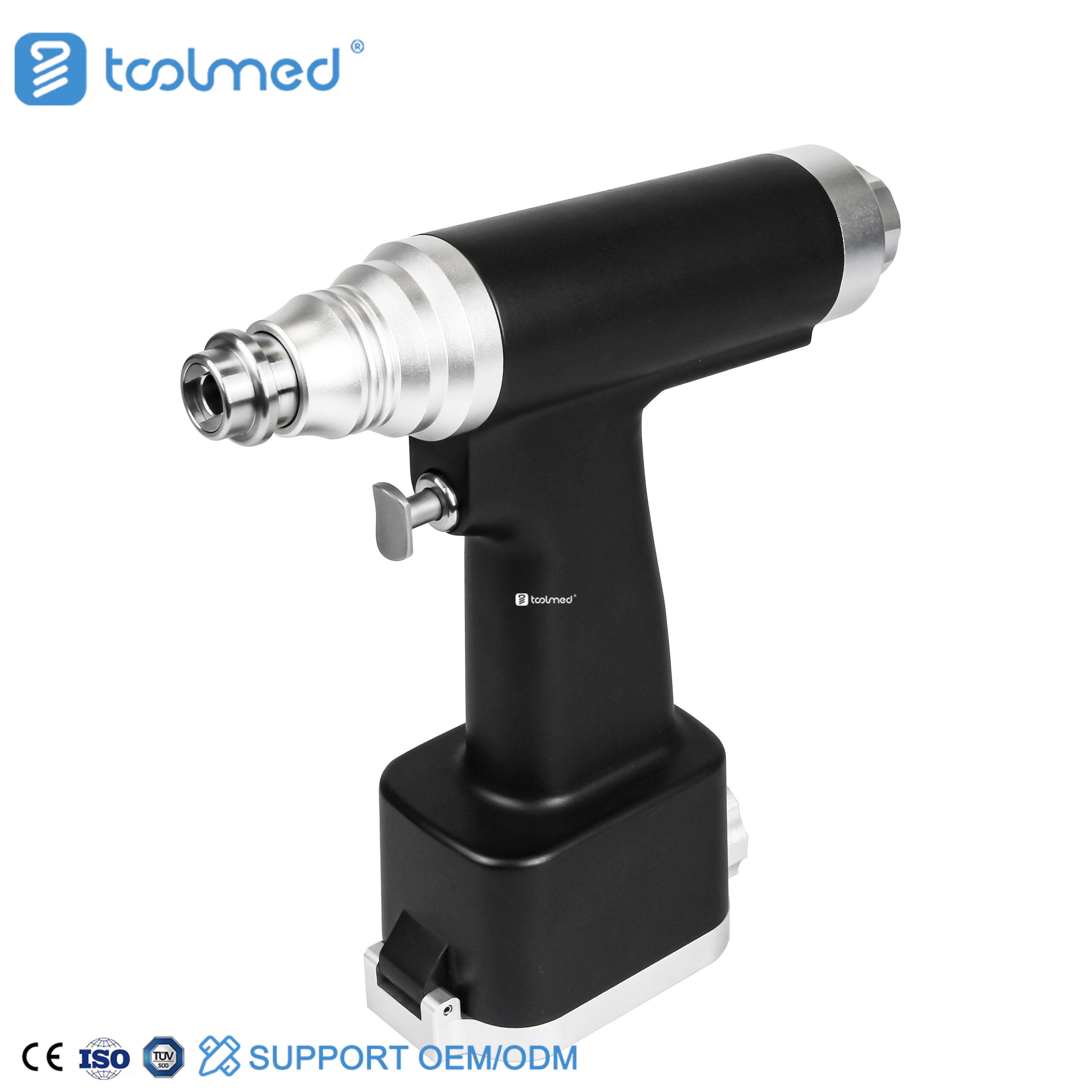

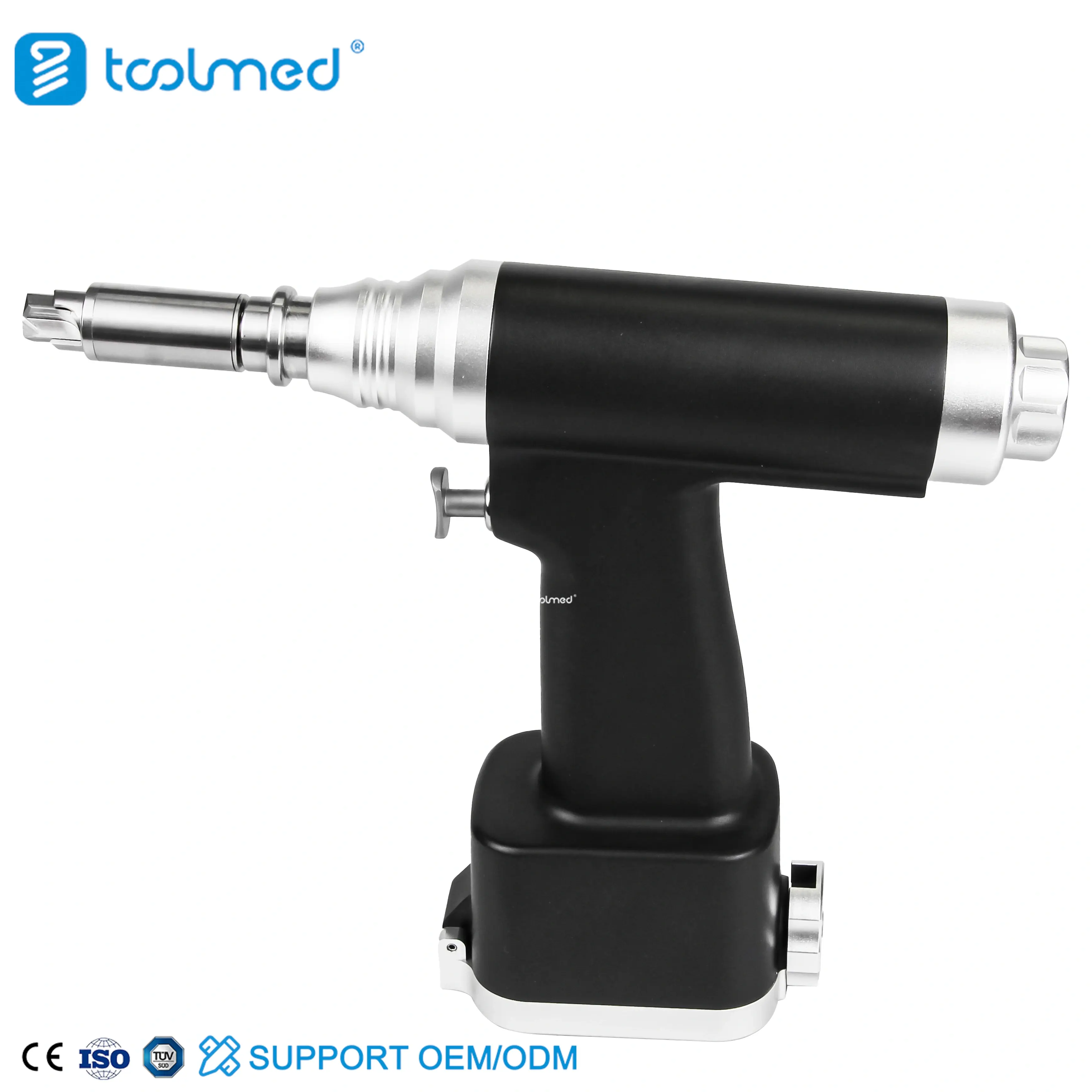

The Self-stopping Craniotomy Drill T-06 is a specialized high-speed surgical drill designed exclusively for penetrating the human skull. Its defining feature is a clutch system that automatically disengages the drill bit when the resistance of the bone gives way, preventing the perforator from plunging inward and injuring the delicate meninges (dura) and underlying brain tissue.
The primary application is in neurosurgery for creating burr holes. These holes are essential as entry points for a craniotome to cut the bone flap (craniotomy) or for direct access procedures such as placing intracranial pressure monitors, performing external ventricular drainage, or evacuating superficial hematomas.
The core advantage is the enhanced safety provided by the self-stopping clutch. This critical mechanism eliminates the catastrophic risk associated with manual drilling through the skull, where inconsistent bone thickness can lead to uncontrolled breakthrough and severe neurological injury. The T-06 provides controlled, safe, and reproducible bone penetration.
The drill's mechanics are governed by torque sensing. The self-stopping mechanism is calibrated to a specific threshold; when the resistance drops (indicating the drill has passed through the dense skull bone), the torque transferred to the bit falls below the clutch's engagement level, causing it to slip. This ensures the drill's rotational energy is not passed to the drill bit at the moment of breakthrough.
The surgeon selects the appropriate perforator burr, attaches it to the T-06, and places the tip firmly against the skull. The drill is activated at a consistent speed and pressure. The surgeon continues drilling until the automatic clutch engages and the rotation stops, confirming penetration of the inner table. The safe burr hole is then prepared for the next stage of the craniotomy.
The safety and precision offered by the T-06 directly contribute to minimizing intra-operative complications, particularly dural tears or brain contusions. Reduced operative trauma enhances the predictability of neurological recovery and minimizes the risk of complications like cerebrospinal fluid (CSF) leakage in the postoperative period.
The Self-stopping Craniotomy Drill T-06 is a cornerstone of safe neurosurgical practice. Its unparalleled safety mechanism, combined with high-speed performance, provides neurosurgeons with the reliability and confidence required during the delicate and non-negotiable step of accessing the cranial vault.
The mechanical clutch system is robust, but regular functional checks and periodic calibration are essential, often specified in the maintenance schedule, to ensure the self-stopping mechanism operates at the correct torque threshold.
No. The T-06 is high-speed and low-torque, optimized for thin, dense skull bone. It is not suitable for the high-torque, low-speed drilling required for the thick cortical bone of long bones.
It uses specialized, single-use cranial perforator burrs. These burrs are designed with a specific cutting geometry to be highly efficient and compatible with the self-stopping mechanism.
In high-reliability tools like the T-06, the primary self-stopping function is typically a highly refined mechanical clutch based on torque feedback, which is considered more reliable than purely electronic systems.
The high rotational speed ensures the cutting time is very brief, minimizing the duration of heat transfer to the bone. Additionally, sharp, single-use burrs and specialized motor cooling contribute to thermal management.
