Product Description
The set includes specialized high-leverage cutters designed to provide clean, burr-free cuts on titanium mesh walls, ensuring a perfect custom height without compromising the structural integrity of the implant.
The cage inserters feature a threaded or clamp-based locking system that holds the mesh securely during impaction, preventing accidental displacement or rotation during the seating process.
Includes a full range of trials that allow the surgeon to determine the exact vertebral gap height before cutting the final implant, ensuring optimal restoration of sagittal balance.
The impactors are designed with shock-absorbing handles and non-slip surfaces, providing the surgeon with a consistent feel and controlled force delivery during cage placement.
Indicated for use in anterior cervical corpectomy (ACCF) procedures. The set includes smaller-diameter trials and inserters optimized for the delicate anatomy of the C3-C7 levels.
Used to stabilize the mid-back following the removal of a vertebral body due to primary tumors or metastatic disease. The instruments provide the "long-reach" capability required for deep thoracic corridors.
Indicated for reconstructing the anterior column after high-energy burst fractures. The set features heavy-duty tools designed to manage the larger diameter cages required for the L1-L5 vertebrae.
Applied in focal reconstructions where structural bone graft or mesh is required to treat localized bone loss or structural instability caused by osteomyelitis or severe degenerative collapse.
| Product name | Titanium Mesh Cage Instrument Set |
| Material | TA3 |
| Diameter | / |
| Length | / |
| Application | / |
| Certificate | CE Certificate |
| Brand | TOOLMED |
| MOQ | 1 Pcs |
| OEM | Avaliable |
| Package | PE Inner Bag+Carton |
| Payment Method | T/T，Bank transfer, Western Union |
| Delivery Time | 5-7 days |
| Shipping | DHL EMS UPS TNT FEDEX |

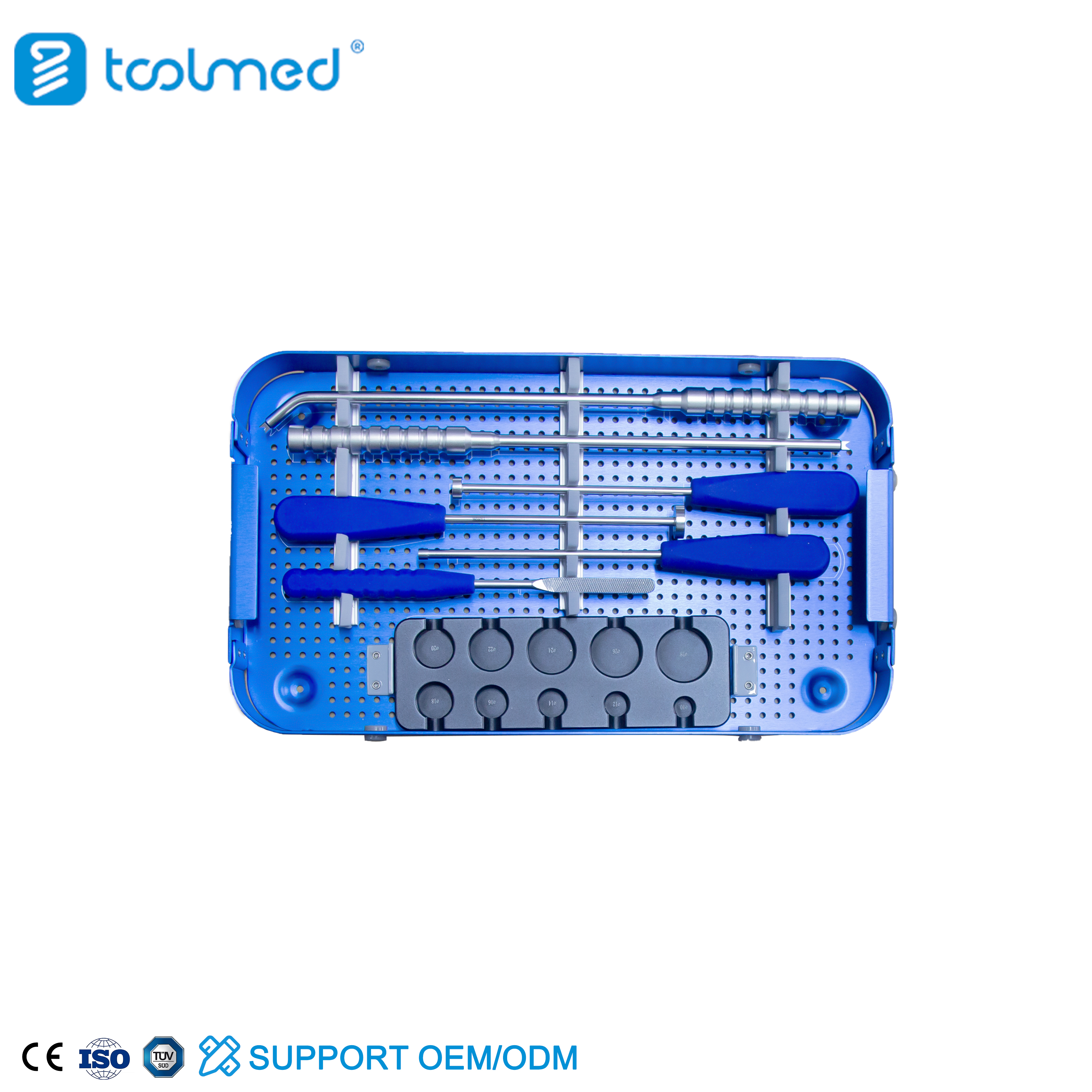

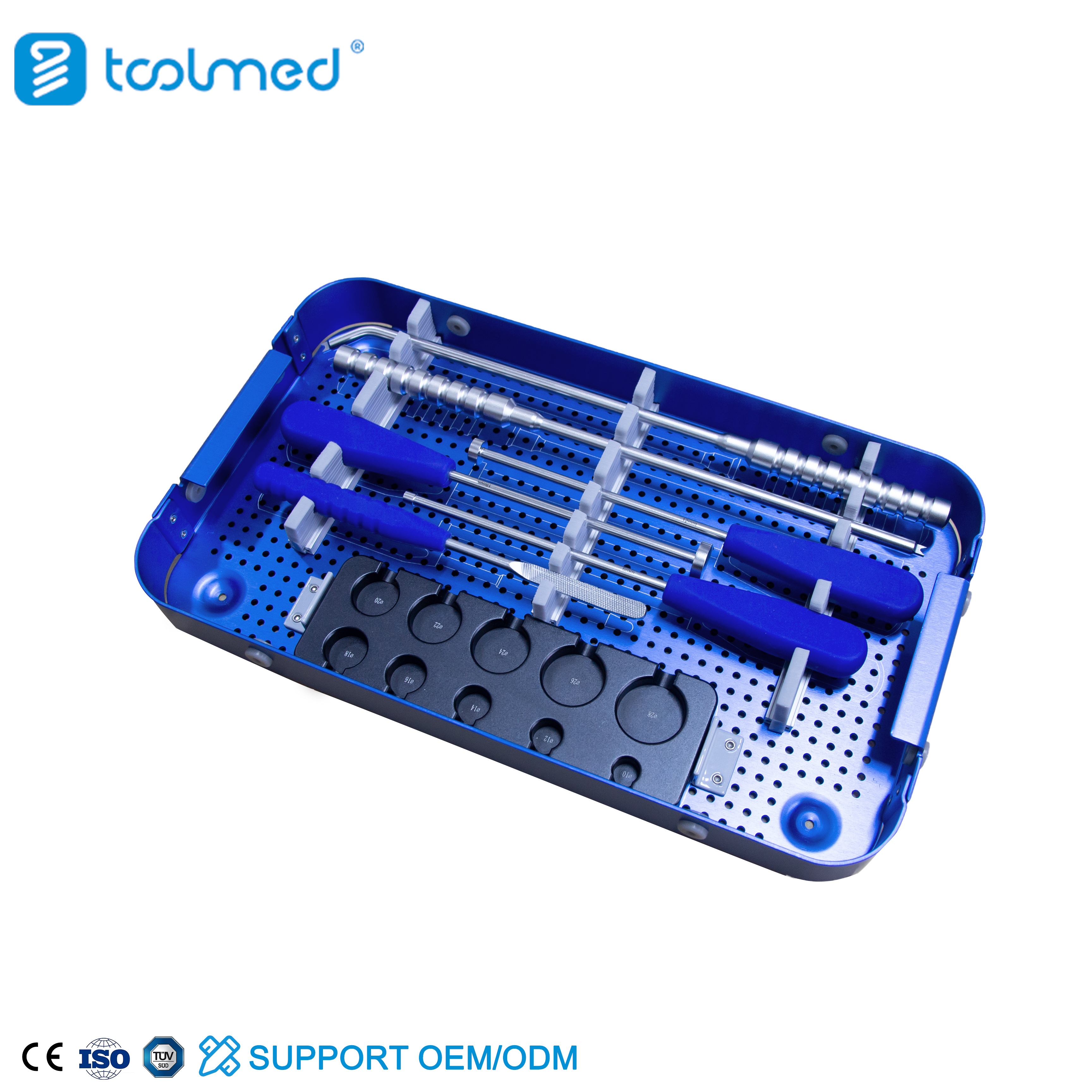

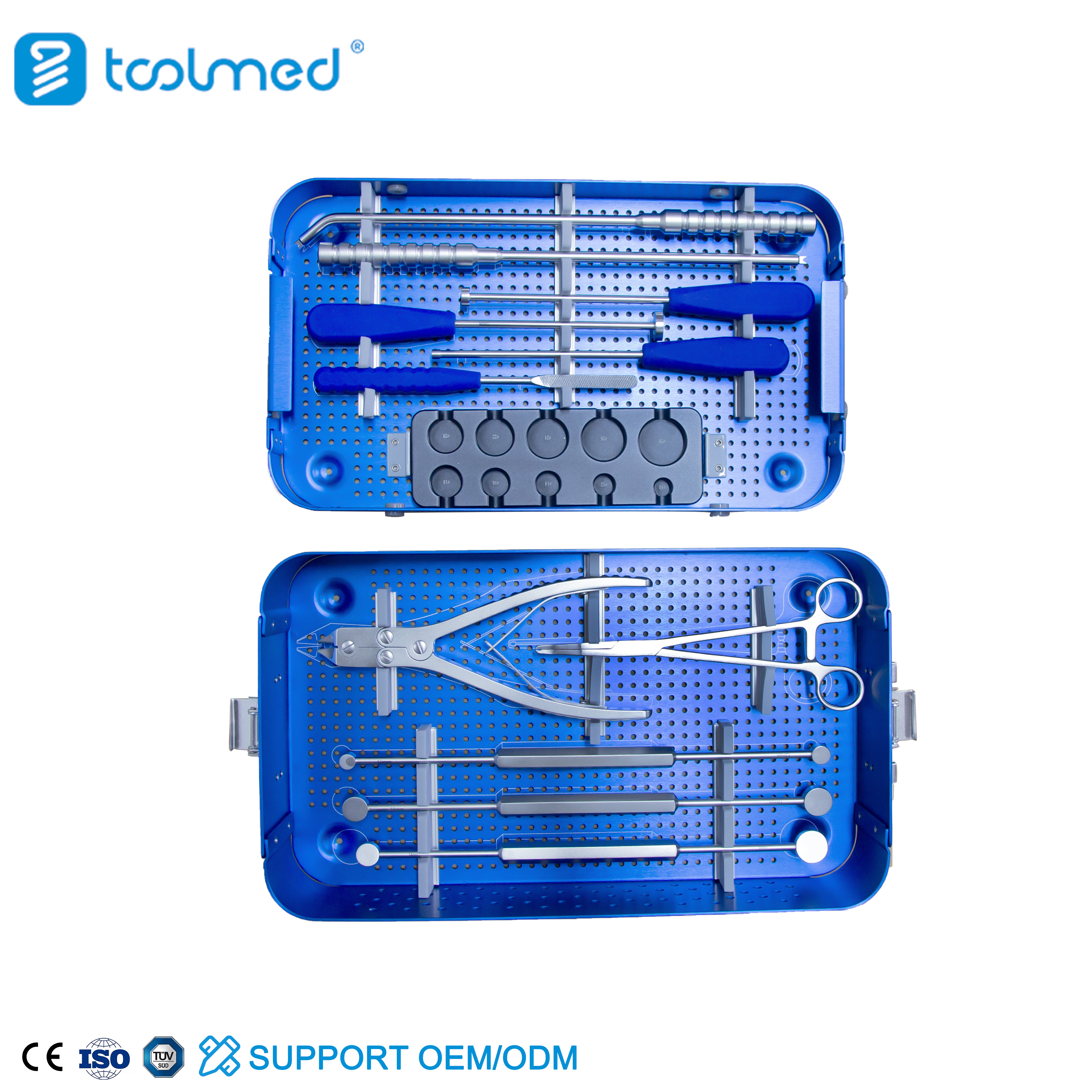

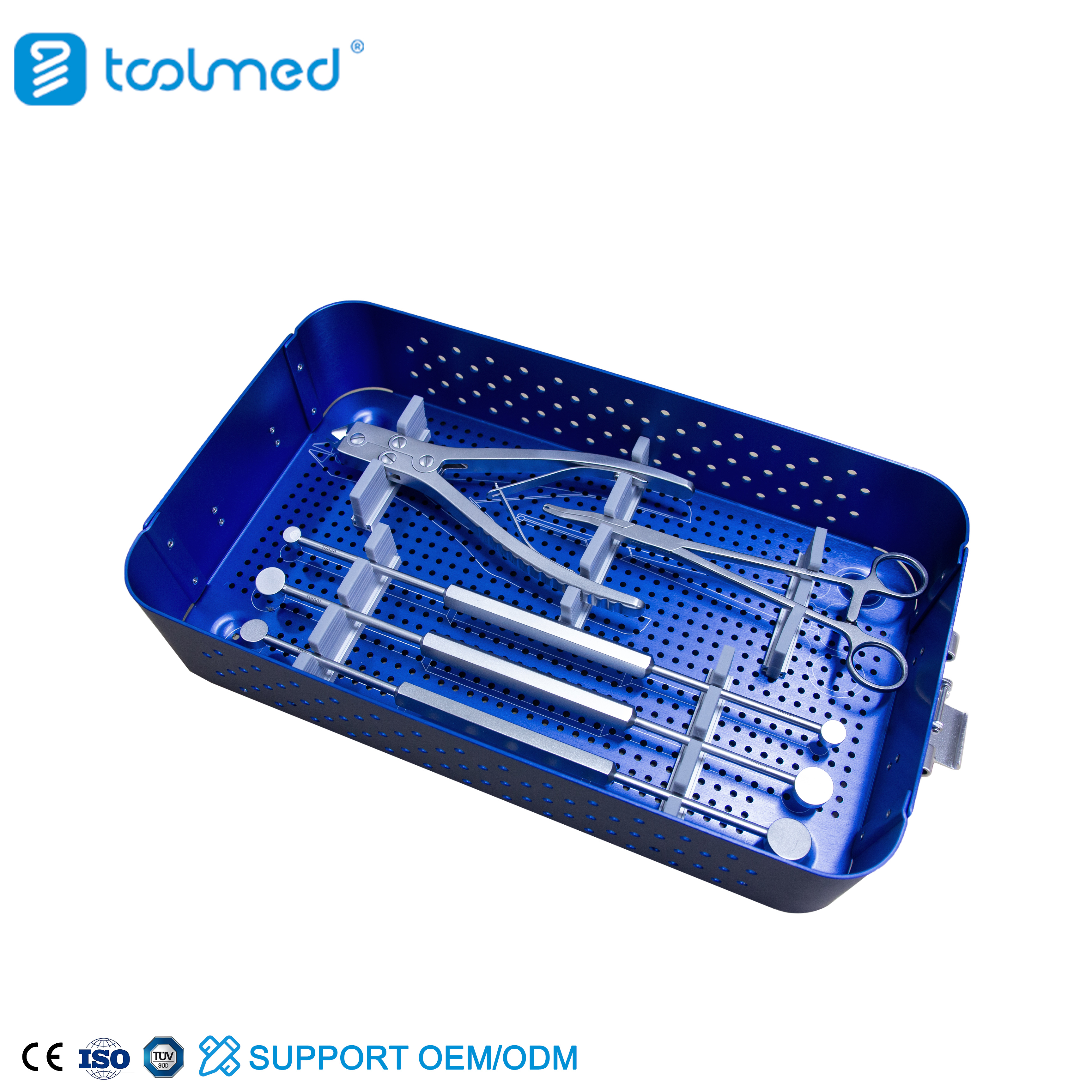

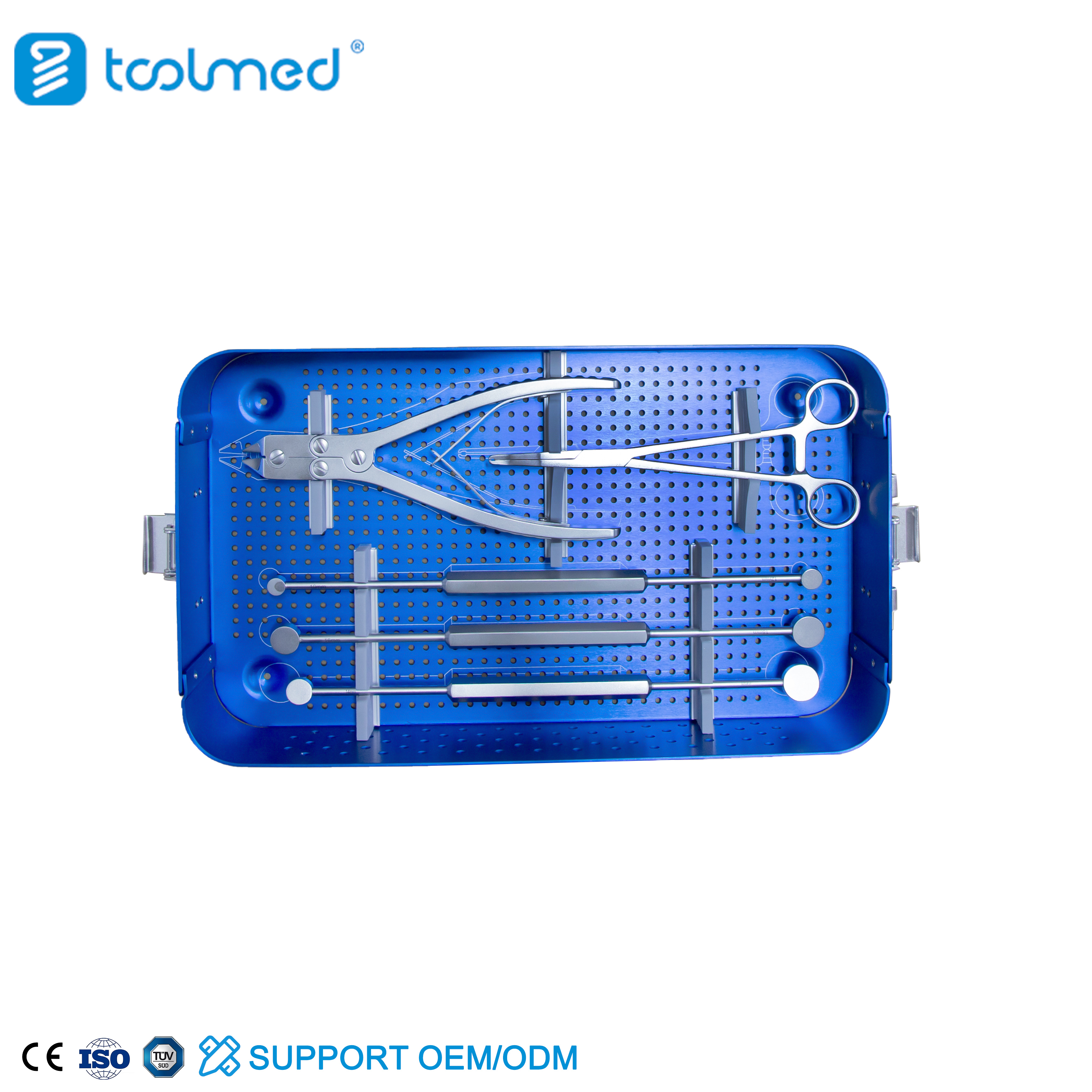

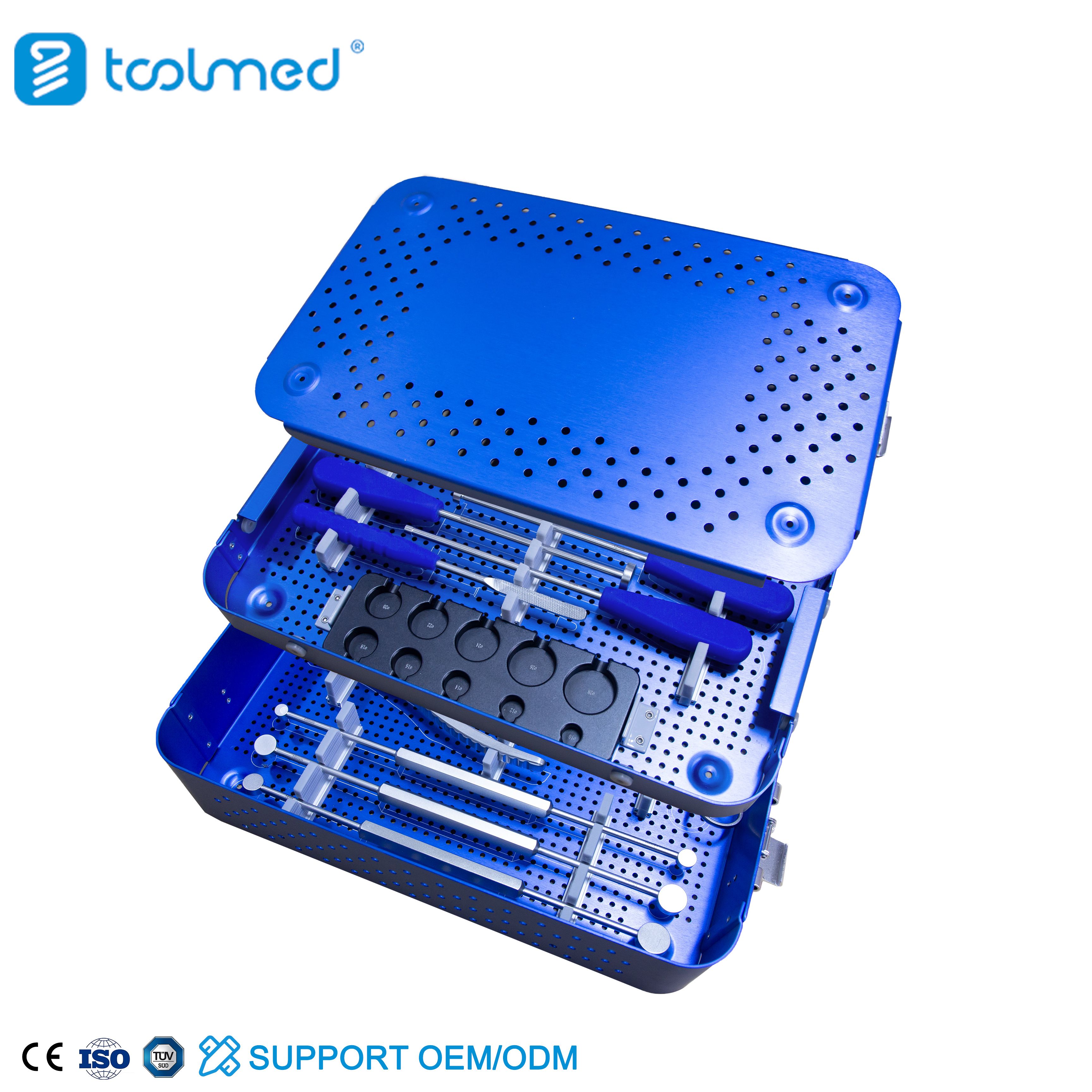

The Titanium Mesh Cage Instrument Set is a specialized surgical system designed for the preparation and placement of mesh-style spinal implants. These cages are hollow, cylindrical structures used to replace a removed vertebral body. The instrument set provides the "heavy-duty" tools required to customize these cages intraoperatively. Since the spinal gap varies from patient to patient, the set includes precision cutters to trim the mesh to the exact millimeter, trials to measure the height, and inserters to hold and guide the implant into its final anatomical position.
This instrument set is applied in anterior and anterolateral spinal surgeries, such as Corpectomy. It is a vital kit for managing catastrophic spinal trauma, where the vertebral body is too damaged to support weight, or in oncology cases where the bone must be removed to clear a tumor. The tools allow the surgeon to firmly pack the mesh with bone graft and impact it between the healthy vertebrae above and below, restoring the load-bearing capacity of the anterior spinal column.
The primary advantage of the TOOLMED set is the durability of the cutting instruments. Cutting through medical-grade titanium requires immense force; our cutters feature Tungsten Carbide reinforced edges that resist dulling and prevent metal splintering. Additionally, the inserters are designed for a "one-click" secure hold, which is critical when navigating deep surgical windows where visibility is limited. The ergonomic handles provide superior mechanical advantage, allowing for precise control with less manual effort.
Biomechanically, the instruments are designed to ensure that the mesh cage is seated with uniform contact against the vertebral endplates. The trials allow the surgeon to determine the tension required to restore spinal alignment without over-distracting the segment. The impactors are calibrated to deliver linear force, ensuring the cage edges "bite" into the cortical bone of the endplates, which provides immediate mechanical stability and prevents the cage from migrating while biological fusion occurs.
The technique begins with the total removal of the affected vertebral body. The surgeon uses the trials to measure the vertical gap. The titanium mesh is then trimmed to the measured height using the high-leverage cutters. After filling the mesh with bone graft, it is attached to the inserter and carefully guided into the gap. Final seating is achieved using the impactor and a surgical mallet. The security of the fit is verified under fluoroscopy to ensure correct sagittal alignment and endplate contact.
Postoperative care refers to the maintenance of the instrument set itself. After use, the cutters and inserters must be manually cleaned to remove all biological debris, especially from the serrated teeth of the inserters. The cutters should be checked for blade alignment and sharpness. After cleaning, they are placed in an ultrasonic bath followed by lubrication of the joints and then steam sterilized at 134°C. Regular inspection ensures the set remains functionally perfect for demanding reconstructive surgeries.
The TOOLMED Titanium Mesh Cage Instrument Set is a foundational tool for complex spinal reconstruction. By providing the precision required to customize and place anterior column support, it enables surgeons to successfully manage severe spinal defects with a high degree of confidence and mechanical success.
Yes, our heavy-duty mesh cutters are designed with a high-leverage jaw that can easily trim titanium mesh with diameters ranging from 10mm up to 25mm and various wall thicknesses.
Yes, the set includes specialized tamps and funnels designed to help the surgical team pack bone graft (autograft or allograft) tightly into the mesh before implantation.
Yes, the trials are color-coded to match the diameter of the corresponding mesh implants, making it easy for the scrub technician to provide the correct size quickly.
Our cutters are designed with a specific blade geometry that applies force evenly around the circumference of the mesh, ensuring a straight cut without "crushing" the cylindrical shape.
The inserter tips are made from hardened 17-4PH stainless steel to provide a non-slip, non-marring grip on the titanium mesh during the impaction process.
